Standard | - IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3az
|

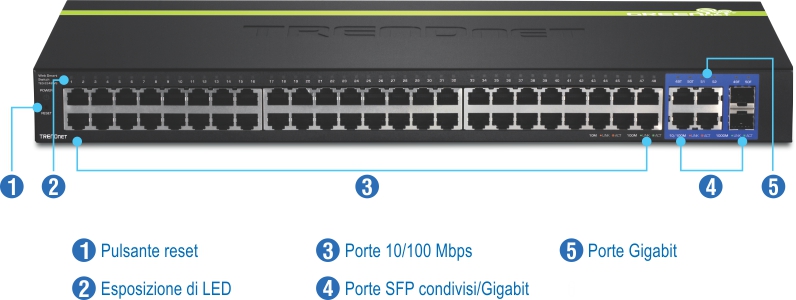

Interfacce dispositivo | - 48 porte 10/100 Mbps (porte 1-48)
- 4 porte Gigabit (porte 49-52)
- 2 slot SFP condivisi (con le porte 49-50)
- Indicatori LED
- Tasto reset
|
Velocità trasferimento dati | - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
|
Prestazioni | - Matrice switch: 17,6 Gbps
- Buffer ram: 1,5 MB
- Tabella indirizzi MAC: 16 K voci
- HOL blocking prevention
- Velocità inoltro pacchetti: 13,1 Mpps (dimensioni pacchetti 64-byte)
|
Gestione | - HTTP/HTTPS (SSL v2/3 TLS) GUI basata su Web
- SNMP v1, v2c, v3
- RMON v1
- Indirizzi MAC unicast statici
- Abilita/disabilita risparmio energetico 802.3az
- LLDP
- Virtual cable test
- IPv6: IPv6 neighbor discovery, IP statico IPv6, DHCPv6, auto configurazione
|
MIB | - MIB II RFC 1213
- Bridge MIB RFC 1493
- Bridge MIB extension RFC 2674
- SNMPv2 MIB RFC 1907
- Ethernet interface MIB RFC 1643
- Ethernet –like MIB RFC 2863
- Interface group MIB RFC 2233
- MIB traps convention RFC 1215
- RMON MIB RFC 1757, RFC 2819
- 802.1p MIB RFC 2674
- RADIUS client authentication MIB RFC 2618
- LLDP-MIB IEEE 802.1ab
- Ping MIB RFC 2925, RFC 4560
|
Spanning tree | - IEEE 802.1D STP (protocollo spanning tree)
- IEEE 802.1w RSTP (protocollo rapid spanning tree)
- IEEE 802.1s MSTP (protocollo multiple spanning tree)
|
Link aggregation | - Static link aggregation
- 802.3ad Dynamic LACP
|
Quality of service (QoS) | - 802.1p class of service (CoS)
- DSCP (Differentiated Services Code Point)
- Controllo di larghezza di banda per porta
- Queue scheduling: Strict priority, weighted round robin (WRR)
|
VLAN | - Definizione VLAN di gestione multiple
- Asymmetric VLAN
- 802.1Q Tagged VLAN
- Dynamic GVRP
- Fino a 256 gruppi VLAN, intervallo ID 1-4094
- VLAN privata (porte protette)
- VLAN voce (10 OUI definiti dall'utente)
|
Multicast | - IGMP snooping v1, v2, v3 (per VLAN)
- Indirizzi multicast statici
- Fino a 256 voci multicast
|
Port mirror | - RX, TX, od entrambi
- Relazione una ad una
- Relazione molte ad una
|
Controllo di accesso | - Controllo di accesso in rete basato su porta 802.1X, RADIUS, TACACS+
- Autenticazione locale di utente Dial In
- DHCP snooping (per VLAN)
- Protezione da loopback
- Protezione da duplicazione di indirizzo
- Denial of service (DoS)
|
ACL IPv4 L2-L4 & IPv6 | - MAC address
- VLAN ID
- Ether type (soltanto IPv4)
- Protocolli IP 0 - 255
- Porte TCP/UDP 1 - 65535
- 802.1p
- DSCP (soltanto IPv4)
- IPv6 address (soltanto IPv6)
|
Compatibilità | - Utility software opzionale: Windows® 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
|
Caratteristiche speciali | - IPv6
- Risparmio energetico 802.3az
- Montaggio a rack
|
Alimentazione | - Ingresso: 100 - 240 V AC, 50/60 Hz, alimentatore interno
- Consumo: 18 Watt (max.)
|
Ventilatori/rumore | |
MTBF | |
Temperatura di esercizio | |
Umidità di esercizio | - Massimo 90% senza-condensa
|
Dimensioni | - 440 x 210 x 44,45 mm (17,3 x 8.27 x 1,75 in.)
- Montabile a Rack, altezza 1U
|
Peso | |
Certificazioni | |
Garanzia | |
