4-Port Fast Ethernet Firewall Router

TW100-BRF214   (Version v1.0R)

  • 4 x 10/100Mbps Auto-MDIX LAN ports
  • Easy installation and setup
  • Highly configurable firewall
  • Advanced QoS, DoS protection, and access filtering

DISCONTINUED PRODUCT

The TW100-BRF214 (Version v1.0R) has been discontinued. It has been replaced by the TW100-S4W1CA (Version v2.1R). For a list of discontinued products, click here.

Firmware

Firmware

Firmware Version: 1.00.04
Release Date: 10/2013
Notes:

  1. Fixed graphical user interface issues adding, modifying, and deleting entries in the Virtual Server, MAC Control, and URL filter sections.

Filename: FW_TW100-BRF214_v1(1.00.04).zip
SHA-1 Checksum: 208337B2B4FF05A20F9CF041715B392B2314FD6E
Date: 7/28/2017
File Size: 548.93 KB
Download

Datasheet

Datasheet (English)
Filename: en_spec_TW100-BRF214(v1.0R).pdf
Date: 5/23/2012
File Size: 766.96 KB
Download Email
Datasheet (Français)
Filename: fr_spec_TW100-BRF214(v1.0R).pdf
Date: 5/23/2012
File Size: 781.11 KB
Download Email
Datasheet (Deutsch)
Filename: ge_spec_TW100-BRF214(v1.0R).pdf
Date: 5/23/2012
File Size: 785.66 KB
Download Email
Datasheet (Español)
Filename: sp_spec_TW100-BRF214(v1.0R).pdf
Date: 5/23/2012
File Size: 760.69 KB
Download Email
Datasheet (Pусский)
Filename: ru_spec_TW100-BRF214(v1.0R).pdf
Date: 5/23/2012
File Size: 764.49 KB
Download Email
Datasheet (Italiano)
Filename: it_spec_TW100-BRF214(v1.0R).pdf
Date: 5/23/2012
File Size: 677.00 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TW100-BRF214(V1.0R).pdf
Date: 5/3/2012
File Size: 1.72 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TW100-BRF214(V1.0R).pdf
Date: 5/3/2012
File Size: 1.67 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TW100-BRF214(V1.0R).pdf
Date: 5/3/2012
File Size: 1.72 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TW100-BRF214(V1.0R).pdf
Date: 5/3/2012
File Size: 3.24 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TW100-BRF214(V1.0R).pdf
Date: 5/3/2012
File Size: 1.72 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TW100-BRF214(V1.0R).pdf
Date: 5/3/2012
File Size: 2.30 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TW100-BRF214(V1.0R).pdf
Date: 5/3/2012
File Size: 1.70 MB
Download
Quick Installation Guide (Україна)
Filename: Ukrainian_QIG_TW100-BRF214(V1.0R).pdf
Date: 7/8/2013
File Size: 1.77 MB
Download

User's Guide

User's Guide
Filename: UG_TW100-BRF214(v1).pdf
Date: 10/3/2013
File Size: 1.83 MB
Download

Product Images

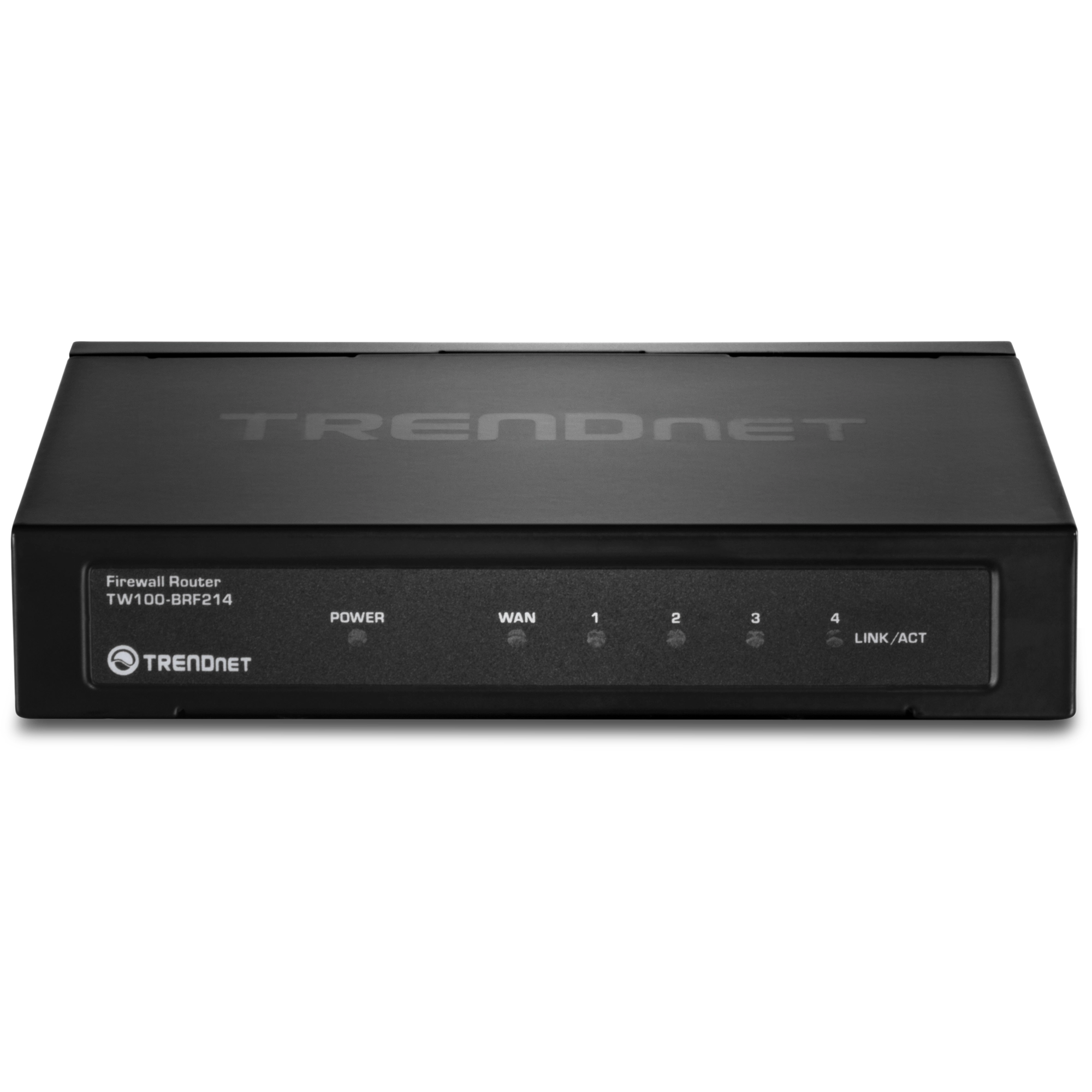

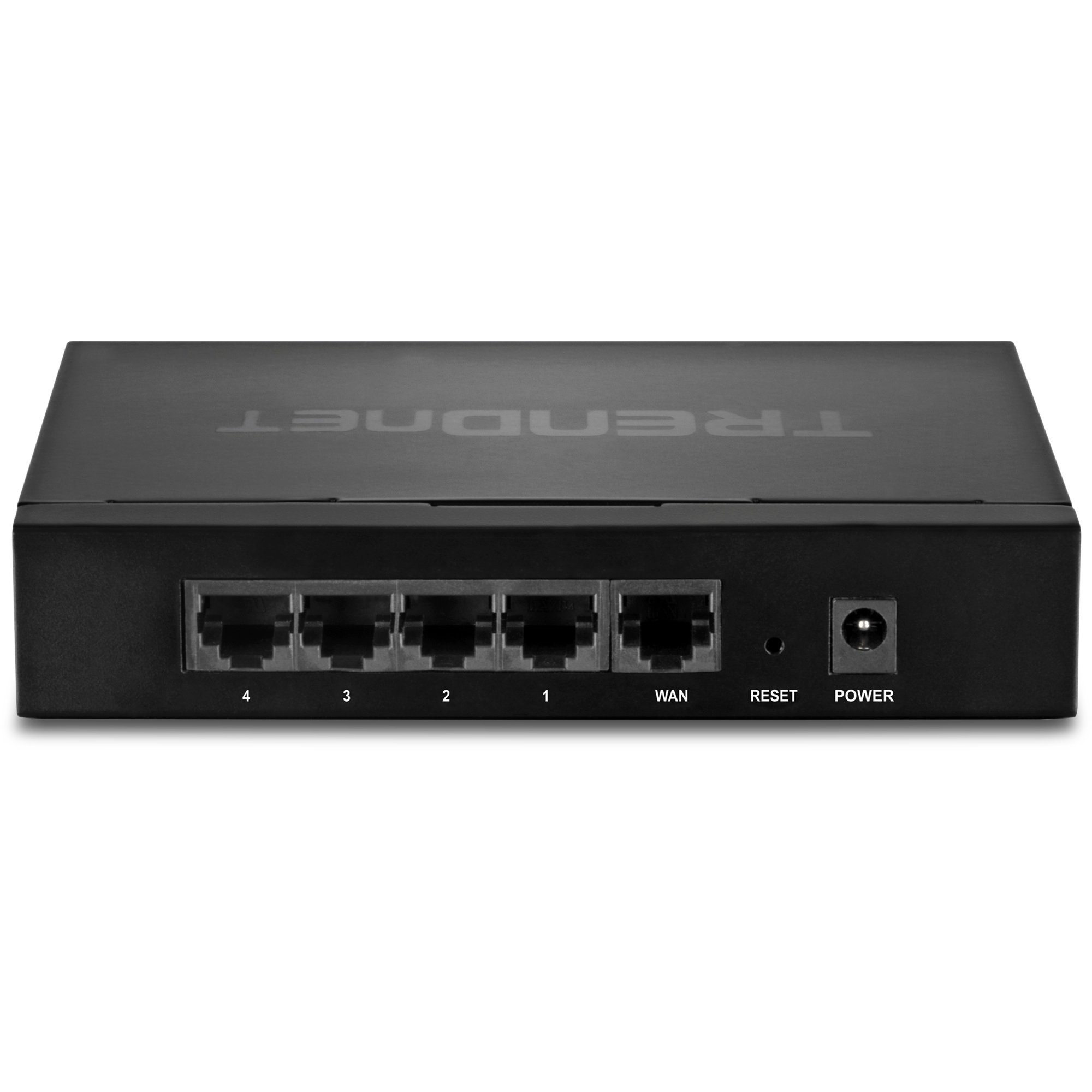

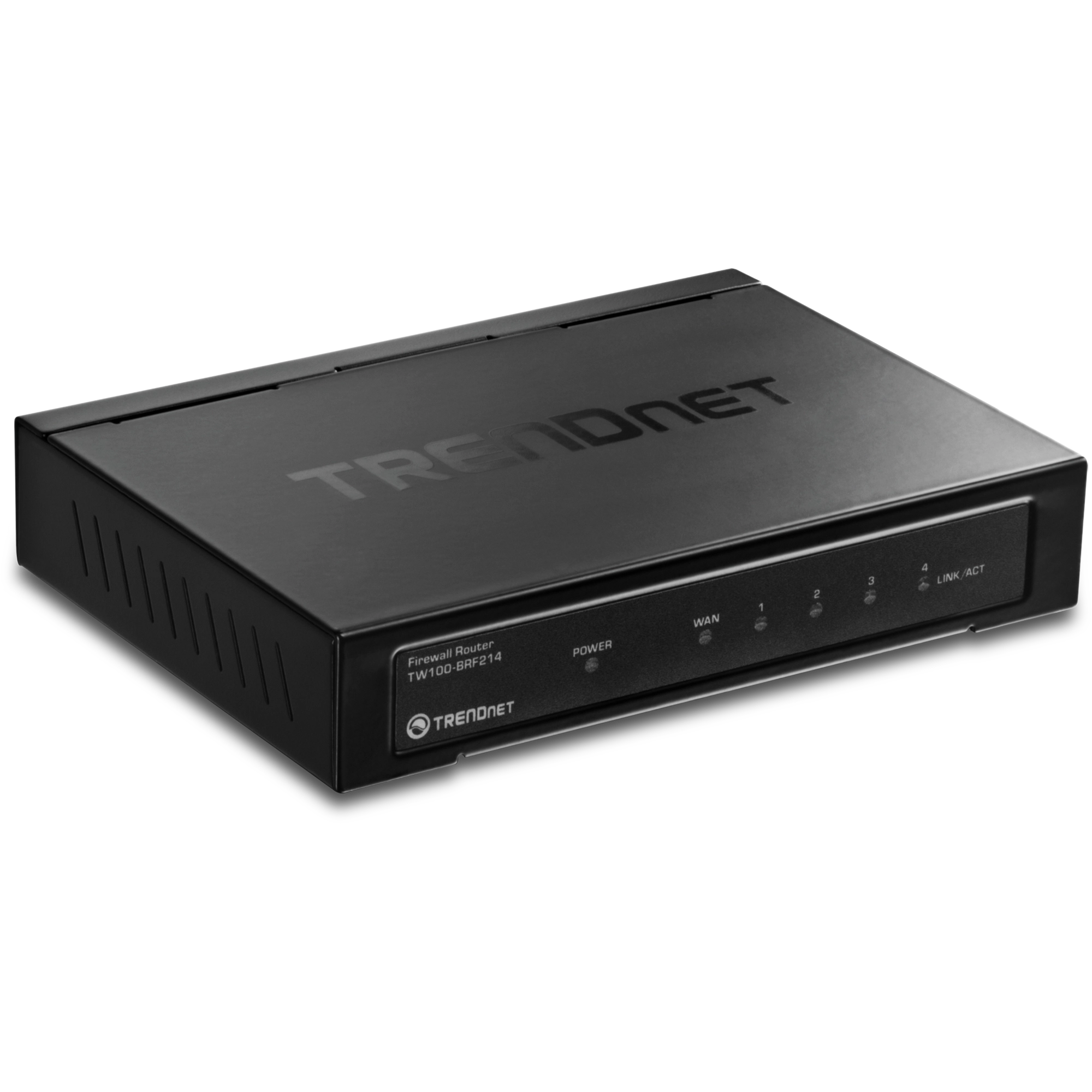

TW100-BRF214 Product Photo (JPEG Image 1)
JPEG Image
File Size: : 191.97 KB
Date: : 5/3/2012
Download
TW100-BRF214 Product Photo (JPEG Image 2)
JPEG Image
File Size: : 174.90 KB
Date: : 5/3/2012
Download
TW100-BRF214 Product Photo (JPEG Image 3)
JPEG Image
File Size: : 174.31 KB
Date: : 5/3/2012
Download
TW100-BRF214 Product Photo (TIFF Image 4)
TIFF Image
File Size: : 2.47 MB
Date: : 5/3/2012
Download
TW100-BRF214 Product Photo (TIFF Image 5)
TIFF Image
File Size: : 2.54 MB
Date: : 5/3/2012
Download
TW100-BRF214 Product Photo (JPEG Image 6)
JPEG Image
File Size: : 2.53 MB
Date: : 5/3/2012
Download
ROHS compliant Non-Disposable
Hardware
Standards
  • IEEE 802.3 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX Fast Ethernet
WAN
  • 1 x 10/100Mbps Auto-MDIX port (Internet)
LAN
  • 4 x 10/100Mbps Auto-MDIX ports
Cabling
  • Ethernet: Cat. 5 up to 100 m
  • Fast Ethernet: Cat. 5, 5e, 6 up to 100 m
Data Transfer Rate
  • Ethernet: 10Mbps/20Mbps (Half-Duplex/Full-Duplex)
  • Fast Ethernet: 100Mbps/200Mbps (Half-Duplex/Full-Duplex)
LED Indicators
  • Power, WAN, Link/Act, LAN ports 1-4
Dimension
  • 148 x 105 x 29 mm (5.8 x 4.1 x 1.1 in)
Weight
  • 437 g (15.4 oz.)
Temperature
  • Operating: 0ﾟ C ~ 40ﾟC (32 ﾟ F ~ 104ﾟF)
  • Storage: -10ﾟ C ~ 70ﾟC (14ﾟ F ~ 158ﾟF)
Humidity
  • Max. 90% (non-condensing)
Power
  • Input: 100~240V AC, 50~60Hz
  • Output: 5V DC, 1A
Power Consumption
  • 4.1 W (max)
Certifications
  • CE, FCC
Router
Connection Type
  • Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP
Network Protocols
  • TCP/IP, NAT/SPI, UDP, ICMP, PPPoE, UPnP, HTTP, DHCP, PAP, CHAP, DNS, DDNS, ARP, IGMP Snooping, NAPT, Multi-DMZ, DSCP
Firewall
  • NAT/SPI
  • DoS (Denial of Service) Prevention Options
  • ARP Binding & ARP Spoofing Prevention
  • MAC Address Filter (32 entries)
  • URL/Keyword Filter (32 entries)
  • Client Filtering w/Scheduling (20 entries)
  • Port Trigger/Special Applications (10 entries)
  • Virtual Servers (40 entries)
  • Port Mapping (10 entries)
  • DMZ (6 entries)
Application Layer Gateway (ALG)
  • Non-Standard FTP Port
  • Netmeeting/H.323
  • IPSec, L2TP, PPTP pass-through (Up to 100 VPN sessions)
QoS
  • Port-based bandwidth control (Kbps) and DSCP
Routing
  • Static Routes (20 entries) & Dynamic RIP v1/2
Management
  • Web browser configuration, Firmware upgrade through web browser, Save/Restore configuration, Ping tool, Internal Log, DNS Lookup

PACKAGE CONTENTS
  • TW100-BRF214
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m / 5 ft.)
  • Power adapter (5V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
