8-port 10/100Mbps Auto-MDIX Fast Ethernet Mini Switch

TE100-S8P   (Version D1)

   Select Another Version

DISCONTINUED PRODUCT

The TE100-S8P (Version D1) has been discontinued. It has been replaced by the TEG-S80g (Version v4.1R). For a list of discontinued products, click here.
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet. ANSI/IEEE 802.3 NWay auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD

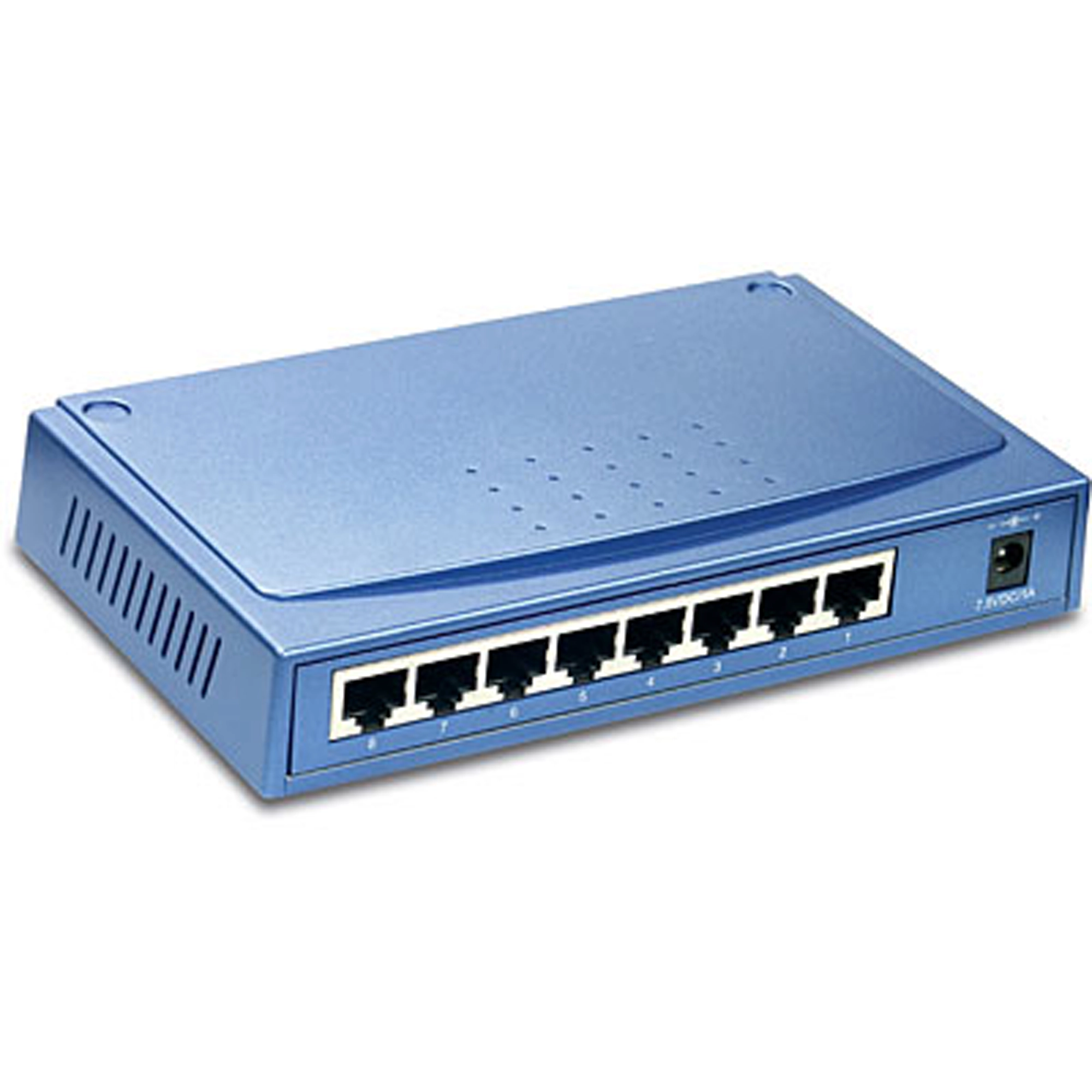

Connectors:
  • 8 UTP/STP RJ-45 Auto-MDIX
Network Media:
  • 10Base-TUTP: UTP EIA/TIA-568 CAT 3, 4, 5 (100 meters max.)
  • 100Base-TX: EIA/TIA-568 CAT 5 (100 meters max.)
Packet Forwarding Rate:
  • 10Base-T: 14,880pps per port (half-duplex)
  • 100Base-TX: 148,800pps per port (half-duplex)
Topology:
  • Star

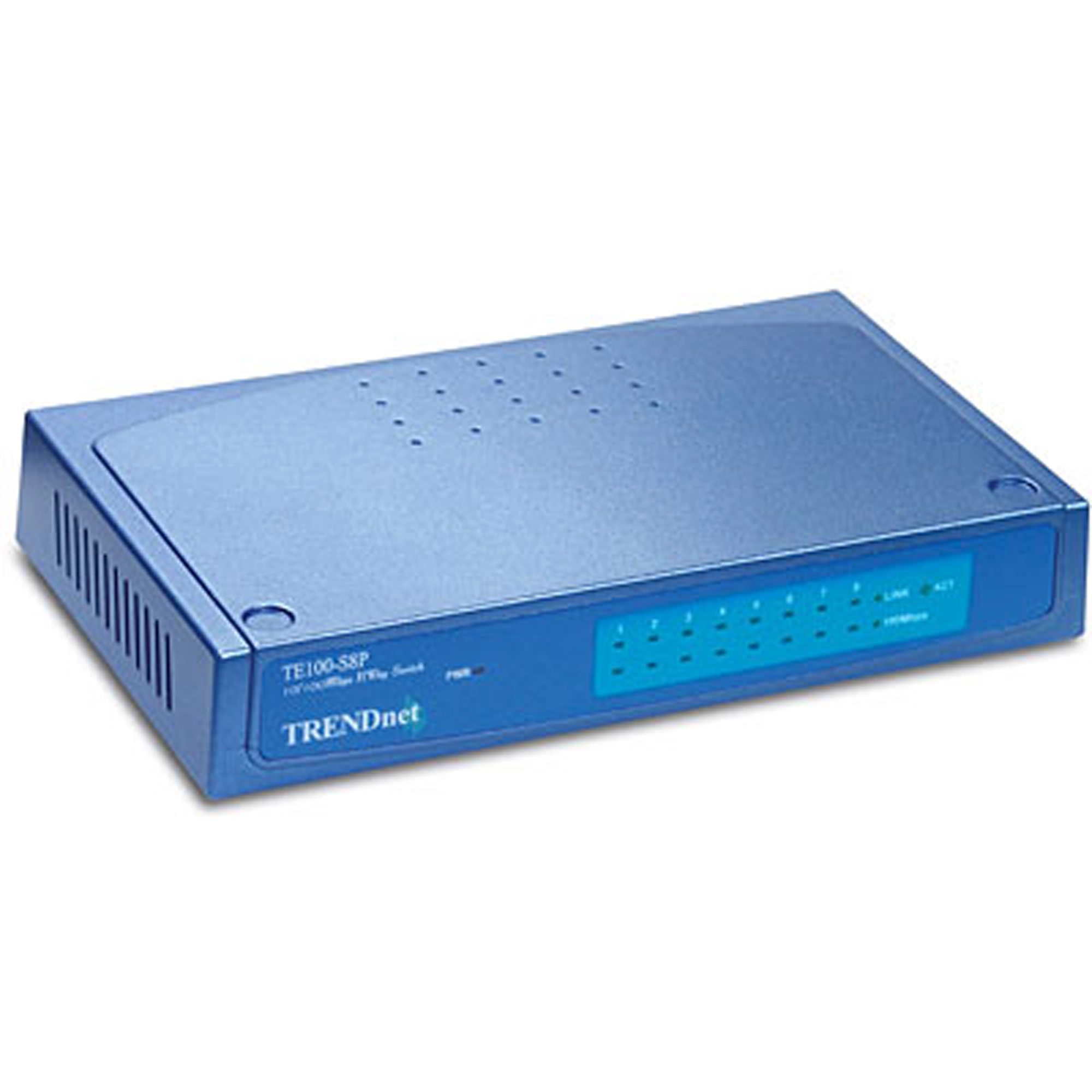

Diagnostic LEDs:
  • Power, Link/Activity, 100Mbps
Power:
  • External power supply, 7.5V, 1A. 4 Watts max.
Dimensions:
  • 171 x 99.8 x 31 mm (6.73 x 3.92 x 1.22 inches)
Weight:
  • Appr. 269 g (9.5 oz.)
Temperature:
  • Operating 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • Operating: 10 % ~ 90 % RH
  • Storage: 5 % ~ 90 % RH
Certifications:
  • FCC, CE, VCCI-B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
