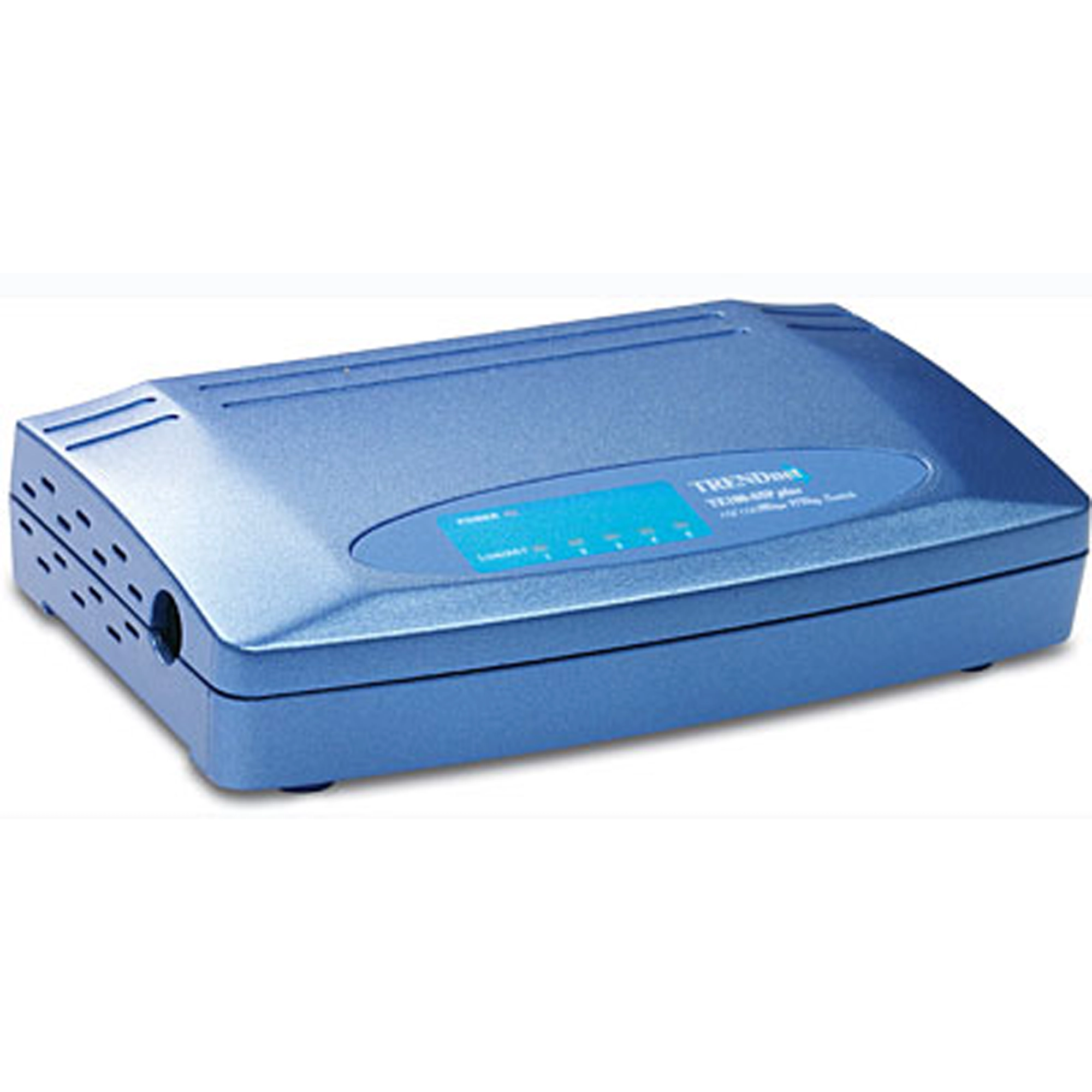

5-port 10/100Mbps Auto-MDIX Fast Ethernet Mini Switch

TE100-S5Pplus   (Version A1)

   Select Another Version

DISCONTINUED PRODUCT

The TE100-S5Pplus (Version A1) has been discontinued. It has been replaced by the TE100-S5 (Version v3.2R). For a list of discontinued products, click here.
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet. ANSI/IEEE 802.3 NWay auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:

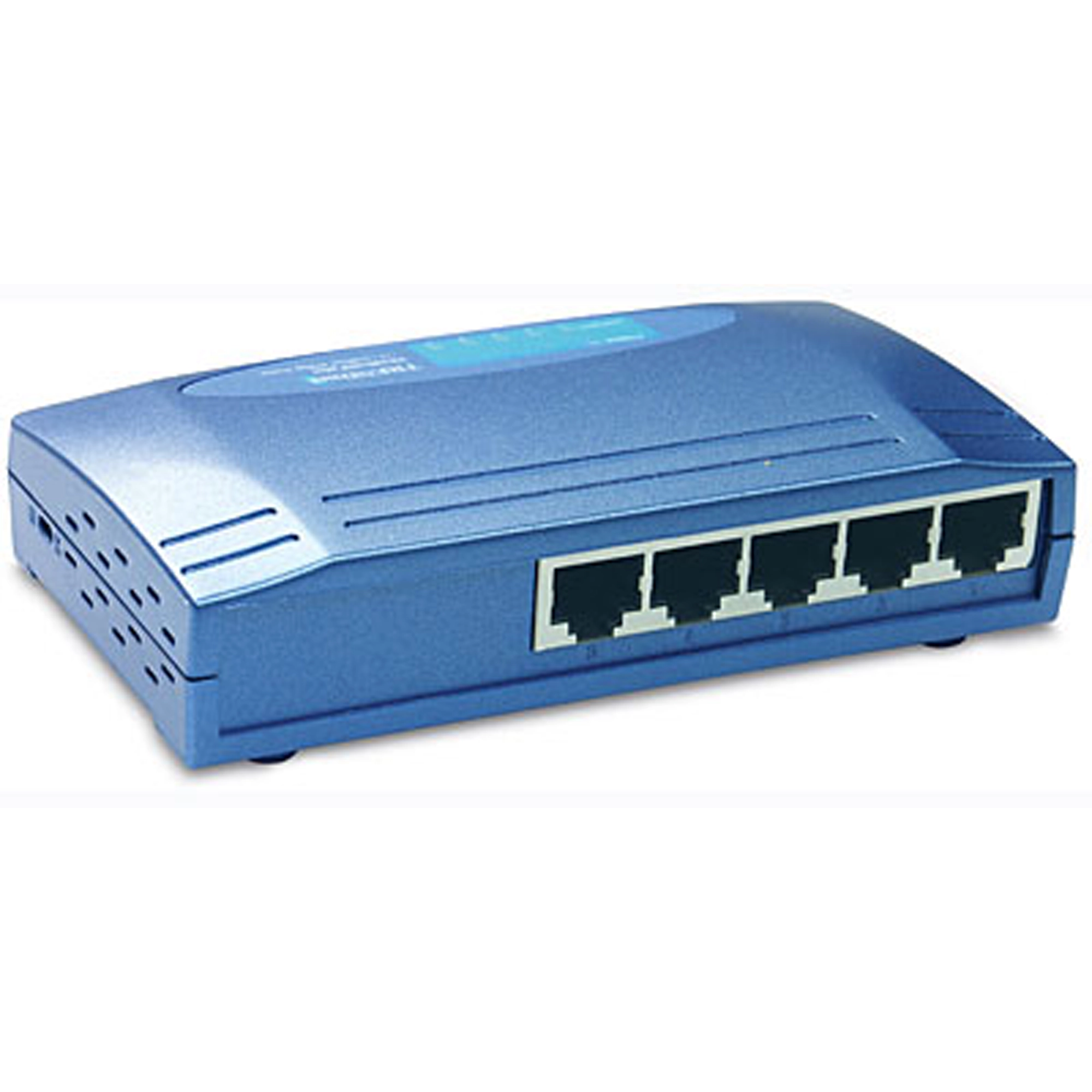

  • 5 UTP/STP RJ-45 Auto-MDIX
Network Media:
  • 10Mbps: UTP/STP Cat. 3, 4, 5 EIA/TIA-568, 100 ohm, 100 meters max.
  • 100Mbps: UTP/STP Cat. 5 EIA/TIA-568, 100 ohm, 100 meters max.
Data Transfer Rate:
  • Ethernet: 10Mbps (half-duplex); 20Mbps (full-duplex)
  • Fast Ethernet: 100Mbps (half-duplex); 200Mbps (full-duplex)
Topology:
  • Star
Diagnostic LEDs:
  • Power, Link/Activity
Power:
  • External power supply, 7.5V, 1A. 2.5 Watts (max.)
Dimensions:
  • 125 x 65 x 30 mm (4.9 x 2.55 x 1.1 inches)
Weight:
  • 117 g (4 oz.)
Temperature:
  • Operating Temp: 0° ~ 40° C (32° ~ 104° F)
  • Storage Temp: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • Operating: 10 % ~ 90 % RH
  • Storage: 5 % ~ 90 % RH
Certifications:
  • FCC, CE, VCCI-B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
