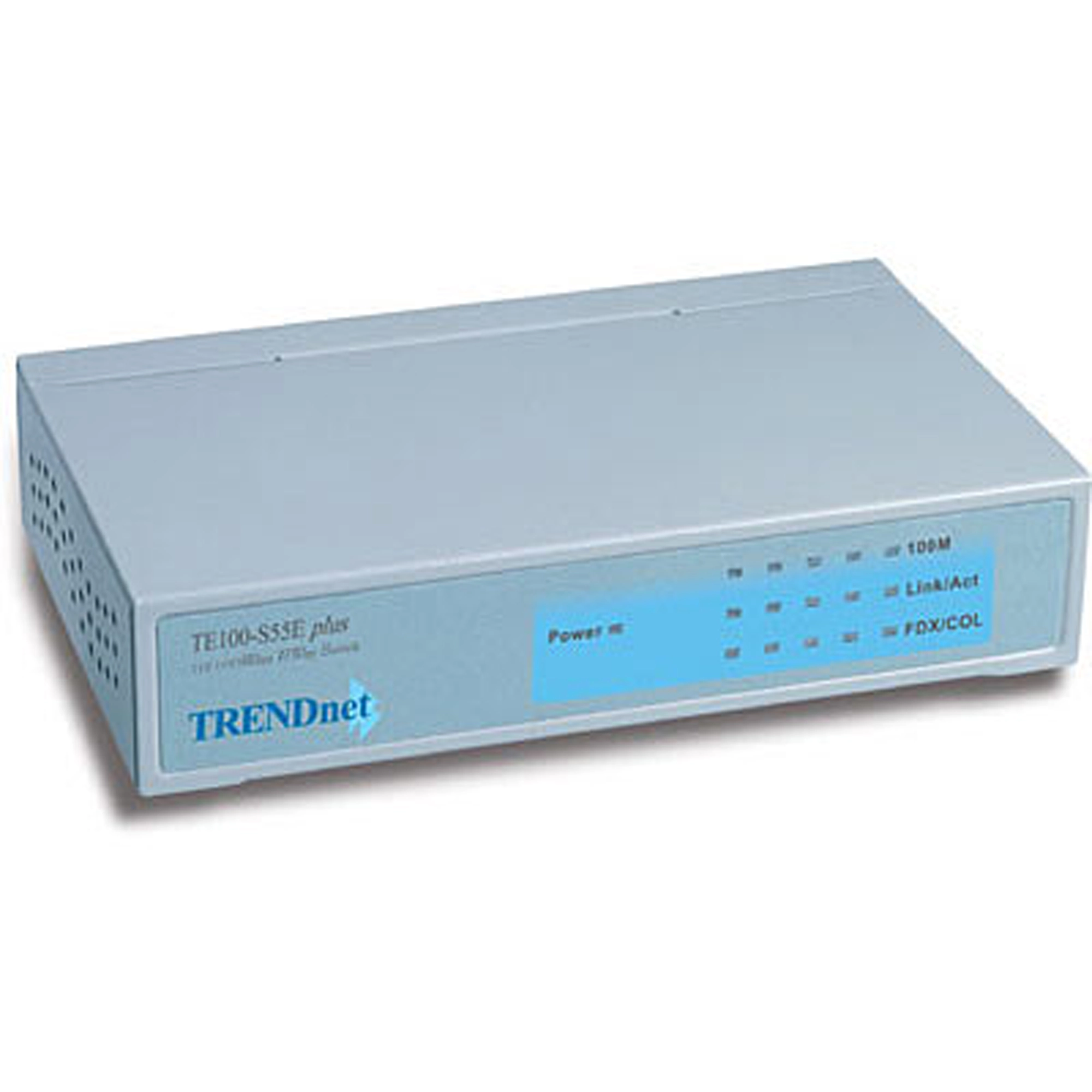

5-Port 10/100Mbps N-Way Mini Ethernet Switch

TE100-S55Eplus   (Version 1.0R)

   Select Another Version

DISCONTINUED PRODUCT

The TE100-S55Eplus (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: TE100-S55Eplus_v1.pdf
Date: 5/2/2013
File Size: 186.01 KB
Download Email
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet. ANSI/IEEE 802.3µ N-way auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 5 UTP/STP RJ-45
Network Media:
  • UTP CAT 3, 4, 5 (100m) for 10Base-T EIA/TIA-568 100-ohm STP (100m) for 10Base-T/100Base-TX UTP CAT 5 (100m) for 100Base-TX
Packet Forwarding Rate:
  • 10Base-T: 14,880 pps per port (half-duplex)
  • 100Base-TX: 148,800 pps per port (half-duplex)
Topology:
  • Star
Diagnostic LEDs:
  • Power, Link/Activity, Collision/Full-duplex, and 100Mbps
Power:
  • External power supply (Max. power consumption: 7.5 Watts)
Dimensions:
  • 116 x 70 x 25 mm (4.57 x 2.8 x 0.98 inches)
Weight:
  • 255 g (9 oz.)
Temperature:
  • Operating Temp: 0° to 50° C (32° F to 122° F)
  • Storage Temp: -10° to 70° C (14° F to 158° F)
Humidity:
  • Operating Humidity: 10 % to 90 % RH
  • Storage Humidity: 5 % to 90 % RH
Certifications:
  • FCC, UL, CE, VCCI

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
