5-Port 10/100Mbps Switch

TE100-S55Eplus   (Version F1.0R)

   Select Another Version
  • Stackable sturdy metal enclosure
  • Build a reliable Fast Ethernet network in minutes
  • Easy Plug and Play installation
  • Auto-Negotiation optimizes networking speeds for all 5 ports

DISCONTINUED PRODUCT

The TE100-S55Eplus (Version F1.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TE100-S55E+(F1).pdf
Date: 11/13/2008
File Size: 295.56 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TE100-S55E+(F1).pdf
Date: 11/13/2008
File Size: 299.90 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TE100-S55E+(F1).pdf
Date: 11/13/2008
File Size: 300.38 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TE100-S55E+(F1).pdf
Date: 11/13/2008
File Size: 299.97 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TE100-S55E+(F1).pdf
Date: 11/13/2008
File Size: 926.26 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 1/9/2007
File Size: 558.11 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 1/9/2007
File Size: 559.50 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 1/9/2007
File Size: 558.47 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 1/9/2007
File Size: 558.94 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 1/9/2007
File Size: 617.10 KB
Download
Quick Installation Guide (Estonia)
Filename: EST_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 1/9/2007
File Size: 461.63 KB
Download
Quick Installation Guide (Polski)
Filename: POL_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 5/22/2007
File Size: 710.54 KB
Download
Quick Installation Guide (Român)
Filename: RO_QIG_TE100-S55Eplus_S88Eplus_S16Eplus.pdf
Date: 1/9/2007
File Size: 570.95 KB
Download

Product Images

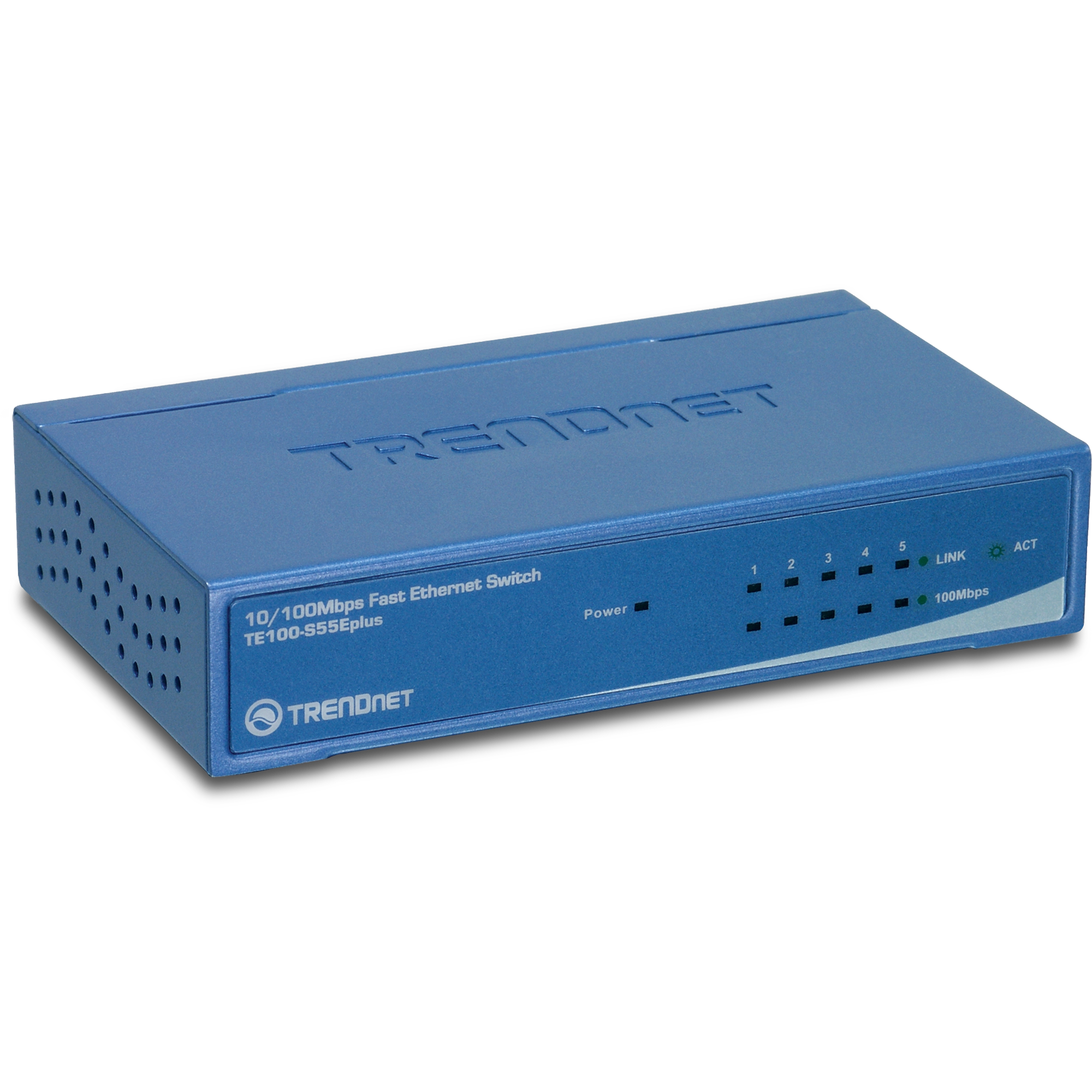

TE100-S55Eplus Product Photo (JPEG Image 1)
JPEG Image
File Size: : 415.46 KB
Date: : 9/14/2006
Download

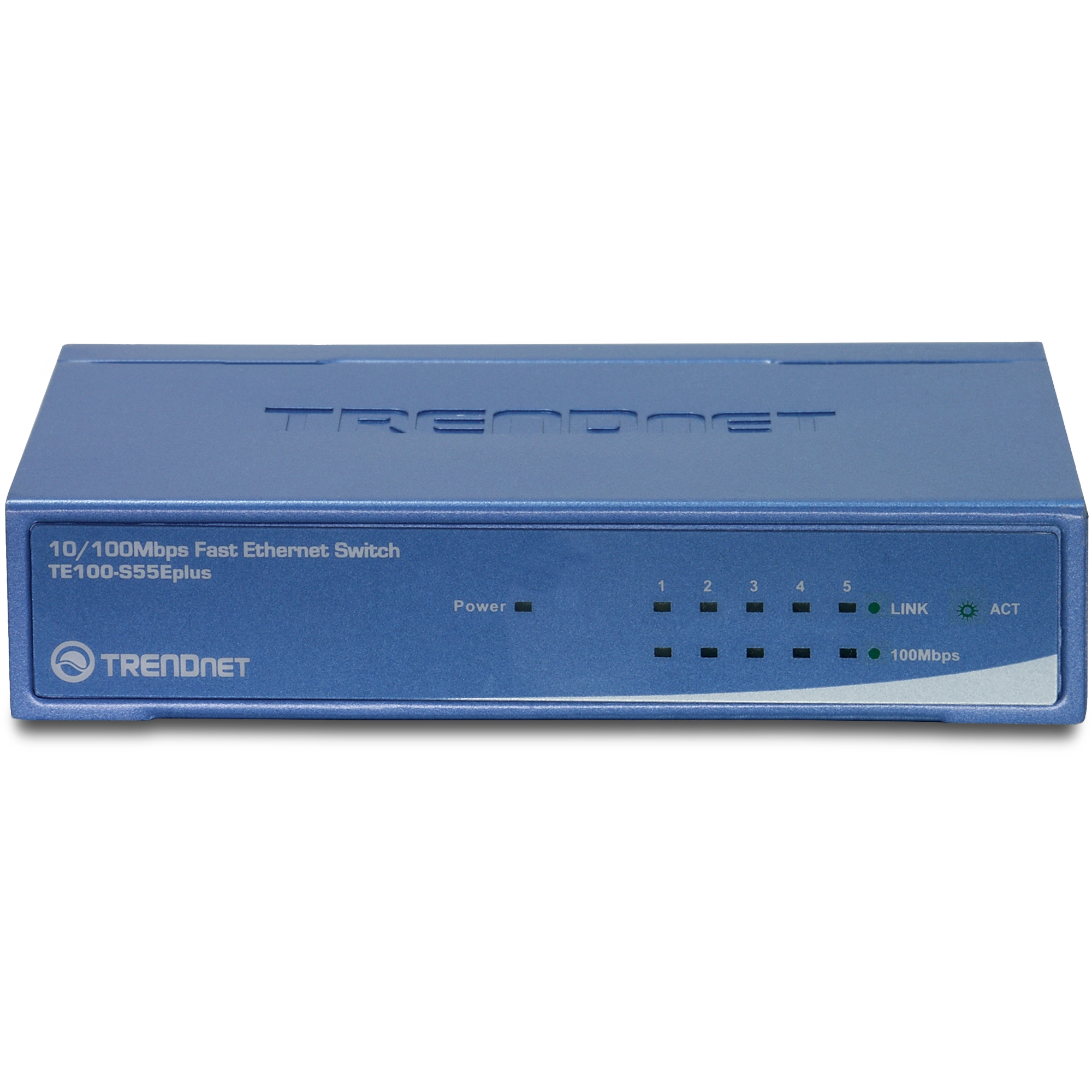

TE100-S55Eplus Product Photo (JPEG Image 2)
JPEG Image
File Size: : 374.73 KB
Date: : 9/14/2006
Download

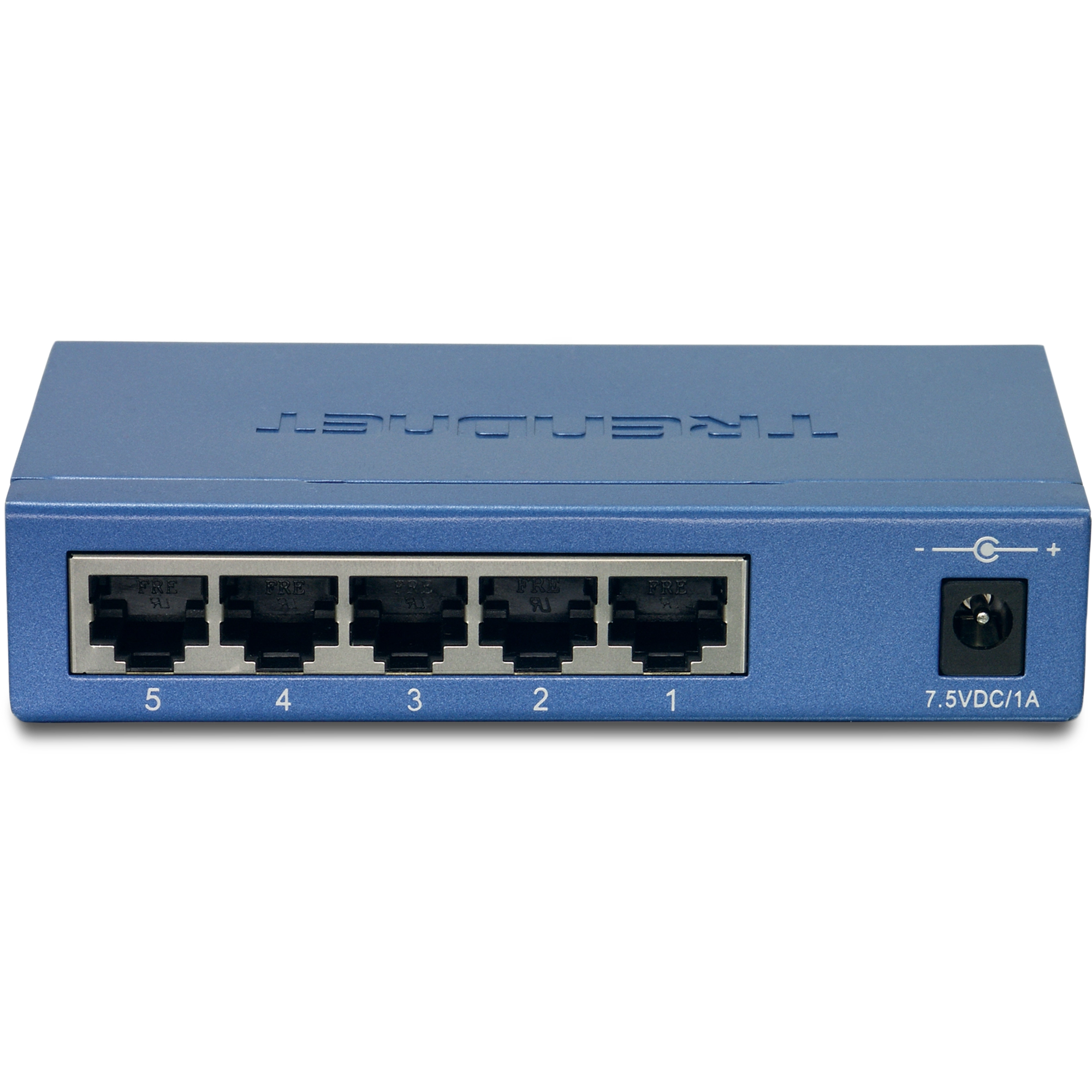

TE100-S55Eplus Product Photo (JPEG Image 3)
JPEG Image
File Size: : 372.38 KB
Date: : 9/14/2006
Download
TE100-S55Eplus Product Photo (TIFF Image 4)
TIFF Image
File Size: : 3.30 MB
Date: : 9/14/2006
Download
TE100-S55Eplus Product Photo (TIFF Image 5)
TIFF Image
File Size: : 3.40 MB
Date: : 9/14/2006
Download
TE100-S55Eplus Product Photo (TIFF Image 6)
TIFF Image
File Size: : 3.54 MB
Date: : 9/14/2006
Download
ROHS compliant Non-Disposable
Hardware
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
Network Media
  • Ethernet: UTP Cat. 3,4,5, EIA/TIA-568 100-ohm Shielded-Twisted-Pair (STP)
  • Fast Ethernet: 2-pair UTP Cat. 5, EIA/TIA-568 100-ohm Shielded Twisted-Pair (STP)
Data Rate
  • Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast
  • Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Switch Fabric
  • 1Gbps Forwarding Capacity
Topology
  • Star
Interface
  • 5 10/100Mbps Auto-MDIX RJ-45 Ports
Filtering Table
  • 1K Entries Per Device
Power Consumption
  • 2.5 watts (max)
Diagnostic LED
  • Power, Link/ACT,100Mbps
Power Adapter
  • 7.5V DC, 1A External Power Adapter
Dimension
  • 116 x 69 x 24mm (4.57 x 2.72 x 0.94in.)
Weight
  • 220g (7.76oz.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Operating: 10%~90% (Non-Condensing)
  • Storage: 5%~90% (Non-Condensing)
Safety Emissions
  • FCC, CE

PACKAGE CONTENTS
  • TE100-S55Eplus
  • Multi-Language Quick Installation Guide.
  • Power Adapter (7V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
