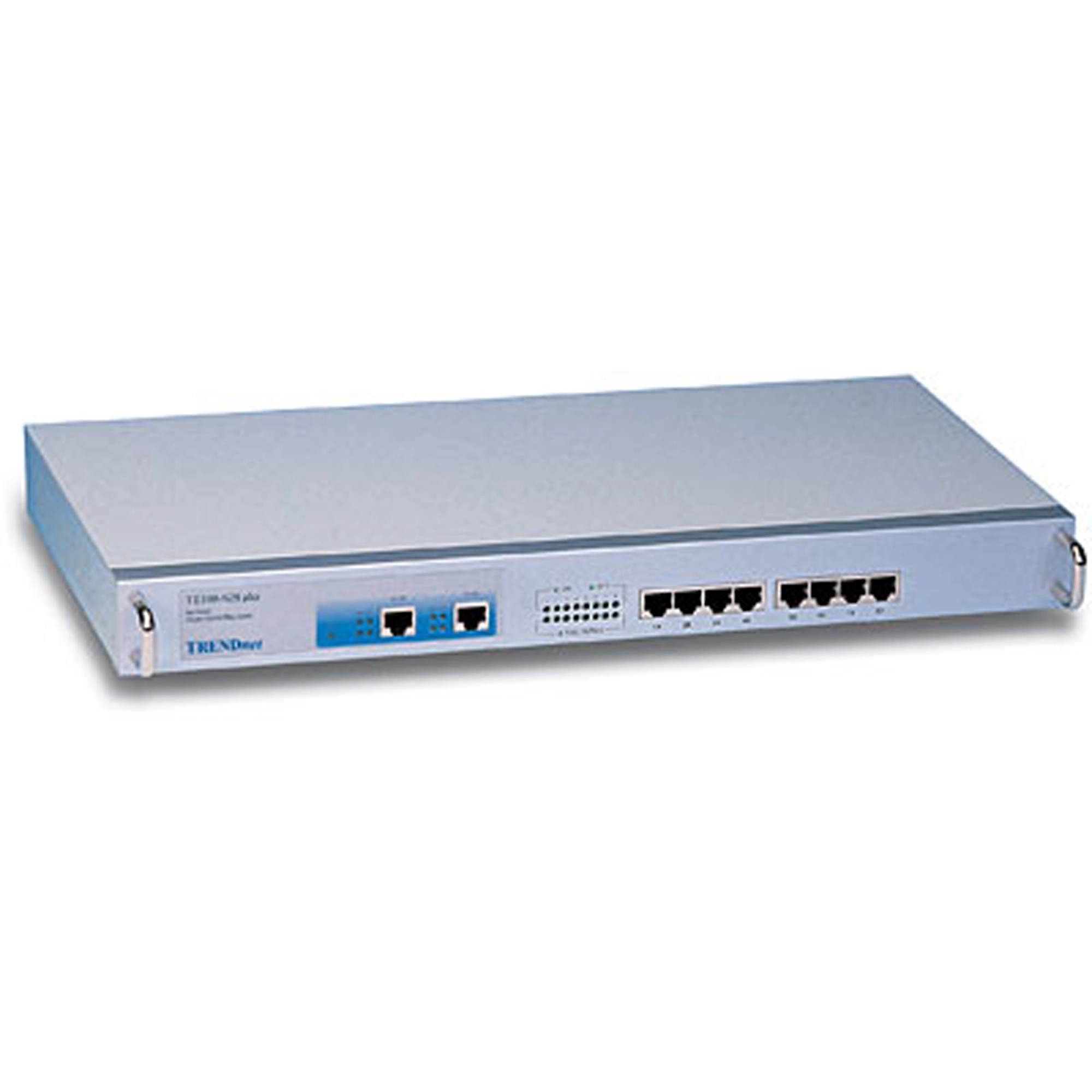

10-Port (2x10/100Mbps, 8x10Mbps) Fast Ethernet Switching Hub

TE100-S28plus

  • This high powered switching hub provides a cost-effective, high-bandwidth solution for delivering wire-speed to eight 10Mbps and two 10/100Mbps Ethernet ports
  • All ports are full-duplex, which allows maximum network performance
  • This rack mount switch provides a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S28plus  has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S28plus.pdf
Date: 5/2/2013
File Size: 193.21 KB
Download Email
Hardware
Standards:
  • IEEE 802.3µ, 100Base-TX, and IEEE 802.3 10Base-T
Protocol:
  • CSMA/CD
Speed:
  • 10Mbps for 10Base-T
  • 100Mbps for 100Base-TX
Cabling:
  • CAT 3, 4, 5 UTP/STP for 10Base-T/
  • CAT 5 UTP/STP for 100Base-TX 62.5/125 micron multimode fiber (2km)
LED's:
  • Per Hub: Power
  • Per 10/100Mbps port: Link, Activity, 100Mbps, Full-Duplex
  • Per 10Mbps port: Link, Activity, Full-Duplex
Power:
  • Internal Power Supply, (100 - 240V, 50/60Hz)
Dimensions:
  • 411 x 203 x 44 mm / 16.18" x 17.99" x 1.73" (L x W x H)
Weight:
  • 2.98 Kg / 6.56 lb.
Temperature:
  • Operating: 0° to 50° C / 32° to 122° F
  • Storage: -20° to 80° C / -4° to 176° F
Humidity:
  • 10% to 90% (non-condensing)
Certifications:
  • FCC, UL, CSA, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
