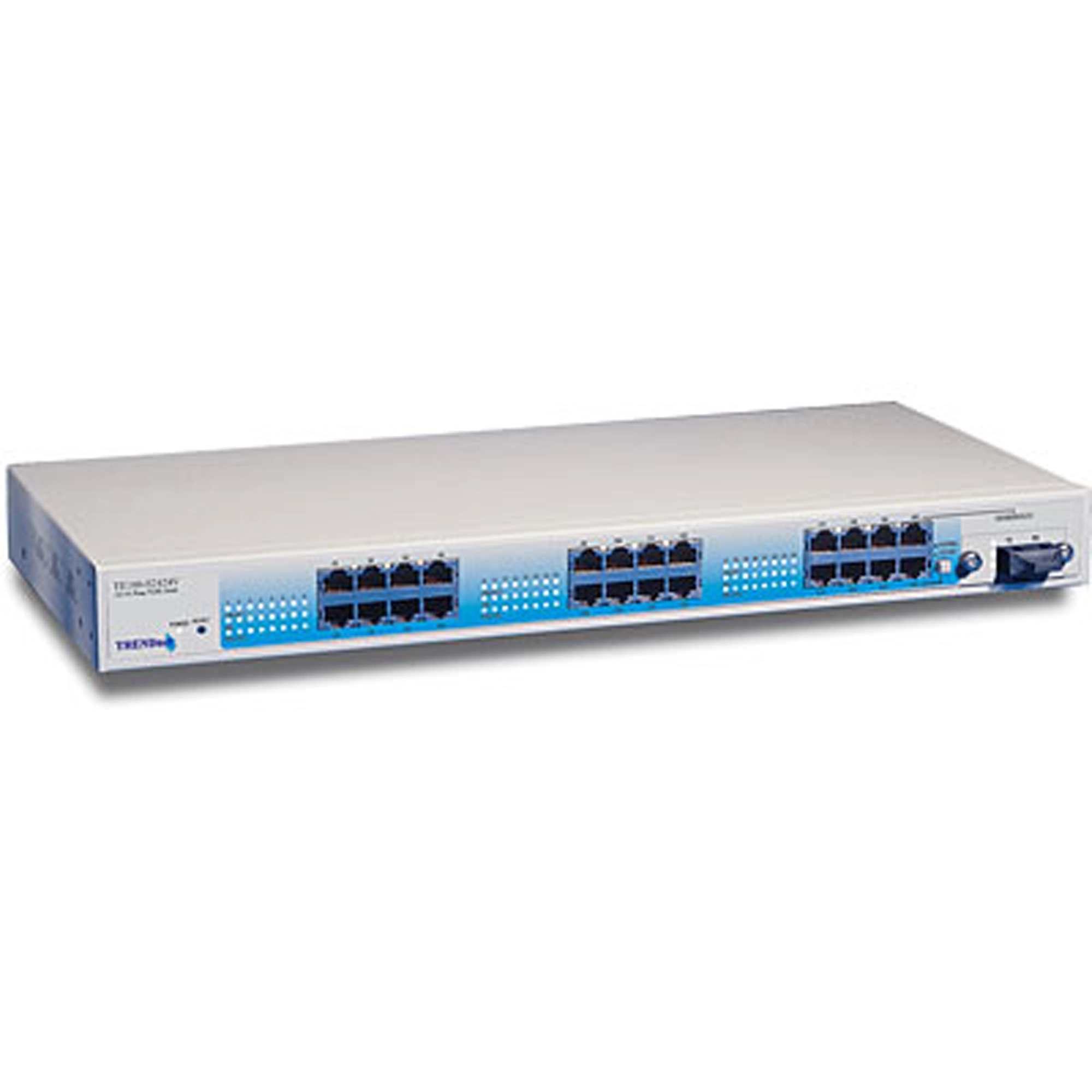

24-port 10/100Mbps N-way VLAN Switch

TE100-S2424V   (Version 1.0)

  • This 24 port high performance auto-sensing N-way switch automatically negotiates between 10Base-T and 100Base-TX network speeds
  • With Virtual Local Area Networking (VLAN) this switch is powerful and easy-to-use in reducing unnecessary broadcast traffic, segmenting the network, and enhancing network security
  • This rack mount switch provides a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S2424V (Version 1.0) has been discontinued. It has been replaced by the TEG-S24g (Version V3). For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S2424V.pdf
Date: 5/2/2013
File Size: 182.32 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S2424V.pdf
Date: 8/20/2004
File Size: 202.74 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3m 100Base-TX/100Base-FX, ANSI / IEEE 802.3 N-way auto-negotiation
Forwarding Rate:
  • 14,880pps for 10Mbps, 148,800pps for 100Mbps
Switching Method:
  • Store-and-forward
Cabling:
  • 10Base-T: 2-pair UTP CAT 3, 4, 5 up to 100m (328ft),
  • 100Base-TX: 2-pair UTP CAT 5 up to 100m (328ft.),
  • 100Base-FX: 62.5/125 multi-mode fiber optic cable up to 2,000m (6,560ft.)
Diagnostic LEDs:
  • Per Unit: Power, Uplink, Module Enable (3 LEDs)
  • Per Port: LINK/ACT, 100, Full-duplex/Collision (3 LEDs)
Power:
  • Internal universal power supply (100-250VAC, 47-63Hz, 33 Watts max.)
Dimensions:
  • 440 x 205 x 45 mm (17.3 x 8.0 x 1.8 inches)
Weight:
  • 2.9 kg (6.4 lbs.)
Temperature:
  • Operating: 0° to 40° C (32° to 104° F)
  • Storage: -25° to 70° C (-13° to 158° F)
Humidity:
  • 10 % to 90 % non-condensing
Certifications:
  • FCC, UL, CE, VCCI Class A

PACKAGE CONTENTS

    All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
