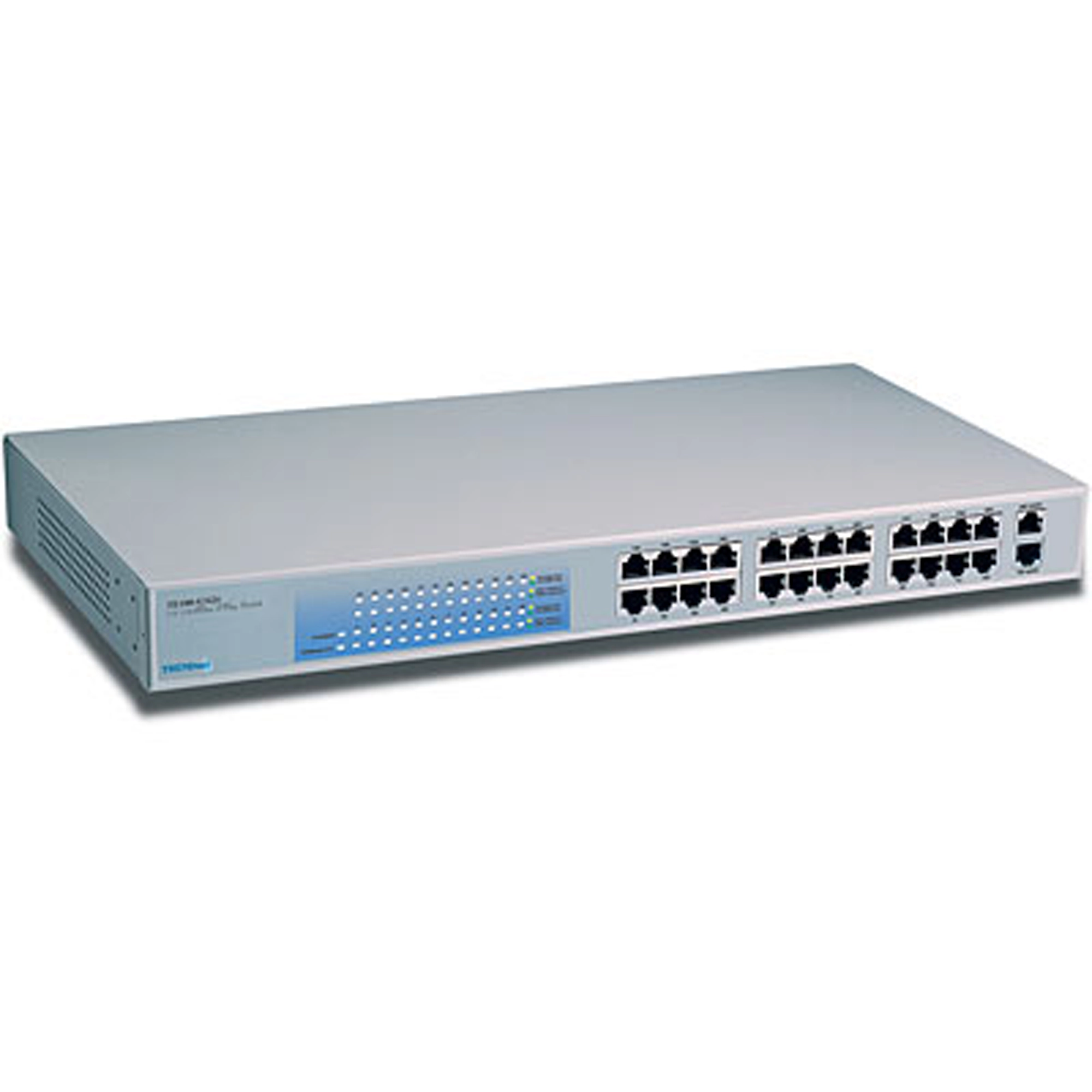

24-port 10/100Mbps N-Way Switching Hubs

TE100-S2424   (Version 1.0)

  • This 24 port high performance auto-sensing N-way switch automatically negotiates between 10Base-T and 100Base-TX network speeds
  • The built-in fiber expansion slots allow links between two switches or between a switch and a server
  • This rack mount switch provides a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S2424 (Version 1.0) has been discontinued. It has been replaced by the TEG-S24g (Version V3). For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S2424.pdf
Date: 5/2/2013
File Size: 180.64 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S2424.pdf
Date: 8/20/2004
File Size: 134.39 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX/100Base-FX, ANSI/ IEEE 802.3 N-way auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 16/24 UTP/STP RJ-45
Diagnostic LED's:
  • Power, FX Link/Rx
  • FDX 10/100 (green), COL 10/100 (amber)
  • 100LINK/ACT (green). 10LINK/ACT (amber)
Power:
  • Internal Universal Power Supply (100~240 VAC. 50/60 Hz, 40 Watt Max.)
Dimensions:
  • 440x200x44mm / 15.7" x 7.9" x 1.7" (L x W x H)
Weight:
  • 2.70 kg / 5.94 lbs.
Temperature:
  • Operating: -10° to 40° C (14° to 104° F)
  • Storage: -20° to 70° C (-4° to 158° F)
Humidity:
  • Operating: 10% to 90% (non-condensing)
  • Storage: 0% to 90% (non-condensing)
Certification:
  • FCC Class A, UL, CE, VCCI-I

PACKAGE CONTENTS

    All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
