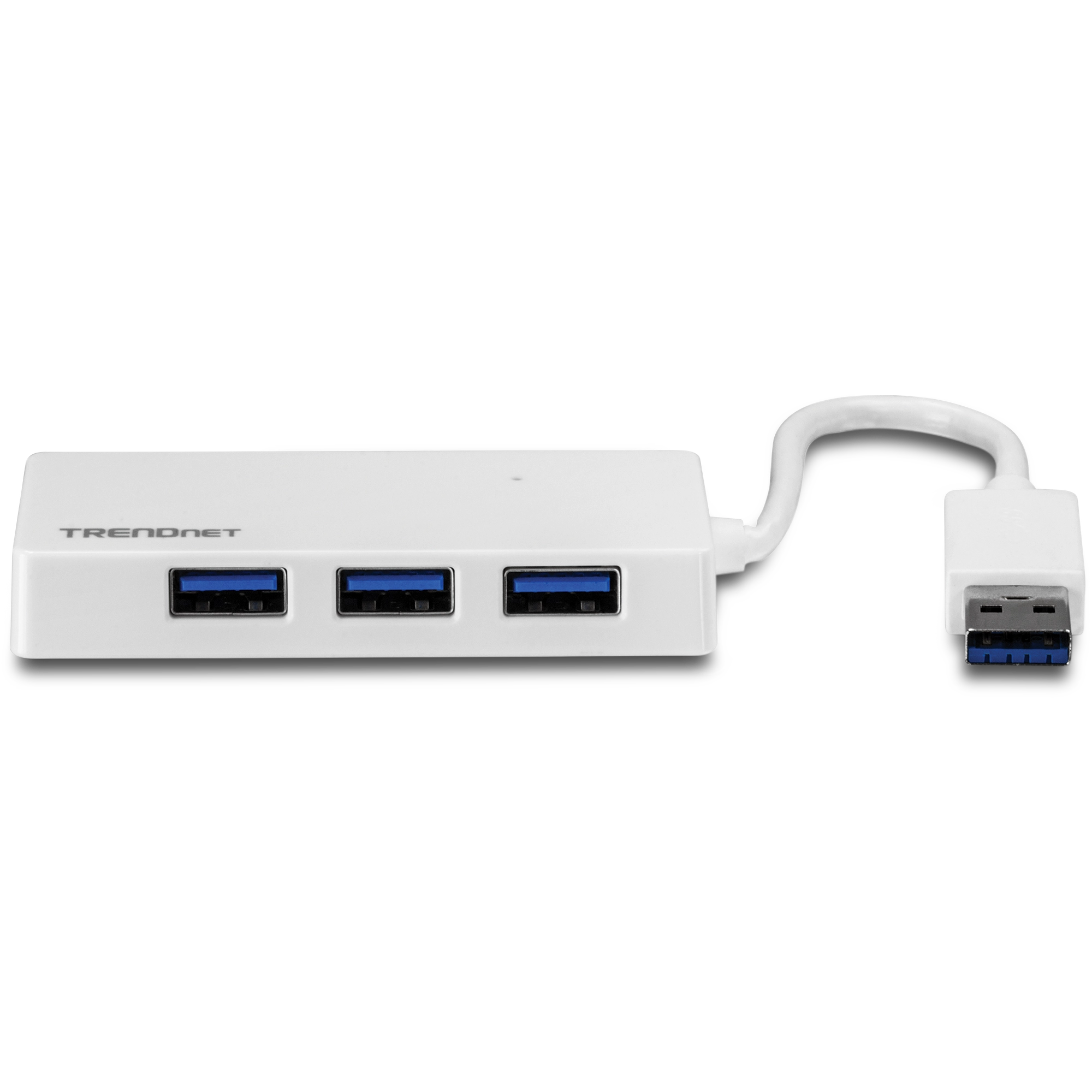

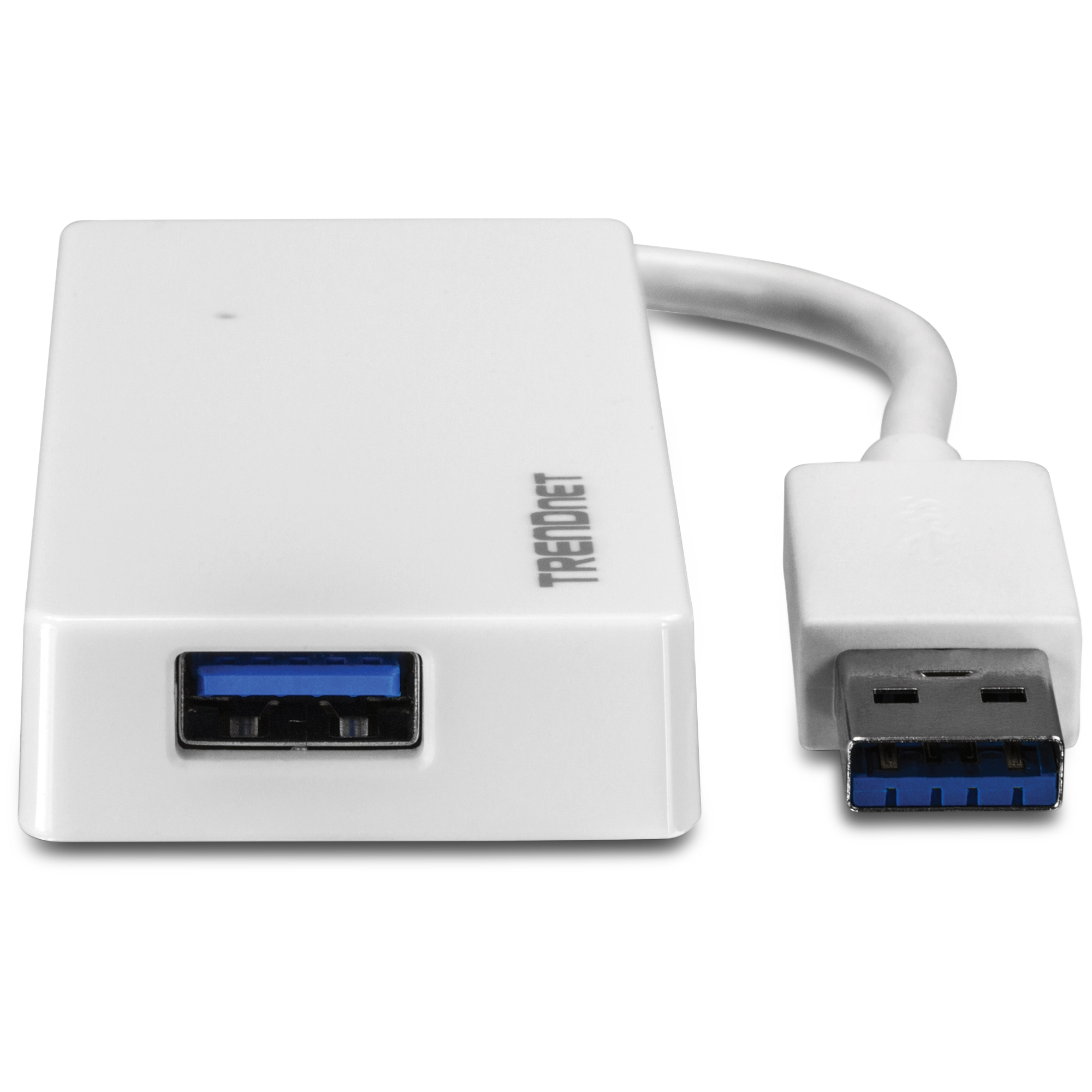

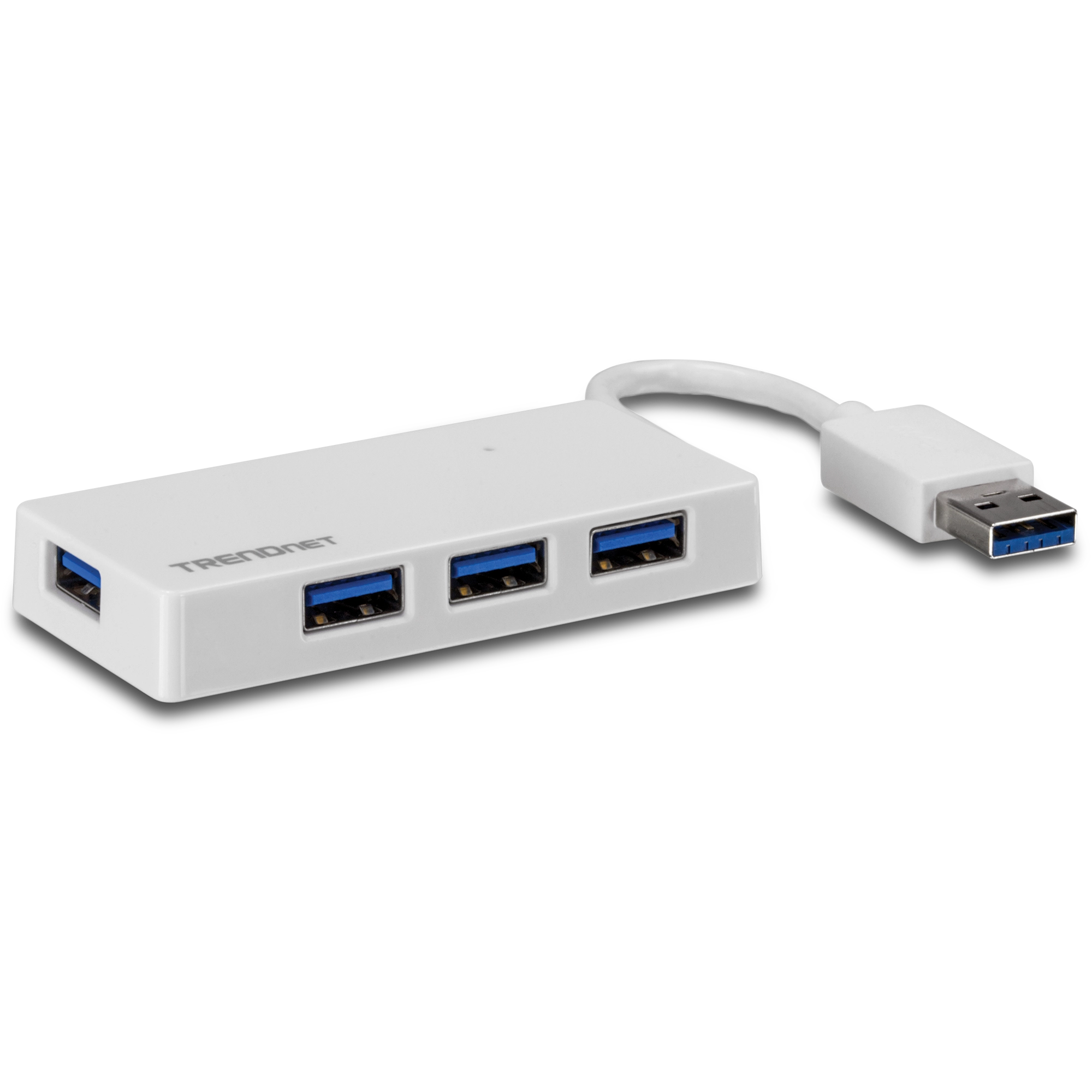

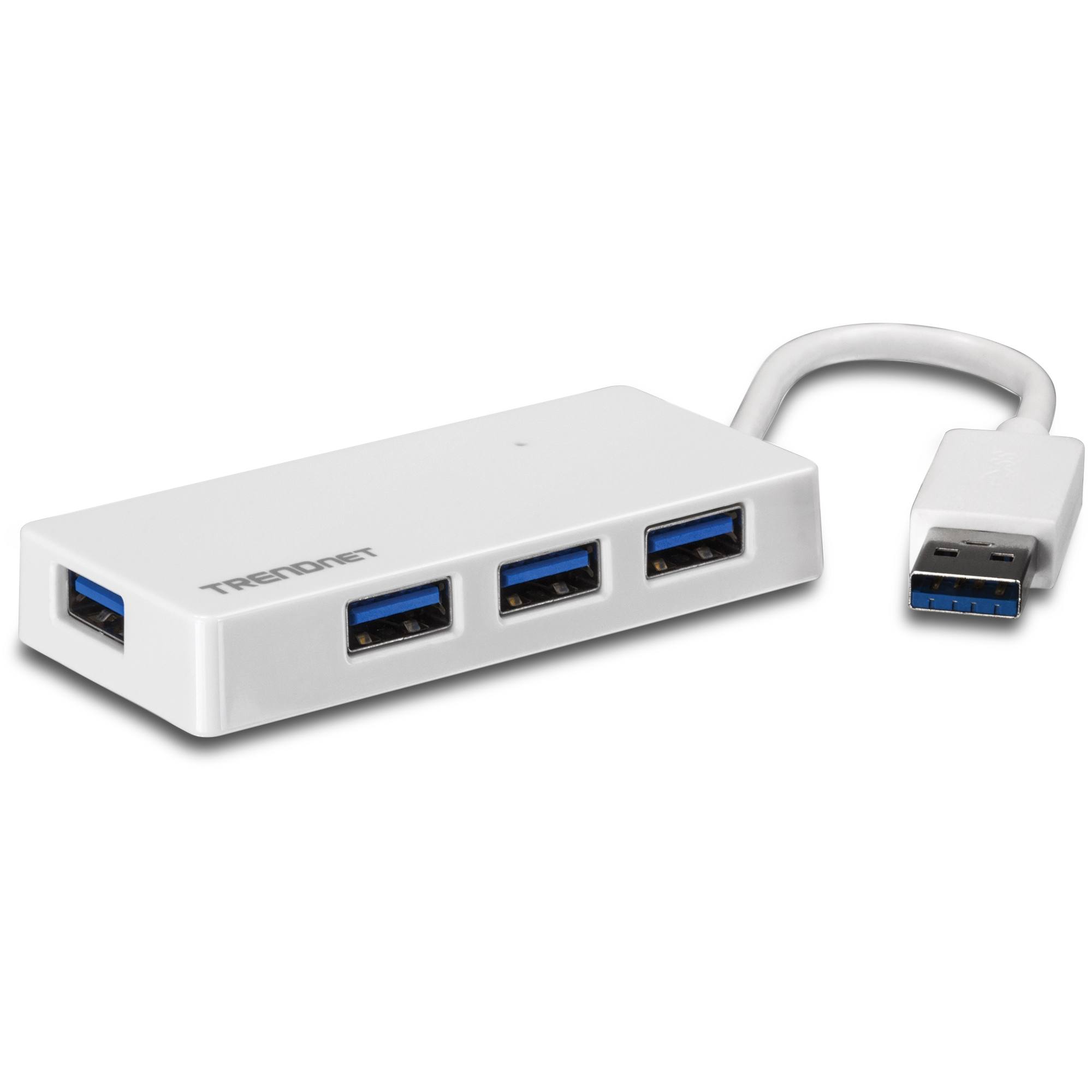

4-Port USB 3.0 Mini Hub

TU3-H4E   (Version v1.0R)

   Select Another Version
  • Add Four SuperSpeed 5 Gbps USB 3.0 ports
  • No CD installation – just Plug and Play
  • Backward compatible with USB 2.0 ports
  • Reduced clutter with this compact adapter
  • No bulky power adapter – powered by USB port

DISCONTINUED PRODUCT

The TU3-H4E (Version v1.0R) has been discontinued. It has been replaced by the TU3-H4E (Version V2). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_datasheet_TU3-H4E_(v1.0R).pdf
Date: 10/10/2016
File Size: 643.48 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TU3-H4E_(v1.0R).pdf
Date: 10/10/2016
File Size: 645.88 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TU3-H4E_(v1.0R).pdf
Date: 10/10/2016
File Size: 644.76 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TU3-H4E_(v1.0R).pdf
Date: 10/10/2016
File Size: 646.27 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TU3-H4E_(v1.0R).pdf
Date: 10/10/2016
File Size: 644.92 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TU3-H4E_(v1.0R).pdf
Date: 10/10/2016
File Size: 643.35 KB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: LineartQIG_TU3-H4E(V2).pdf
Date: 10/10/2016
File Size: 554.24 KB
Download

Product Images

TU3-H4E Product Photo (JPEG Image 1)
JPEG Image
File Size: : 144.95 KB
Date: : 8/2/2013
Download
TU3-H4E Product Photo (JPEG Image 2)
JPEG Image
File Size: : 128.61 KB
Date: : 8/2/2013
Download
TU3-H4E Product Photo (JPEG Image 3)
JPEG Image
File Size: : 113.54 KB
Date: : 8/2/2013
Download
TU3-H4E Product Photo (JPEG Image 4)
JPEG Image
File Size: : 246.92 KB
Date: : 8/2/2013
Download
TU3-H4E Product Photo (TIFF Image 5)
TIFF Image
File Size: : 1.93 MB
Date: : 8/2/2013
Download
TU3-H4E Product Photo (TIFF Image 6)
TIFF Image
File Size: : 1.53 MB
Date: : 8/2/2013
Download
TU3-H4E Product Photo (TIFF Image 7)
TIFF Image
File Size: : 1.65 MB
Date: : 8/2/2013
Download
TU3-H4E Product Photo (TIFF Image 8)
TIFF Image
File Size: : 3.38 MB
Date: : 8/2/2013
Download
ROHS compliant Non-Disposable
What does the LED indicator represent on the TU3-H4E?
The LED indicator represents power being applied to the TU3-H4E.
Does the TU3-H4E have an external power supply?
The TU3-H4E is BUS powered by the USB port it is connected to and does not support an external power source....
What is the total BUS power for the TU3-H4E?
The TU3-H4E is BUS powered and shares the following total watts across all ports. If connected to a USB 3.0 host connection: 4.5 Watts total (max.) If connected to a USB 2.0 host connection: 2.5 Watts total (max.) ...
Is the TU3-H4E backwards compatible with USB 2.0 and USB 1.1?
The TU3-H4E is backwards compatible with USB 2.0 and USB 1.1.
Standards
  • USB 3.0
  • USB 2.0
Interfaces
  • 1 x Type-A (male) USB 3.0 connector
  • 4 x Type-A (female) USB 3.0 ports
  • LED indicator
Maximum Data Rate
  • Up to 5 Gbps
Special Features
  • Compact form factor
  • Flexible USB 3.0 connector
Power Consumption
  • USB 3.0: 4.5 Watts total (max.)
  • USB 2.0: 2.5 Watts total (max.)
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 80 x 37 x 13 mm (3.15 x 1.46 x 0.51 in.)
  • 35 g (1.2 oz)
Warranty
  • 2 year limited

PACKAGE CONTENTS
  • TU3-H4E
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
