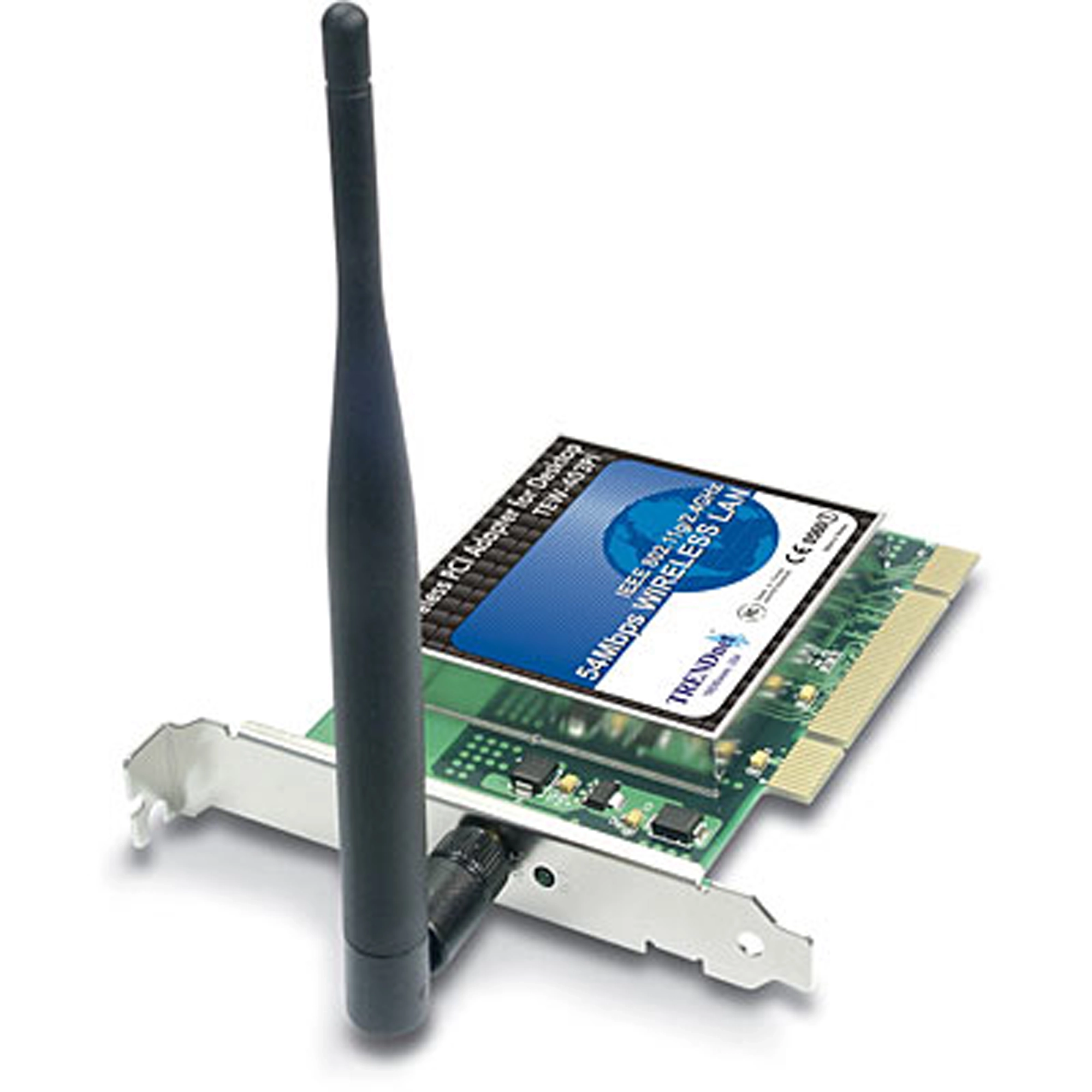

54Mbps 802.11g Wireless PCI Adapter

TEW-403PI   (Version A)

DISCONTINUED PRODUCT

The TEW-403PI (Version A) has been discontinued. For a list of discontinued products, click here.

Drivers/Utility

Driver / Utility
Release Note:
  1. TEW-401PC / 403PI driver and utility version 3.30.15 (actual driver date: 7/13/2003) for Windows 98SE/ME/2000/XP.This driver and utility fix TEW-403PI "wireless monitor", "available network" not able to display any available wireless connections (Access Points) problem.
  2. Please download and unzip the file and then follow the instructions in the “readme.txt” to uninstall the previous driver/utility and install the new driver/utility.

Filename: DR_TEW-401_403_v3.30.15.zip
SHA-1 Checksum: 2767F53C8F4177B411B8855C96625795E0745DAF
Date: 7/26/2017
File Size: 2.49 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-403PI(English).pdf
Date: 1/17/2005
File Size: 191.34 KB
Download Email
Datasheet (Français)
Filename: Spec_TEW-403PI(French).pdf
Date: 1/17/2005
File Size: 213.01 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-403PI(German).pdf
Date: 2/15/2005
File Size: 210.81 KB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: QIG_MULTI_TEW401_403(08132003).PDF
Date: 9/23/2005
File Size: 1.39 MB
Download

User's Guide

Manual
Filename: Manual_TEW401_403_20030805.pdf
Date: 9/23/2005
File Size: 1.46 MB
Download

Product Images

TEW-403PI Product Photo (JPEG Image 1)
JPEG Image
File Size: : 414.76 KB
Date: : 8/14/2006
Download
TEW-403PI Product Photo (TIFF Image 2)
TIFF Image
File Size: : 0.00 KB
Date: : 8/14/2006
Download
ROHS compliant Non-Disposable
Hardware
Interface Type:
  • PCI Bus Power Management Specification 2.2
Standards:
  • IEEE 802.11b and IEEE 802.11g draft
Antenna:
  • 2dBi Dipole Antenna with reverse SMA connector
Data Rate (auto fallback):
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Module Technique:
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Media Access Protocol:
  • CSMA/CA with ACK
Frequency:
  • 2.4 to 2.497 GHz (Industrial Scientific Medical Band)
LED Indicator:
  • ACT (Activity)
Output Power:
  • 15dBm (typical)
Receiving Sensitivity:
  • 11Mbps 10 – 5 BER @ -80 dBm (typical)
  • 54Mbps 10 – 5 BER @ -65 dBm (typical)
Channels:
  • 11 Channels (US/Canada), 13 Channels (EU)
Power Consumption:
  • Operating mode: 3.3VDC (TX: 550mA, RX: 350mA)
  • Sleep mode: 3.3VDC (TX: 225mA, RX: (disabled) <10mA)
Dimensions (LxWxH):
  • 120 x 85 x 13 mm (4.7x 3.3 x 0.5 inches) (without the metal bracket)
Weight:
  • 130g (4.5 oz.) with antenna
Temperature:
  • Operating: 0° ~ 50° C (32° ~ 122° F)
  • Storage: -20° ~ 65° C (-4° ~ 149° F)
Humidity:
  • 95% max. (Non-condensing)
Certification:
  • FCC, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
