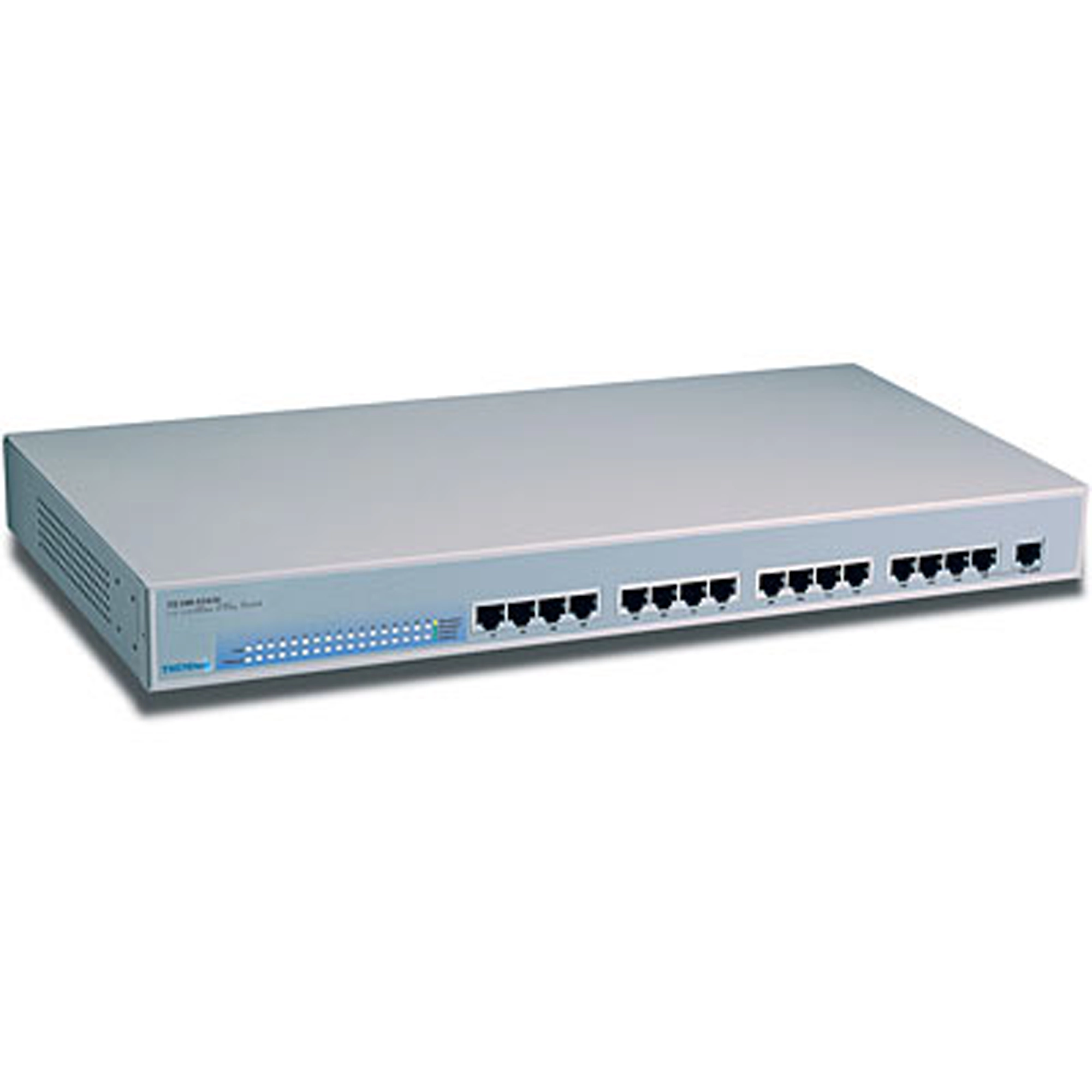

16-port 10/100Mbps N-Way Switch

TE100-S1616   (Version 1.0)

  • This high performance 16 port auto-sensing N-way switch automatically negotiates between 10Base-T and 100Base-TX network speeds
  • Simple expansion can be done by cascading two or more switches with all ports supporting 200Mbps in full-duplex mode.
  • The N-way ports automatically negotiate between 10Base-T and 100Base-TX network speeds as well as between half- and full-duplex modes

DISCONTINUED PRODUCT

The TE100-S1616 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S1616.pdf
Date: 5/2/2013
File Size: 190.63 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S1616.pdf
Date: 8/20/2004
File Size: 134.39 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T
  • IEEE 802.3µ 100Base-TX/100Base-FX
  • ANSI/ IEEE 802.3 N-way auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 16/24 UTP/STP RJ-45
Diagnostic LED's:
  • Power, FX Link/Rx
  • FDX 10/100 (green), COL 10/100 (amber)
  • 100LINK/ACT (green). 10LINK/ACT (amber)
Power:
  • Internal Universal Power Supply (100~240 VAC. 50/60 Hz, 40 Watt Max.)
Dimensions:
  • 440x200x44mm / 15.7" x 7.9" x 1.7" (L x W x H)
Weight:
  • 2.35 kg / 5.17 lbs.
Temperature:
  • Operating: -10° to 40° C (14° to 104° F)
  • Storage: -20° to 70° C (-4° to 158° F)
Humidity:
  • Operating: 10% to 90% (non-condensing)
  • Storage: 0% to 90% (non-condensing)
Certification:
  • FCC Class A, UL, CE, VCCI-I

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
