Answer: TRENDnet cannot guarantee compatibility with third party KVM cables. If you encounter issues, verify that the KVM functions properly with the included KVM cables. ...
Answer: When switching you are essentially disconnecting your hardware from one computer and connecting it to the other. Please allow ample time for your PC to recognize and load the drivers for your console hardware. If your KVM is not responding please power cycle the KVM by disconnecting all th...
Answer: If you have any third party hardware between the KVM and your console devices or the computers, please remove them to rule out any interoperability issues. This would include any type of interface converter, hubs, extension cables or docking stations. If you are using third party cables pl...
Hardware |
Connections | |
USB Interface | |
KVM Cable | - 2 sets of 1.2 m (4 ft.) KVM cables
- 2 sets of 1.8 m (6 ft.) KVM cables
- 2 sets of 1.2 m (4 ft.) audio cables
- 2 sets of 1.8 m (6 ft.) audio cables
- Cable Interface (all male)
|
KVM Cable | - To KVM
- 1 x VGA/SVGA HDB 15-pin
- To Computer
- 1 x USB (type A)
- 1 X VGA/SVGA HDB 15-pin
- Audio Cable
- To KVM
- 1 x 3.5 mm speaker jack
- 1 x 3.5 mm microphone in jack
- To Computer
- 1 x 3.5 mm speaker jack
- 1 x 3.5 mm microphone jack
|

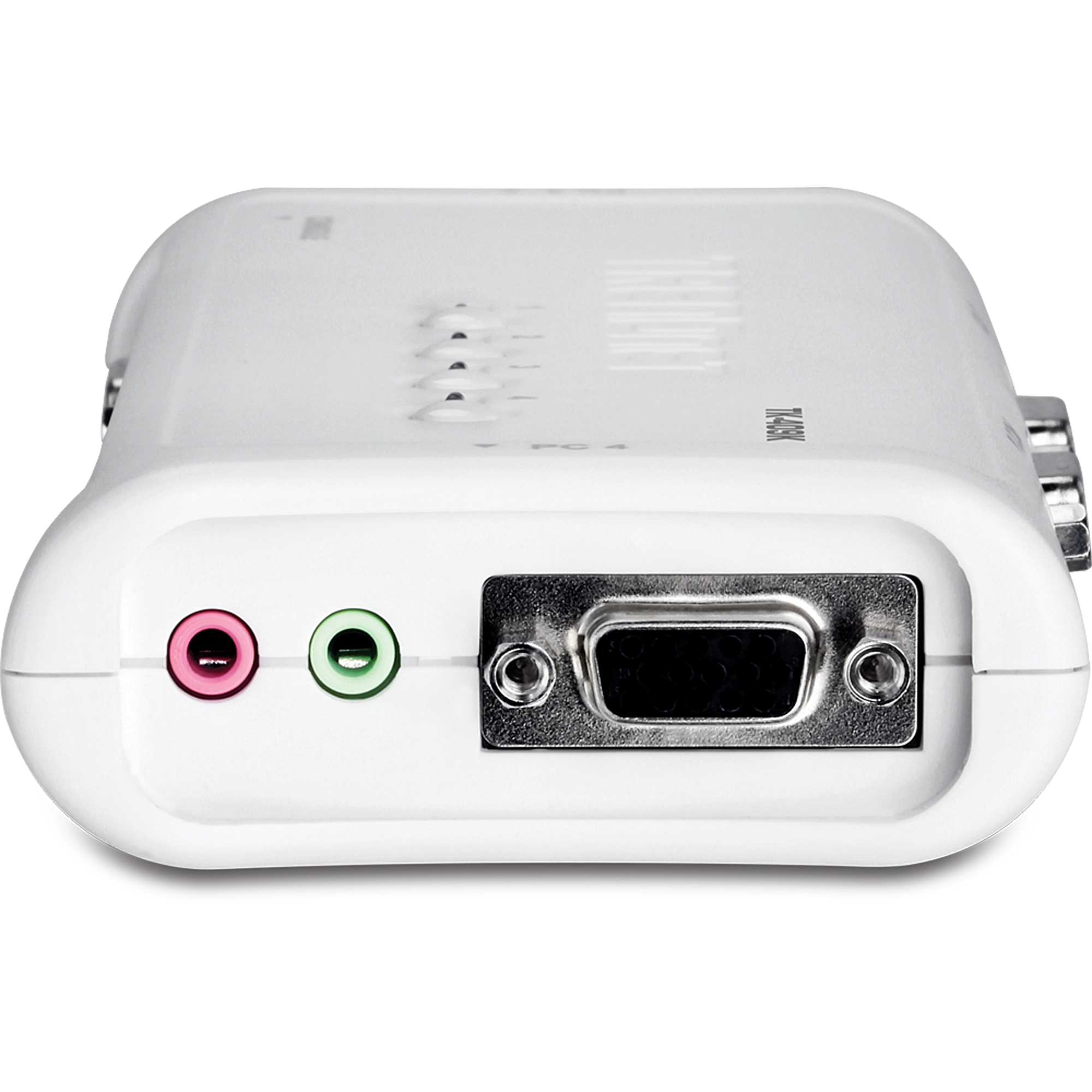

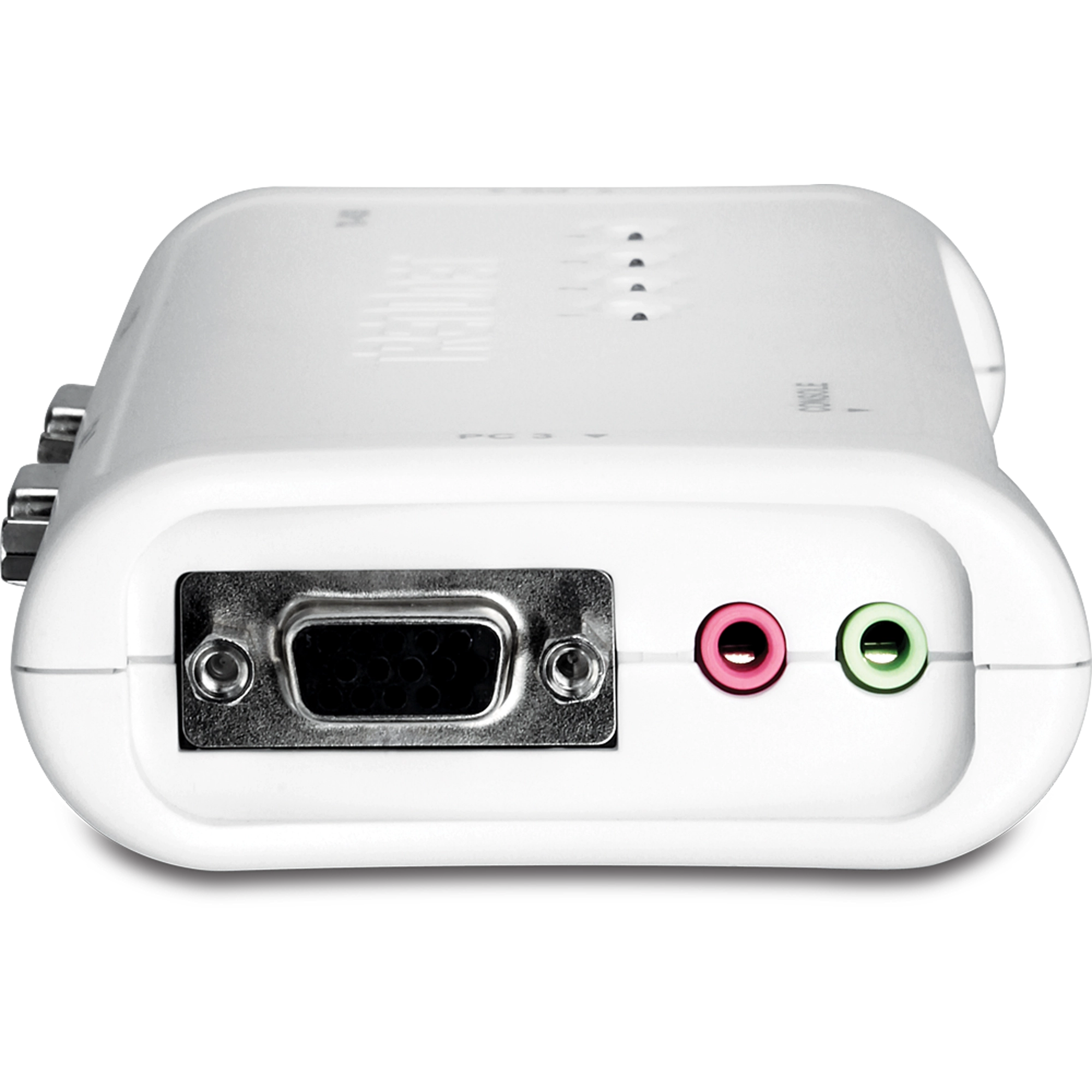

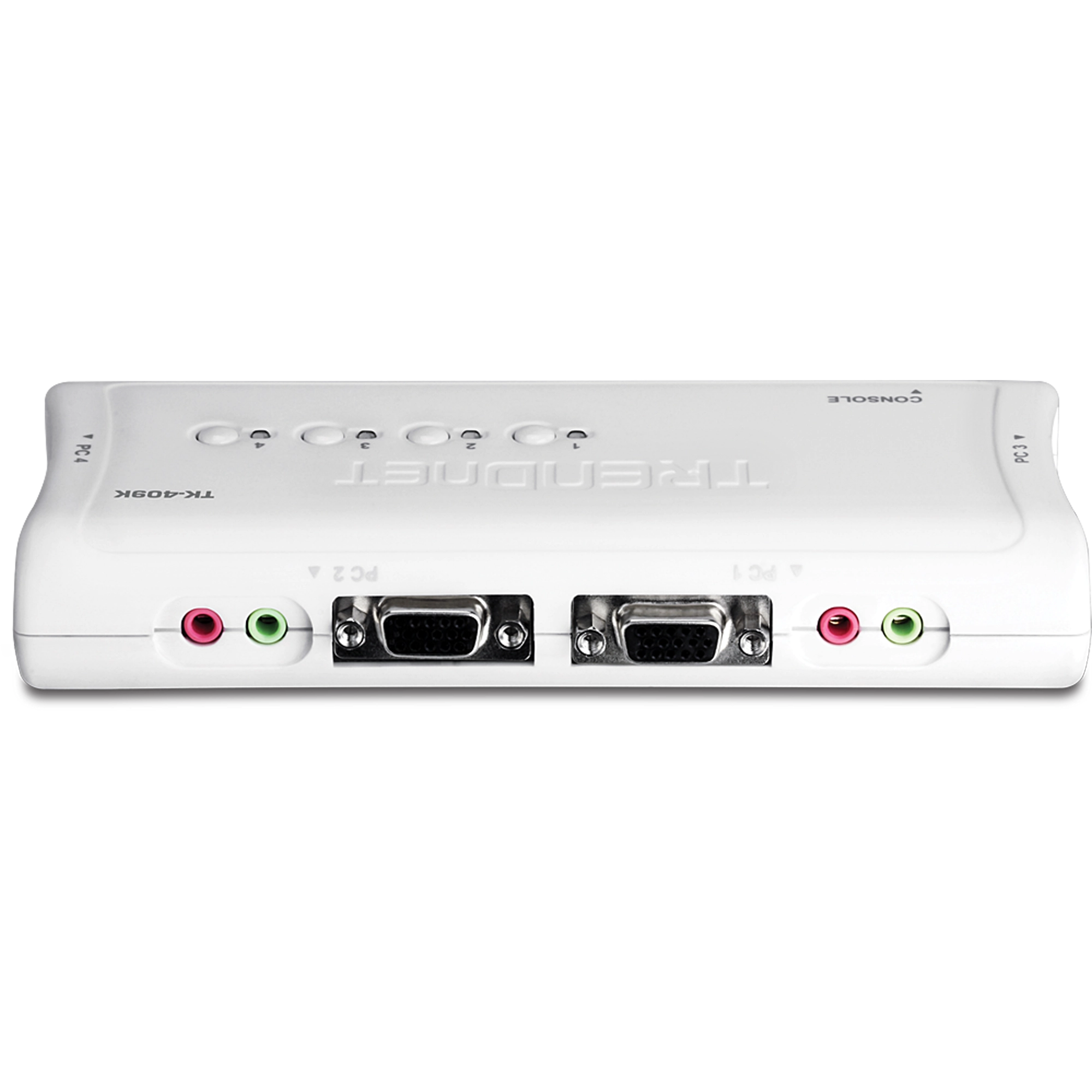

PC Port Connectors (all female) | - 4 x VGA/SVGA HDB 15-pin
- 4 x 3.5 mm speaker jack
- 4 x 3.5 mm microphone jack
|

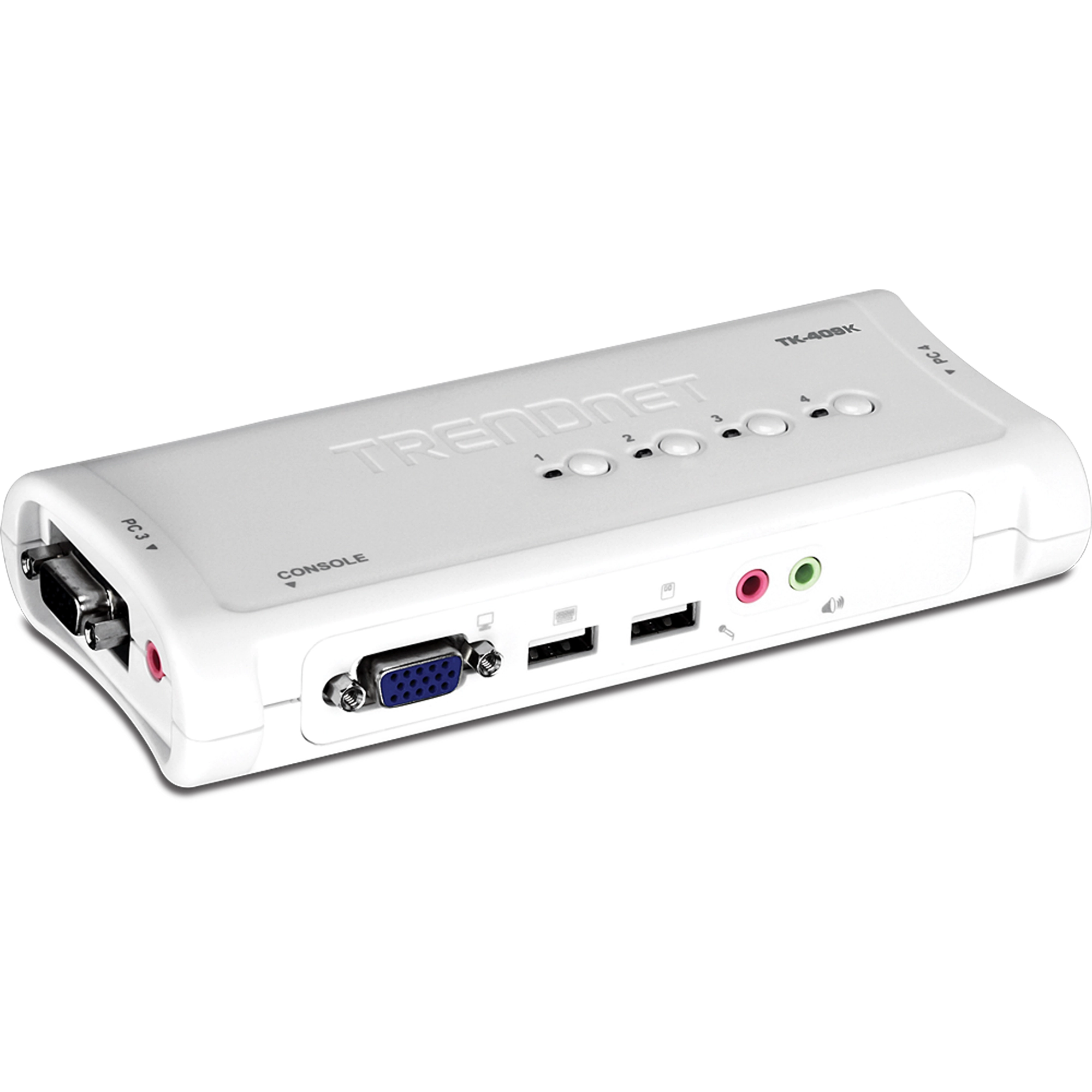

Console Port Connectors (all female) | - 1 x USB Keyboard (type A)
- 1 x USB Mouse (type A)
- 1 x VGA/SVGA HDB 15-pin
- 1 x 3.5 mm speaker jack
- 1 x 3.5 mm microphone jack
|
Supported OS | |
Port Selection | - Front panel push buttons, keyboard hot key commands or Windows-based client switching software*
|
Auto-Scan Interval | |
Keyboard Status | |
Power Type | |
Dimensions | - 167 x 80 x 28 mm (6.6 x 3.2 x 1.1 in.)
|
Weight | |
Temperature | - Operating: 0°C ~ 40°C (32°F ~104°F)
- Storage: -20°C ~ 60°C (-4°F ~140°F)
|
Humidity | |
Certifications | |

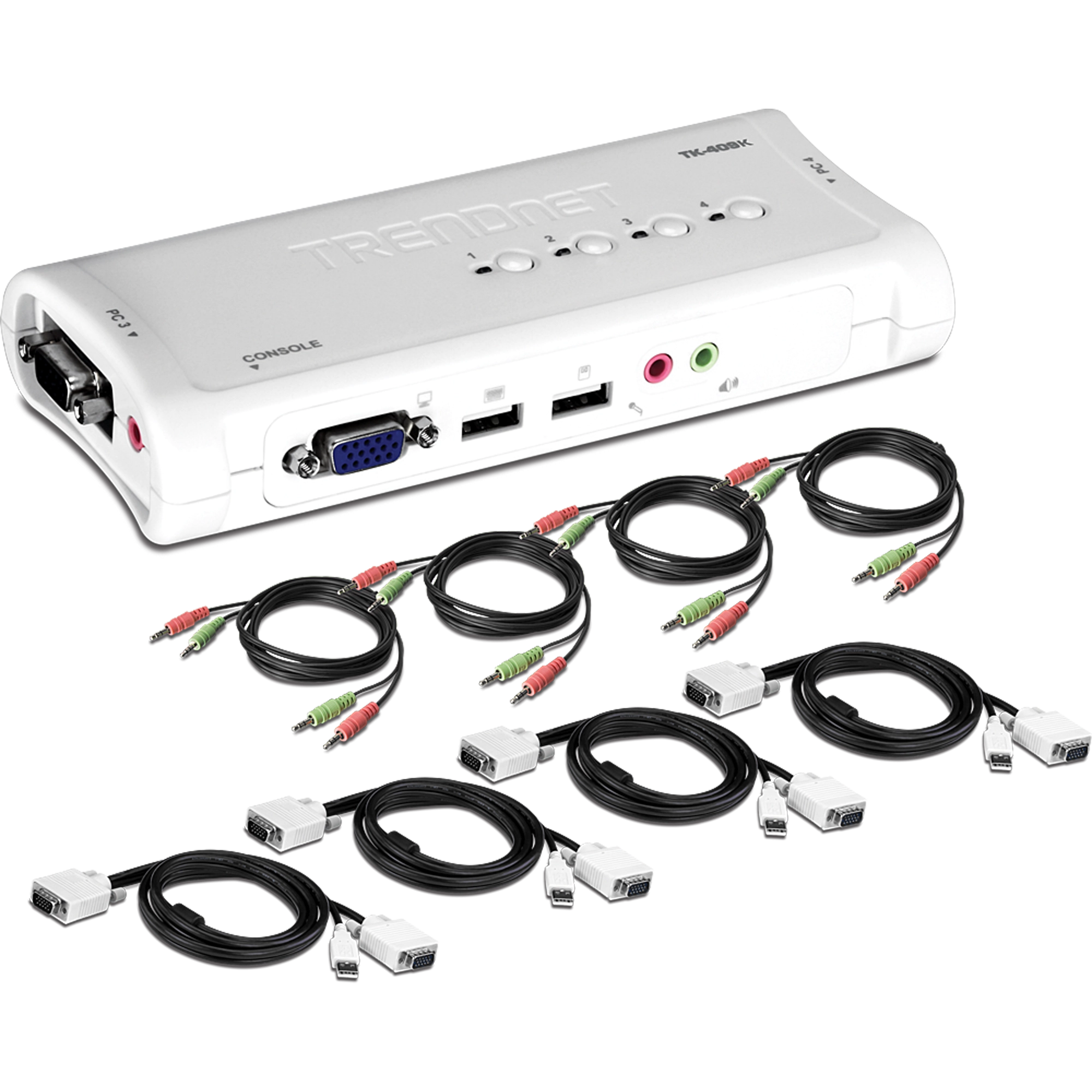

PACKAGE CONTENTS |
- TK-409K
- Quick Installation Guide
- 4 sets of USB KVM cables (2 x 1.2 m / 4 ft., 2 x 1.8 m / 6 ft.)
- 4 sets of audio cables (2 x 1.2 m / 4 ft., 2 x 1.8 m / 6 ft.)
|
