54Mbps 802.11g High Power Wireless Outdoor AP Bridge

TEW-413APBO   (Version A)

DISCONTINUED PRODUCT

The TEW-413APBO (Version A) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TEW-413APBO.pdf
Date: 6/24/2005
File Size: 218.92 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEW-413APBO.pdf
Date: 6/24/2005
File Size: 219.65 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEW-413APBO.pdf
Date: 6/24/2005
File Size: 220.94 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEW-413APBO.pdf
Date: 6/24/2005
File Size: 219.38 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-412APBO_413APBO(english).pdf
Date: 11/30/2005
File Size: 444.27 KB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-412APBO_413APBO(french).pdf
Date: 11/30/2005
File Size: 453.32 KB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-412APBO_413APBO(german).pdf
Date: 11/30/2005
File Size: 452.42 KB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-412APBO_413APBO(spanish).pdf
Date: 11/30/2005
File Size: 447.96 KB
Download

User's Guide

User's Guide
Filename: UG_TEW-412APBO_413APBO.pdf
Date: 5/5/2005
File Size: 1.26 MB
Download

Product Images

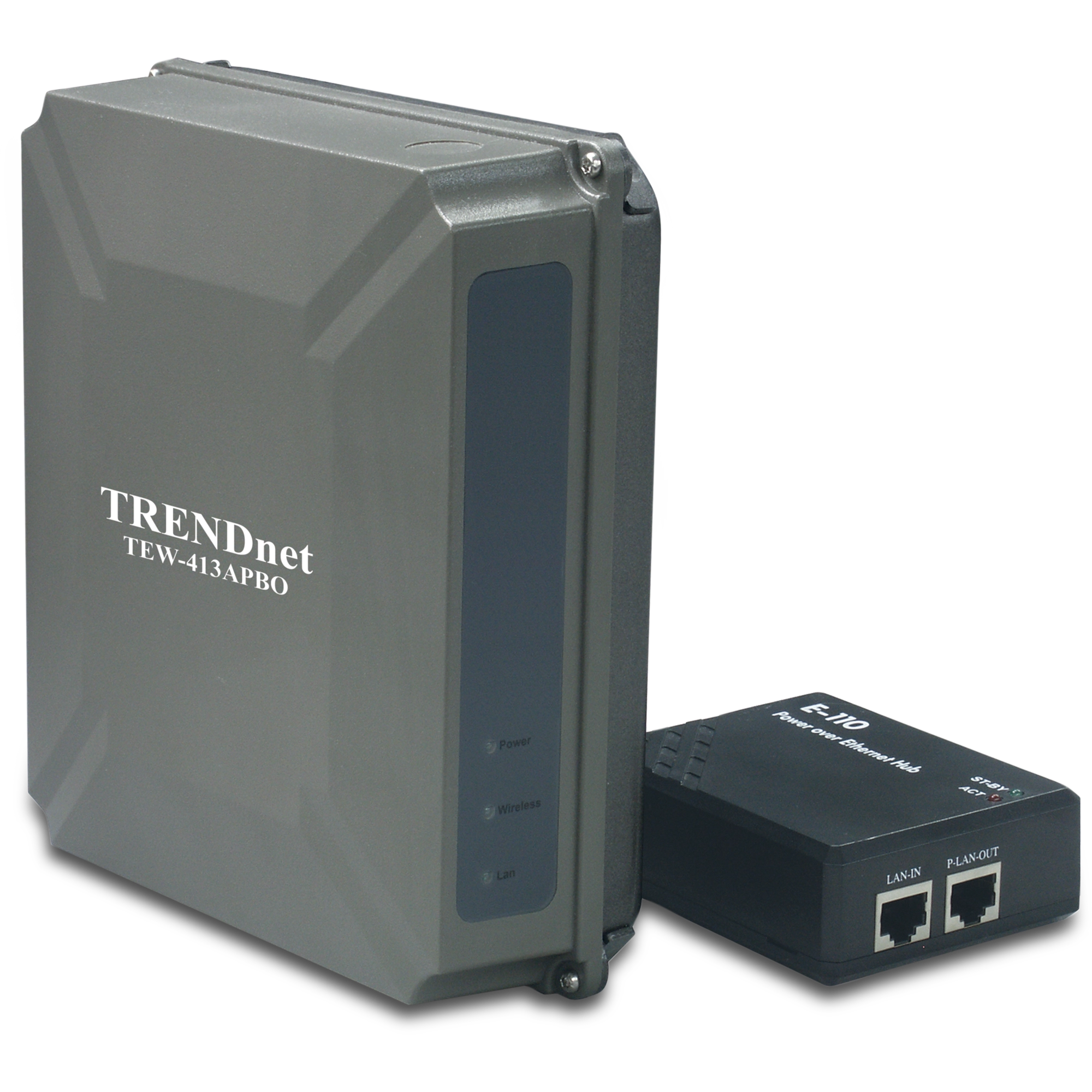

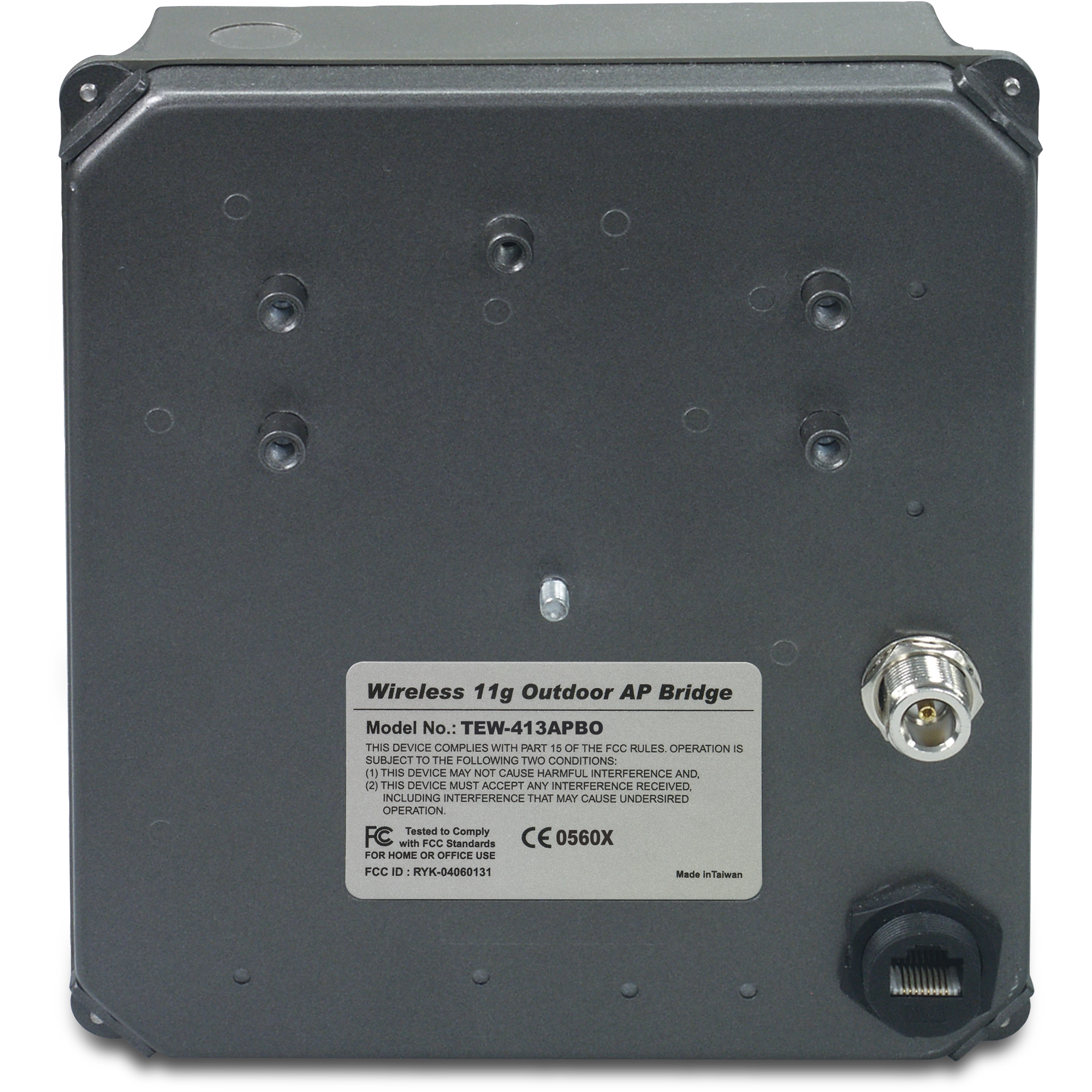

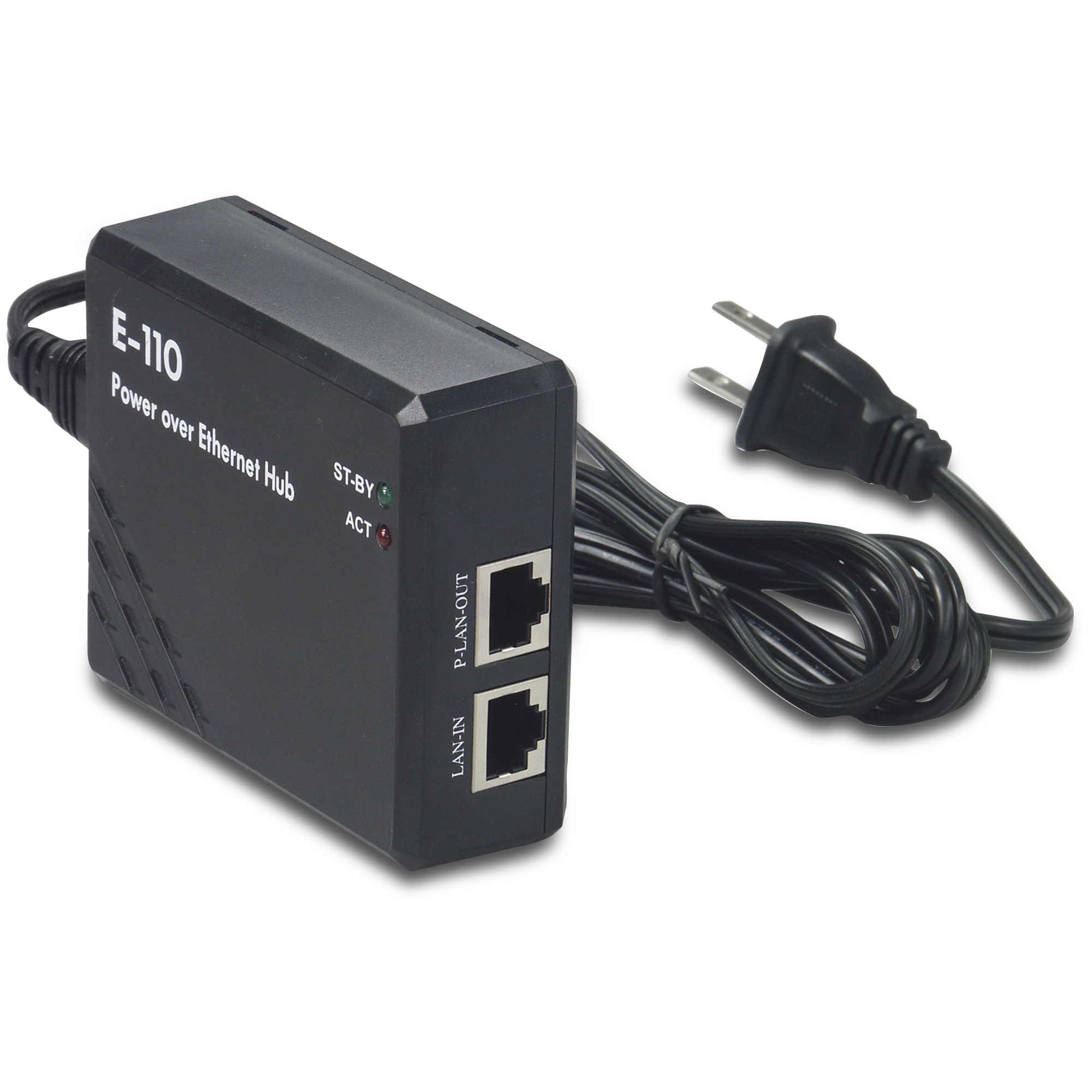

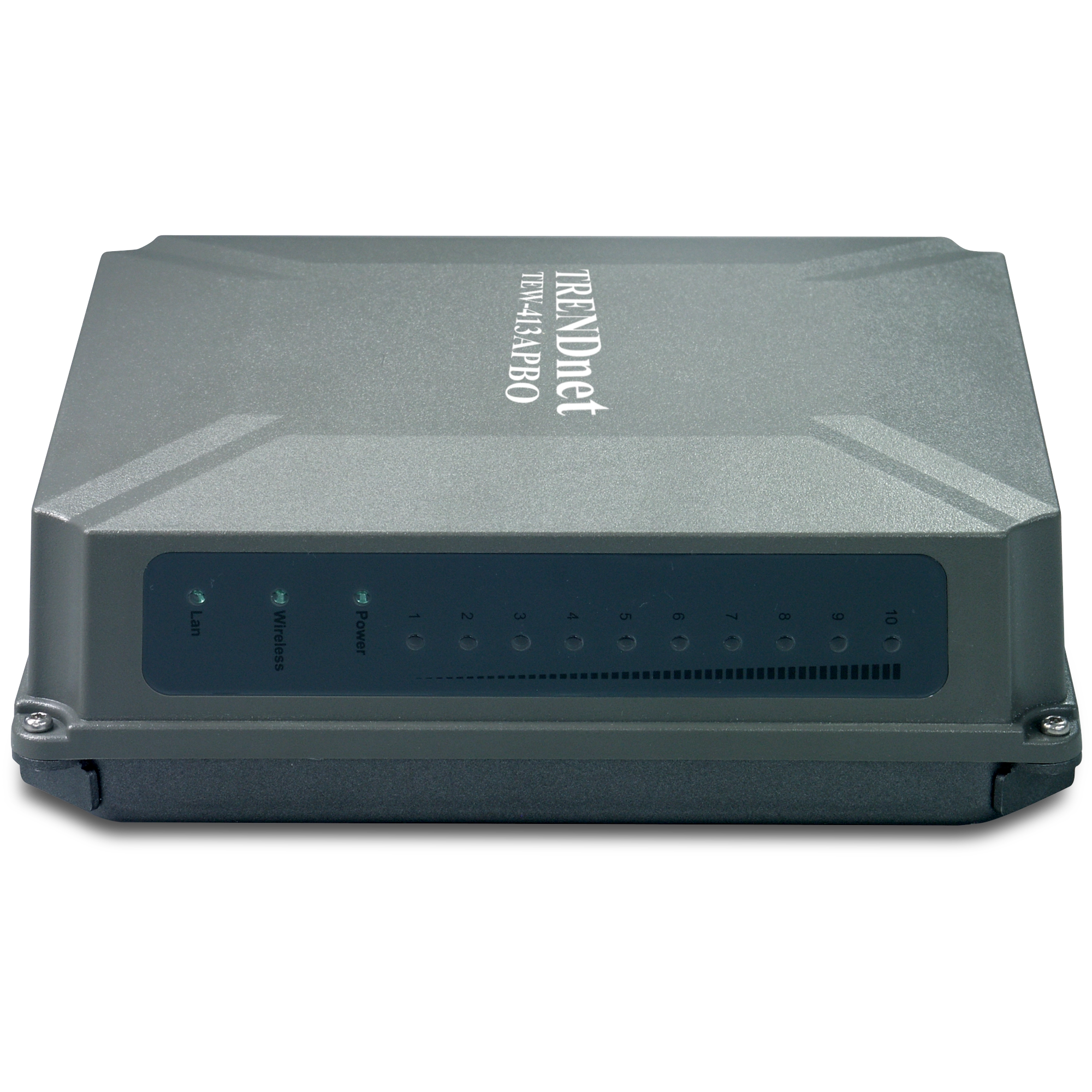

TEW-413APBO Product Photo (JPEG Image 1)
JPEG Image
File Size: : 574.74 KB
Date: : 11/30/2005
Download
TEW-413APBO Product Photo (TIFF Image 2)
TIFF Image
File Size: : 5.47 MB
Date: : 11/19/2009
Download
TEW-413APBO Product Photo (JPEG Image 3)
JPEG Image
File Size: : 506.01 KB
Date: : 5/18/2005
Download
TEW-413APBO Product Photo (TIFF Image 4)
TIFF Image
File Size: : 5.30 MB
Date: : 5/18/2005
Download
TEW-413APBO Product Photo (JPEG Image 5)
JPEG Image
File Size: : 814.98 KB
Date: : 11/30/2005
Download
TEW-413APBO Product Photo (TIFF Image 6)
TIFF Image
File Size: : 8.62 MB
Date: : 11/30/2005
Download
TEW-413APBO Product Photo (JPEG Image 7)
JPEG Image
File Size: : 346.13 KB
Date: : 5/18/2005
Download
TEW-413APBO Product Photo (TIFF Image 8)
TIFF Image
File Size: : 3.59 MB
Date: : 5/18/2005
Download
ROHS compliant Non-Disposable
Hardware
Standards
  • Wired: IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX)
  • Wireless: IEEE 802.11g (54Mbps)
LED
  • Indicator RF Activity (Wireless), LAN, Power
Interface
  • N-Type Connector (Female) for External High Gain Antenna RJ-45Connector for Data & PoE Support
Protocol
  • TCP/IP, IPS/SPX, NetBEUI
Dimension
  • (L x W x H) 185 x 160 x 55 mm (7.3 x 6.3 x 2.2 inches)
Weight
  • 0.7kg (1.54 lbs)
Temperature
  • -20°~ 65°C (-4°F~ 149°F)
Humidity
  • Max. 95% (Non-Condensing)
Power
  • POE Support, External AC/DC Converter 100/230V to 5V DC 1.5A, 3 Watts max.
Certification
  • FCC & CE
Wireless
Frequency
  • 2.412 to 2.4835GHz (Industrial Scientific Medical Band)
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
  • 802.11g: OFDM
Media Access
  • Protocol CSMA/CA with ACK
Data Rate (auto-fallback)
  • 802.11b: 11Mbps, 5Mbps, 2Mbps and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 12Mbps and 6Mbps
Security
  • 64/128-bit WEP, Passphrase WEP, WPA (TKIP/AES) Enable/Disable SSID Broadcast, ACL (MAC Address Filtering), VPN Pass-Through
Transmit Power
  • 19dBm±1 @ Nominal Temp Range
Receiving Sensitivity
  • 11Mbps 10 – 5 BER @ -84 dBm (typical)
  • 54Mbps 10 – 5 BER @ -68 dBm (typical)
Channels
  • 11 Channels (US), 13 Channels (EU)
Management
Device Configure
  • Web-Based (Http). SNMP
Status & Log
  • Device Status, Network Status & System Log

PACKAGE CONTENTS
  • TEW-413APBO
  • User's Guide CD-ROM
  • Multi-Language Quick Installation Guide
  • N-type to N-type Male Cable (2meters)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
