8-Port GREENnet Gigabit PoE+ Switch

TPE-TG44g   (Version v2.1R)

   Select Another Version
  • 4 x Gigabit PoE/PoE+ ports (up to 30 watts per PoE+ port)
  • 4 x Gigabit ports
  • Reduces equipment cost by delivering data and power over existing network cables
  • 16 Gbps switching capacity
  • Sturdy metal case
  • Up to 75% GREENnet power savings
  • Up to 30 Watts per port with a 68 Watt total power budget

DISCONTINUED PRODUCT

The TPE-TG44g (Version v2.1R) has been discontinued. It has been replaced by the TPE-TG44g (Version v3.0R). For a list of discontinued products, click here.

Datasheet

Data Sheets (English)
Filename: EN_spec_TPE-TG44g(v2.1R).pdf
Date: 10/20/2015
File Size: 509.63 KB
Download Email
Data Sheets (Français)
Filename: FR_spec_TPE-TG44g(v2.1R).pdf
Date: 10/20/2015
File Size: 525.56 KB
Download Email
Data Sheets (Deutsch)
Filename: GE_spec_TPE-TG44g(v2.1R).pdf
Date: 10/20/2015
File Size: 501.90 KB
Download Email
Data Sheets (Português)
Filename: PO_spec_TPE-TG44g(v2.1R).pdf
Date: 2/11/2016
File Size: 347.53 KB
Download Email
Data Sheets (Español)
Filename: SP_spec_TPE-TG44g(v2.1R).pdf
Date: 10/20/2015
File Size: 521.15 KB
Download Email
Data Sheets (Pусский)
Filename: RU_spec_TPE-TG44g(v2.1R).pdf
Date: 10/20/2015
File Size: 477.32 KB
Download Email
Data Sheets (Italiano)
Filename: IT_spec_TPE-TG44g(v2.1R).pdf
Date: 10/20/2015
File Size: 524.23 KB
Download Email

Quick Installation Guide

Quick Installation Guide (EUNL)
Filename: EUNL_Web_TPE-TG44g(V2.0R).pdf
Date: 9/4/2015
File Size: 671.55 KB
Download
Quick Installation Guide
Filename: Web_TPE-TG44g(V2.0R).pdf
Date: 9/4/2015
File Size: 756.99 KB
Download

Product Images

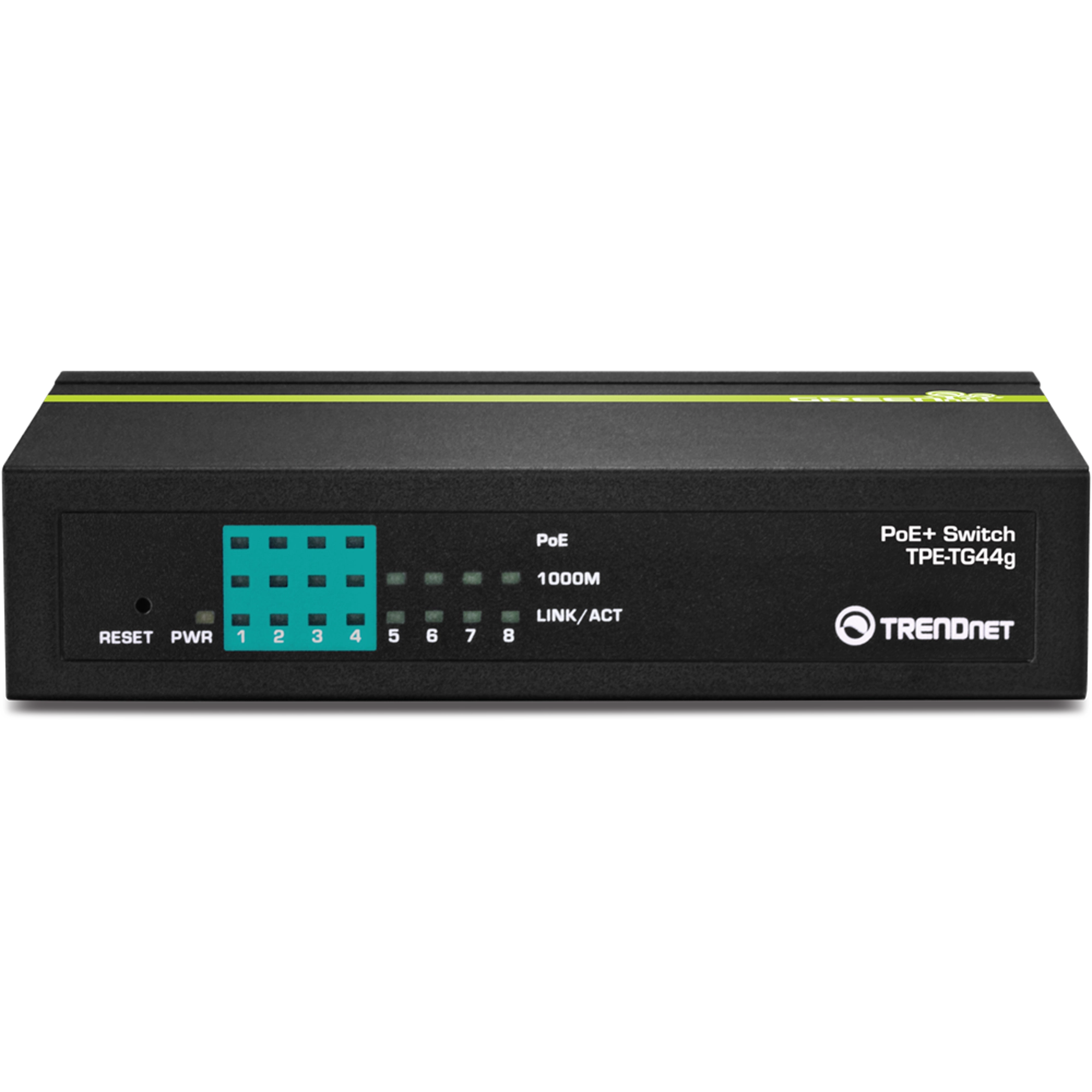

TPE-TG44g Product Photo (JPEG Image  1)
JPEG Image
File Size: : 239.69 KB
Date: : 2/25/2015
Download

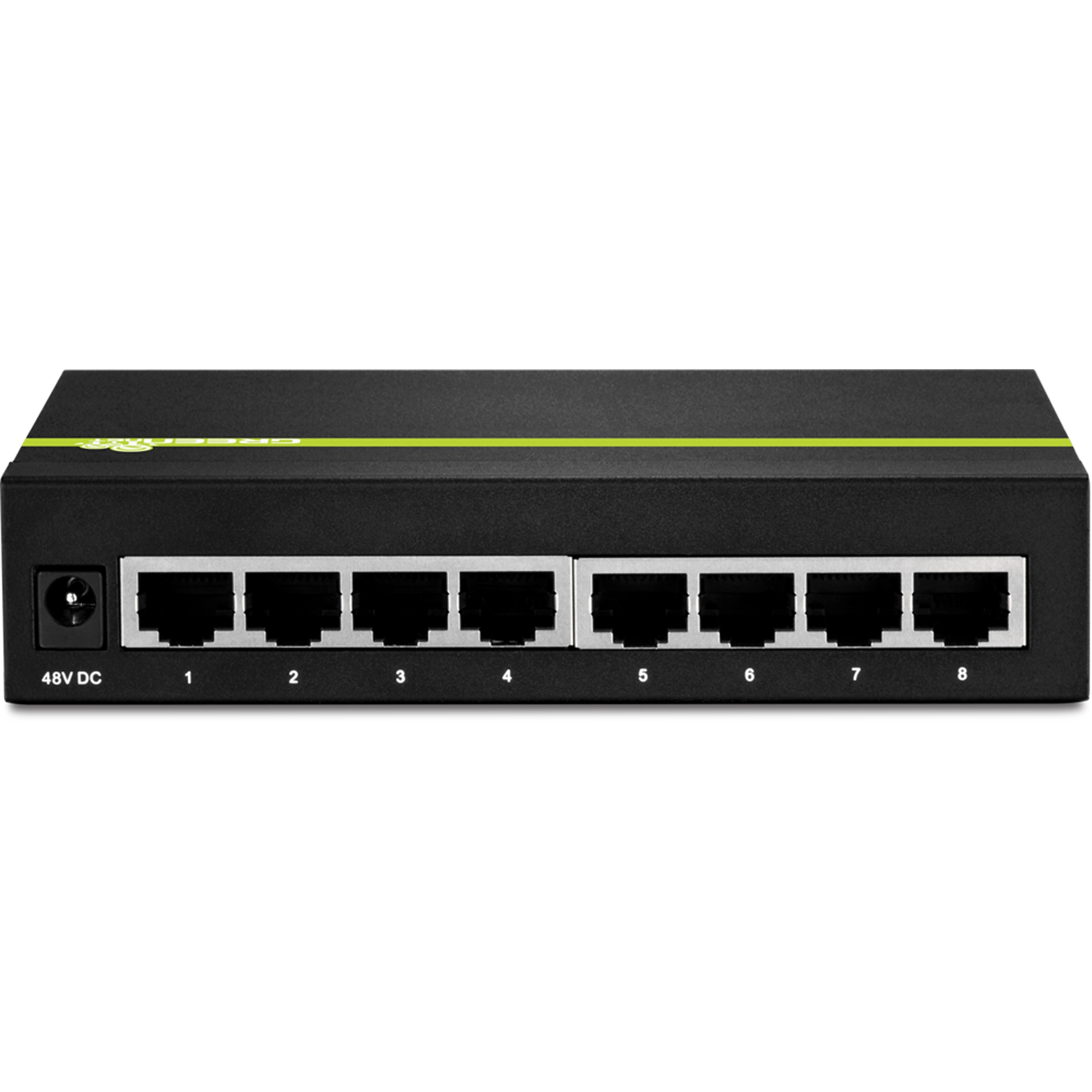

TPE-TG44g Product Photo (JPEG Image 2)
JPEG Image
File Size: : 208.51 KB
Date: : 2/25/2015
Download

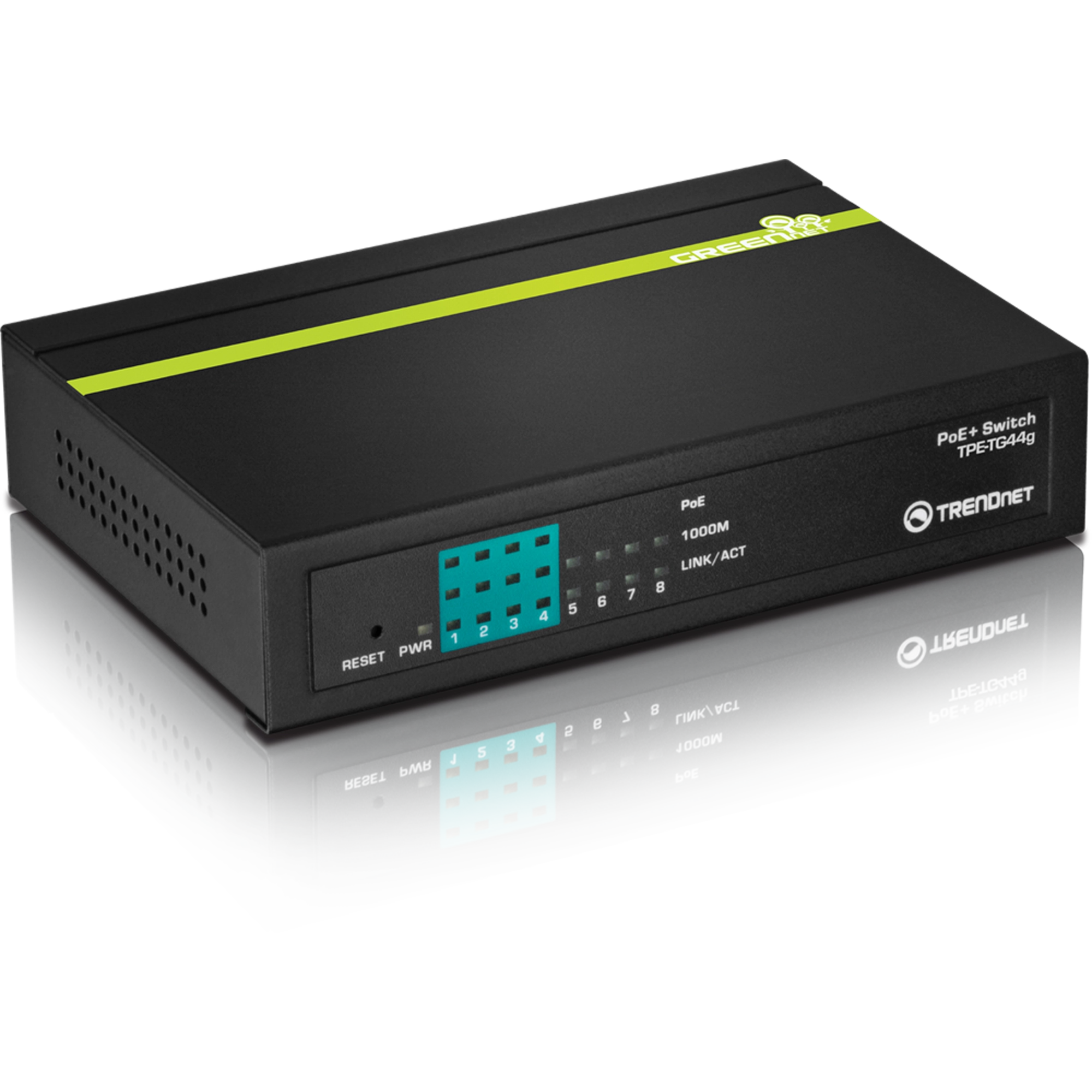

TPE-TG44g Product Photo (JPEG Image 3)
JPEG Image
File Size: : 195.73 KB
Date: : 2/25/2015
Download
ROHS compliant Non-Disposable
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3at Power over Ethernet (PoE+)
  • IEEE 802.3af Power over Ethernet (PoE)
  • IEEE 802.3X Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Ports
  • 4 x Gigabit Auto-MDIX PoE+ RJ-45 ports
  • 4 x Gigabit Auto-MDIX RJ-45 ports
Data Transfer Rate
  • Ethernet: 10/20 Mbps (Half/Full Duplex)
  • Fast Ethernet: 100/200 Mbps (Half/Full Duplex)
  • Gigabit: 2000 Mbps (Full Duplex)
Forwarding Rate
  • 11.9 mpps (based on 64-byte packet size)
Data RAM Buffer
  • 96K bytes
Address Table
  • 1K MAC entries
Switch Fabric
  • 16 Gbps
Power
  • Input: 100-240 V AC 50/60 Hz, 1.5 A
  • Output: 52 V DC, 1.38 A External Power Adapter
Diagnostic LEDs
  • Power, PoE, 1000 Mbps, Link/Activity
Power Consumption
  • Min: 4 Watts (standby)
  • Max: 72 Watts
  • PoE Max: 68 Watts
  • (4 x 15 watts PoE devices connected or 2 x 30 watts PoE+ devices connected)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20° ~ 90°C (-4° ~ 194°F)
Humidity
  • Max. 90% (non-condensing)
Dimensions
  • 142 x 95 x 30 mm (5.6 x 3.7 x 1.2 in.)
Weight
  • 380 g (13.4 oz.)
Certifications
  • CE, FCC
PoE
Power over Ethernet
  • Up to 15.4 watts for PoE
  • Up to 30 watts for PoE+
  • PoE: pin 1,2 for power+ and pin 3,6 for power- (mode A)

PACKAGE CONTENTS
  • TPE-TG44g
  • Quick Installation Guide
  • Power Adapter (52 V DC, 1.38 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
