16-Port USB/PS/2 Rack Mount KVM Switch w/ OSD

TK-1604R   (Version v1.0R)

  • 16-port stackable (1U height) KVM switch with VGA and USB connection to computers
  • On Screen Display (OSD) interface for easy management
  • Device monitoring with adjustable Auto-Scan, audible feedback and cascade up to 128 computers
  • Supports most operating systems and advance mouse designs

DISCONTINUED PRODUCT

The TK-1604R (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TK-1604R.pdf
Date: 8/16/2007
File Size: 256.36 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TK-1604R.pdf
Date: 8/16/2007
File Size: 261.93 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TK-1604R.pdf
Date: 8/16/2007
File Size: 262.37 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TK-1604R.pdf
Date: 8/16/2007
File Size: 260.66 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TK-1604R.pdf
Date: 8/16/2007
File Size: 1.16 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TK-804R_1604R.pdf
Date: 8/8/2007
File Size: 827.24 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TK-804R_1604R.pdf
Date: 8/8/2007
File Size: 826.18 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TK-804R_1604R.pdf
Date: 8/8/2007
File Size: 832.06 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TK-804R_1604R.pdf
Date: 8/8/2007
File Size: 829.40 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TK-804R_1604R.pdf
Date: 8/8/2007
File Size: 2.75 MB
Download

Product Images

TK-1604R Product Photo (JPEG Image 1)
JPEG Image
File Size: : 407.90 KB
Date: : 8/8/2007
Download
TK-1604R Product Photo (JPEG Image 2)
JPEG Image
File Size: : 170.50 KB
Date: : 8/8/2007
Download
TK-1604R Product Photo (JPEG Image 3)
JPEG Image
File Size: : 209.67 KB
Date: : 8/8/2007
Download
TK-1604R Product Photo (TIFF Image 4)
TIFF Image
File Size: : 2.32 MB
Date: : 8/8/2007
Download
TK-1604R Product Photo (TIFF Image 5)
TIFF Image
File Size: : 1.70 MB
Date: : 8/8/2007
Download
TK-1604R Product Photo (TIFF Image 6)
TIFF Image
File Size: : 6.87 MB
Date: : 8/8/2007
Download
TK-1604R Product Photo (JPEG Image 7)
JPEG Image
File Size: : 248.37 KB
Date: : 8/8/2007
Download
TK-1604R Product Photo (TIFF Image 8)
TIFF Image
File Size: : 1.58 MB
Date: : 8/8/2007
Download
ROHS compliant Non-Disposable

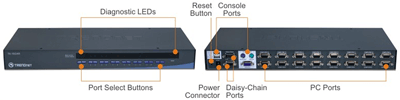

Hardware
Management
  • 16 computers
Standard
  • USB 1.1 compliant
PC Port
  • 16 x VGA HDB 15-pin (female)
Console Port
  • 1 x USB (type A)/ PS/2 mouse 6-pin mini din
  • 1 x USB (type A)/ PS/2 keyboard 6-pin mini din
  • 1 x VGA HDB 15-pin (female)
Supported OS
  • Windows 95/98(SE)/ME/ 2000/NT/XP/2003 Server/Vista Linux, Mac and more
PC Selection
  • Hot-key, push buttons or On Screen Display Control (OSD)
Daisy Chain
  • 8 levels (up to 128 computers)
Auto-Scan Interval
  • 10-100 seconds (programmable through OSD menu)
LEDs
  • On-line (red), select (green)
Keyboard Status
  • Saved & restored
Power Adapter
  • 9V DC 1A external power adapter
Dimensions
  • 407 x 164 x 45mm (16 x 6.5x 1.8in)
Weight
  • 2.06kg (4.54lb.)
Temperature
  • Operating: 0°C~40°C (32°F~104°F)
  • Storage: -20°C~60°C (-4°F~140°F)
Humidity
  • 0%~80% (non-condensing)
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TK-1604R
  • Multi-language quick installation guide
  • 1 x daisy-chain cable
  • 1 x daisy-chain terminator
  • 1 x firmware upgrade cable
  • Power Adapter (9V DC, 1A)
  • Rack Mount Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
