1-Bay IDE Network Storage Enclosure
TS-I300 (Version 1.0R)
- Expand your storage capacity in minutes
- Access and share your data from the Internet
- Control access and content with a feature rich management interface
DISCONTINUED PRODUCT
The TS-I300 (Version 1.0R) has been discontinued. For a list of discontinued products, click here.Utility
Firmware
Datasheet
Filename: EN_Spec_TS-I300.pdf
Date: 8/23/2007
File Size: 595.81 KB
Filename: FR_Spec_TS-I300.pdf
Date: 8/23/2007
File Size: 675.22 KB
Filename: GE_Spec_TS-I300.pdf
Date: 8/23/2007
File Size: 681.09 KB
Filename: SP_Spec_TS-I300.pdf
Date: 8/23/2007
File Size: 675.27 KB
Quick Installation Guide
Filename: EN_QIG_TS-I300_I300W.pdf
Date: 9/21/2006
File Size: 1.05 MB
Filename: FR_QIG_TS-I300_I300W.pdf
Date: 9/21/2006
File Size: 1.07 MB
Filename: GE_QIG_TS-I300_I300W.pdf
Date: 9/21/2006
File Size: 1.06 MB
Filename: GE_QIG_TS-I300_I300W.pdf
Date: 9/21/2006
File Size: 1.06 MB
Filename: RU_QIG_TS-I300_I300W.pdf
Date: 9/21/2006
File Size: 1.14 MB
User's Guide

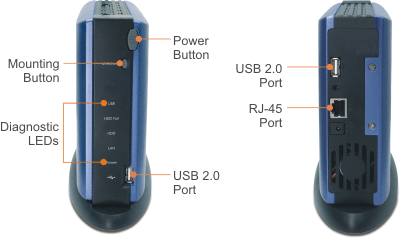

Product Images
| Hardware | |
| Standards |
|
| Microprocessor | RDC 3210 (150Mhz) |
| Flash ROM / RAM | 4MB Flash / 32MB SDRAM |
| IDE Controller | ITE IT8211F |
| Interface |
|
| LED | Power, LAN, IDE HDD, IDE HDD Full |
| Power Consumption | 36 watts (max) |
| Power | 12V DC, 3A |
| Dimensions | 200 x 154 x 60mm (7.9 x 6 x 2.4in) |
| Weight | 0.7kg (1.5 lb) |
| Temperature |
|
| Humidity | 90% ~ 95% (Non-Condensing) |
| Emissions | CE, FCC |
| Software | |
| Real Time OS | Embedded Linux (Kernel version 2.4.25) |
| Network Transfer Protocol | TCP/IP |
| Network File Protocols |
|
| Supported HD Type | ATA/IDE up to ATA/133 |
| File System Type |
|
| Disk Management |
|
| System Management |
|
| System Monitoring |
|
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
