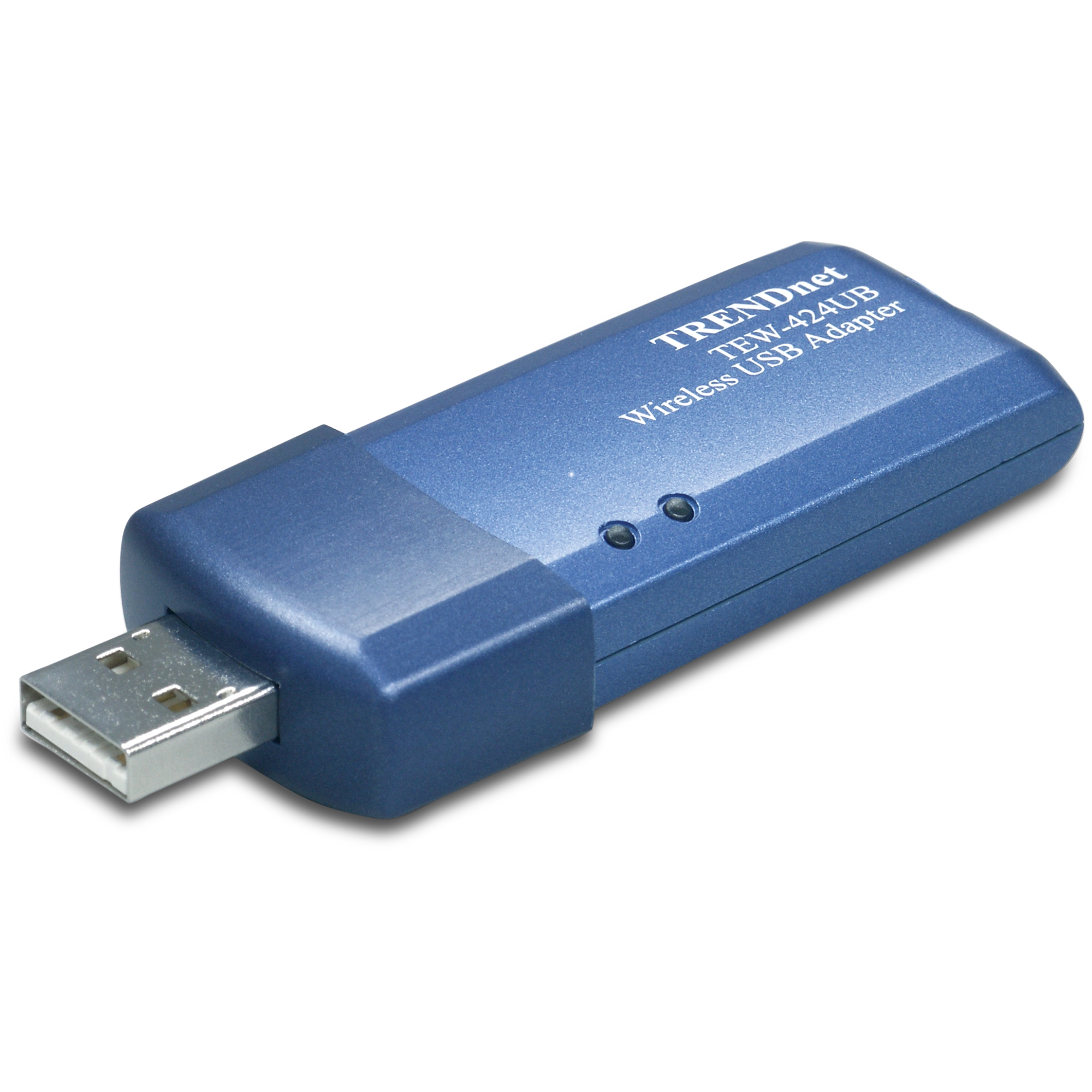

54Mbps 802.11g Wireless USB 2.0 Adapter

TEW-424UB   (Version A)

   Select Another Version

DISCONTINUED PRODUCT

The TEW-424UB (Version A) has been discontinued. It has been replaced by the TEW-808UBM (Version v1.0R). For a list of discontinued products, click here.

Utility

Driver/Utility
Filename: Driver_Utility_TEW-424UB(1.2.0.1).zip
SHA-1 Checksum: BEE989ABE87C7BE6F387E76BCE3A6047F25EF2C0
Date: 7/26/2017
File Size: 4.41 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-424UB(English).pdf
Date: 4/28/2005
File Size: 186.89 KB
Download Email
Datasheet (Français)
Filename: Spec_TEW-424UB(French).pdf
Date: 4/28/2005
File Size: 173.51 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-424UB(German).pdf
Date: 4/28/2005
File Size: 193.97 KB
Download Email
Datasheet (Español)
Filename: Spec_TEW-424UB(Spanish).pdf
Date: 4/28/2005
File Size: 185.65 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-424UB(English).pdf
Date: 4/28/2005
File Size: 3.29 MB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-424UB(French).pdf
Date: 4/28/2005
File Size: 3.84 MB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-424UB(German).pdf
Date: 4/28/2005
File Size: 4.05 MB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-424UB(Spanish).pdf
Date: 4/28/2005
File Size: 4.02 MB
Download
Quick Installation Guide (Pусский)
Filename: QIG_TEW-424UB(Russian).pdf
Date: 4/28/2005
File Size: 3.43 MB
Download
Quick Installation Guide (עברית)
Filename: QIG_TEW-424UB(Hebrew).pdf
Date: 1/19/2006
File Size: 785.37 KB
Download

User's Guide

User's Guide
Filename: UG_TEW-424UB.doc
Date: 10/3/2006
File Size: 2.74 MB
Download
Hardware
Adapter Type:
  • USB 2.0 Interface
Standards:
  • IEEE 802.11g and IEEE 802.11b Wi-Fi Compliant
Driver Support:
  • Windows 98SE/ME/2000/XP
Antenna:
  • 1dBi Internal chip antenna
LED Indicator:
  • Link, ACT
USB Cable Length:
  • 100mm (3.9 inches)
Dimensions (L x W) :
  • 80 x 30 x 10 mm (3.15 x 1.18 x 0.35 inches)
Weight:
  • 18g. (0.04 lb)
Temperature:
  • Operating: 0° ~ 55° C (32° ~ 131° F)
  • Storage: -10° ~ 65° C (14° ~ 149° F)
Humidity:
  • Operating : 90% (Non-Condensing)
  • Storage : 95% (Non-Condensing)
Certification:
  • FCC, CE
Wireless
Frequency:
  • 2.4 to 2.4835GHz (Industrial Scientific Medical Band)
Module Technique:
  • 802.11b: DSSS (CCK, DQPSK, DBPSK)
  • 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK)
Media Access Protocol:
  • CSMA/CA with ACK
WEP:
  • 64/128/256-bit (Hex & ASCII) & WPA-PSK
Transmit Power:
  • 14dBm @ 54Mbps
  • 17dBm @ 11Mbps
Data Rate:
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Receiving Sensitivity:
  • 11Mbps: 10 – 5 BER @ -82 dBm (typical)
  • 54Mbps: 10 – 5 BER @ -69 dBm (typical)
Power Consumption:
  • Operating: (TX: 330mA, RX: 160mA) @ 5V DC
Channel:
  • 1 ~ 14 Channels (Universal Domain Support )

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
