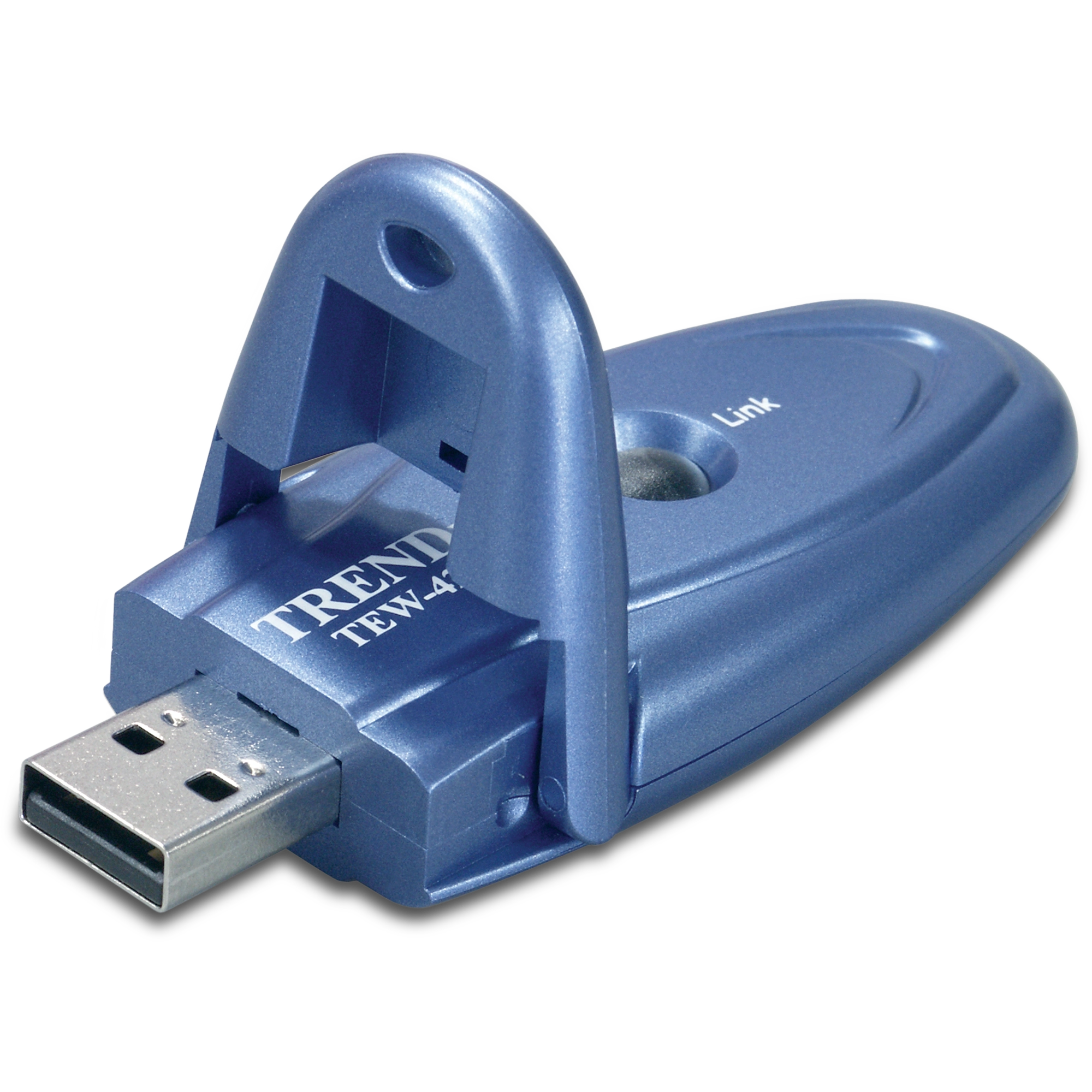

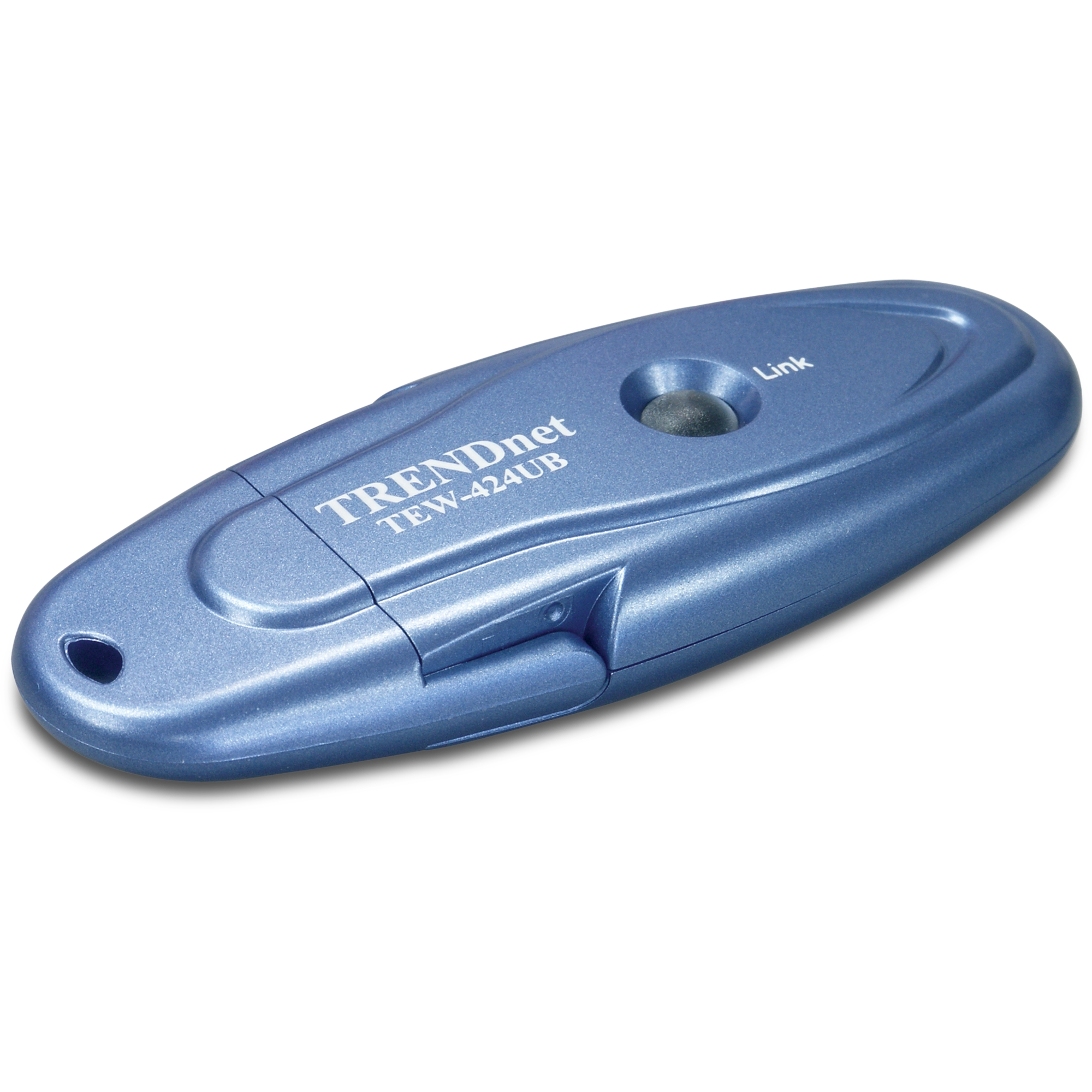

54Mbps 802.11g Wireless USB 2.0 Adapter

TEW-424UB   (Version 2)

   Select Another Version

DISCONTINUED PRODUCT

The TEW-424UB (Version 2) has been discontinued. It has been replaced by the TEW-808UBM (Version v1.0R). For a list of discontinued products, click here.

Utility

Driver/Utility
Filename: Driver_Utility_TEW-424UB(1.2.0.1).zip
SHA-1 Checksum: BEE989ABE87C7BE6F387E76BCE3A6047F25EF2C0
Date: 7/26/2017
File Size: 4.41 MB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEW-424UB(English).pdf
Date: 4/28/2005
File Size: 186.89 KB
Download Email
Datasheet (Français)
Filename: Spec_TEW-424UB(French).pdf
Date: 4/28/2005
File Size: 173.51 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEW-424UB(German).pdf
Date: 4/28/2005
File Size: 193.97 KB
Download Email
Datasheet (Español)
Filename: Spec_TEW-424UB(Spanish).pdf
Date: 4/28/2005
File Size: 185.65 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEW-424UB(English).pdf
Date: 4/28/2005
File Size: 3.29 MB
Download
Quick Installation Guide (Français)
Filename: QIG_TEW-424UB(French).pdf
Date: 4/28/2005
File Size: 3.84 MB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEW-424UB(German).pdf
Date: 4/28/2005
File Size: 4.05 MB
Download
Quick Installation Guide (Español)
Filename: QIG_TEW-424UB(Spanish).pdf
Date: 4/28/2005
File Size: 4.02 MB
Download
Quick Installation Guide (Pусский)
Filename: QIG_TEW-424UB(Russian).pdf
Date: 4/28/2005
File Size: 3.43 MB
Download
Quick Installation Guide (עברית)
Filename: QIG_TEW-424UB(Hebrew).pdf
Date: 1/19/2006
File Size: 785.37 KB
Download

User's Guide

User's Guide
Filename: UG_TEW-424UB.doc
Date: 10/3/2006
File Size: 2.74 MB
Download
Hardware
Interface
  • USB 2.0, 1.1, 1.0 Compliant
Standards
  • IEEE 802.11b and IEEE 802.11g
Antenna
  • 2dBi Integrated Printed Antenna
LED Indicator
  • Link
Power Consumption
  • Receive Mode: 280mA
  • Transmit Mode: 380 mA
Supported OS
  • Windows 98(SE), ME, 2000, XP(SP1/SP2)
Dimensions (LxWxH)
  • 85 x 33 x 12 mm (3.35 x 1.3 x 0.47 inches) (without metal bracket)
Weight
  • 15 g (0.5 oz.) (with antenna)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • 10% ~ 95% max (Non-condensing)
Certification
  • FCC, CE, ETS
Wireless
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDM
Frequency
  • 2.412 to 2.484 GHz (Industrial Scientific Medical Band)
Media Access Protocol
  • CSMA/CA with ACK
Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps **6Mbps for 802.11g using USB 1.1 or 1.0 Connection
Output Power
  • 15dBm (typically) @ 802.11b
  • 12dBm (typically) @ 802.11g
Receiving Sensitivity
  • 54Mbps 10% PER @ -72 dBm (typical)
  • 11Mbps 8% PER @ -83 dBm (typical)
Security
  • WPA-PSK, 64/128-Bit WEP
Channels
  • 1~14 Channels (Universal Domain Support)

PACKAGE CONTENTS
  • TEW-424UB
  • Quick Installation Guide
  • Utility & Driver CD-ROM
  • 1 x USB 2.0 Cable (145mm/5.7inches)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
