9-Port 10/100/1000Mbps Copper Gigabit Switch

TEG-S18TXE

  • Provides 1000Mbps gigabit connection to a server or another gigabit switch, with each port running at full wire speed.
  • Simple expansion can be done by up-linking to other 10/100Mbps switches or another gigabit switch
  • Provides Gigabit performance at an affordable price

DISCONTINUED PRODUCT

The TEG-S18TXE  has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: Spec_TEG-S18TXE(English).pdf
Date: 1/17/2005
File Size: 340.90 KB
Download Email
Datasheet (Français)
Filename: Spec_TEG-S18TXE(French).pdf
Date: 1/17/2005
File Size: 350.11 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEG-S18TXE(German).pdf
Date: 2/9/2005
File Size: 351.21 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-S18TXE.pdf
Date: 11/30/2005
File Size: 342.91 KB
Download Email

User's Guide

User Guide (Romania)
Filename: UG_TEG-S18TXE_RO.pdf
Date: 11/30/2005
File Size: 357.99 KB
Download

Product Images

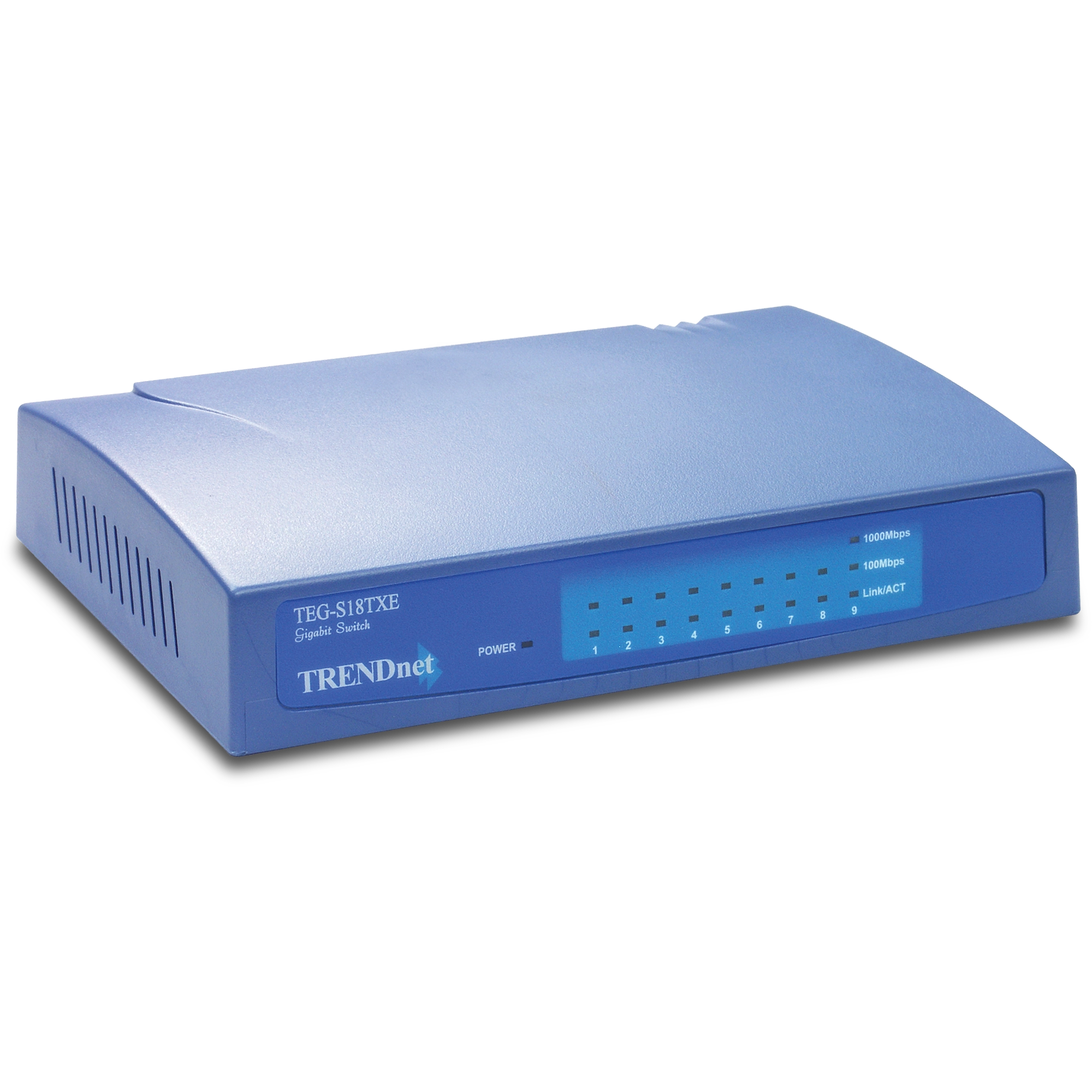

TEG-S18TXE Product Photo (JPEG Image 1)
JPEG Image
File Size: : 346.28 KB
Date: : 9/9/2004
Download

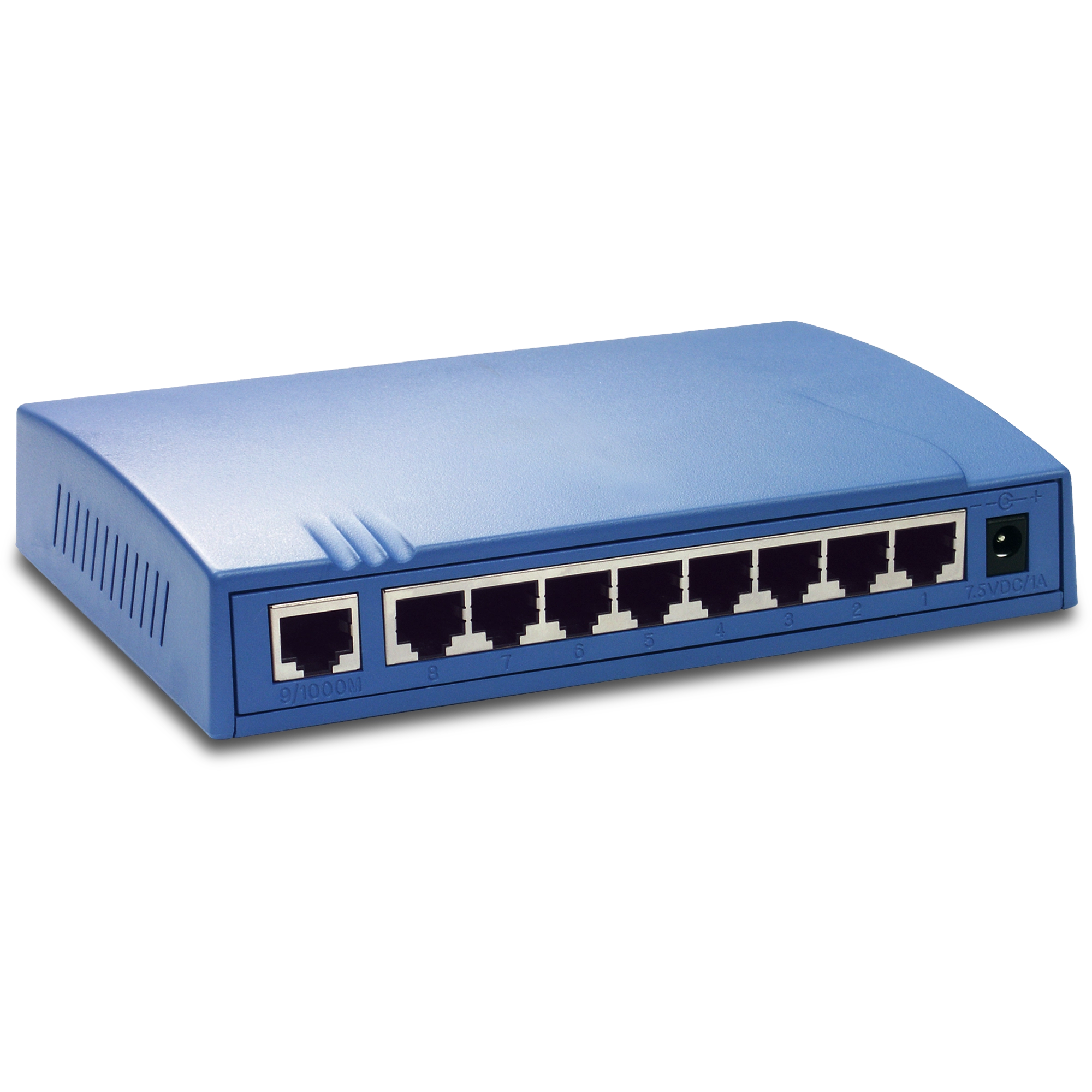

TEG-S18TXE Product Photo (TIFF Image 2)
TIFF Image
File Size: : 2.94 MB
Date: : 9/9/2004
Download
TEG-S18TXE Product Photo (JPEG Image 3)
JPEG Image
File Size: : 305.47 KB
Date: : 9/9/2004
Download
TEG-S18TXE Product Photo (TIFF Image 4)
TIFF Image
File Size: : 2.89 MB
Date: : 9/9/2004
Download
ROHS compliant Non-Disposable
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3x Flow Control
Data Transfer Rate:
  • Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex),
  • Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex),
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Cabling:
  • Ethernet: 2-pair UTP/STP Cat. 3, 4, 5, 100 meters max.
  • Fast Ethernet: 2-pair UTP/STP Cat. 5, 100 meters max.
  • Gigabit Ethernet: 4-pair UTP/STP Cat. 5, 100 meters max.
Protocol:
  • CSMA/CD
Topology:
  • Star
Data RAM Buffers:
  • 256KB per Device
Filtering Address Table:
  • 4K entries per device
Diagnostic LEDs:
  • Power
  • Link/ACT, 100Mbps LEDs for 10/100Mbps Fast Ethernet ports
  • Link/ACT, 100Mbps, 1000Mbps LED for Gigabit port
Power Consumption:
  • 5.7 Watts; 7.5V DC, 1A Power Adapter
Dimensions (WxHxD):
  • 172 x 100 x 34mm (6.8 x 3.9 x 1.3 inch)
Weight:
  • 280.6 grams (9.9 Oz)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • Operating: 10% ~ 90 %
  • Storage: 5% ~ 90% for storage (non-condensing)
Certifications:
  • FCC Class B, CE mark Class B, VCCI-B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
