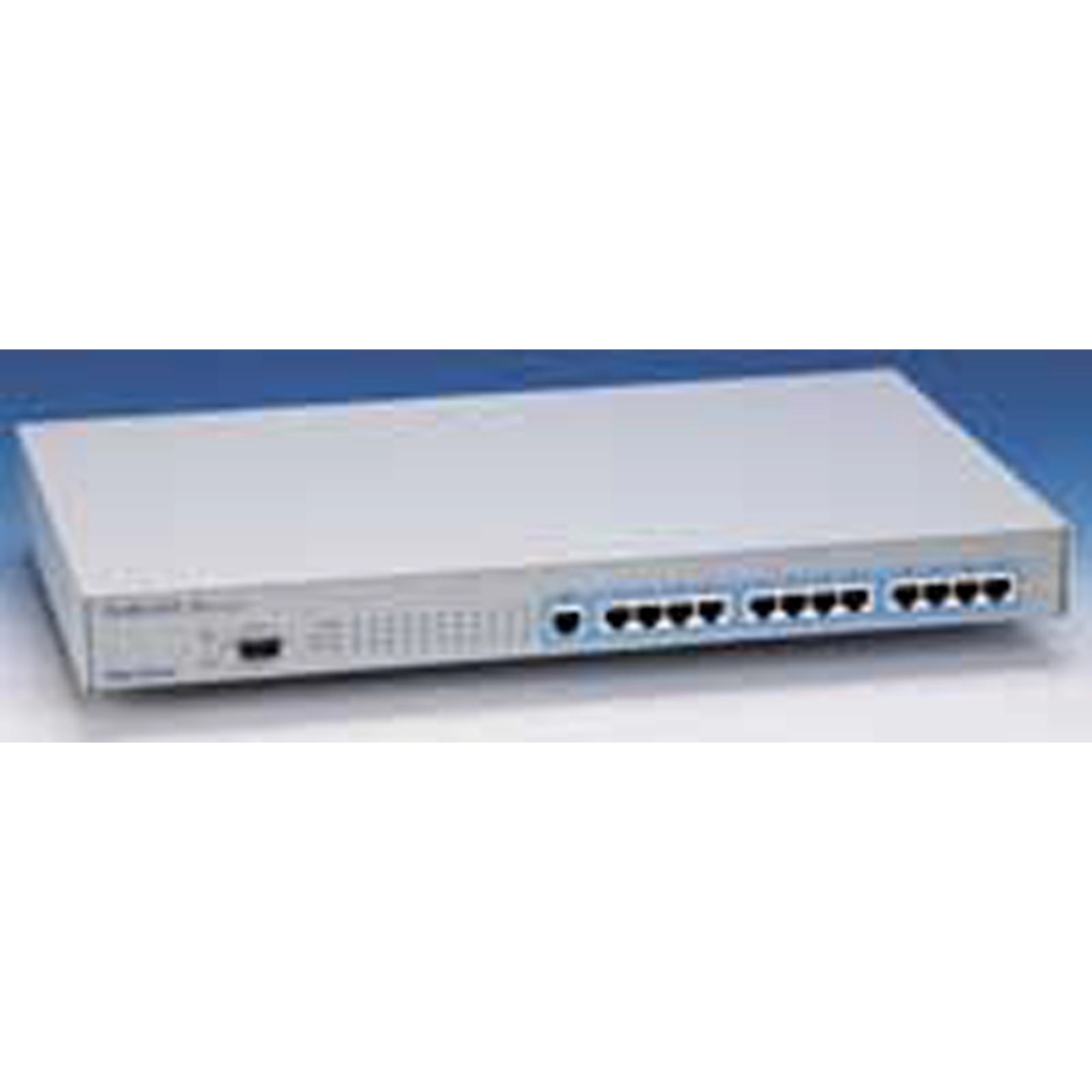

12-Port 10/100Mbps N-way Auto-sensing Switching Hub

TE100-S1212   (Version 1.0)

  • This fast Ethernet switch enhances workgroup performance while providing a high level of flexibility
  • The built-in N-way ports automatically negotiate between 10Base-T and 100Base-TX network speeds as well as between full and half duplex modes
  • Enjoy a 5-year warranty for peace of mind

DISCONTINUED PRODUCT

The TE100-S1212 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S1212.pdf
Date: 5/2/2013
File Size: 206.61 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S1212.pdf
Date: 8/20/2004
File Size: 574.61 KB
Download
Hardware
Protocol: CSMA/CD
Speed:
  • 10Mbps (half duplex) / 20Mbps (full duplex) for 10Base-T
  • 100Mbps (half duplex) / 200Mbps (full duplex) for 100Base-TX
Cabling:
  • CAT 3, 4, 5 UTP/STP for 10Base-T
  • CAT 5 UTP/STP for 100Base-TX
LED's: Power, Link/ACT, FDX/COL, 100M
Power: Internal Power Supply (100-240V, 50/60Hz)40W, 5V/8A
Dimensions: 442 x 258 x 44 mm / 17.4" x 10.2" x 1.7" (L x W x H)
Weight: 3.73 kg / 8.2 lb.
Temperature:
  • Operating: 0° to 50° C
  • Storage: -20° C to 80° C
Humidity: 10% - 90% (non-condensing)
Certification:FCC Class A, UL, CSA, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
