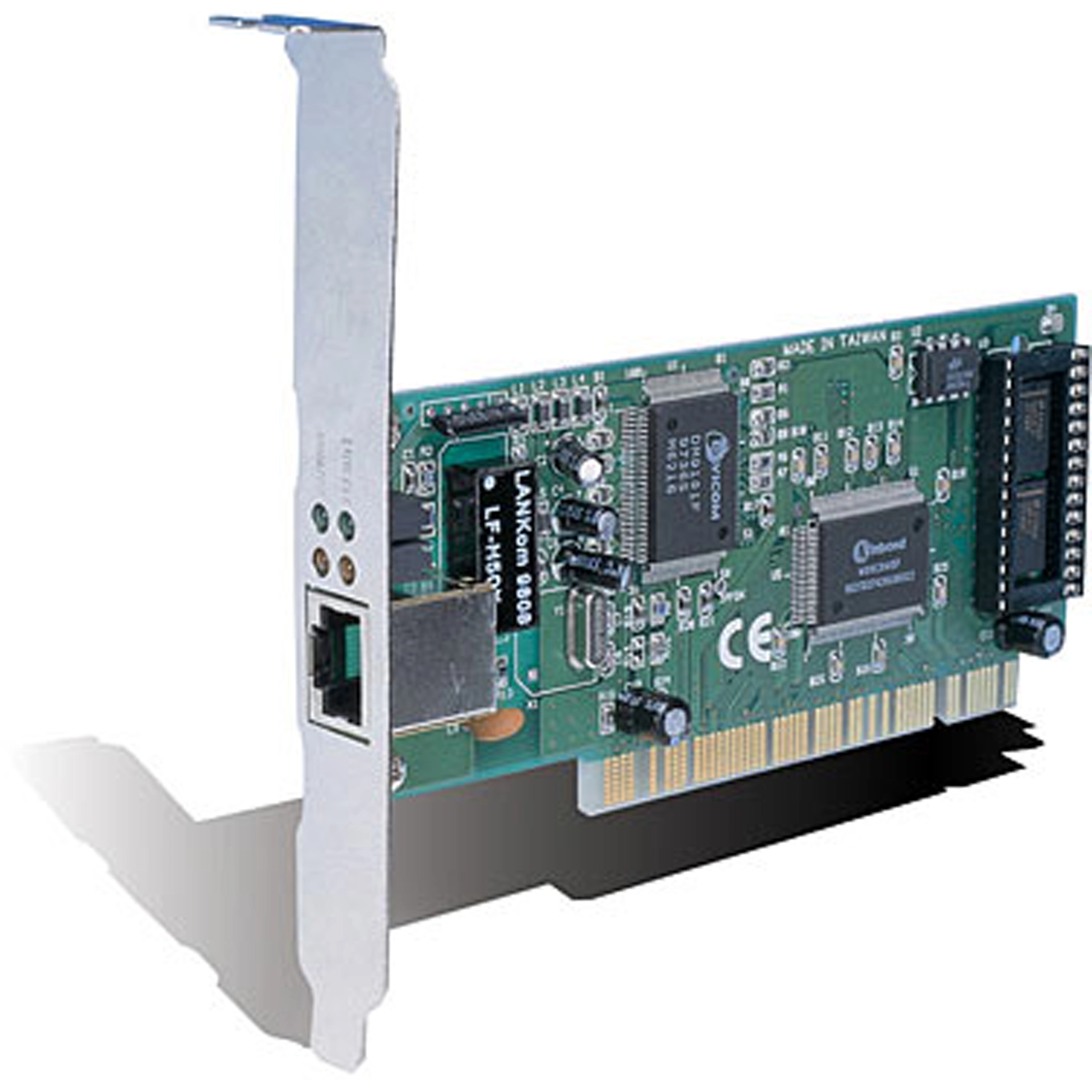

10/100Mbps Fast Ethernet PCI Card

TE100-PCIE   (Version 1.0)

  • The perfect solution for connecting to a high-speed LAN through your desktop computer
  • Provides fast 10/100Mbps data rates using only one port
  • Enjoy a 5-year warranty for peace of mind

DISCONTINUED PRODUCT

The TE100-PCIE (Version 1.0) has been discontinued. It has been replaced by the TEG-10GECTX (Version v3.0R). For a list of discontinued products, click here.

Drivers

Driver
Filename: Driver_TE100-PCIE.zip
SHA-1 Checksum: 9F801FFAF0F548A5B709E8C7EB3A118D7BE0C14C
Date: 7/25/2017
File Size: 656.09 KB
Download

Datasheet

DataSheet
Filename: Spec_TE100-PCIE.pdf
Date: 5/2/2013
File Size: 160.97 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-PCIE.pdf
Date: 8/18/2004
File Size: 131.35 KB
Download
Hardware
Standards:
  • IIEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX
Data Bus Width:
  • 32-bit bus mastering PCI
Data Transfer Rate:
  • 10 or 100Mbps in full-duplex mode
Protocol:
  • CSMA/CD
Connectors:
  • 1 RJ-45 (10Mbps or 100Mbps speed)
Diagnostic LED's:
  • Power/Transmit, Link/Receive,100Mbps media selection
Certifications:
  • FCC Class A, CE
Temperature:
  • Operating: 0° to 50° C ( 32° -122° F)
  • Storage: -25° to 70° C ( -13° to 158° F)
Humidity:
  • Operating: 10 to 70% (non-condensing)
  • Storage: 10 to 90% (non-condensing)
Certifications:
  • FCC Class B, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
