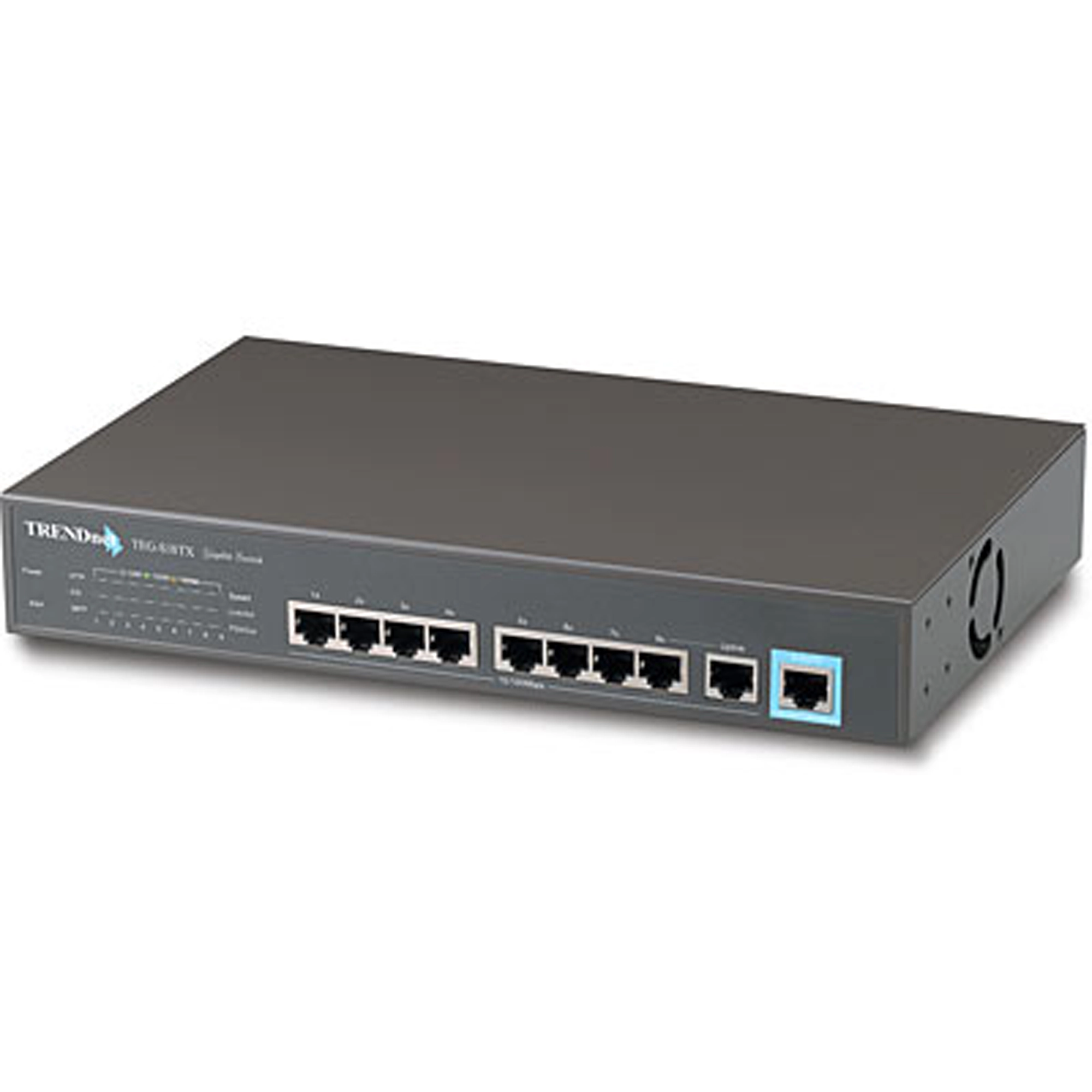

9-Port 10/100/1000Mbps NWay Copper Gigabit Switch

TEG-S18TX

  • Provides 1000Mbps gigabit connection to a server or another gigabit switch, with each port running at full wire speed.
  • Simple expansion can be done by up-linking to other 10/100Mbps switches or another gigabit switch
  • Provides gigabit performance at an affordable price

DISCONTINUED PRODUCT

The TEG-S18TX  has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TEG-S18TX.pdf
Date: 5/13/2013
File Size: 202.15 KB
Download Email

User's Guide

Manual
Filename: UG_TEG-S18TX.pdf
Date: 8/18/2004
File Size: 141.93 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-TX Gigabit Ethernet, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE 802.3x Flow Control
Data Transfer Rate:
  • Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)
  • Fast Ethernet: 100mbps (Half-Duplex), 200Mbps (Full-Duplex)
  • Gigabit Ethernet: 1000Mbps (Half-Duplex), 2000Mbps (Full-Duplex)
Cabling:
  • Ethernet: 2-pair UTP CAT 3,4,5, EIA.ITA-568 100-ohm screened twisted pair (STP)
  • Fast Ethernet: 2-pair UTP CAT 5, EIA/TIA-568 100ohm screened twisted pair (STP)
  • Gigabit Ethernet: 4-pair UTP CAT 5, EIA/TIA-568 100-ohm screened twisted pair (STP)
Protocol:
  • CSMA/CD
Topology:
  • Star
Data RAM Buffers:
  • 2Mbit per Device
Filtering Address Table:
  • 4K entries per device
Diagnostic LEDs:
  • Power, ALERT, HTTP, ICQ, SMTP, Speed, Link/Act, FDX/COL
Power Consumption:
  • 100~240 VAC 50/60hz, 30W (max) Internal Universal Power Supply
Dimensions:
  • 280 x 180 x 44mm (W x H x D)
Weight:
  • 1.66 kg (3.65 lb)
Temperature:
  • Operating Temp.: 0° to 50° C (32° to 122° F)
  • Storage Temp.: -5° to 55° C (23° to 131° F)
Humidity:
  • 5 % to 95 % non-condensing
Certifications:
  • FCC Class A, CE Class B, VCCI-A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
