8-Port 10/100/1000Mbps Copper Gigabit Ethernet Switch

TEG-S80TXD

  • 8-port gigabit switch offers a reliable and affordable LAN solution to meet immediate bandwidth demand
  • Users can connect gigabit server(s) to the gigabit port(s) to increase network performance or uplink copper gigabit switches together to create high-bandwidth backbones
  • Gigabit performance is 10 times faster than the 100Mbps fast Ethernet

DISCONTINUED PRODUCT

The TEG-S80TXD  has been discontinued. It has been replaced by the TEG-S80g (Version v4.1R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: Spec_TEG-S80TXD(English).pdf
Date: 3/8/2005
File Size: 385.72 KB
Download Email
Datasheet (Français)
Filename: Spec_TEG-S80TXD(French).pdf
Date: 3/8/2005
File Size: 390.46 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEG-S80TXD(German).pdf
Date: 3/8/2005
File Size: 389.94 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-S80TXD.pdf
Date: 5/5/2006
File Size: 389.10 KB
Download Email

User's Guide

User Guide (Romania)
Filename: UG_TEG-S80TXD_RO.pdf
Date: 11/30/2005
File Size: 473.25 KB
Download

Product Images

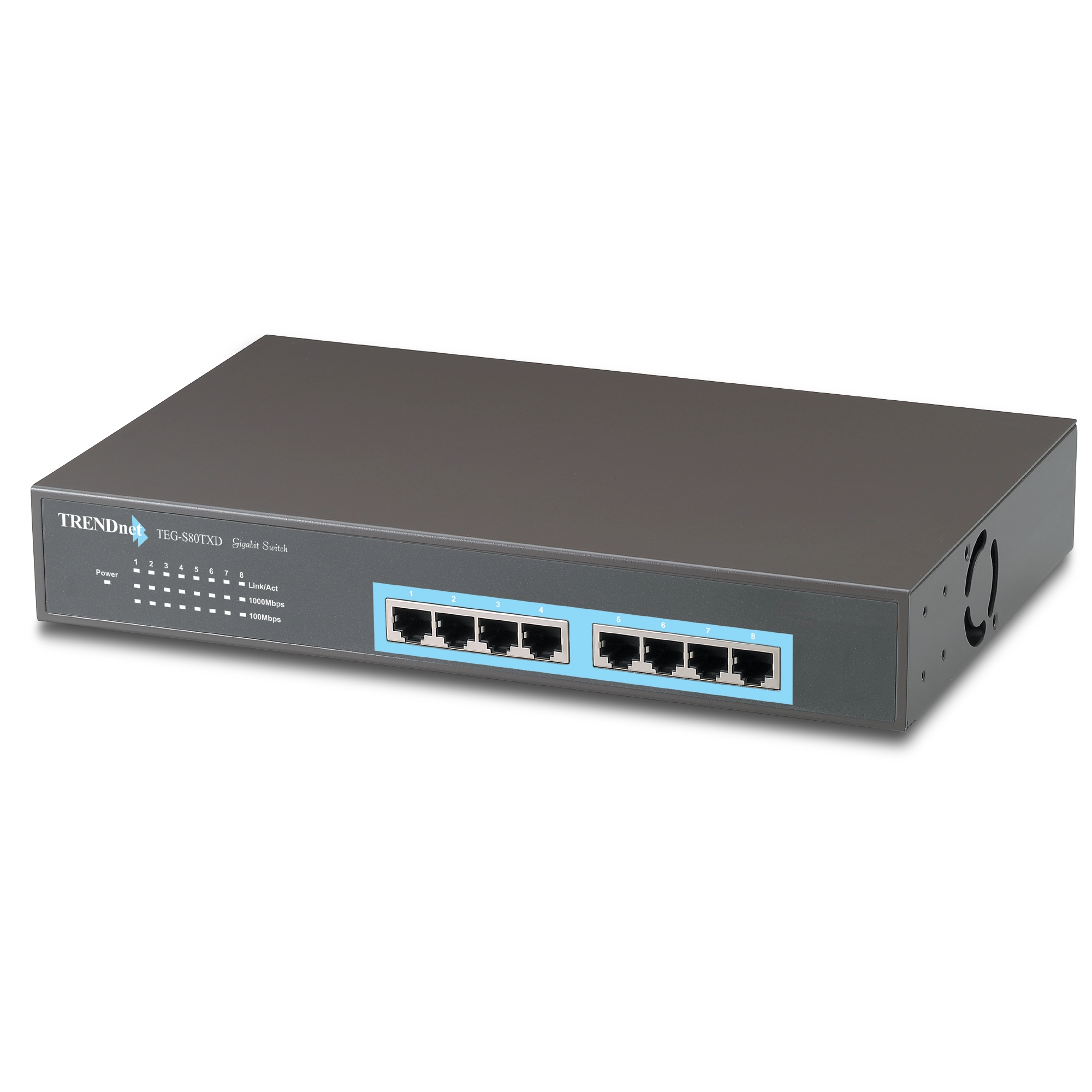

TEG-S80TXD Product Photo (JPEG Image 1)
JPEG Image
File Size: : 77.00 KB
Date: : 9/9/2004
Download
TEG-S80TXD Product Photo (TIFF Image 2)
TIFF Image
File Size: : 2.31 MB
Date: : 9/9/2004
Download
ROHS compliant Non-Disposable
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE 802.3x Full-Duplex Flow Control
Data Transfer Rate:
  • Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex),
  • Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex),
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Cabling:
  • Ethernet: Cat. 3,4,5, UTP/STP, EIA.ITA-568 100 Ohm
  • Fast Ethernet: Cat. 5, UTP/STP, EIA/TIA-568 100 Ohm
  • Gigabit Ethernet: Cat. 5, UTP/STP, EIA/TIA-568 100 Ohm
Cable Length:
  • 100 meters maximum
Protocol:
  • CSMA/CD
Topology:
  • Star
Data RAM Buffers:
  • 256 Kbytes per device
Filtering Address Table:
  • 8K entries per device
Diagnostic LEDs:
  • Power, LINK/ACT, 100M, 1000M
Power Consumption:
  • 100~240 VAC 50/60hz, Internal Universal Power Supply, 22 Watts max
Dimensions:
  • 280× 180 × 44 mm (11“ x 7.1“ x 1.75“) (W x D x H)
Weight:
  • 1.62 kg (3.57 lb)
Temperature:
  • Operating: 0°C ~ 40°C (32° ~ 104°F)
  • Storage: -10°C ~ 55°C (14° ~ 131°F)
Humidity:
  • 5 % to 95 % RH non-condensing
Certifications:
  • CE Class A, FCC Class A, VCCI-A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
