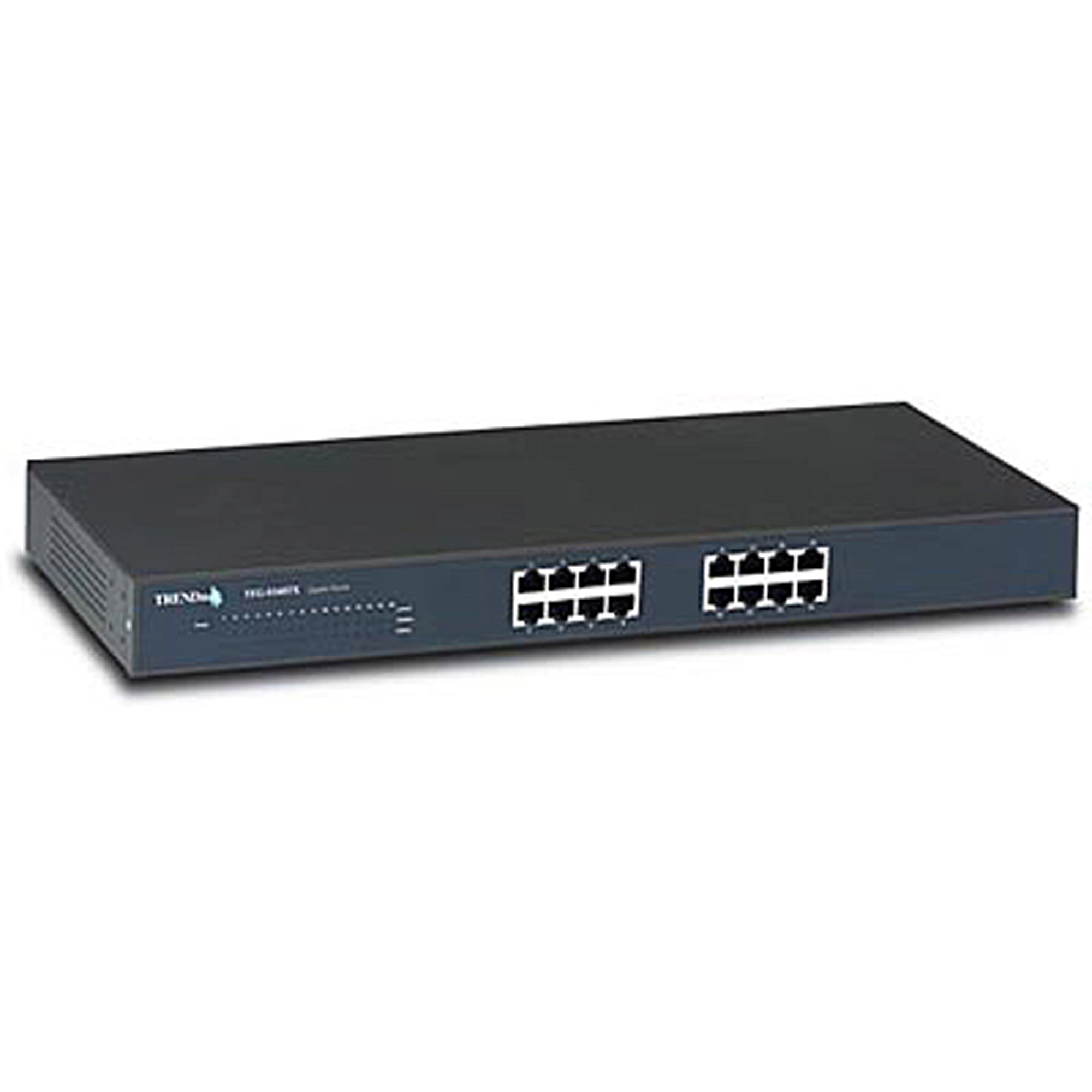

16-Port 10/100/1000Mbps Copper Gigabit Switch

TEG-S160TX   (Version A)

   Select Another Version

DISCONTINUED PRODUCT

The TEG-S160TX (Version A) has been discontinued. It has been replaced by the TEG-S16g (Version V2). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: Spec_TEG-S160TX(English).pdf
Date: 1/14/2005
File Size: 209.15 KB
Download Email
Datasheet (Français)
Filename: Spec_TEG-S160TX(French).pdf
Date: 12/20/2004
File Size: 1.09 MB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEG-S160TX(German).pdf
Date: 2/9/2005
File Size: 212.58 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-S160TX.pdf
Date: 11/30/2005
File Size: 210.92 KB
Download Email

User's Guide

Manual
Filename: UG_TEG-S160TX.pdf
Date: 8/18/2004
File Size: 87.92 KB
Download
Hardware
LAN Standards:
  • IEEE 802.3 10Base-T, 802.3u 100Base-TX and 802.3ab 1000Base-T
Cabling:
  • Ethernet: Cat. 3, 4, 5, UTP/STP. EIA/TIA-568 100 ohm, 100 meters max.
  • Fast Ethernet: Cat. 5, UTP/STP, EIA/TIA-568 100 ohm, 100 meters max.
  • Gigabit Ethernet: Cat. 5 or better, UTP/STP, EIA/TIA-568 100 ohm, 100 meters max.
Protocol:
  • CSMA/CD
Topology:
  • Star
Data Transfer Rates:
  • Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)
  • Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Data RAM Buffers:
  • 128 Kbytes per device
Filtering Address Table:
  • 8K entries per device
Diagnostic LEDs:
  • Power, Per Port: 3 LEDs Link/Act, 1000M, 100M
Power Consumption:
  • 100~240VAC 50/60Hz, Internal Universal Switching Power, 40 Watts. Max.
Dimensions:
  • 440 x 210 x 44 mm (17.3 x 8.27x 1.73 inch) (W x H x D)
Weight:
  • 3Kg (6.6 lb)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104°F)
  • Storage: -10° ~ 70° C (14° ~ 158°F)
Humidity:
  • 10% ~ 90% (non-condensing)
Emission:
  • FCC, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
