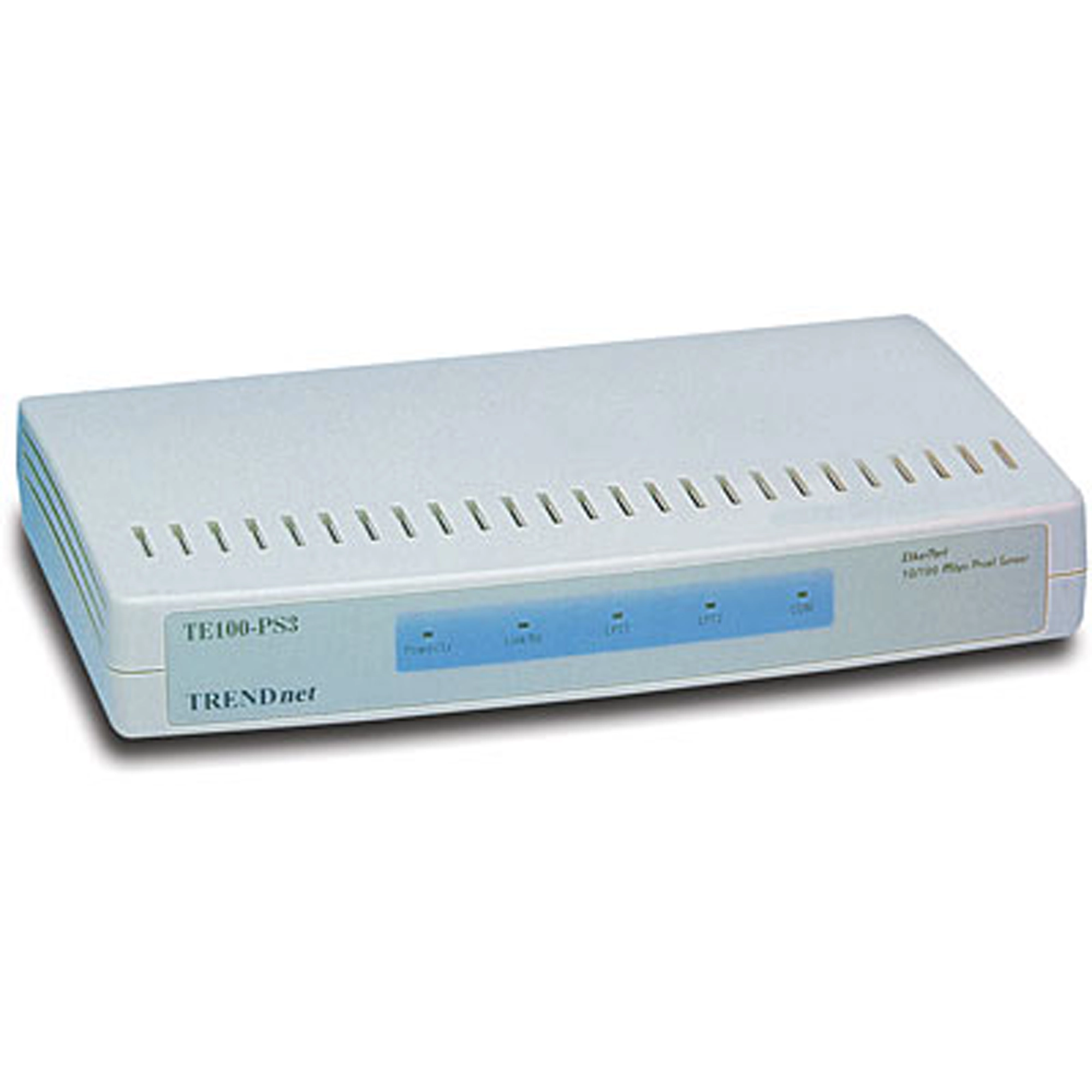

10/100Mbps EtherPort Jr. Multi-Protocol Print Server

TE100-PS3   (Version 1.0)

  • This multiprotocol print server transforms virtually all stand-alone printer into a shared network printer
  • This small print server includes IEEE1284-compliant high-speed parallel ports and 1 serial port
  • Enjoy a 5-year warranty for peace of mind

DISCONTINUED PRODUCT

The TE100-PS3 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Utility

Utility
Win LPR utility.
Filename: WinLPR.zip
SHA-1 Checksum: 5C65B9BB99DEE6D68791FC0ABD10F468A67679D5
Date: 7/25/2017
File Size: 95.43 KB
Download
Utility
Print Server Admin Utility version 2.01
Filename: PS_Admin_2.01.zip
SHA-1 Checksum: 0E6CC37838BE6B4246BACAEE179D8A9C2FAA3D76
Date: 7/25/2017
File Size: 1.76 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only



Filename: FW_TE100-PS3.zip
SHA-1 Checksum: 980534E3780743BF75A589035EE2CCBDD167EB69
Date: 7/25/2017
File Size: 220.93 KB
Download

Datasheet

Datasheet
Filename: Spec_TE100-PS3.pdf
Date: 5/2/2013
File Size: 188.73 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-PS3.pdf
Date: 8/19/2004
File Size: 1.12 MB
Download
Hardware
LAN Standards:
  • IEEE 802.3(10Base-T); IEEE 802.3u (100Base-TX) ANSI/IEEE std., 802.3 auto-negotiation
LAN Ports:
  • Auto-sensing N-Way RJ-4
Network Cables:
  • CAT 3,4, 5 UTP/STP for 10Base-T/CAT 5 for 100Base-TX
Supported Frame:
  • IEEE 802.2; IEEE 802.3; Ethernet II; Ethernet SNAP
Supported Protocol:
  • IP; IPX/SPX; NetBEUI; Apple EtherTalk, SLP
Dimensions:
  • 190 x 116.79 x 30.87mm (L x W x D)
Weight:
  • 354 grams (excluding AC adapter)
Power Consumption:
  • 6 Watts max.
Temperature:
  • Operating: 0°C - 50°C
  • Storage: -10°C - 50°C
Humidity:
  • 10% - 90% (non-condensing)
Emission:
  • FCC Class A; CE Mark A; VCCI Class 1; AS/NZS 3548:1995 Class A
Certification:
  • FCC, UL, VCCL, CSA, C-stick, TUV, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
