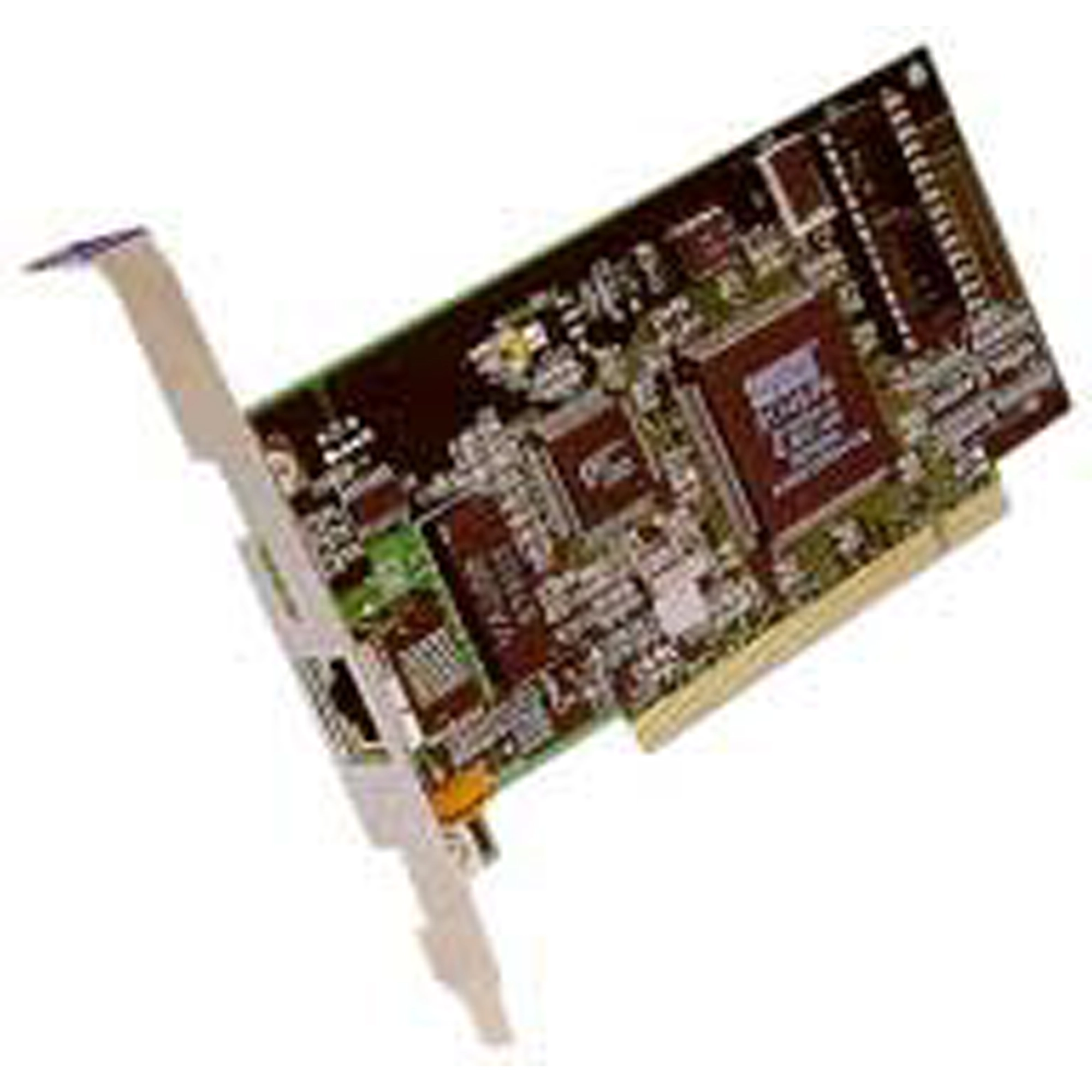

ProXpress 100Mbps Ethernet Adapters

TE100-PCI   (Version 1.0)

  • The perfect solution for connecting to today's high-speed LAN through your laptop computer
  • Provides fast 10/100Mbps data transfer rates
  • Enjoy a 5-year warranty for peace of mind

DISCONTINUED PRODUCT

The TE100-PCI (Version 1.0) has been discontinued. It has been replaced by the TEG-10GECTX (Version v3.0R). For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-PCI.pdf
Date: 5/2/2013
File Size: 96.70 KB
Download Email
Hardware
Standards:
  • IEEE 802.3 100Base-TX and 10Base-T
Port:
  • 1 RJ-45 (10 or 100Mbps N-way auto-negotiation)
Host Interface:
  • PCI Bus (bus master)
I/O Address:
  • Assigned by system
IRQ:
  • Assigned by system
LED Indicators:
  • 100Mbps Link, 10Mbps Link, and Activity
Power Consumption:
  • 4.6W
Dimensions:
  • 14.73cm x 9.98cm
Emissions:
  • FCC Class B certification
Safety:
  • CE
Temperature:
  • Storage: -20° to 80° C (4° to 176° F)
  • Operating: 0° to 55° C (32° to 131° F)
Humidity:
  • 10% to 90% non-condensing

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
