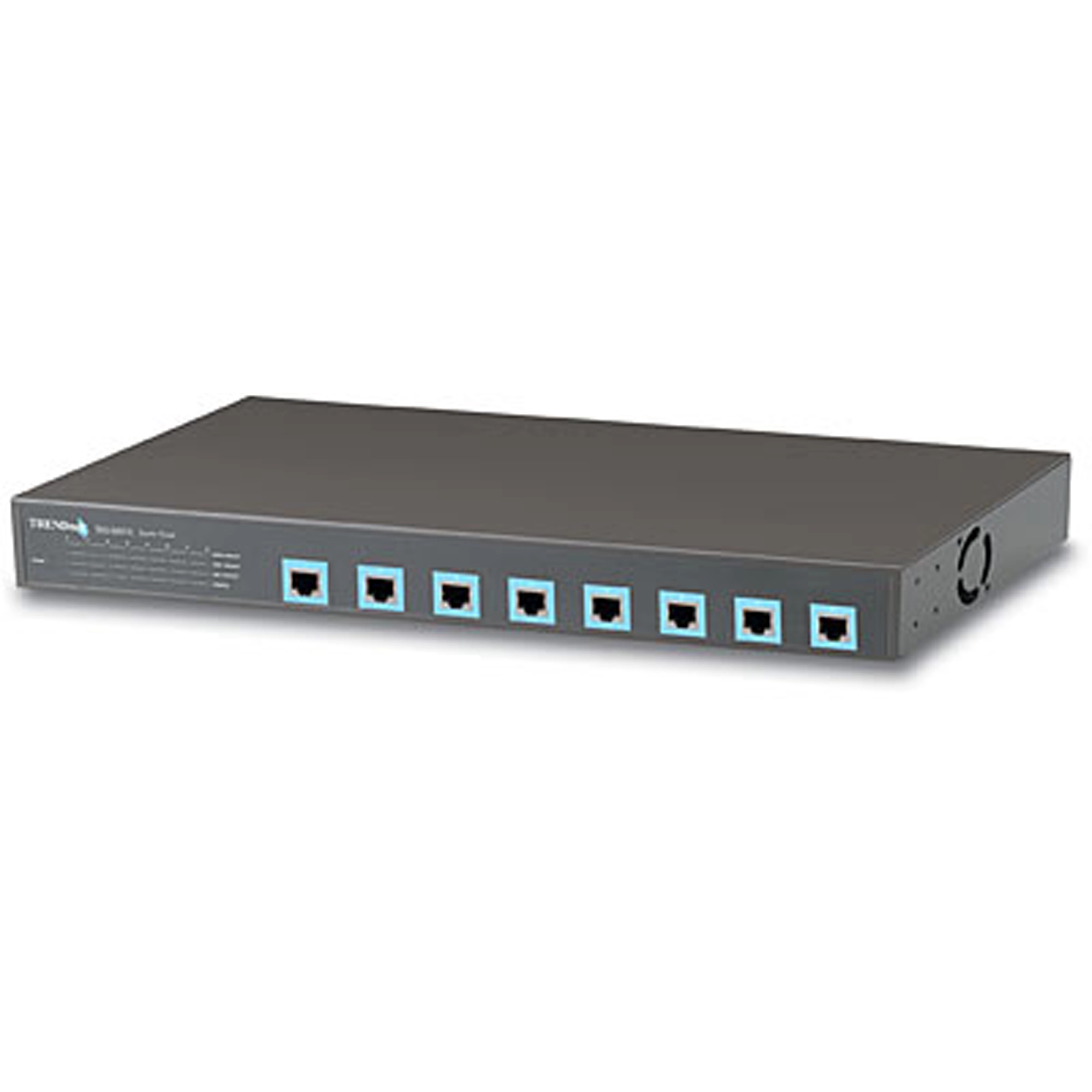

8-Port 10/100/1000Mbps NWay Copper Gigabit Ethernet Switch

TEG-S80TX

  • 8-port NWay gigabit switch offers a reliable and affordable LAN solution to meet immediate bandwidth demand
  • Users can connect gigabit server(s) to the gigabit port(s) to increase network performance or uplink gigabit switches together to create high-bandwidth backbones
  • Gigabit performance, 10 times faster than the 100Mbps fast Ethernet

DISCONTINUED PRODUCT

The TEG-S80TX  has been discontinued. It has been replaced by the TEG-S80g (Version v4.1R). For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TEG-S80TX.pdf
Date: 5/13/2013
File Size: 209.25 KB
Download Email

User's Guide

Manual
Filename: UG_TEG-S80TX.pdf
Date: 8/18/2004
File Size: 118.32 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE 802.3x Full-Duplex Flow Control
Data Transfer Rate:
  • Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)
  • Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Cabling:
  • Ethernet: UTP CAT 3,4,5, EIA.ITA-568 100-ohm screened twisted pair (STP)
  • Fast Ethernet: UTP CAT 5, EIA/TIA-568 100ohm screened twisted pair (STP)
  • Gigabit Ethernet: UTP CAT 5, EIA/TIA-568 100-ohm screened twisted pair (STP)
Cable Length:
  • 100 meters maximum
Protocol:
  • CSMA/CD
Topology:
  • Star
Data RAM Buffers:
  • 512 Kbytes per device
Filtering Address Table:
  • 8K entries per device
Diagnostic LEDs:
  • Power, 10M LINK/ACT, 100M LINK/ACT, 1000M LINK/ACT, FDX/COL
Power Consumption:
  • 100~240 VAC 50/60hz, Internal Universal Power Supply
Dimensions:
  • 440 x 200 x 44mm (17.3" x 7.9" x 1.7") (W x H x D)
Weight:
  • 1.66 kg (3.65 lb)
Temperature:
  • Operating Temp.: 0° to 50° C (32° to 122° F);
  • Storage Temp.: -10° to 55° C (14° to 131° F)
Humidity:
  • 5 % to 95 % non-condensing
Certifications:
  • FCC Class A, CE Class A, VCCI-A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
