24-port 10/100/1000Mbps Gigabit Web-Based Smart Switch

TEG-240WS   (Version A1)

   Select Another Version

DISCONTINUED PRODUCT

The TEG-240WS (Version A1) has been discontinued. It has been replaced by the TEG-284WS (Version v1.1R). For a list of discontinued products, click here.

Utility

Utility
Filename: Management_Utility.zip
SHA-1 Checksum: 43C887F69C87D01B12EB48DBF78CFC6E0F1D169D
Date: 7/25/2017
File Size: 529.98 KB
Download

Firmware

Firmware
Firmware 2.00.09
Release Date 7.2007

Implementations
  • Provides Jumbo Frame Support

Filename: Firmware-TEG-240WS(2.00.9).zip
SHA-1 Checksum: B1F488E3DCF6A75A2D18599744C18B36F59E919A
Date: 7/25/2017
File Size: 197.36 KB
Download

Datasheet

Datasheet (English)
Filename: Spec_TEG-240WS(English).pdf
Date: 12/20/2004
File Size: 223.07 KB
Download Email
Datasheet (Français)
Filename: Spec_TEG-240WS(French).pdf
Date: 2/8/2005
File Size: 168.15 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TEG-240WS(German).pdf
Date: 2/8/2005
File Size: 192.92 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-240WS.pdf
Date: 11/30/2005
File Size: 180.61 KB
Download Email

User's Guide

User's Guide
Filename: UG_TEG-240WS(B1).pdf
Date: 7/12/2007
File Size: 1.58 MB
Download

Product Images

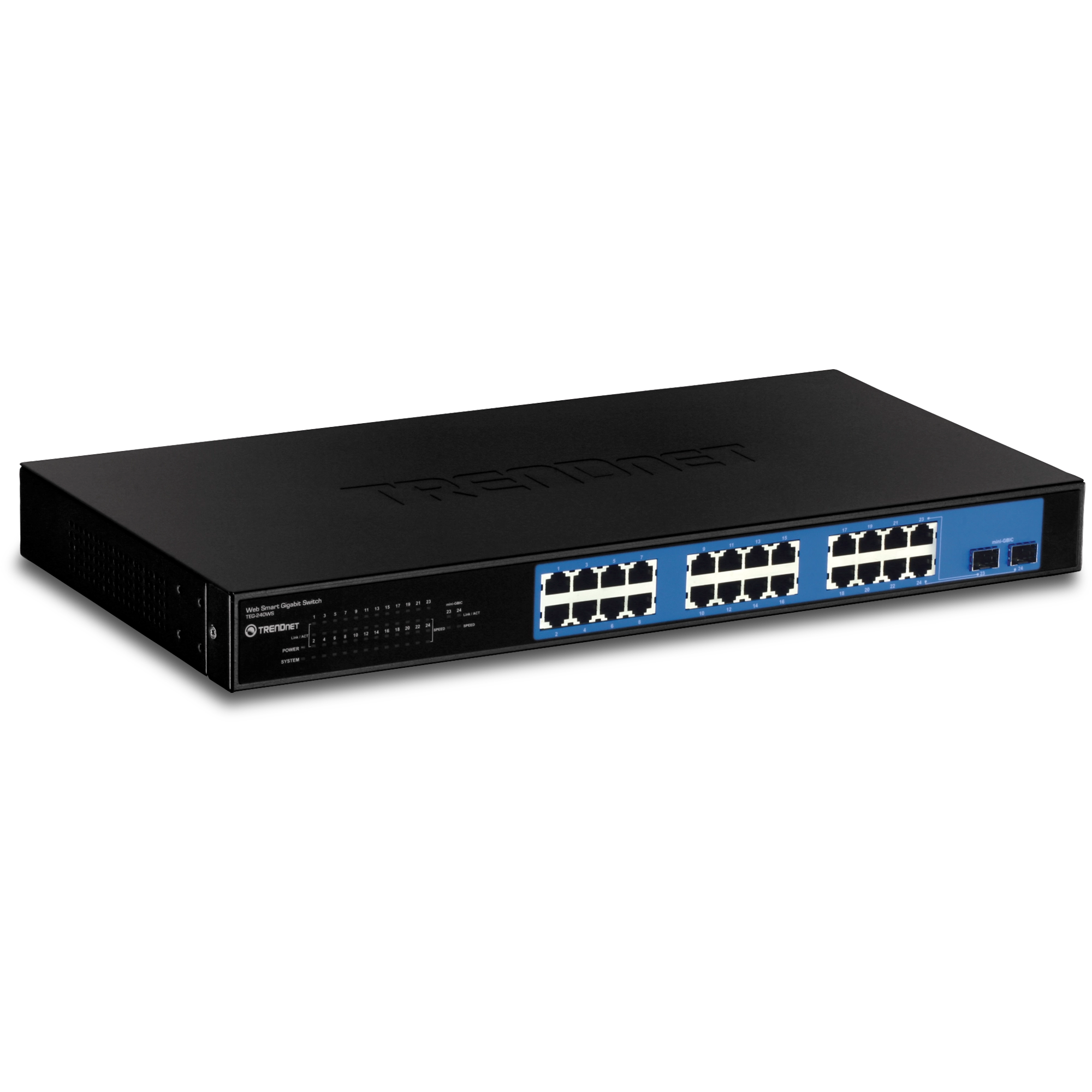

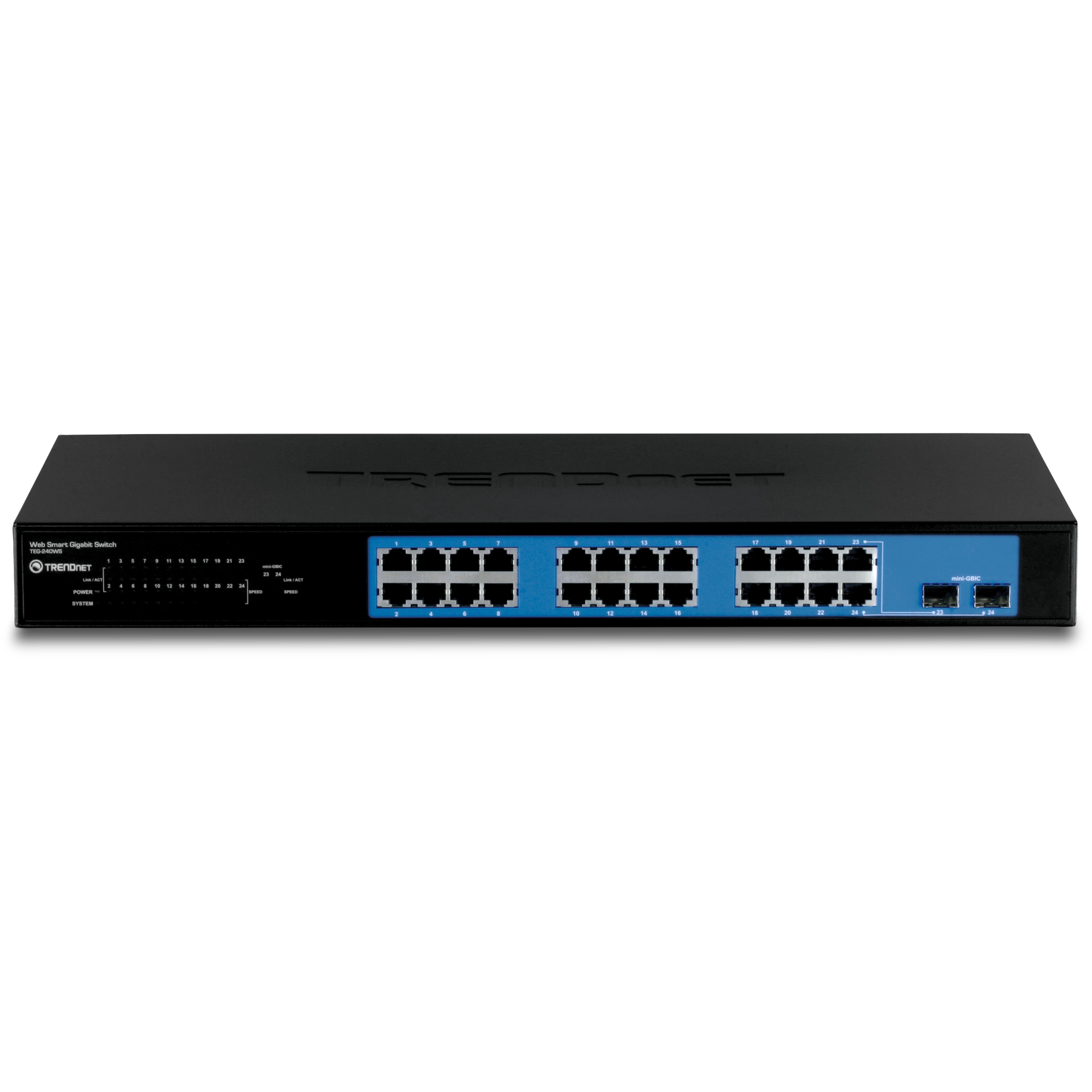

TEG-240WS Product Photo (JPEG Image 1)
JPEG Image
File Size: : 178.04 KB
Date: : 9/1/2004
Download
TEG-240WS Product Photo (TIFF Image 2)
TIFF Image
File Size: : 1.81 MB
Date: : 9/1/2004
Download
ROHS compliant Non-Disposable
Hardware
LAN Standards:
  • IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, 100Base-FX
Network Media:
  • Ethernet: UTP/STP Cat. 3, 4, 5
  • Fast Ethernet: UTP/STP Cat. 5
  • Gigabit: UTP/STP Cat. 5/5E
Protocol:
  • CSMA/CD
Topology:
  • Star
LAN Port:
  • 24 x 10/100/1000Mbps Auto Negotiation, Auto-MDIX ports
Address Table:
  • 8K entries per device
Data Transfer Rate:
  • Ethernet: 10/20Mbps (Half/Full-Duplex)
  • Fast Ethernet: 100/200Mbps (Half/Full-Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Data RAM buffer:
  • 400kbytes
Bandwidth:
  • 48Gbps
Diagnostic LEDs:
  • Per Unit: Power, System, Per Port (RJ-45): Link/Activity, 100Mbps.
Power Consumption:
  • 32 Watts. Max
Dimensions (WxHxD):
  • 440 x 210 x 44 mm (17.32 x 8.2 x 1.73 inches)
Weight:
  • 2Kg. (4.48 lb)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • 10% ~ 90% (no-condensing)
Certifications:
  • FCC Class A, CE Mark A, VCCI-A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
