4-Port ADSL Modem Firewall Router
TW100-BRM504 (Version B1)
DISCONTINUED PRODUCT
The TW100-BRM504 (Version B1) has been discontinued. It has been replaced by the TWG-431BR (Version V1). For a list of discontinued products, click here.| Please select the material to download according to your version of TW100-BRM504. There are 3 versions (C1, B1, A1) of this product. To find out which version you have. Follow the illustrations below. Click on your version of the TW100-BRM504 to view available downloads. | ||||||||||
|
||||||||||
| Hardware | |
| Standards | IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX |
|---|---|
| Protocols | NAT/NAPT, PPPoE & PPPoA, HTTP, DHCP (Client/Server), TCP/IP & UDP, PAP &CHAP, RIP1, RIP2, DDNS, UPnP |
| Firewall | NAT Firewall with ALGS, Rule-Based Policy Firewall DoS (Denial of Service), Email Alert & Log |
| Security | URL Filter, Access Control, Local Password |
| VPN Pass Through | PPTP, IPSec, L2TP |
| ATM | Supports AAL5, UBR/CBR/VBR, VPI Range (0~255) and VCI range (32~65535), OAM F4/F5 loopback, Auto-Detection for VPI/VCI and Multiplexing Method (VC-Based, LLC-Based) |
| Management | Web-Based Management (HTTP) |
| WAN Port (ADSL line Interface) | Complies with G.dmt (G.992.1) Annex A Complies with G.lite (G.992.2) and T1.413 Annex A ITU G.992.3 Annex A ADSL2, ITU G.992.5 Annex A ADSL2+ Connector: RJ-11 Line Impedance: 100 Ω |

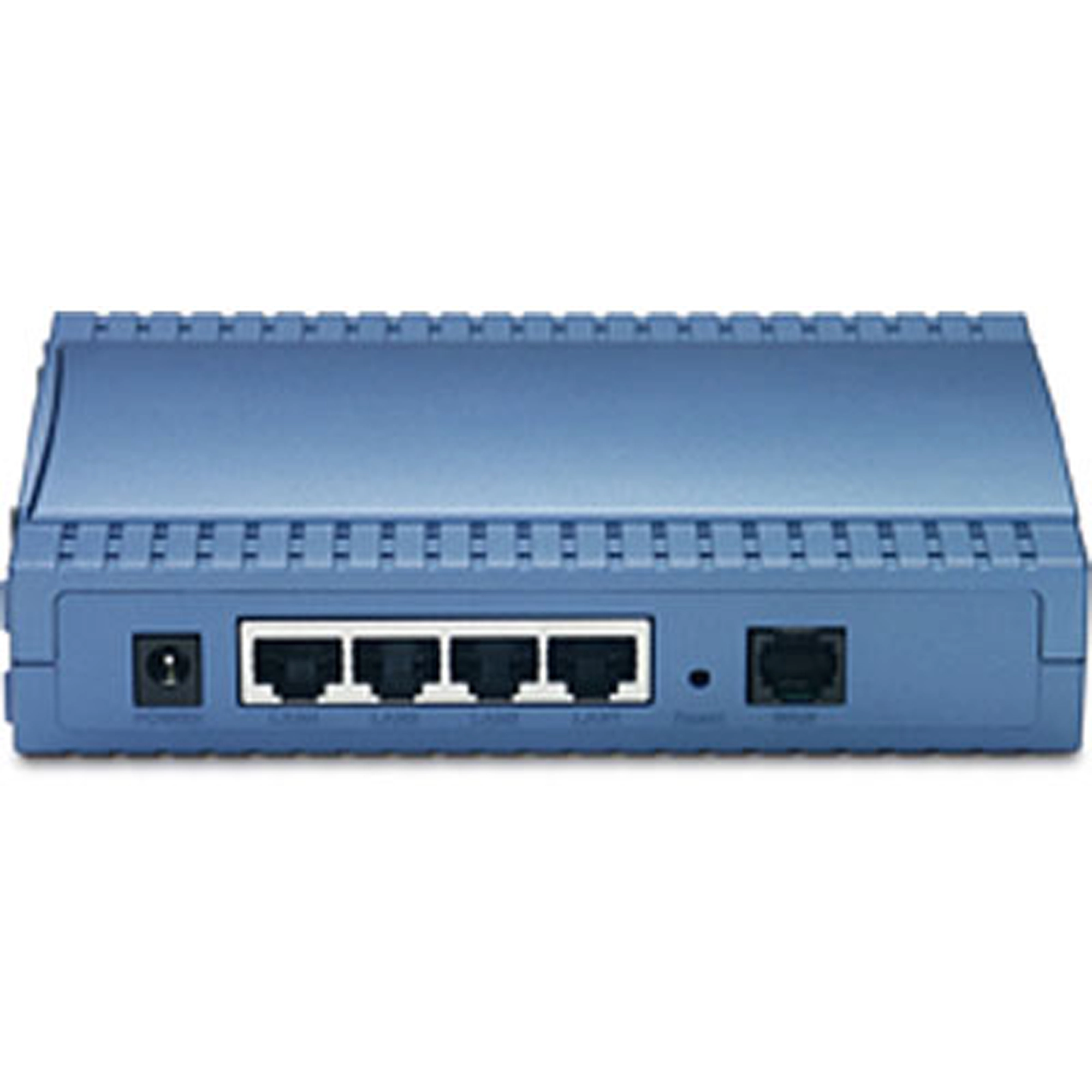

| LAN Port | 4 x RJ-45 10/100Mbps Auto-Negotiation Port |
| Reset Button | Reset to Factory Default |

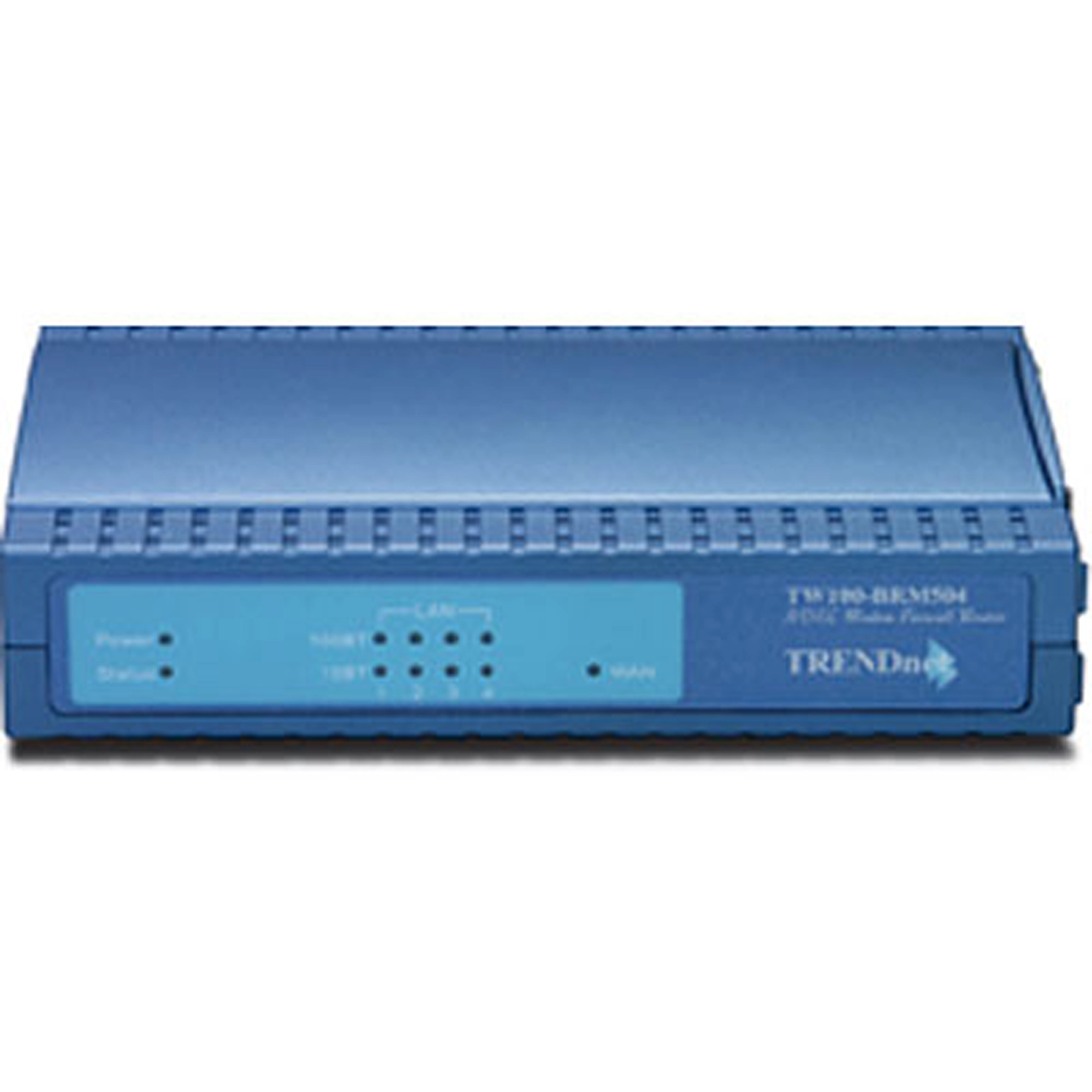

| LED | Power, Status, WAN, 4 x 100LAN, 4 x 10LAN, |
| Power | 12V DC 500mA External Power Adapter |
| Dimensions (L x W x H) | 153 x 102 x 35.5mm (6 x 4 x 1.4 inches) |
| Weight | 224g (7.9 oz) |
| Temperature | Operating: 0˚~ 40˚C (32˚~ 104˚F) Storage: -20˚~ 70˚C (-4˚~ 158˚F) |
| Humidity | Operating: 10 ~ 90% RH Storage: 5 ~ 95% RH |
| Certifications | FCC, CE |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
