The Homeplug 1.0 standard limits users to a maximum of 16 Powerline devices per Powerline network.
The TPL-202E can be used in combination with a standard Ethernet switch (e.g. TE100-S5) to add network access for two more computers....
To connect the remote computer you would require two TPL-202E Powerline Ethernet Bridges.
One TPL-202E Powerline Ethernet Bridge connects to a LAN port on the back of your Cable/DSL Internet Router (e.g. TW100-S4WICA) with a standard CAT-5 Ethernet cable. Next plug the TPL-202E into a power o...
To connect the remote computer you would require two TPL-202E Powerline Ethernet Bridges.
Yes, the TPL-202E is backwards compatible with Homeplug 1.0 devices.
Each Powerline network is password protected, and only devices knowing the password can connect. The Network password also ensures the each Powerline network is privatized to a single household....
The TPL-202E is ultra portable and will allow users to plug the Powerline Ethernet Bridge into any power outlet in the household.
...
Surge Protectors are not compatible with Powerline devices. Noise filters on surge protectors detect network traffic as interference and filter it out before it reaches your PC....
The TPL-202E Ethernet Bridge is a pass-through device that does not use an IP Address.
The TPL-202E is compatible with Ethernet switches, game consoles, and any other Ethernet enabled device....
The Ethernet port on the TPL-202E is Auto-MDI/MDIX allowing users to connect with a straight-through or crossover Ethernet cable....
Hardware |
Standards | IEEE 802.3, IEEE 802.3u HomePlug 1.0 Turbo |
Interface | 10/100Mbps Auto-MDIX RJ45 Port Power Prongs |
Frequency Band | 4.5 ~ 21 MHz |
Modulation | OFDM, QAM 16/24/256, DBPSK, ROBO |
Speed | Powerline: Up to 85Mbps RJ45: 10/100Mbps |
Supported OS | Windows 98SE/ME/2000/XP (32/64-bit) /Vista (32/64-bit) |
Nodes | Up to 16 client nodes |
Encryption | 56-bit DES with key management |
LED | Power, HomePlug, Ethernet |
Dimension (L x W X H) | 78 x 30 x 102 mm (3 x 1.2 x 4 inches) |
Weight | 140g (5 oz.) |
Power Source | Input: 100~240V AC, 50/60 Hz Prongs: /A (US); /EU (European) |
Consumption | 2.5 watts (max.) |
Temperature | 0° ~ 40° C (32° ~ 104° F) |
Operating Humidity | 0% to 90% (Non-Condensing) |
Certification | FCC, CE |
PACKAGE CONTENTS |

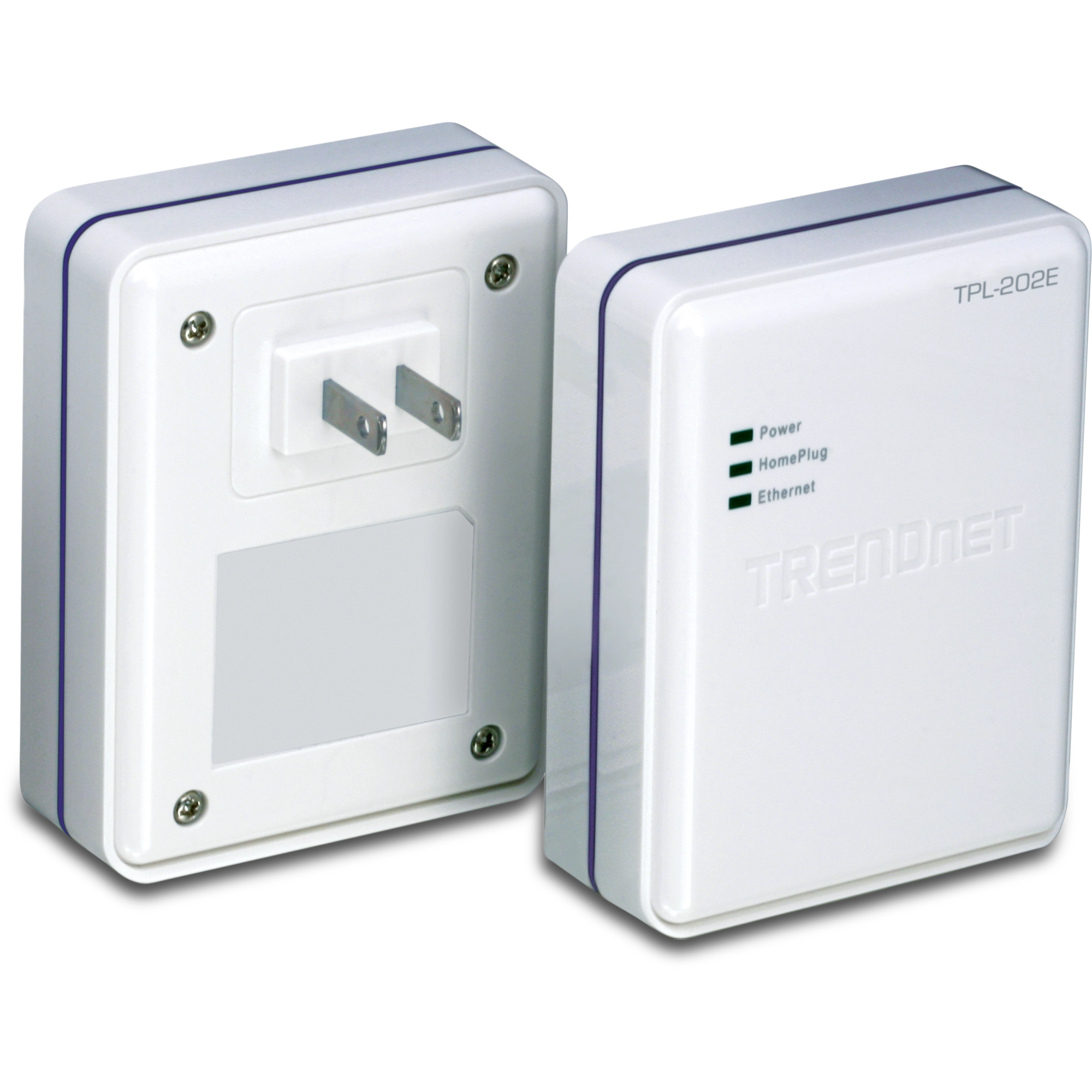

- 2 X TPL-202E
- Multi-Language Quick Installation Guide
- Utility CD-ROM
- 2 x Cat. 5 Fast Ethernet cable 1.8m (6ft.)
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
