8 RJ-45 Port Ethernet Hub

TE-800plus   (Version 1.0)

  • Enjoy this powerful 8 port cascade ready Ethernet hub for the home or office
  • The TE-800 is equipped with an uplink port which makes connecting to another 10 Base-T hub effortless
  • Enjoy a 5-year user warranty

DISCONTINUED PRODUCT

The TE-800plus (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE-800plus.pdf
Date: 5/2/2013
File Size: 789.20 KB
Download Email

User's Guide

Manual
Filename: UG_TE500_800_910(plus).pdf
Date: 8/19/2004
File Size: 64.32 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T
Topology:
  • Star
Protocol:
  • CSMA/CD
Cabling:
  • UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm screened twisted-pair (STP), 100 meters max
Speed:
  • 10Mbps

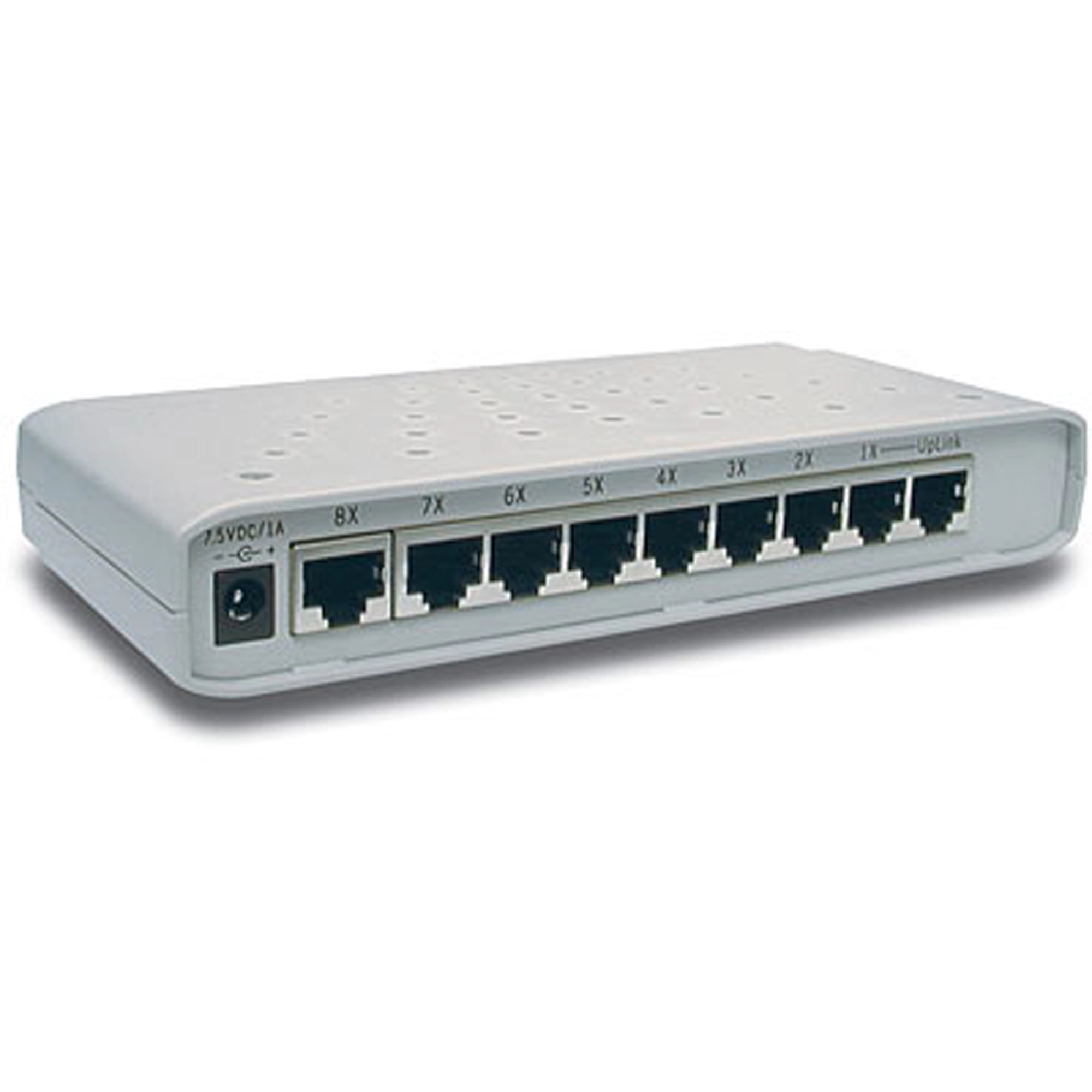

Ports:
  • 8 RJ-45 ports

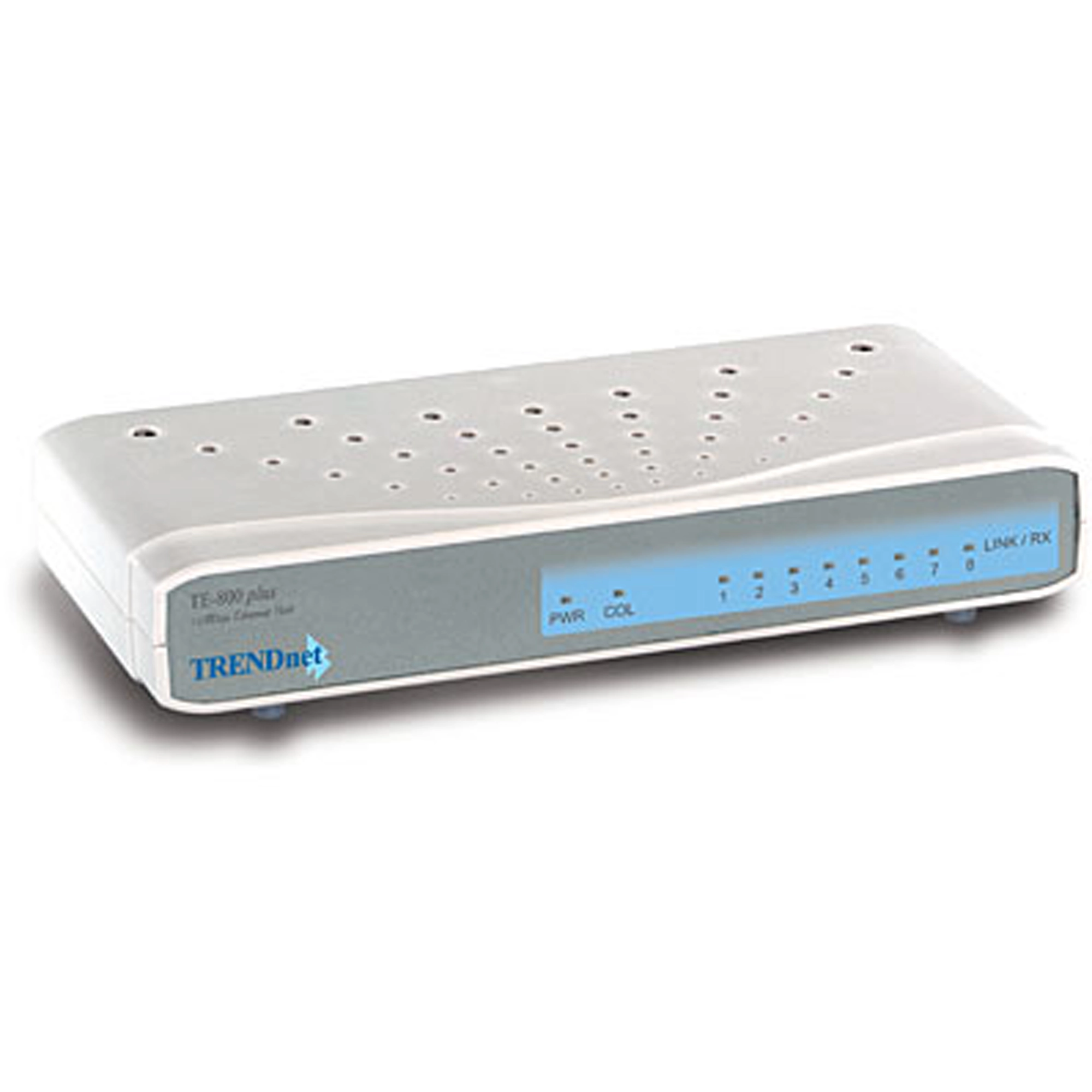

LEDs:
  • Per Unit: Power, Collision
  • Per Port: Link/RX
Power:
  • 7.5V DC, 1A, 7.5W max. External Power Adapter
Dimensions:
  • 177 x 72 x 30 mm, (6.97 x 2.83 x 1.18 inches) (L x W x H)
Temperature:
  • Operating: 0 °C ~ 50 °C (32 °F ~ 122 °F)
  • Storage: -10 °C ~ 70 °C (14 °F ~ 158 °F)
Humidity:
  • Operating: 10% ~ 90% (non-condensing)
  • Storage: 5% ~ 90% (non-condensing)
Certifications:
  • FCC, CE, VCCI -A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
