26-port 10/100/1000Mbps Gigabit Web-Based Smart Switch

TEG-224WS

DISCONTINUED PRODUCT

The TEG-224WS  has been discontinued. It has been replaced by the TEG-424WS (Version v2.0R). For a list of discontinued products, click here.

Utility

Utility
Filename: Utility_TEG-224WS_2.02.zip
SHA-1 Checksum: 3FB0D6D6EA34BBB988A7FA4CCD262E6F5D08AE18
Date: 7/25/2017
File Size: 516.44 KB
Download

Firmware

Firmware
Firmware Version: 2.00.01
Release Date: 9/2006
Note: Initial Release
Filename: FW_TEG-224WS_A3(2.00.01).zip
SHA-1 Checksum: A7F994BE971EAB9AF25AE7EE74588280CB8EE4B9
Date: 7/25/2017
File Size: 226.93 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEG-224WS.pdf
Date: 2/28/2006
File Size: 437.74 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEG-224WS.pdf
Date: 2/28/2006
File Size: 448.61 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEG-224WS.pdf
Date: 2/28/2006
File Size: 440.77 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-224WS.pdf
Date: 2/28/2006
File Size: 439.55 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEG-224WS.pdf
Date: 2/28/2006
File Size: 472.14 KB
Download Email

User's Guide

User's Guide
Filename: UG_TEG-224WS.pdf
Date: 8/18/2004
File Size: 563.33 KB
Download

Product Images

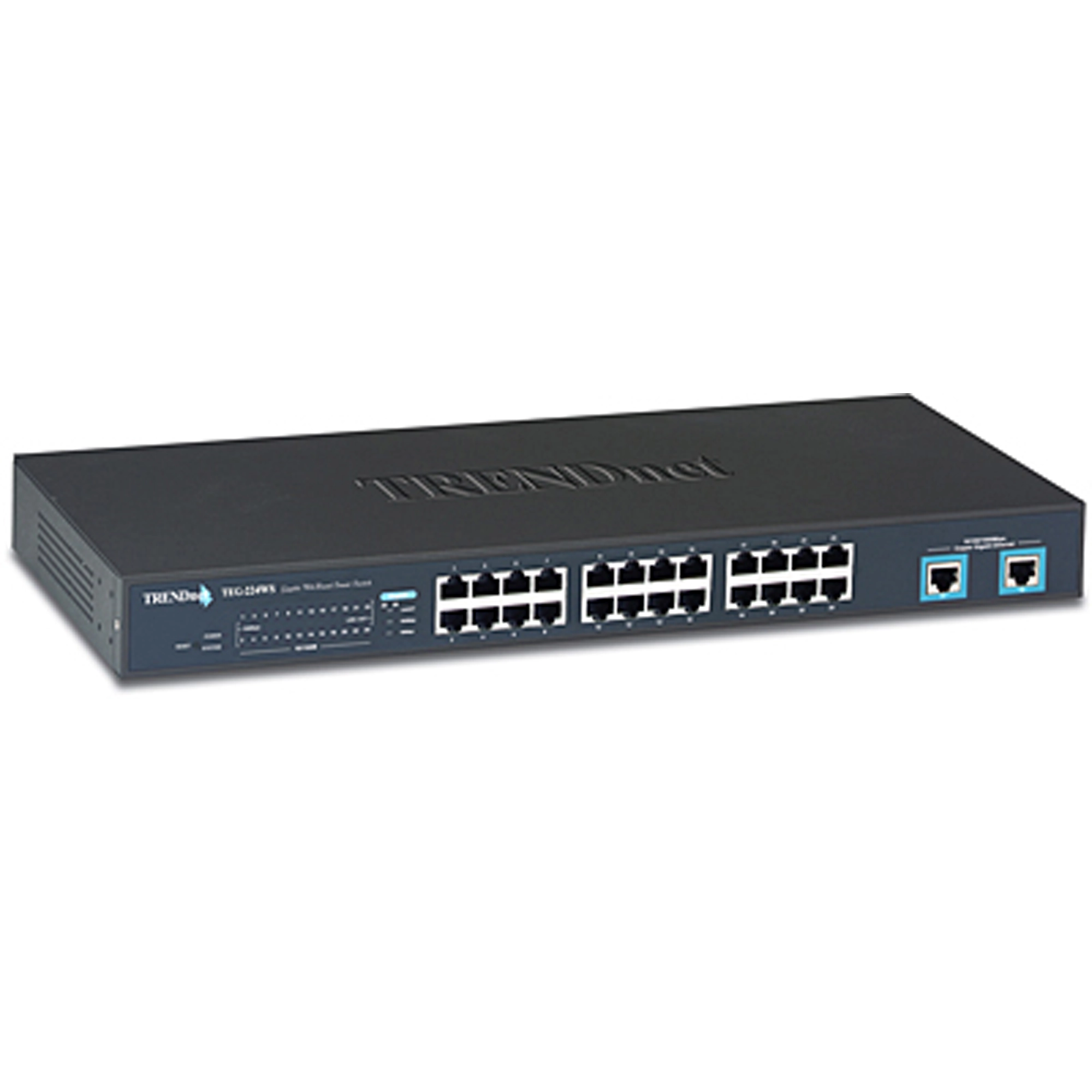

TEG-224WS Product Photo (JPEG Image 1)
JPEG Image
File Size: : 163.12 KB
Date: : 9/1/2004
Download
TEG-224WS Product Photo (TIFF Image 2)
TIFF Image
File Size: : 2.47 MB
Date: : 9/1/2004
Download
ROHS compliant Non-Disposable
Hardware
LAN Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Full Duplex Flow Control
Network Media:
  • Ethernet: UTP/STP Cat. 3, 4, 5
  • Fast Ethernet: UTP/STP Cat. 5
  • Gigabit : UTP/STP Cat. 5, Cat 5E (Recommend)
Protocol:
  • CSMA/CD
Topology:
  • Star
LAN Port:
  • 24 x 10/100Mbps Auto Negotiation, Auto-MDIX Fast Ethernet ports,
  • 2 x 10/100/1000Mbps Auto Negotiation, Auto MDIX Gigabit ports
  • Address Table: 6K entries per device
Data RAM buffer:
  • 4MB per device
Data Transfer Rate:
  • Ethernet: 10/20Mbps – Half/Full-Duplex
  • Fast Ethernet: 100/200Mbps – Half/Full Duplex
  • Gigabit Ethernet: 2000Mbps – Half/Full Duplex
Diagnostic LEDs:
  • Per Unit: Power, System
  • Per Fast Ethernet Port: Link/ACT, 100M (port 1~24)
  • Per Gigabit Ethernet Port: Link/ACT, 1000M, 100M (port 25,26)
Power Consumption:
  • 16 Watts. Max
  • Power Supply:100-240V AC, 50/60Hz Internal Universal Power Supply
Dimensions:
  • 440 x 140 x 44 mm (17.32" x 5.5" x 1.73")
Weight:
  • 4.7 lb
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • 10% ~ 90% (no-condensing)
Certifications:
  • FCC Class A, CE Mark A, VCCI-A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
