PoE Network Camera Server w/ Audio
TV-IP201P (Version v1.0R)
- No need to install this camera near a power source, power and data are received through a single Ethernet cable
- View streaming video, hear sounds and record from any Internet connection
- Enjoy high quality VGA streaming video
- Program motion detection recording, email alerts and more with free software
DISCONTINUED PRODUCT
The TV-IP201P (Version v1.0R) has been discontinued. It has been replaced by the TV-IP340PI (Version v1.0R). For a list of discontinued products, click here.Utility
Filename: Utility_TV-IP201P.zip
SHA-1 Checksum: 73484211BCC55A3E5AFB86CFEAA0C06535A43D1E
Date: 7/25/2017
File Size: 21.75 MB
Firmware
Filename: FW_TV-IP201P(v2.00.113).zip
SHA-1 Checksum: 1CC311F5CFC5856AA7CFEC3FD4487E7EF9742621
Date: 7/25/2017
File Size: 2.25 MB
Firmware Version: v1.08 build 112
Release Date: Feb 2008
Release Note:
1. Add live view only web pages of ActiveX and Java mode, the URL is:
Release Date: Feb 2008
Release Note:
1. Add live view only web pages of ActiveX and Java mode, the URL is:
- ActiveX mode: http://ip/tvaview.asp (Please install ActiveX before using this link)
- Java mode: http://ip/tvjview.asp (Please install JRE before using this link)
2. Add login authenticate dialog before index page.
Filename: FW_TV-IP201P(v1.08build112).zip
SHA-1 Checksum: 72C37A87C670515013DD41048F822A434F0D21E5
Date: 7/25/2017
File Size: 2.46 MB
Datasheet
Filename: EN_Spec_TV-IP201P.pdf
Date: 9/27/2007
File Size: 313.04 KB
Filename: FR_Spec_TV-IP201P.pdf
Date: 9/27/2007
File Size: 317.24 KB
Filename: GE_Spec_TV-IP201P.pdf
Date: 9/27/2007
File Size: 317.09 KB
Filename: SP_Spec_TV-IP201P.pdf
Date: 9/27/2007
File Size: 314.25 KB
Filename: RU_Spec_TV-IP201P.pdf
Date: 9/27/2007
File Size: 1.12 MB
Filename: ITA_Spec_TV-IP201P.pdf
Date: 8/25/2008
File Size: 331.70 KB
Quick Installation Guide
Filename: EN_QIG_TV-IP201P.pdf
Date: 10/5/2007
File Size: 742.33 KB
Filename: FR_QIG_TV-IP201P.pdf
Date: 10/5/2007
File Size: 745.87 KB
Filename: GE_QIG_TV-IP201P.pdf
Date: 10/5/2007
File Size: 741.84 KB
Filename: PO_QIG_TV-IP201P.pdf
Date: 10/5/2007
File Size: 735.19 KB
Filename: SP_QIG_TV-IP201P.pdf
Date: 10/5/2007
File Size: 742.94 KB
Filename: RU_QIG_TV-IP201P.pdf
Date: 10/5/2007
File Size: 1.55 MB
Filename: EST_QIG_TV-IP201P.pdf
Date: 3/21/2008
File Size: 737.93 KB
User's Guide

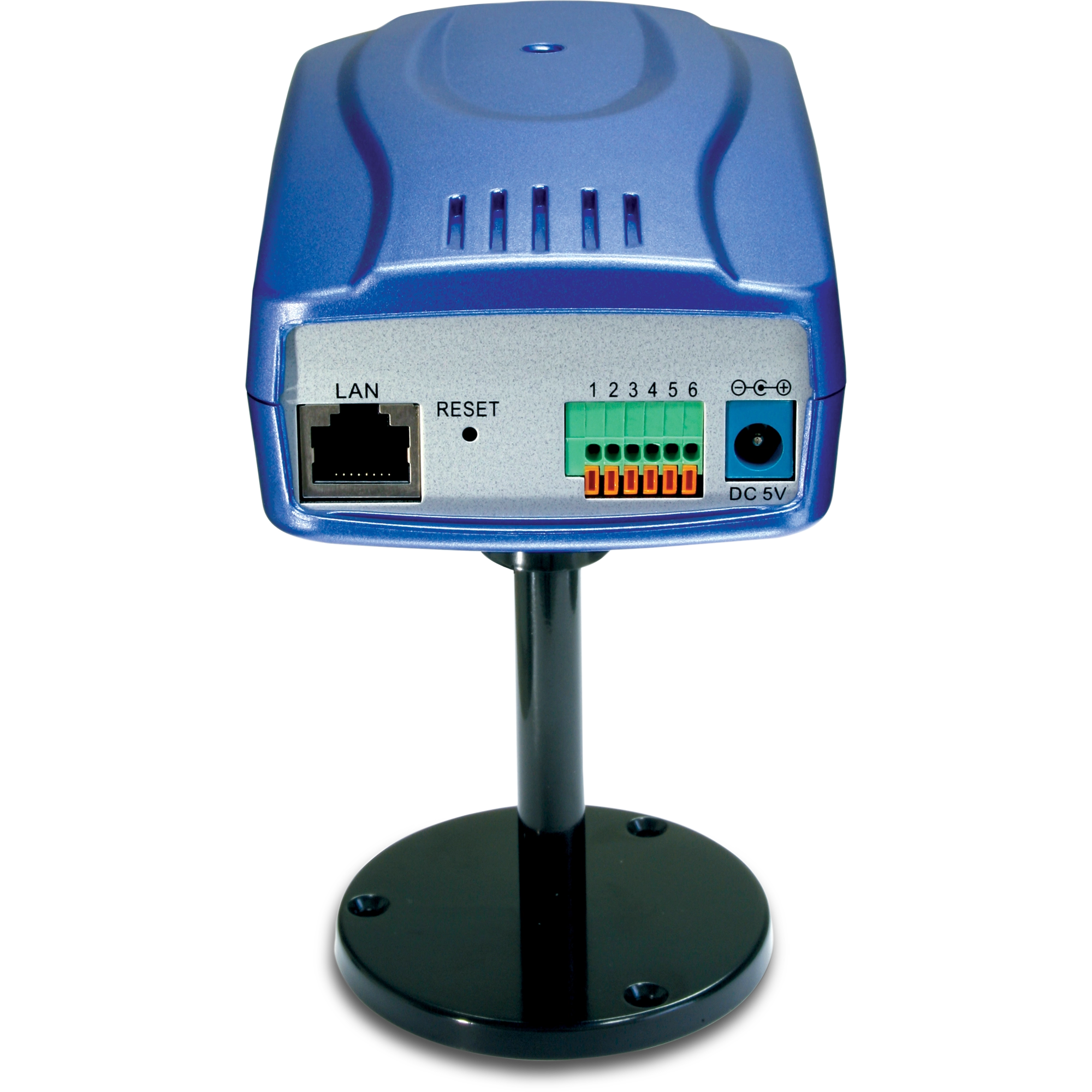

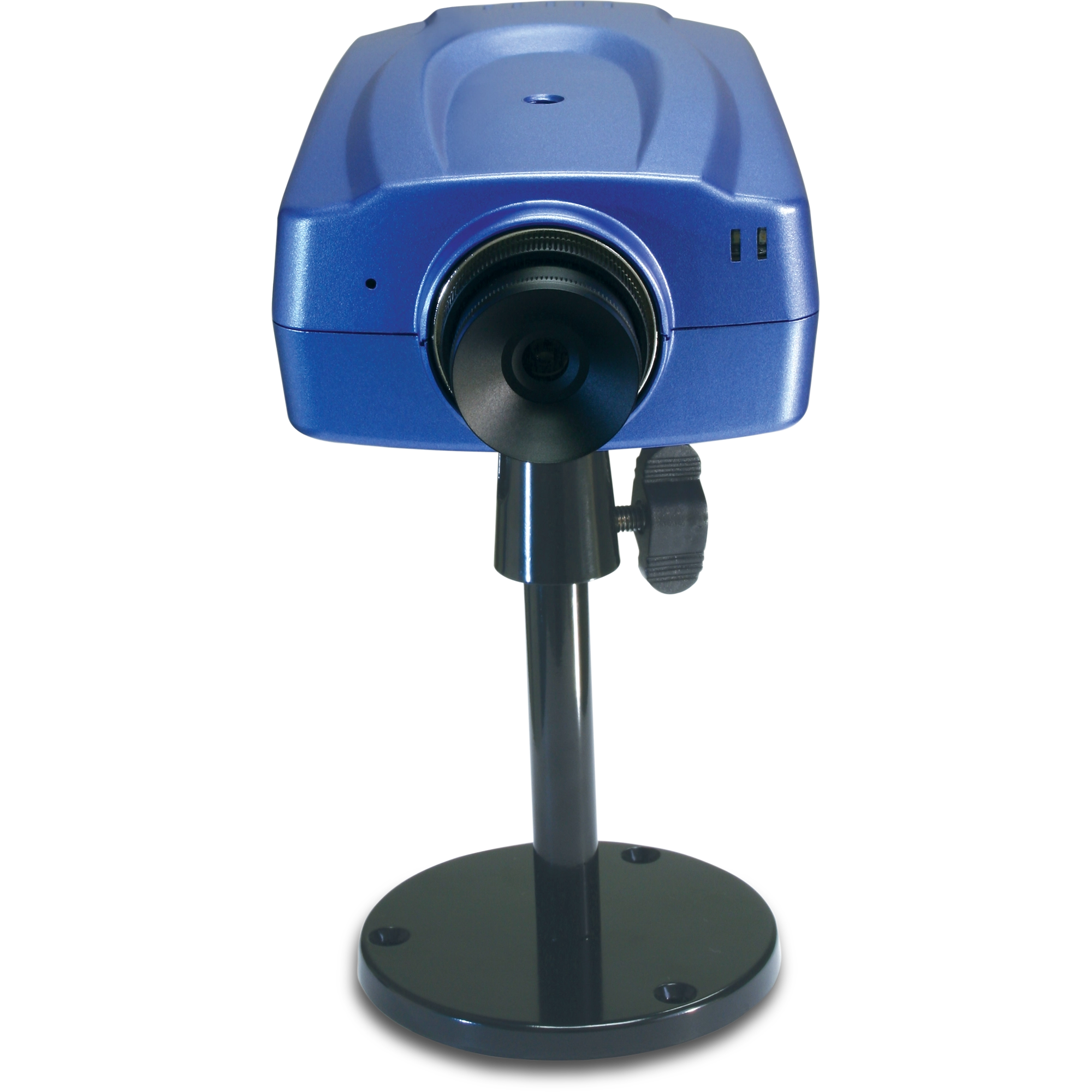

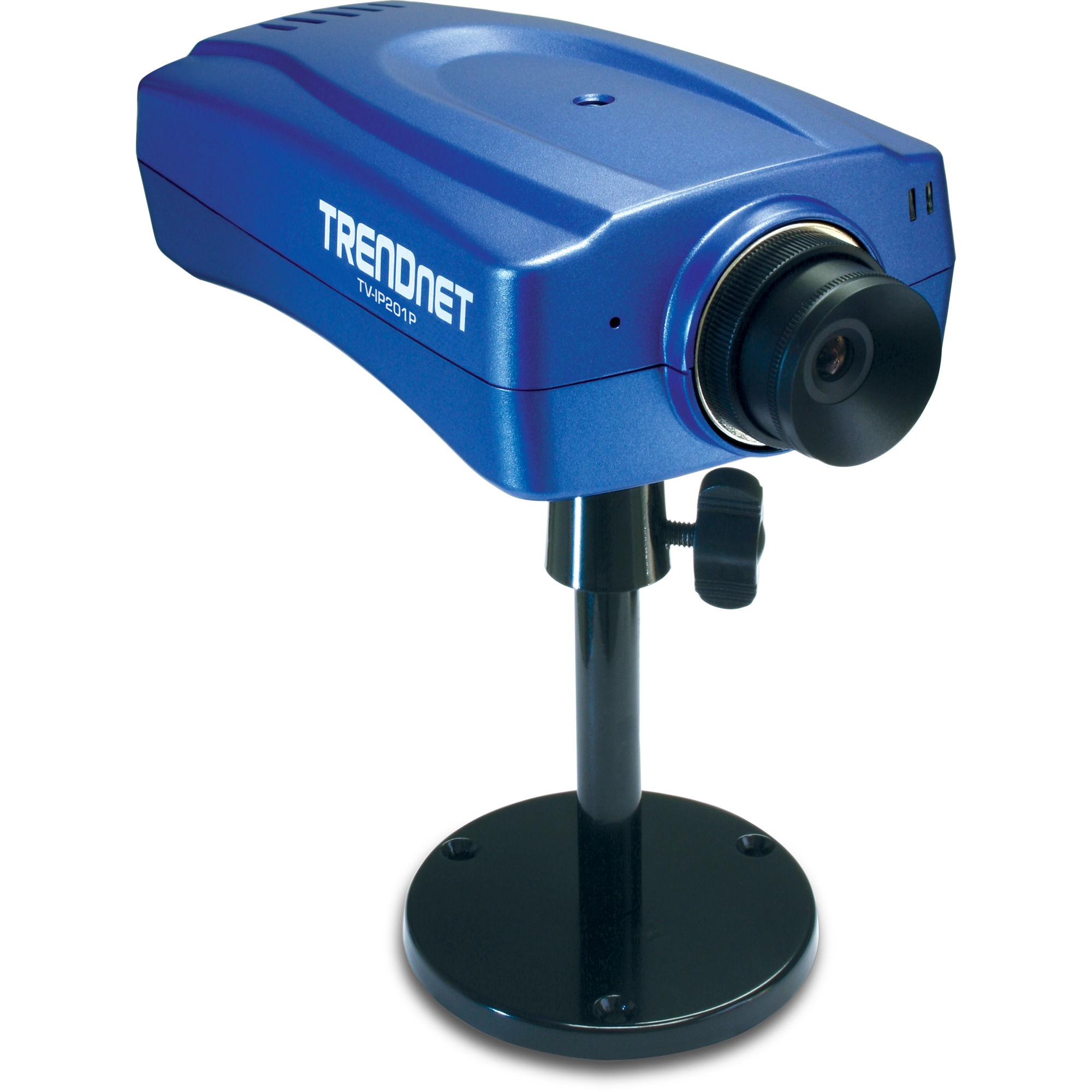

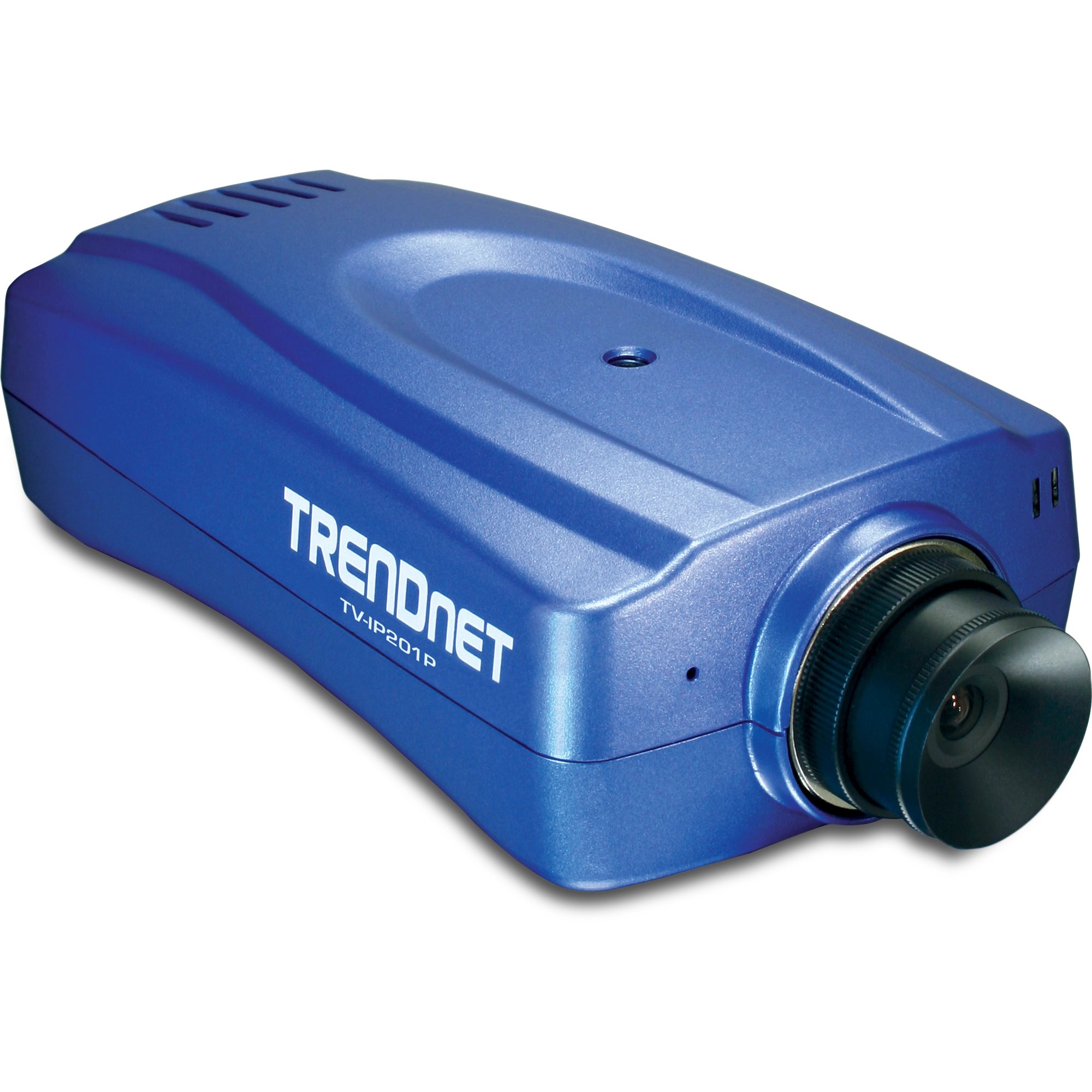

Product Images
| Camera Specifications | |
| Image Sensor | |
| Sensor | 1/4” Color CMOS Sensor |
|---|---|
| Resolution | 640 x 480 pixel |
| Lens |
|
| Minimum Illumination: | 2.5 Lux @F1.8 |
| Audio | |
| MIC Input | Internal MIC (mono) |
| Volume Control | Adjustable |
| Compression | ADPCM/PCM |
| Video & Image | |
| Image Frame Rate | 30fps@CIF, QVGA, VGA |
| Compression | M-JPEG |
| Resolution& Light Frequency | 160 x 120, 320 x 240, 640 x 480 Outdoor/indoor/50Hz/60Hz |
| Frame Rate Setting | 1, 3, 7, 12, 15, 25, 30 (Depends on video format) |
| Mirror Function | Vertical / Horizontal |
| Image Setting | Adjustable brightness, contrast, saturation & sharpness |
| Hardware Specifications | |
| Communication | |
| LAN | 10/100Mbps Auto-Sense, Auto-MDIX |
| Protocol | HTTP, FTP< TCP/IP, UDP, ARP, ICMP, DHCP, PPPoE, DDNS, SMTP, UPnP |
| Software | |
| Browser | Internet Explorer 6.0 or above -AcitveX |
| Application | IP View Pro and Active X |
| Supported OS | Windows 98SE, ME,2000,XP, Vista |
| System | |
| CPU | RDC1610 |
| SDRAM/Flash | 16MB/4MB |
| OS | Linux |
| I/O & Control | |
| Input | 1 set, 2 pin (photo relay; Active High: 9~40V DC; Dropout: 0 VDC) |
| Output | 1 set, 2 pin |
| RS-485 | Half duplex (to control external pan/tilt device |
| Requirements | |
| Memory Size | 512MB or above |
| Intel Celeron 1.1GHz or above (Pentium4 Recommend) VGA card resolution: 800 x 600 or above | |
| Physical/Environmental | |
| Dimension | 170 x 80 x 40mm (6.7 x 3.2 x 1.6in.) |
| Weight |
|
| Stand Height | 128 mm (4.7 inches) |
| Power | 5VDC 2.5A External Power Adapter |
| Consumption | 6 watts max. |
| Temperature |
|
| LED |
|
| Humidity | 5% ~ 95% non-condensing |
| Certification | CE, FCC |
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
