Powerline 200 AV Adapter Kit with Built-In Outlet
TPL-304E2K (Version v1.0R)
- Includes two TPL-304E adapters
- High speed building-wide networking from any electrical outlet
- Never lose an electrical outlet with the built in socket
- Advanced noise filter boosts performance
- Power Save mode reduces electrical consumption by 70%
DISCONTINUED PRODUCT
The TPL-304E2K (Version v1.0R) has been discontinued. It has been replaced by the TPL-423E2K (Version V1). For a list of discontinued products, click here.Drivers/Utility
Date: 12/2012
Version: 6.1.0008
Notes:
- Compatible with Windows 8
*Prerequisite: Requires Microsoft® .NET Framework 2.0. Please refer to the Microsoft download center for details on downloading and installing .NET Framework 2.0.
Filename: Utility_Powerline(v6.1.0008).zip
SHA-1 Checksum: 92DEED182D68719A8EED8A2D1CA7B86FA16BE9E7
Date: 7/28/2017
File Size: 1.56 MB
Datasheet
Filename: EN_spec_TPL-304E2K(V1.0R).pdf
Date: 12/23/2010
File Size: 462.07 KB
Filename: FR_spec_TPL-304E2K(V1.0R).pdf
Date: 12/23/2010
File Size: 466.34 KB
Filename: GE_spec_TPL-304E2K(V1.0R).pdf
Date: 12/23/2010
File Size: 466.74 KB
Filename: SP_spec_TPL-304E2K(V1.0R).pdf
Date: 12/23/2010
File Size: 465.65 KB
Filename: RU_spec_TPL-304E2K(V1.0R).pdf
Date: 12/23/2010
File Size: 1.16 MB
Filename: IT_spec_TPL-304E2K(V1.0R).pdf
Date: 12/23/2010
File Size: 466.18 KB
Quick Installation Guide
Filename: EN_Web_TPL-304E_304E2K(1.01).pdf
Date: 10/26/2010
File Size: 1.66 MB
Filename: FR_EN_Web_TPL-304E_304E2K(1.01).pdf
Date: 10/26/2010
File Size: 2.38 MB
Filename: GE_Web_TPL-304E_304E2K(1.01).pdf
Date: 10/26/2010
File Size: 1.22 MB
Filename: PO_Web_TPL-304E_304E2K(1.01)-A.pdf
Date: 10/26/2010
File Size: 1.16 MB
Filename: SP_Web_TPL-304E_304E2K(1.01).pdf
Date: 10/26/2010
File Size: 1.22 MB
Filename: RU_Web_TPL-304E_304E2K(1.01).pdf
Date: 10/26/2010
File Size: 1.93 MB
Filename: EST_Web_TPL-304E_304E2K(1.01).pdf
Date: 10/26/2010
File Size: 968.41 KB
Filename: Dutch_TPL-304E_304E2K(1.01).pdf
Date: 6/15/2011
File Size: 2.90 MB
User's Guide

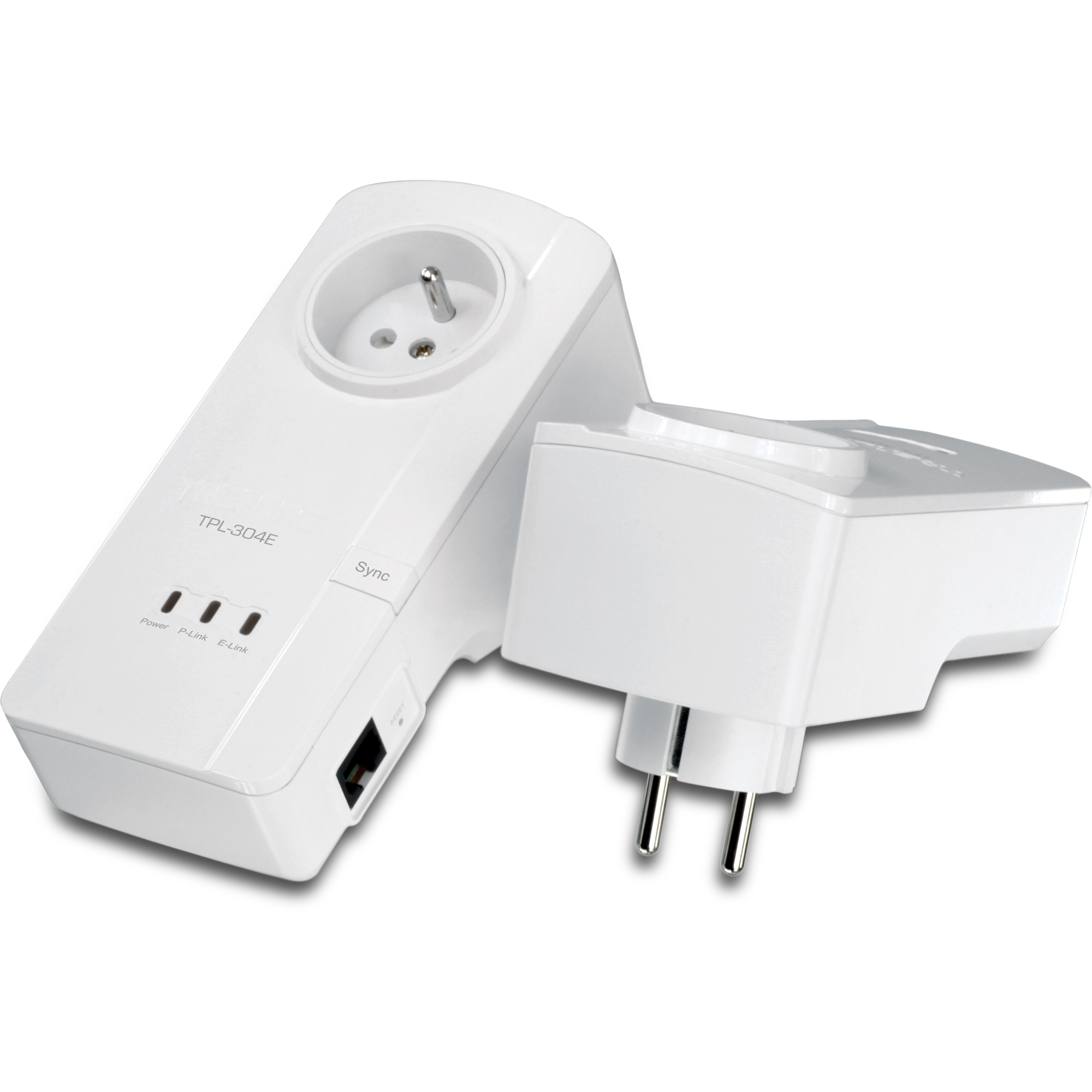

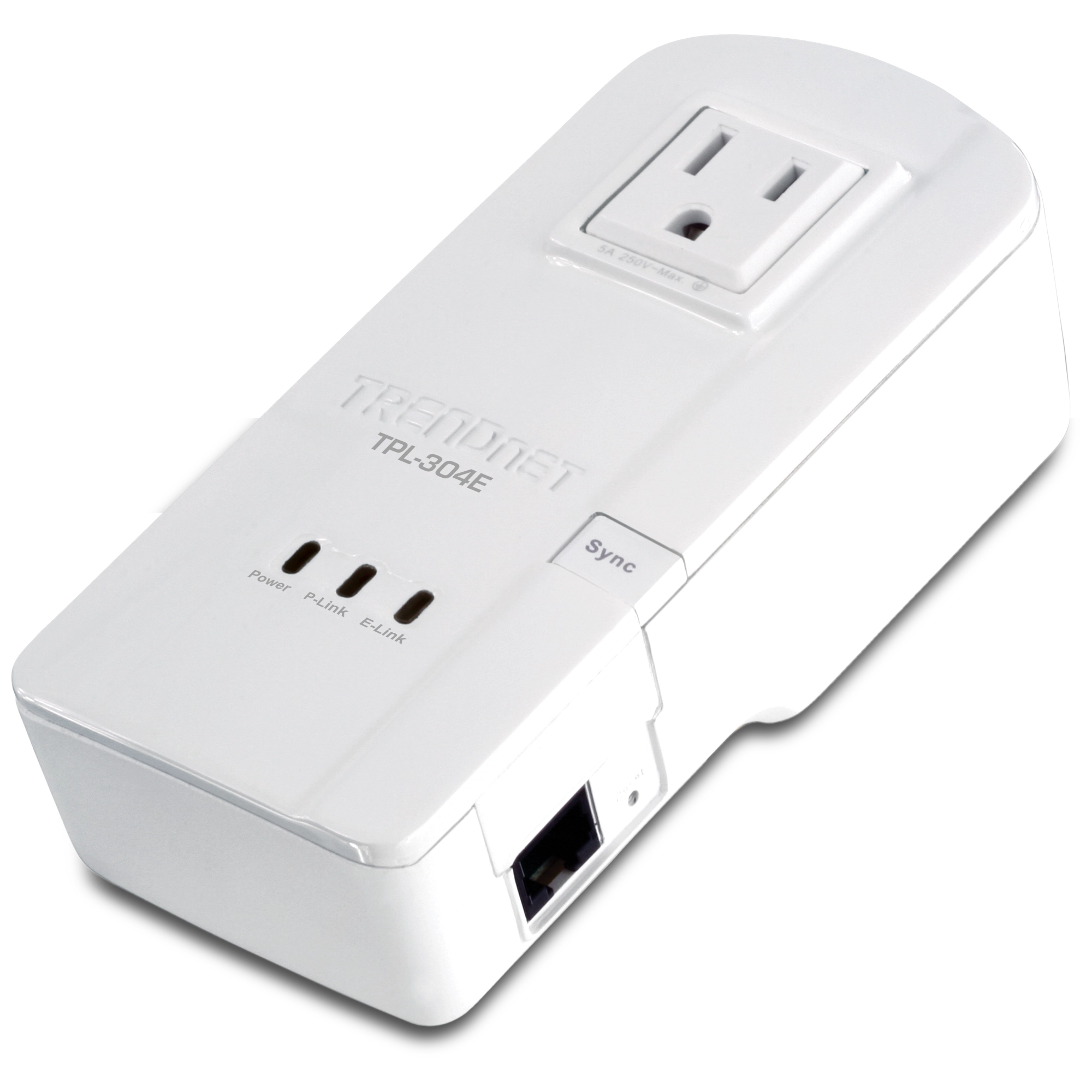

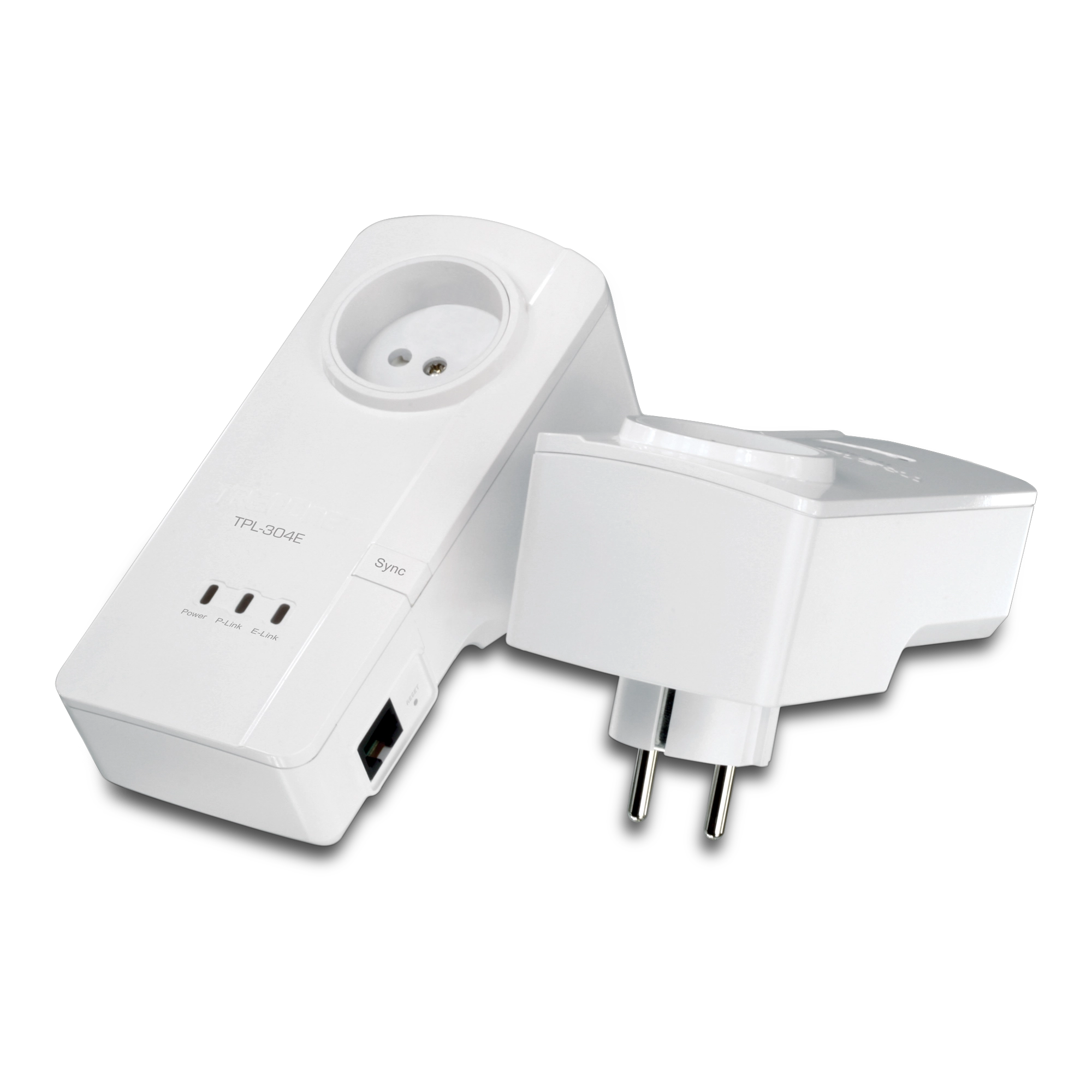

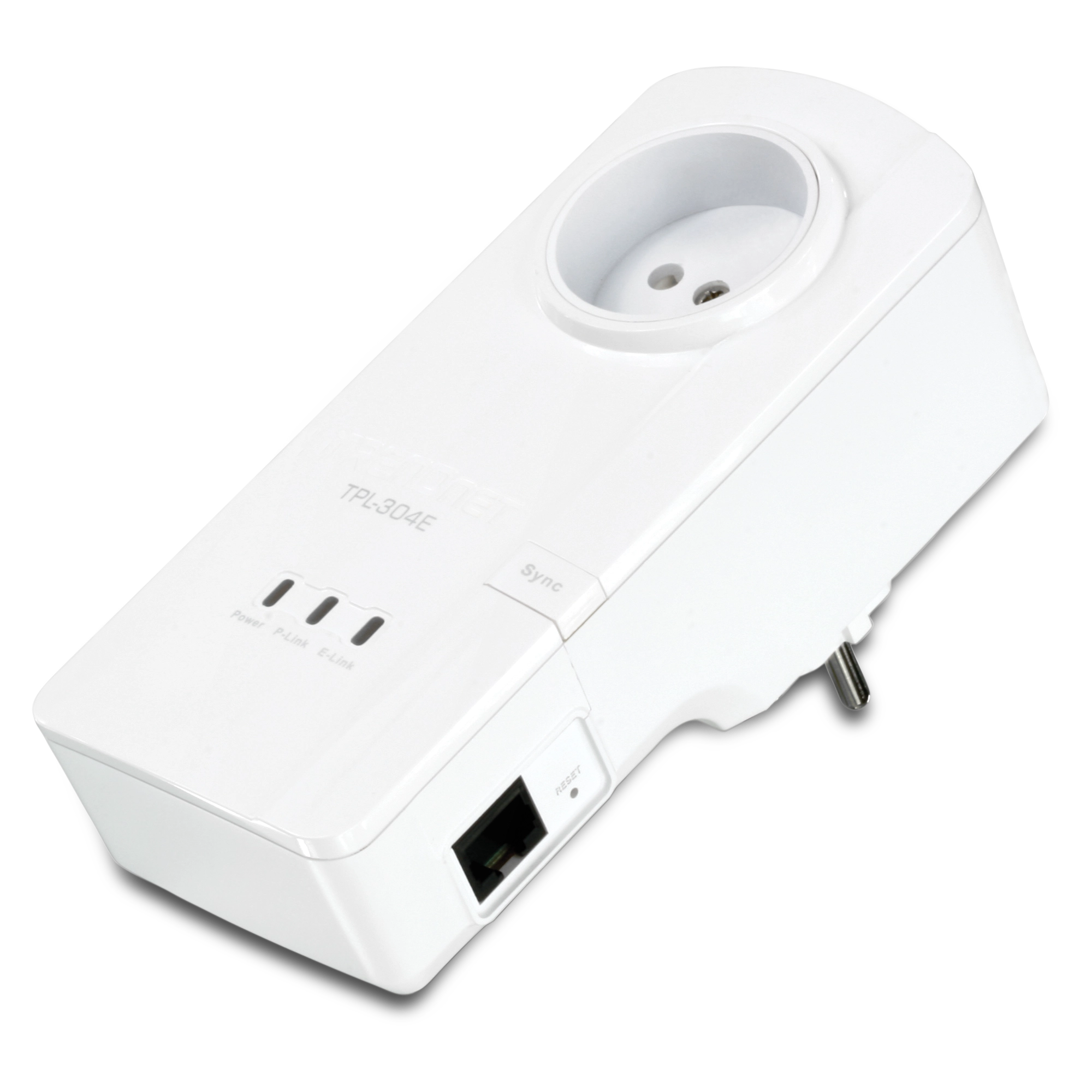

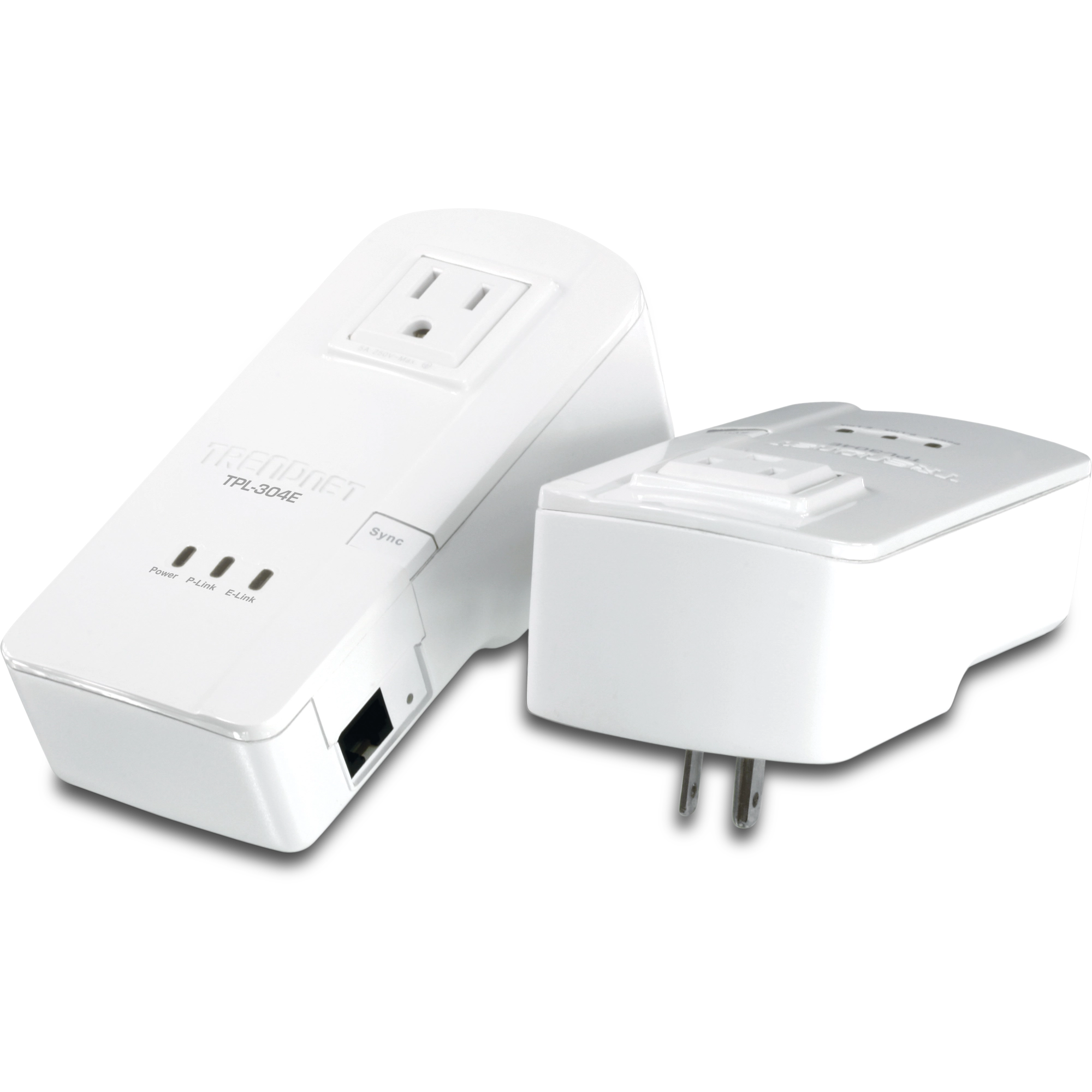

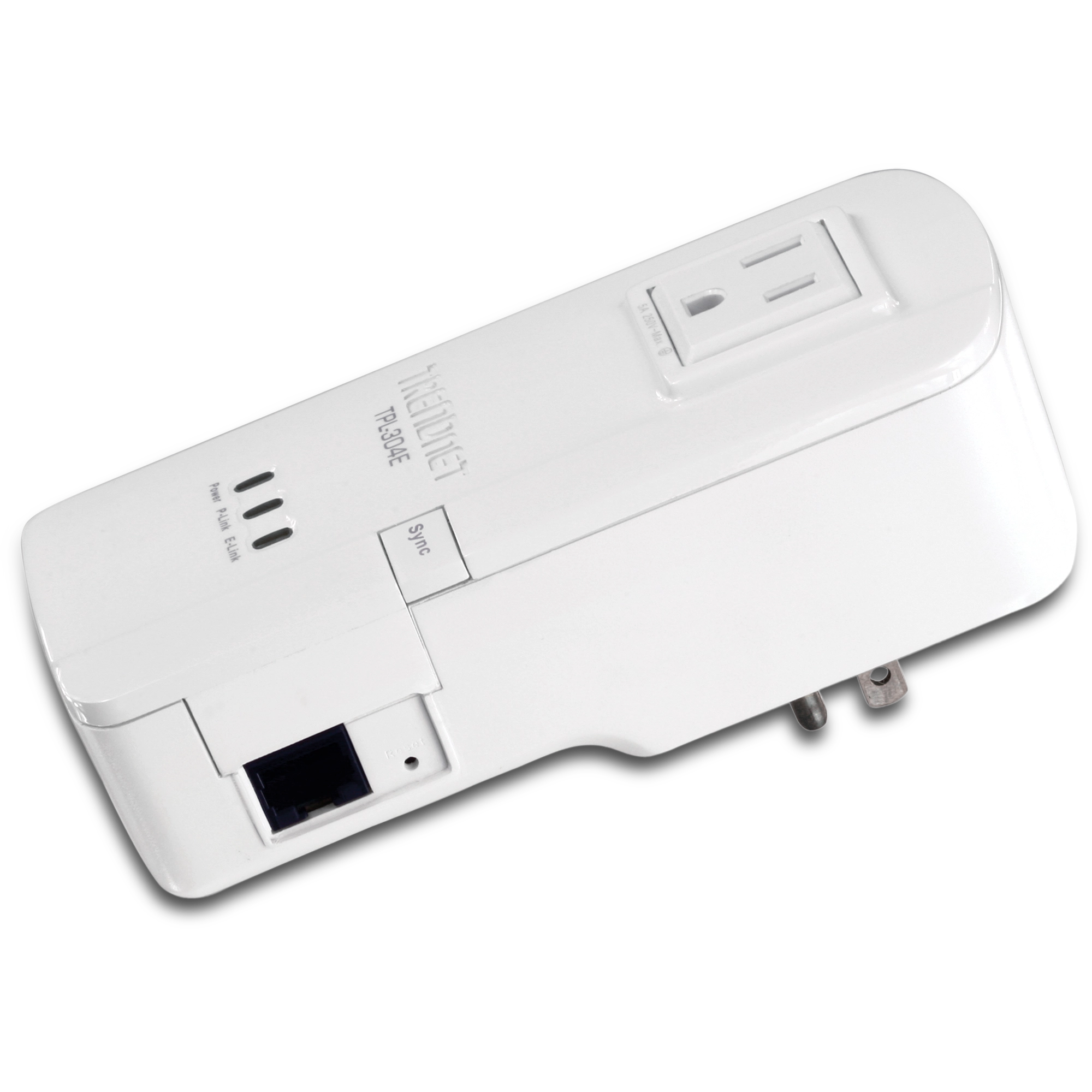

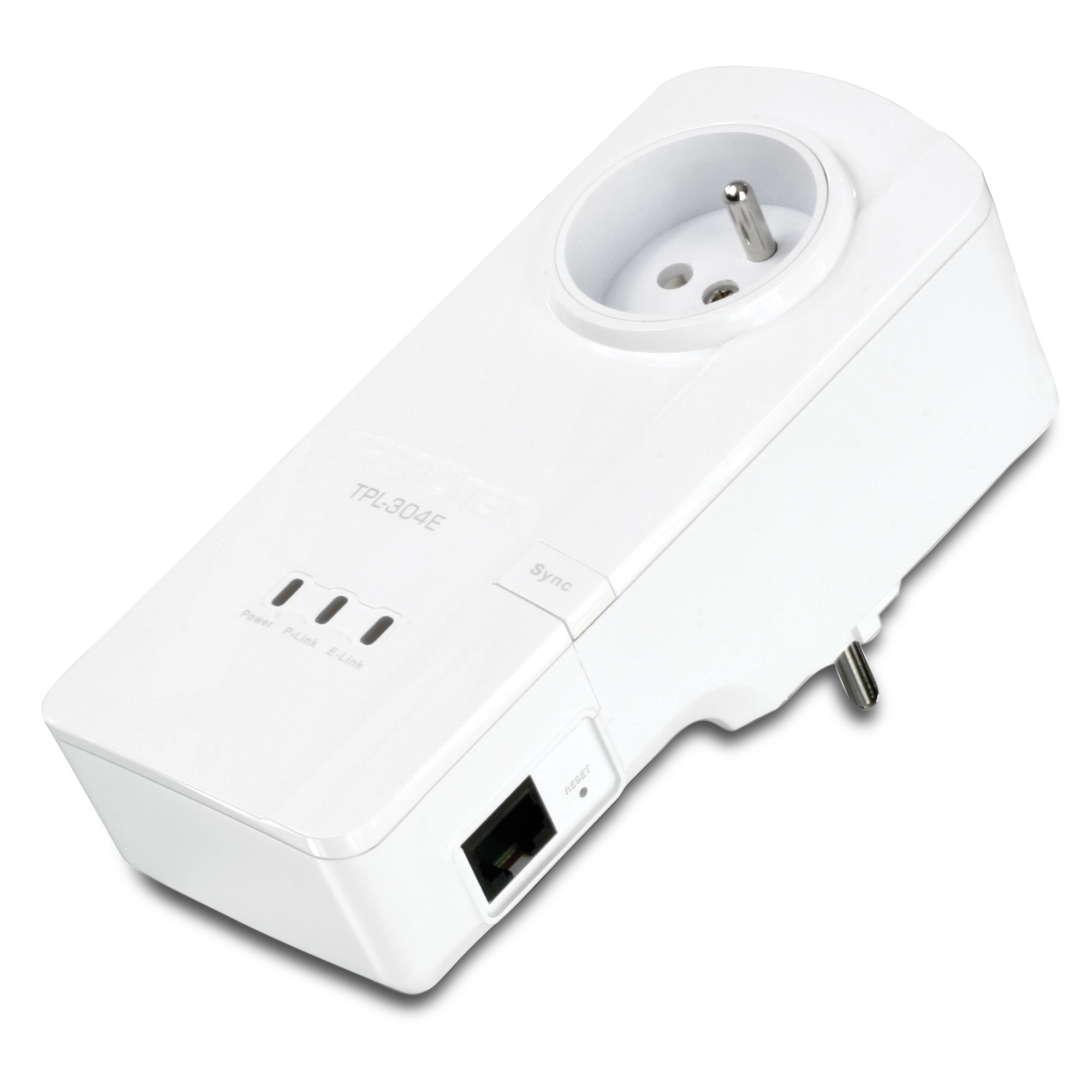

Product Images
| Hardware | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, HomePlug AV |
| Interface | 1 x 10/100Mbps Auto-MDIX RJ-45 Port 1 x electrical power socket with noise filtering (5A max. load) 1 x Sync button |
| Frequency Band | 2 ~ 30 MHz |
| Modulation | OFDM, QAM, QPSK, BPSK, ROBO |
| Speed | Powerline: Up to 200Mbps LAN: 200Mbps with Full Duplex mode |
| Utility Comptibility | Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit) |
| Nodes | Connect up to 8 adapters |
| Encryption | 128-bit AES |
| LED | Power, Powerline, Ethernet | Dimension (L x W X H) | 70 x 143 x 83 mm (2.8 x 5.6 x 3.3 in.) |
| Weight | 198 g (7 oz) |
| Power Source |
|
| Consumption | Active mode: 3.5 Watts (max.) Standby mode: 0.93 Watts (max.) |
| Temperature | Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 55° C (14° ~ 131° F) |
| Humidity | Max. 95% (non-condensing) |
| Certifications | CE, FCC |
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
