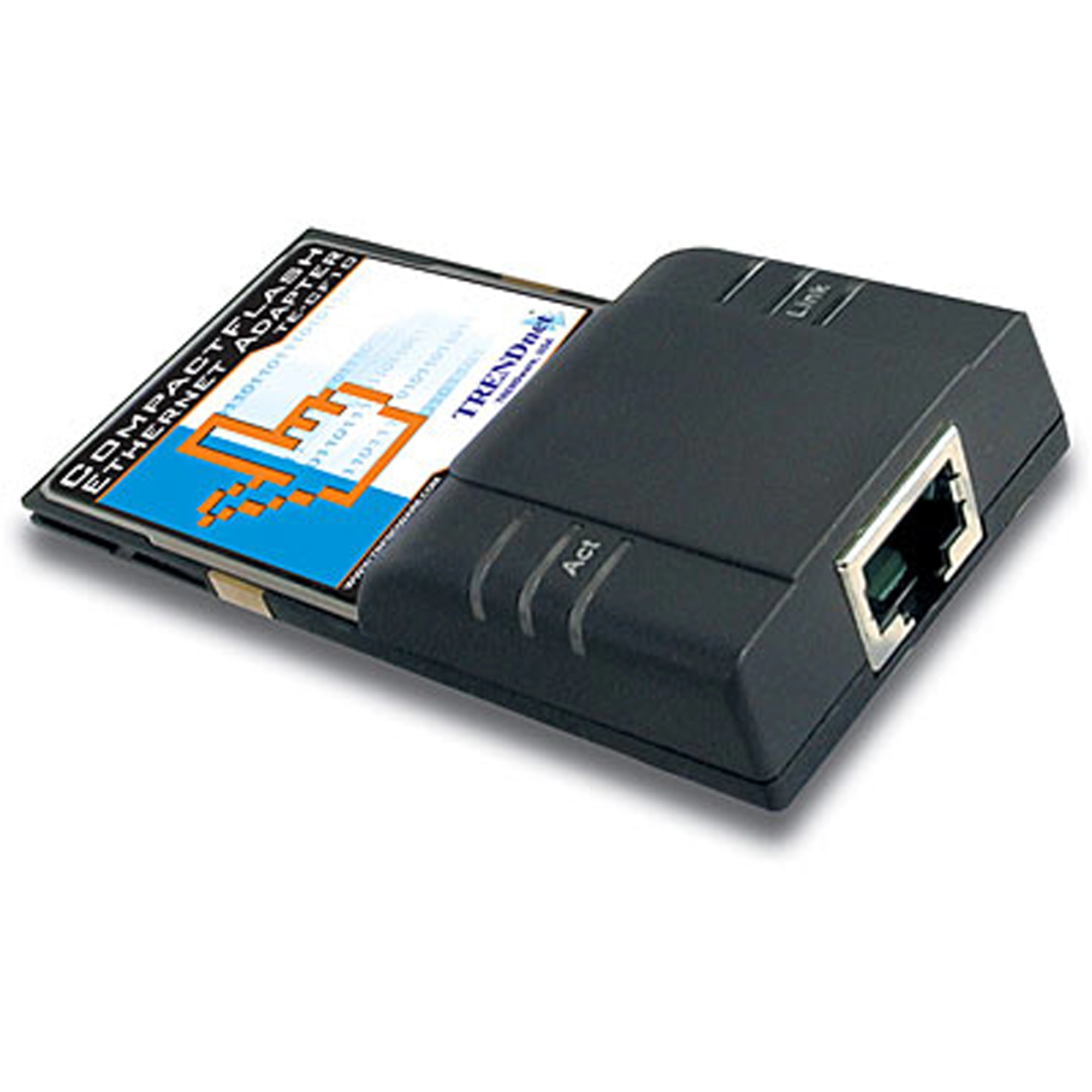

CompactFlash 10Base-T Ethernet Adapter

TE-CF10   (Version 1.0)

  • Instantly upgrade your pocket pc to high speed internet through Compact Flash
  • Data rates 200x faster than 56k connections
  • No external power source required

DISCONTINUED PRODUCT

The TE-CF10 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE-CF10.pdf
Date: 5/2/2013
File Size: 405.98 KB
Download Email
Hardware
Standards:
  • IEEE 802.3 10Base-T, NE2000 compatible
Data Transfer Rate:
  • 10Mbps
Power Requirement:
  • +3.3V, 50mA max at normal operation
Host Interface:
  • CF+ and CompactFlash Spec. Rev. 1.4
Compatibility:
  • Type I CompactFlash I/O card
Operating Systems:
  • Windows CE 2.0 or newer. Supports synchronization from Microsoft Windows 95/98 and Windows NT 4.0
LEDs:
  • Link (Orange - On), Act (Green - Blink)
Dimensions:
  • 88 x 42.8 x 3.3 mm
Weight:
  • 30 grams
Certifications:
  • CE, FCC, VCCI-B

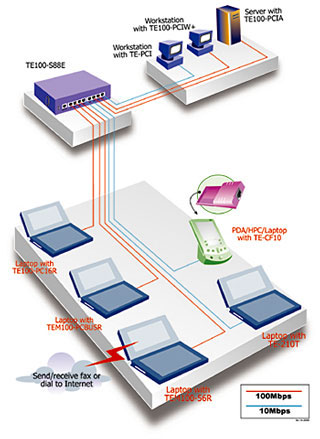

Networking Solution


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
