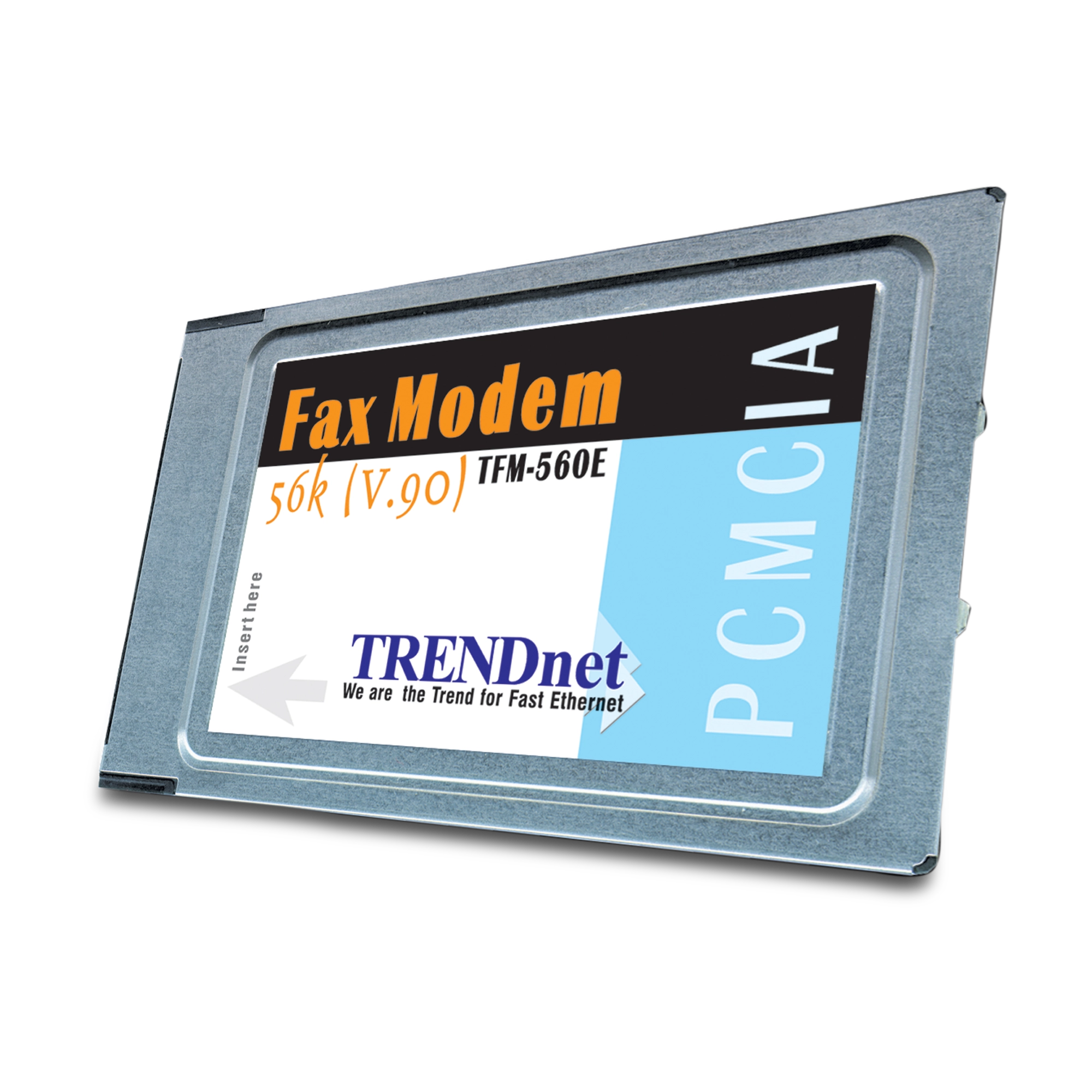

56Kbps (V.90) High Speed PCMCIA Fax Modem
TFM-560E
DISCONTINUED PRODUCT
The TFM-560E has been discontinued. For a list of discontinued products, click here.
| Hardware | |
| Operating Protocol: | V.90 (56,000bps); K56flex (56,000 bps); V.34bis (33,600 bps); V.34 (28,800 to 2,400 bps); V32bis (14,400/12,000/9,600/7,200 bps); V.32 (9,600/4,800 bps); V.22bis (2,400 bps); V.23 (1,200 TX/75 RX bps); V.22/Bell 212A (1,200 bps); V.21/Bell 103 (300bps) |
|---|---|
| Error Control Protocol: | V.42 and MNP Class 2 to 4 |
| Data Compression Protocol: | V.42bis and MNP Class 5 |
| Fax Compatibility: | EIA Class 1 fax commands; Group 3 send and receive; ITU-T V.17 up to 14,400 bps; ITU-T V.29 up to 9,600 bps; ITU-T V.27ter up to 4,800 bps; ITU-T V.21 Channel 2 up to 300 bps |
| Dialing Capability: | DTMF tone; Rotary pulse |
| Operating Modes: | Asynchronous full duplex; Manual/automatic answer |
| Flow Control: | Hardware CTS/RTS; Software XON/XOFF |
| Receive Sensitivity: | -40dBm |
| Transmit Level: | Permissive -11 (±) 1dBm |
| Line Interface: | RJ-11, 2-wire dial-up |
| Diagnostics: | Power-up self-test; Local analog loopback test; Local analog loopback with self-test; Local digital loopback test; Remote digital loopback test; Remote digital loopback with self-test |
| Software Control Interface: | Hayes compatible AT command set |
| Call Progress Monitoring: | Dial Tone, Busy Tone, Ring-back Detection |
| Typical Power Consumption: |
|
| Dimension: | Comply with PCMCIA Type II; 85.6mm x 54mm x 5mm (3.37" x 2.128" x 0.197") |
| Weight: | 8.5g (0.3Oz.) |
| Certification: | CE, FCC |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
