Intelligent 100Base-TX to 100Base-FX Dual Wavelength Single Mode SC Fiber Converter (40 km / 24.9 miles)

TFC-110S40D3i   (Version v1.0R)

  • Must use with TFC-110S40D5i
  • Port level SNMP management support
  • SC-type dual-wavelength single-mode fiber port
  • 10/100Base-TX RJ-45 port
  • Spans distances up to 40 km (24.9 miles)
  • Functions as a standalone converter or with the TFC-1600 fiber chassis

DISCONTINUED PRODUCT

The TFC-110S40D3i (Version v1.0R) has been discontinued. It has been replaced by the TEG-MGBS40 (Version V5). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_spec_TFC-110S40D3i(v1.0R).pdf
Date: 1/21/2019
File Size: 374.96 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TFC-110S40D3i(v1.0R).pdf
Date: 12/7/2015
File Size: 283.05 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TFC-110S40D3i(v1.0R).pdf
Date: 12/7/2015
File Size: 282.76 KB
Download Email
Datasheet (Português)
Filename: PO_spec_TFC-110S40D3i(v1.0R).pdf
Date: 2/16/2016
File Size: 283.19 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TFC-110S40D3i(v1.0R).pdf
Date: 12/7/2015
File Size: 282.30 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TFC-110S40D3i(v1.0R).pdf
Date: 12/7/2015
File Size: 297.75 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TFC-110S40D3i(v1.0R).pdf
Date: 12/7/2015
File Size: 282.57 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: English_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 6.29 MB
Download
Quick Installation Guide (Français)
Filename: French_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 4.62 MB
Download
Quick Installation Guide (Deutsch)
Filename: German_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 3.01 MB
Download
Quick Installation Guide (Português)
Filename: Portuguese_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.83 MB
Download
Quick Installation Guide (Español)
Filename: Spanish_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.97 MB
Download
Quick Installation Guide (Pусский)
Filename: Russian_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.97 MB
Download
Quick Installation Guide (Italiano)
Filename: Italian_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.88 MB
Download

Product Images

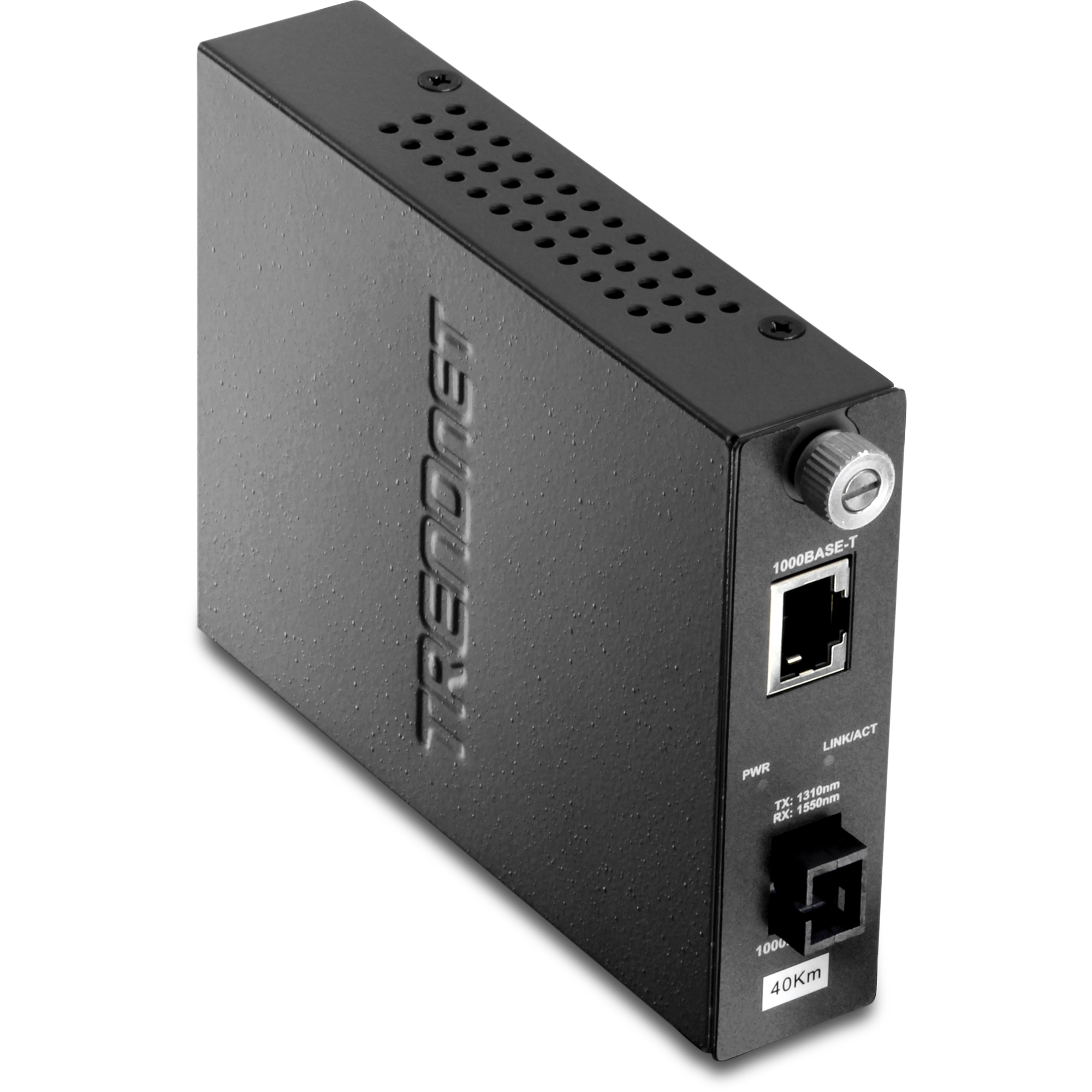

TFC-110S40D3i Product Photo (JPEG Image 1)
JPEG Image
File Size: : 282.80 KB
Date: : 12/20/2012
Download
TFC-110S40D3i Product Photo (JPEG Image 2)
JPEG Image
File Size: : 462.82 KB
Date: : 12/20/2012
Download
TFC-110S40D3i Product Photo (TIFF Image 3)
TIFF Image
File Size: : 11.69 MB
Date: : 12/20/2012
Download
TFC-110S40D3i Product Photo (TIFF Image 4)
TIFF Image
File Size: : 6.46 MB
Date: : 12/20/2012
Download
ROHS compliant Non-Disposable
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
Network Media
  • 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100 m
  • 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 40 km
Protocol
  • CSMA / CD
Ports
  • 1 x 10/100Base-TX
  • 1 x 100Base-FX (simplex SC-type)
Dip Switch
  • Fiber (full / half duplex)
  • UTP (auto negotiation / manual)
  • Speed (10 Mbps / 100 Mbps)
  • Copper (full / half duplex)
  • LLR (enable / disable)
  • LLCF (enable / disable)
Transfer Rate
  • 100 Mbps (half duplex) / 200 Mbps (full duplex)
Diagnostic LEDs
  • Per Unit: power
  • Per Port (TX): Link / Activity, FDX / HDX, Link Fail, Speed
  • Per Port (FX): Link / Activity, FDX / HDX, Link Fail
Power Adapter
  • Input: 100~240 V 50/60 Hz, 0.2 A
  • Output: 5 V DC, 1 A
Power Consumption
  • 2 watts (max)
Dimensions
  • 120 x 88 x 25 mm (4.7 x 3.46 x 0.98 in.)
Weight
  • 354 g (12.5 oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -25° ~ 70°C (-13° ~ 158°F)
Humidity
  • Max 90% (non-condensing)
Certifications
  • CE, FCC
Media
  • SMF
Wavelength
  • TX: 1310 nm
  • RX: 1550 nm
Optical Output Power (dBm)
  • Min: -8
  • Max: -3
Optical Intput Power (dBm)
  • Min (Sensitivity): -34
  • Max: 3
Power Budget
  • 26
Distance
  • 40 km

PACKAGE CONTENTS
  • TFC-110S40D3i
  • Multi-Language Quick Installation Guide
  • Power adapter (5 V DC, 1 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
