10GBASE-LR SFP+ Single Mode LC Module 10 km (6.2 miles) with DDM
TEG-10GBS10 (Version v2.0R)
- Hot-pluggable SFP+ transceiver
- SFP+ MSA compliant
- Supported throughput: up to 10.5 Gbps
- Single Mode fiber for distances up to 10 km (6.2 miles)
- 1310 nm wavelength
- Duplex LC connector
- Digital Diagnostics Monitoring (DDM) support
- Operating temperature: 0 to 70 °C (32 to 158 °F)
- Single 3.3 V power supply
Datasheet
Filename: EN_datasheet_TEG-10GBS10(v2.0R).pdf
Date: 2/5/2019
File Size: 643.71 KB
Filename: FR_datasheet_TEG-10GBS10(V2.0R).pdf
Date: 9/18/2017
File Size: 657.97 KB
Filename: GE_datasheet_TEG-10GBS10(V2.0R).pdf
Date: 9/18/2017
File Size: 658.79 KB
Filename: PO_datasheet_TEG-10GBS10(V2.0R).pdf
Date: 9/18/2017
File Size: 657.89 KB
Filename: SP_datasheet_TEG-10GBS10(v2.0R).pdf
Date: 9/18/2017
File Size: 656.80 KB
Filename: RU_datasheet_TEG-10GBS10(V2.0R).pdf
Date: 2/5/2019
File Size: 665.11 KB
Filename: IT_datasheet_TEG-10GBS10(V2.0R).pdf
Date: 9/18/2017
File Size: 657.10 KB

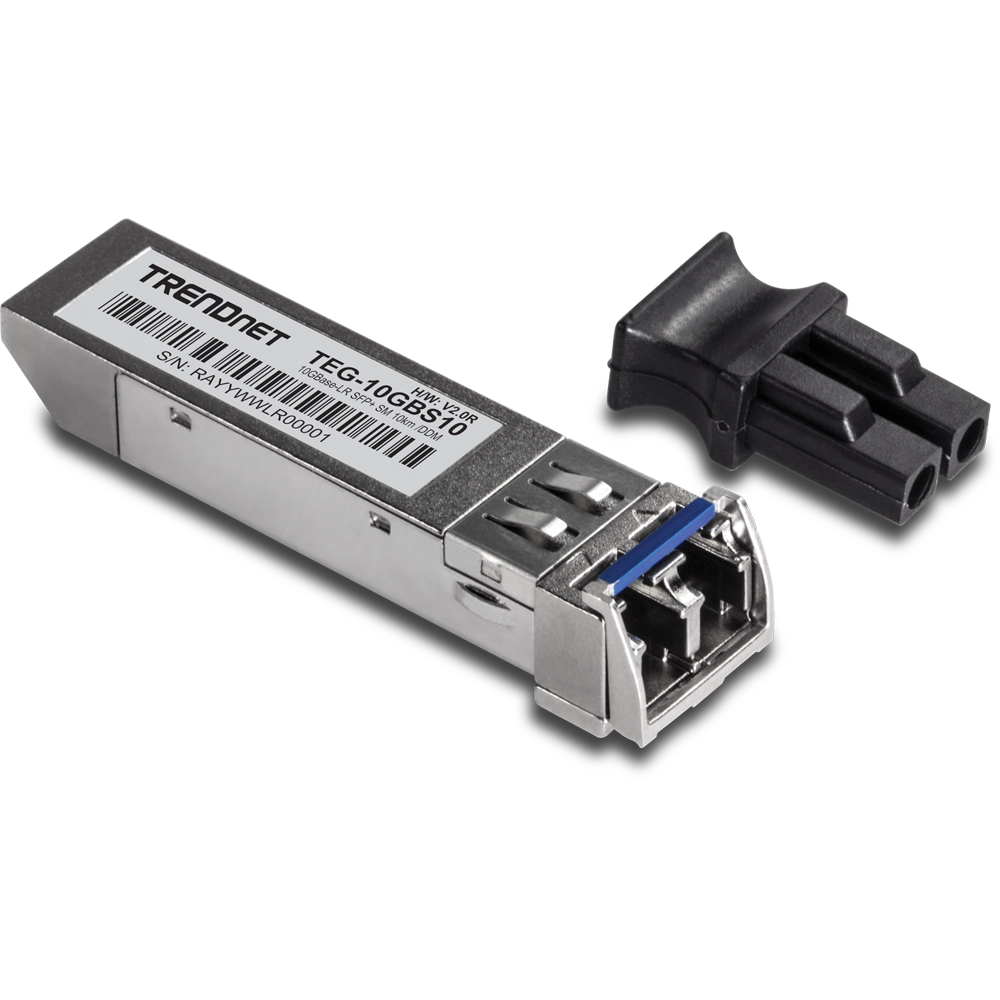

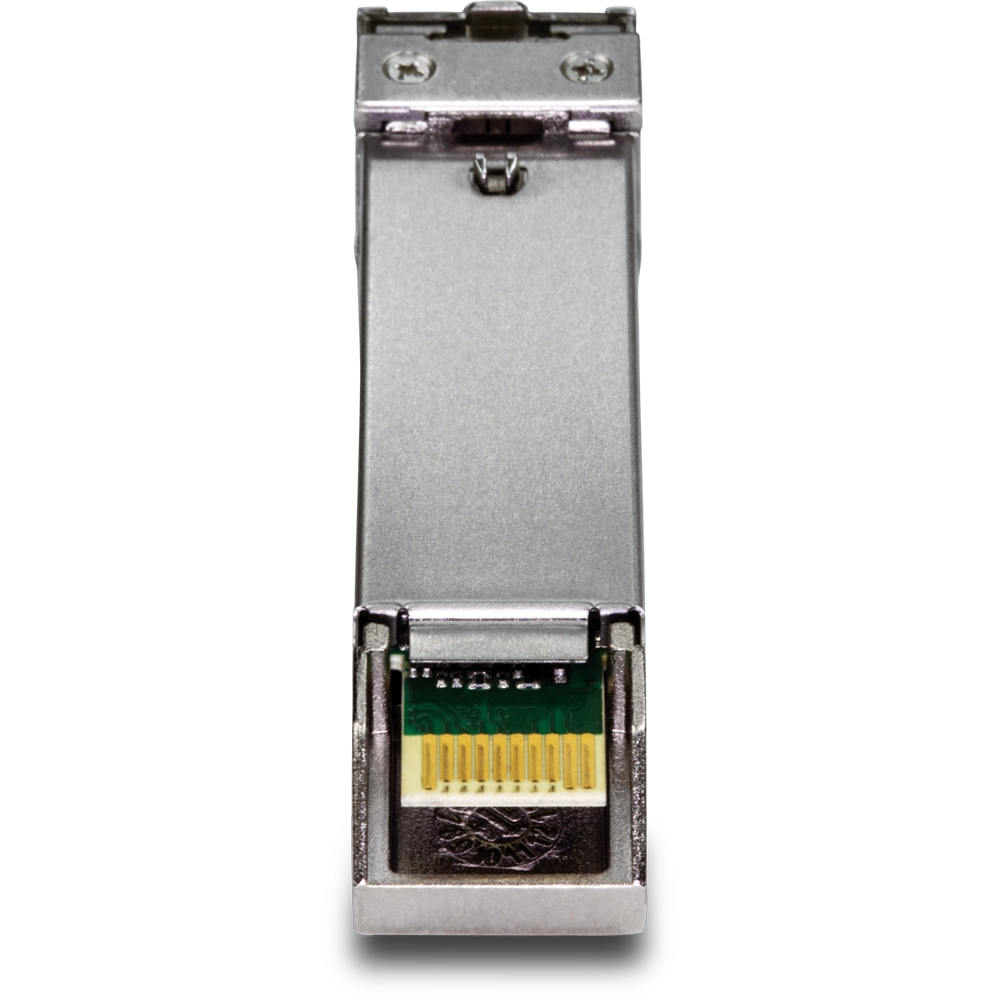

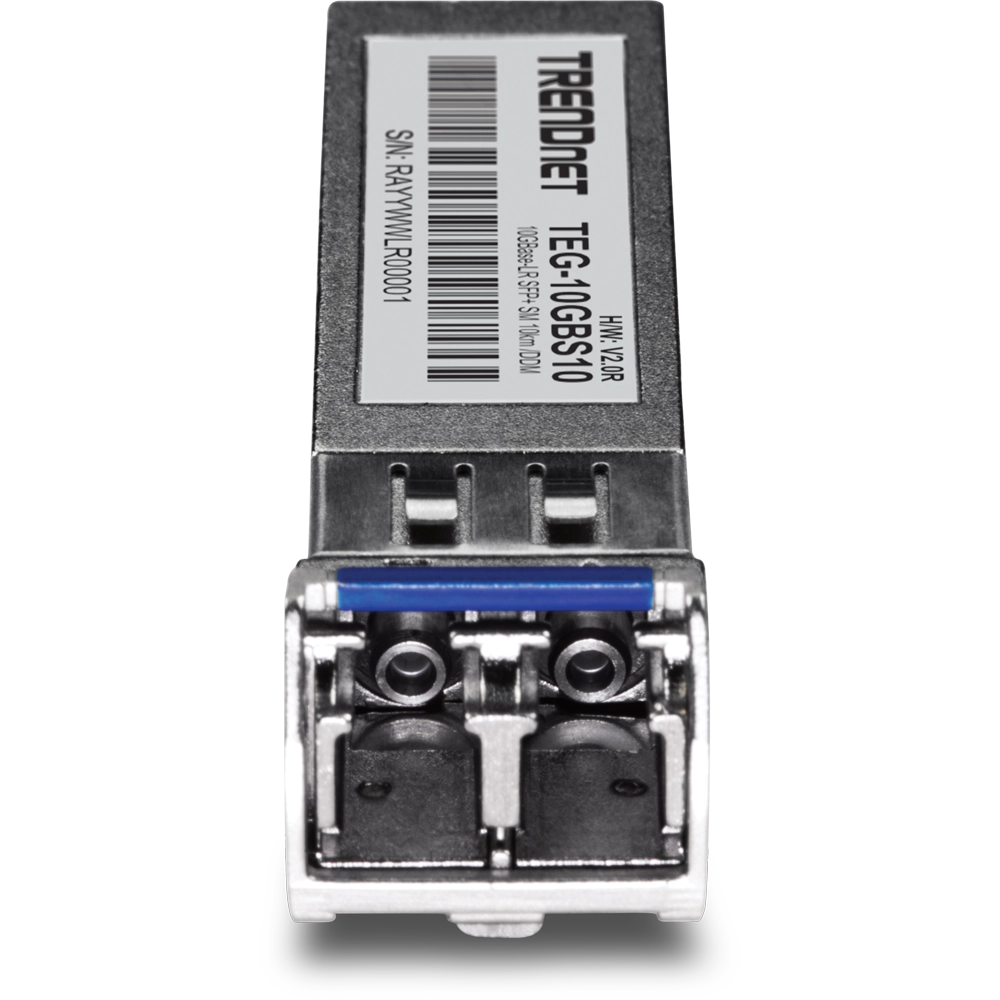

Product Images
| Standards |
|
|---|---|
| Device Interface |
|
| Data Transfer Rate |
|
| Wavelength |
|
| Optical Output Power |
|
| Distance |
|
| Special Features |
|
| Power |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
|
| Weight |
|
| Certifications |
|
| Warranty |
|
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Not Available in
