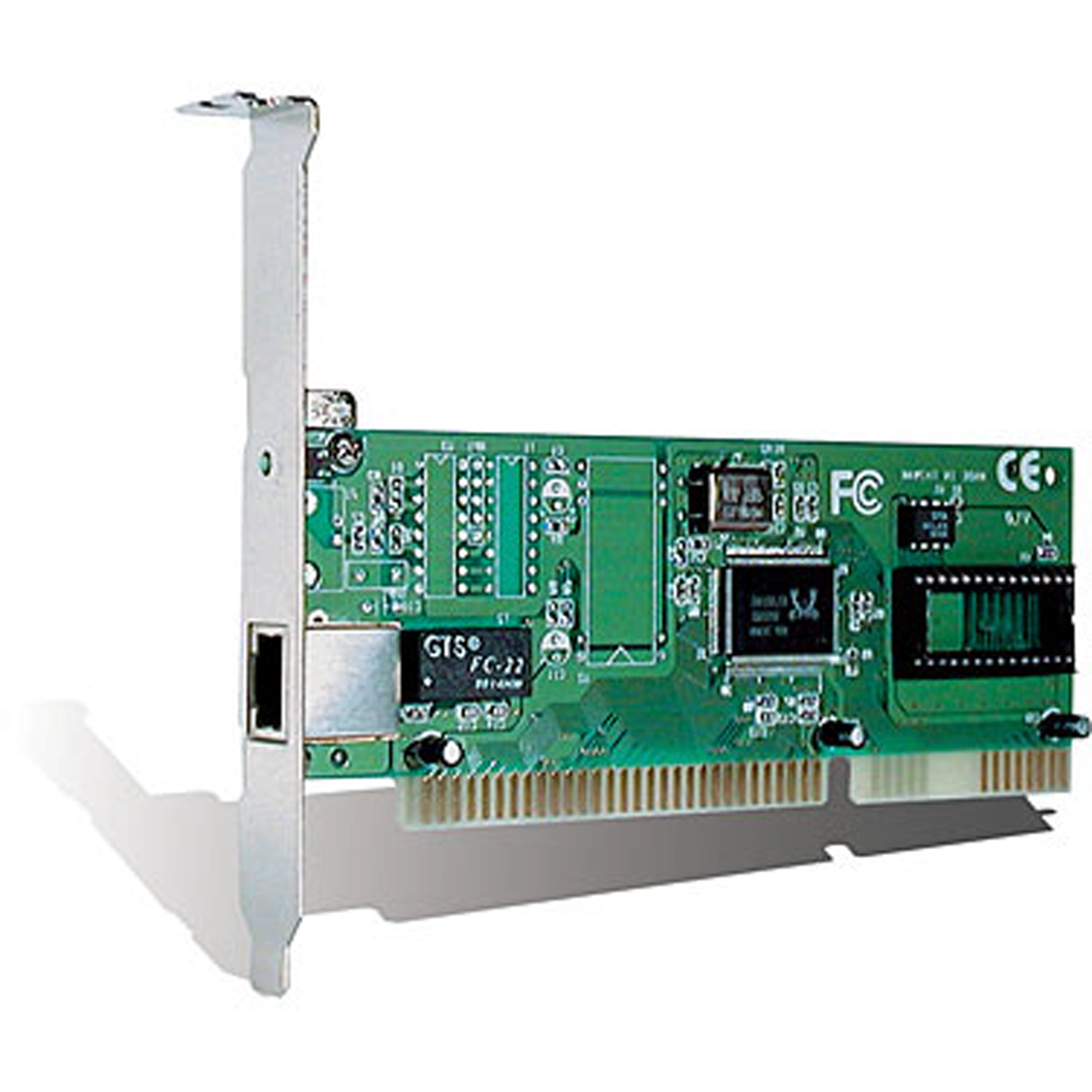

16-bit ISA Plug-and-Play Ethernet Adapter with RJ-45 Connectors

TE-16PTplus   (Version 1.0)

DISCONTINUED PRODUCT

The TE-16PTplus (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TE-16PTplus.pdf
Date: 1/25/2007
File Size: 255.81 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TE-16PTplus.pdf
Date: 1/25/2007
File Size: 259.80 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TE-16PTplus.pdf
Date: 1/25/2007
File Size: 358.29 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TE-16PTplus.pdf
Date: 1/25/2007
File Size: 259.01 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TE-16PTplus.pdf
Date: 1/25/2007
File Size: 1.07 MB
Download Email
Hardware
Standards:
  • IEEE 802.3
Protocol:
  • CSMA/CD
Wiring Connector:
  • BNC, RJ-45 Bus Interface: 16-Bit ISA
Bus Network Media:
  • UTP CAT 3, 4, 5 (100m), EIA/TIA-568 100-ohm screened twisted pair (STP) (100m), or thin coax
Data Transfer Rate:
  • 10Mbps (Half-duplex), 20Mbps (Full-duplex)
Diagnostic LED:
  • LINK
IRQ Support:
  • 2 (9), 3, 4, 5, 10, 11, 12, 15
I/O Base Address:
  • 200H, 220H, 240H, 260H, 280H, 2A0H, 2C0H, 2E0H, 300H, 320H, 340H, 360H, 380H, 3A0H, 3C0H, 3E0H
Boot ROM Address:
  • C0000H, C4000H, C8000H, CC000H, D0000H, D4000H, D8000H, DC000H
Operating Temperature:
  • 0° to 50° C (32° to 122° F)
Humidity:
  • 10 % to 90 % non-condensing
Certifications:
  • FCC, UL, CE, VCCI Class A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
