Indoor/Outdoor 1MP H.264 PoE IR Bullet Network Camera

TV-IP324PI   (Version v1.0R)

  • 1MP 720p HD resolution
  • Night vision up to 30 meters (98 ft.)
  • Outdoor IP67 weather rating
  • Save installation costs with Power over Ethernet (PoE)
  • Digital Wide Dynamic Range image balancing
  • Program motion detection with email alerts
  • Free iOS® and Android™ mobile apps


DISCONTINUED PRODUCT

The TV-IP324PI (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Drivers/Utility

MAC Plug-in
Web plug-in for MAC OS

Release Date: 07/2018
Release Note:
  • Updated latest Mac OS 10.12 support

Filename: Mac_Plugin.zip
SHA-1 Checksum: 52A5EC411C0FC29CF41C3557E08437EA83AE5B16
Date: 7/31/2018
File Size: 3.66 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.4.5(190222)
Release Date: 3/2019
Release Notes:

  1. Addressed email settings for TLS

Filename: FW_TV-IP324PI_325PI(5.4.5build190222).zip
SHA-1 Checksum: E4B6E7335CD639BC1994CED11244889FDD3B7D27
Date: 3/1/2019
File Size: 13.57 MB
Download

Software

TRENDnetView Evo Advanced camera management software (64-bit)

Version 1.17.1

Product Information
Filename: TRENDnetView_EVO__x64_1.17.1.zip
SHA-1 Checksum: 2B8961BD90A76803DC35A2888FD58872C5A5F9C2
Date: 3/12/2021
File Size: 515.12 MB
Download
TRENDnetView Evo Advanced camera management software (32-bit)

Version 1.17.1

Product Information
Filename: TRENDnetView_EVO__x86_1.17.1.zip
SHA-1 Checksum: C2AC48496FF10261DFEBEDD1993941DC5EF214DC
Date: 3/12/2021
File Size: 377.78 MB
Download

Datasheet

Datasheet (English)
Filename: EN_intl_datasheet_TV-IP324PI_(v1.0R).pdf
Date: 8/12/2020
File Size: 560.47 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-IP324PI_(v1.0R).pdf
Date: 8/12/2020
File Size: 563.63 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-IP324PI_(v1.0R).pdf
Date: 8/12/2020
File Size: 565.54 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-IP324PI_(v1.0R).pdf
Date: 8/12/2020
File Size: 541.79 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-IP324PI_(v1.0R).pdf
Date: 8/12/2020
File Size: 562.78 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-IP324PI_(v1.0R).pdf
Date: 8/12/2020
File Size: 542.02 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: English_TV-IP324PI_325PI(V1.0R).pdf
Date: 11/15/2017
File Size: 2.02 MB
Download
Quick Installation Guide (Français)
Filename: French_TV-IP324PI_325PI(V1.0R).pdf
Date: 11/15/2017
File Size: 2.09 MB
Download
Quick Installation Guide (Deutsch)
Filename: German_TV-IP324PI_325PI(V1.0R).pdf
Date: 11/15/2017
File Size: 1.41 MB
Download
Quick Installation Guide (Português)
Filename: Portuguese_TV-IP324PI_325PI(V1.0R).pdf
Date: 11/15/2017
File Size: 1.40 MB
Download
Quick Installation Guide (Español)
Filename: Spanish_TV-IP324PI_325PI(V1.0R).pdf
Date: 11/15/2017
File Size: 1.41 MB
Download
Quick Installation Guide (Pусский)
Filename: Russian_TV-IP324PI_325PI(V1.0R).pdf
Date: 11/15/2017
File Size: 1.40 MB
Download
Quick Installation Guide (Italiano)
Filename: Italian_TV-IP324PI_325PI(V1.0R).pdf
Date: 11/15/2017
File Size: 1.41 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP324PI_(v1.0R).pdf
Date: 8/17/2020
File Size: 3.21 MB
Download

Product Images

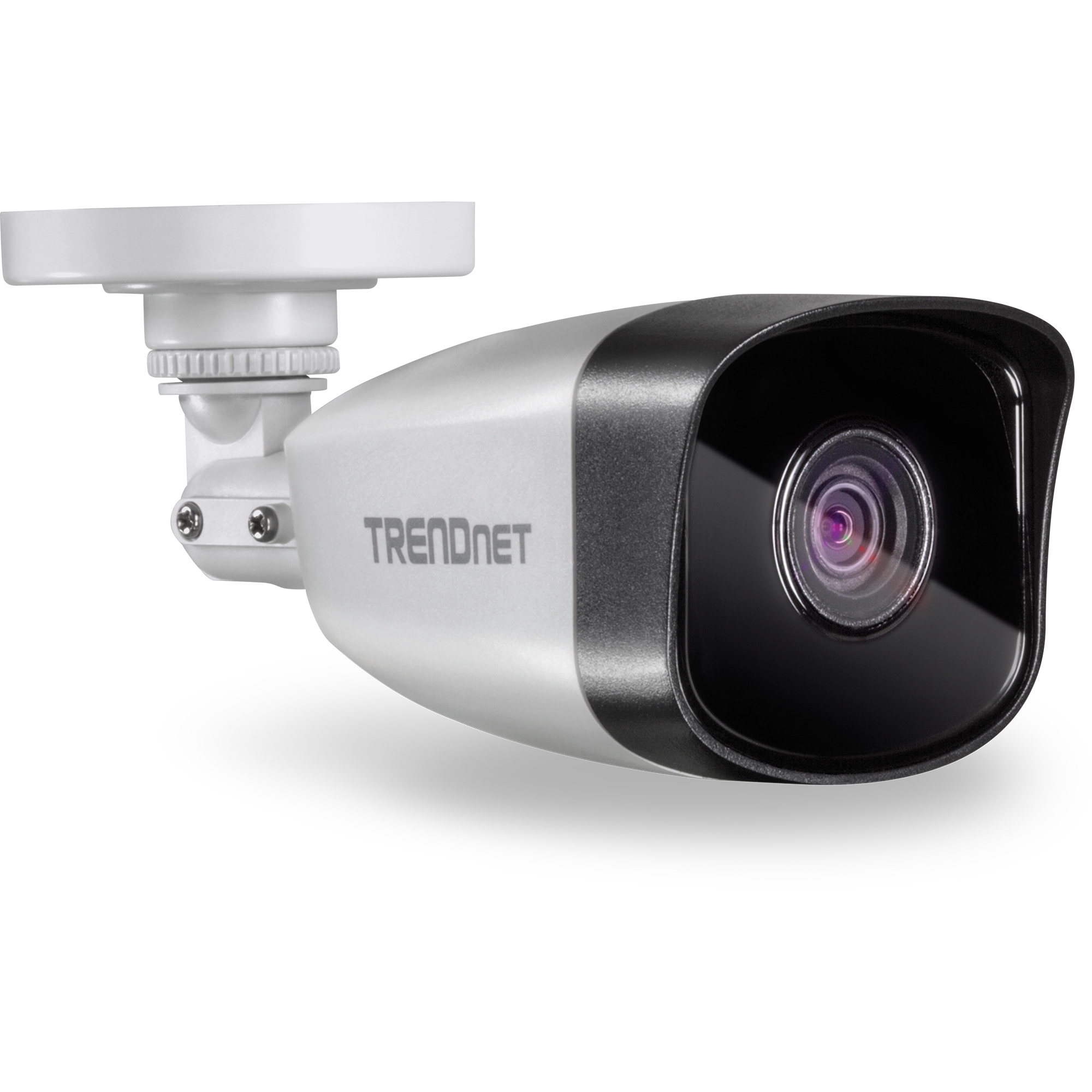

TV-IP324PI Product Photo (PNG Image 1)
PNG Image
File Size: : 2.25 MB
Date: : 11/15/2017
Download

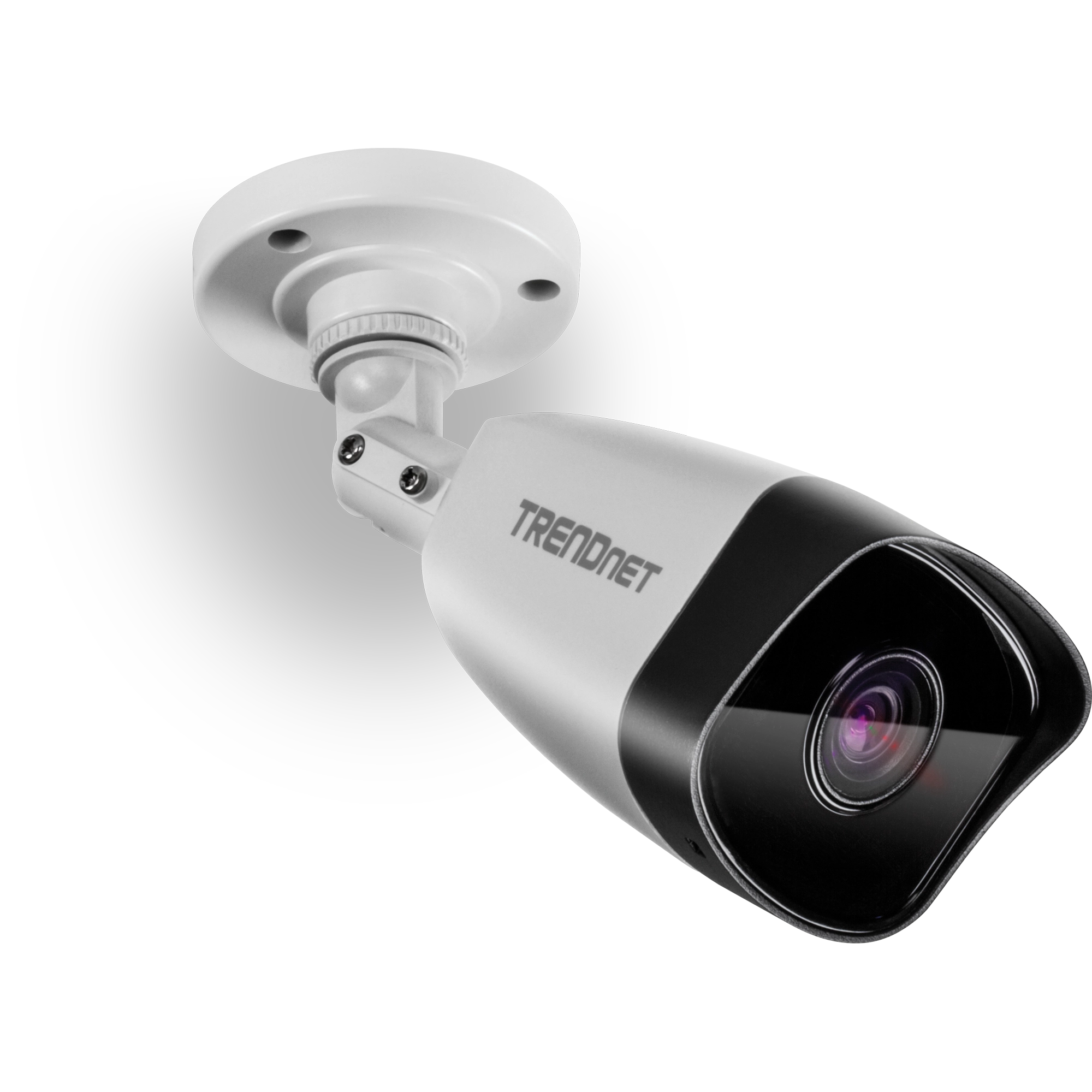

TV-IP324PI Product Photo (PNG Image 2)
PNG Image
File Size: : 3.05 MB
Date: : 11/15/2017
Download

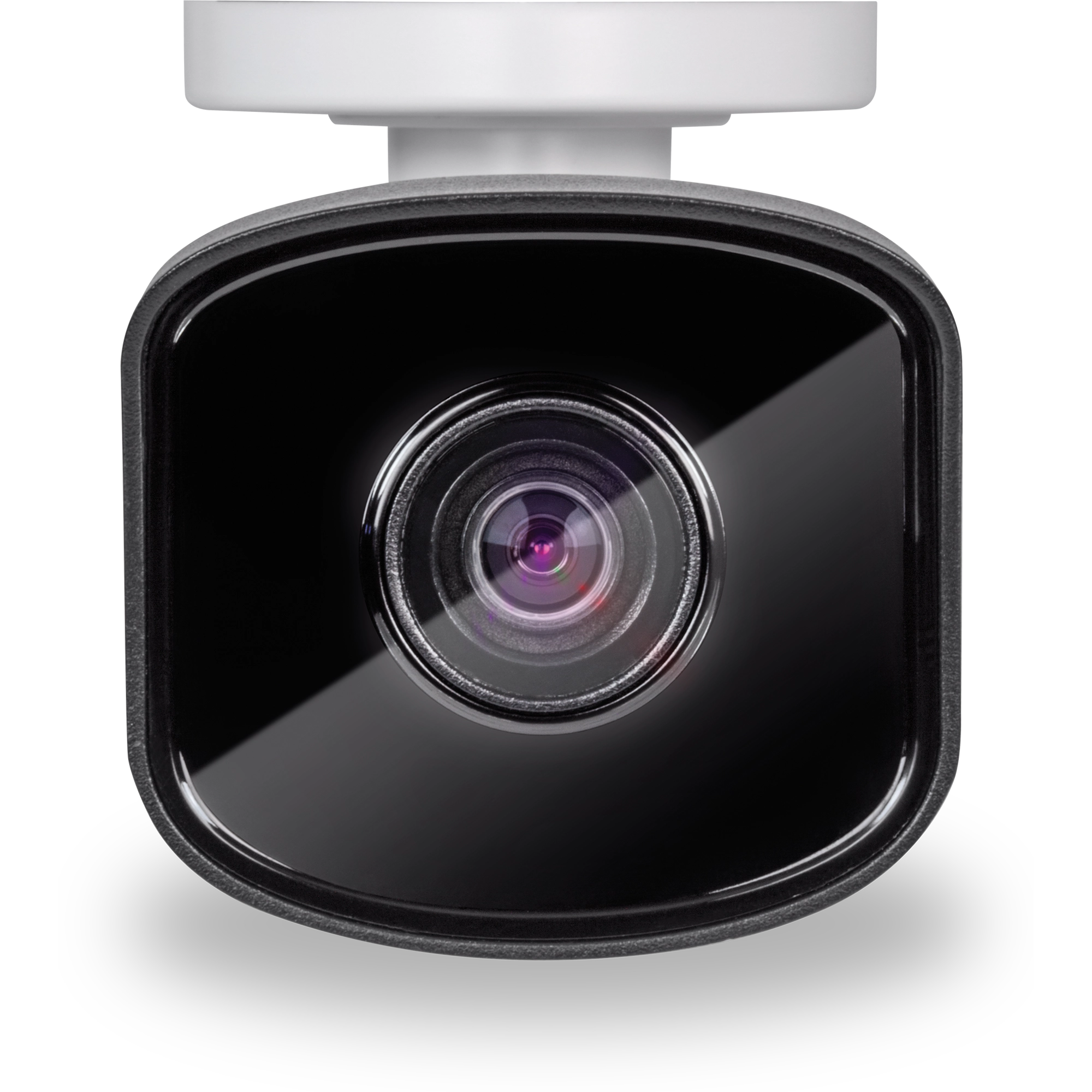

TV-IP324PI Product Photo (PNG Image 3)
PNG Image
File Size: : 1.70 MB
Date: : 11/15/2017
Download

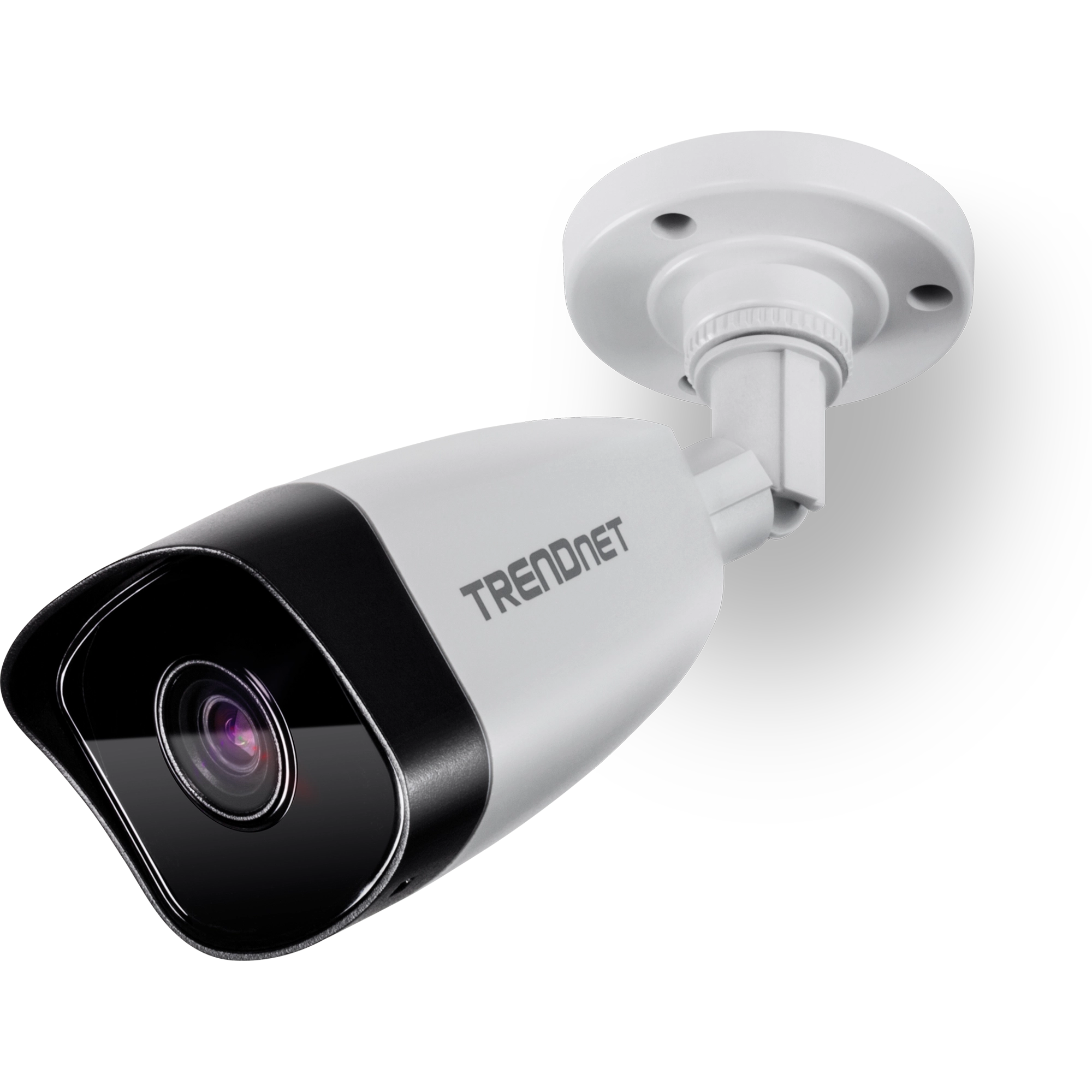

TV-IP324PI Product Photo (PNG Image 4)
PNG Image
File Size: : 1.83 MB
Date: : 11/15/2017
Download
ROHS compliant Non-Disposable
Lens
  • Focal Length: 4mm @ F2.0
  • Focal depth: 30cm to infinity
  • Sensor: 1/4” CMOS sensor
  • Digital zoom: 4x
Viewing
  • Horizontal angle : 83.6˚
  • Manual pan: 0° to 355°
  • Manual tilt: 0° to 75°
  • Lens rotation: 0° to 355°
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • IR distance: 30m (98 ft.)
  • IR wavelength: 850nm
Compression
  • H.264
  • MJPEG
  • Resolution
  • Main stream: H.264: 1280 x 720 up to 30 fps
  • Sub stream: H.264/MJPEG: 640 x 360 up to 30 fps
Hardware Standard
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
Device Interface
  • 10/100Mbps PoE port
  • Power jack
  • Reset button
Housing
  • IP67 weather rated
Network Protocol
  • IPv4, IPv6, UDP, TCP/IP
  • DHCP, NTP, DDNS, SMTP, LLTD
  • QoS/DSCP, IEEE 802.1X
  • HTTP, HTTPS
  • UPnP, RTSP, RTP
Compliant Standard
  • ONVIF (Profile S), PSIA, CGI, ISAPI
Dimension
  • 180 x 70 x 60mm (7.1 x 2.75 x 2.4 in.)
Weight
  • 256g (0.56 lb.)
Operating Temperature
  • -30 – 60 °C (-22 – 140 °F)
Humidity
  • Max. 95% non-condensing
Power
  • Input: PoE
  • Max. consumption: 5W
Power Adapter (optional model: 12VDC1A)
  • Input: 100 – 240V AC , 50/60Hz
  • Output: 12V DC, 1A external power adapter
Management Interface
  • Multi-language support: English, French, German, Spanish, and Portuguese
  • Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, Image Gain, Day/Night switch. Smart Supplement Light (Smart IR), BLC, D-WDR, White Balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard
  • D-WDR enhances video quality in high contrast daytime lighting
  • Digital Noise Reduction removes digital noise from the video signal
  • Time, date, and text overlay
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Video masks: define custom video masks
  • Tamper detection function: email notification
  • Snapshot: real time snapshot and motion triggered
  • Supported dynamic DNS services: dyn.com and no-ip.com
  • Supports remote management
  • Compatible browsers: Internet Explorer®, Chrome
TRENDnetVIEW EVO Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, Windows Server® 2012, 2008
TRENDnet IPVIEW App
  • Free iOS® and Android™ apps
  • View live camera video on a mobile device
  • Take snapshots
  • Zoom
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • TV-IP324PI
  • Weather seal
  • Quick installation guide
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
