Wireless Powerline Access Point
TPL-110AP
- Provides wireless access to an existing building-wide powerline network
- Plug in this adapter into an electrical socket for immediate wireless connectivity
- Extends a wireless network into any room
DISCONTINUED PRODUCT
The TPL-110AP has been discontinued. It has been replaced by the TPL-430AP (Version V1). For a list of discontinued products, click here.Datasheet
Filename: EN_Spec_TPL-110AP.pdf
Date: 11/29/2005
File Size: 198.45 KB
Filename: FR_Spec_TPL-110AP.pdf
Date: 11/29/2005
File Size: 201.67 KB
Filename: GE_Spec_TPL-110AP.pdf
Date: 11/29/2005
File Size: 200.38 KB
Filename: SP_Spec_TPL-110AP.pdf
Date: 11/29/2005
File Size: 200.35 KB
Quick Installation Guide
Filename: QIG_TPL-110AP(english).pdf
Date: 8/19/2005
File Size: 720.77 KB
Filename: QIG_TPL-110AP(french).pdf
Date: 8/19/2005
File Size: 749.48 KB
Filename: QIG_TPL-110AP(german).pdf
Date: 8/19/2005
File Size: 723.52 KB
Filename: QIG_TPL-110AP(Spanish).pdf
Date: 8/19/2005
File Size: 722.62 KB
User's Guide
Frequently Asked Questions (FAQ)

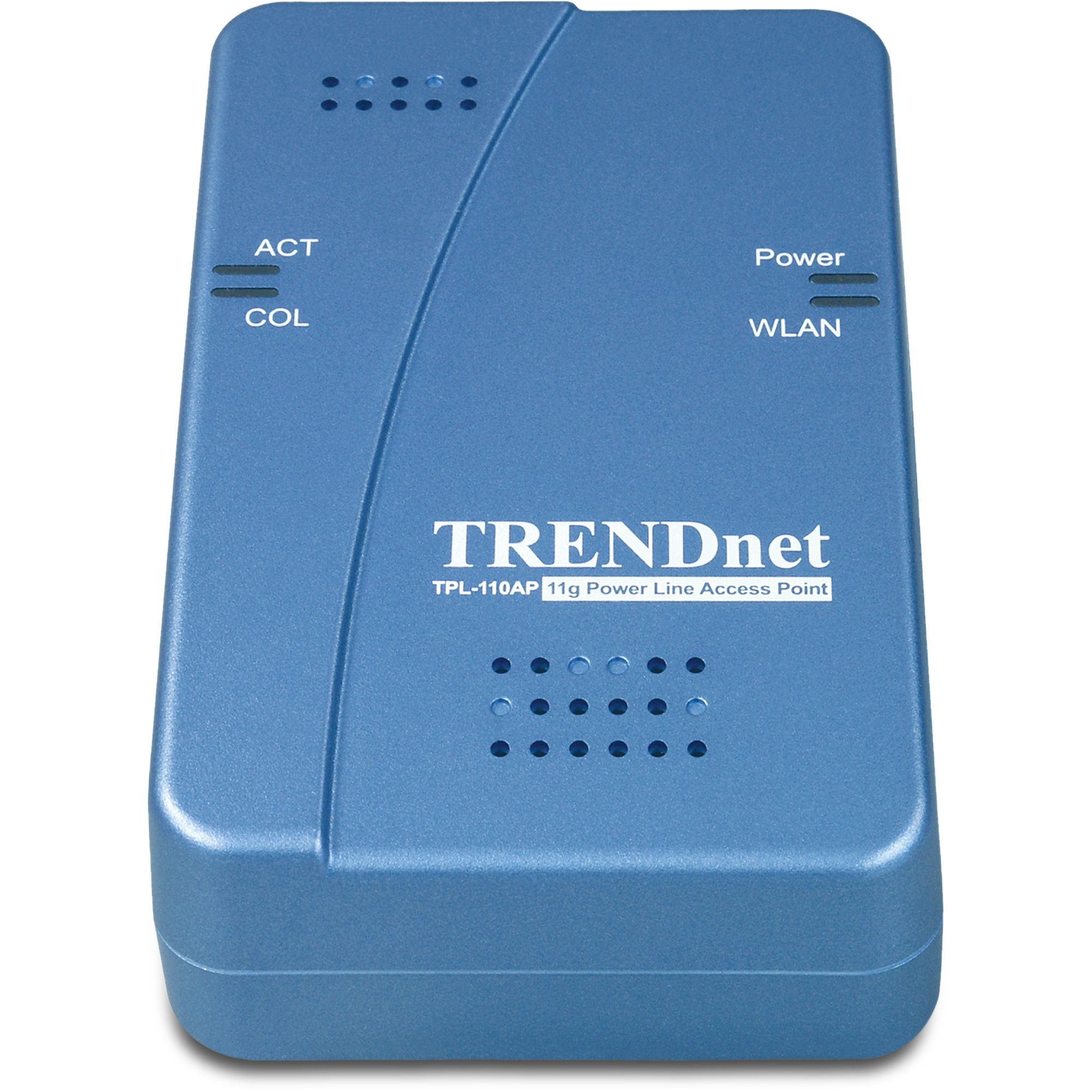

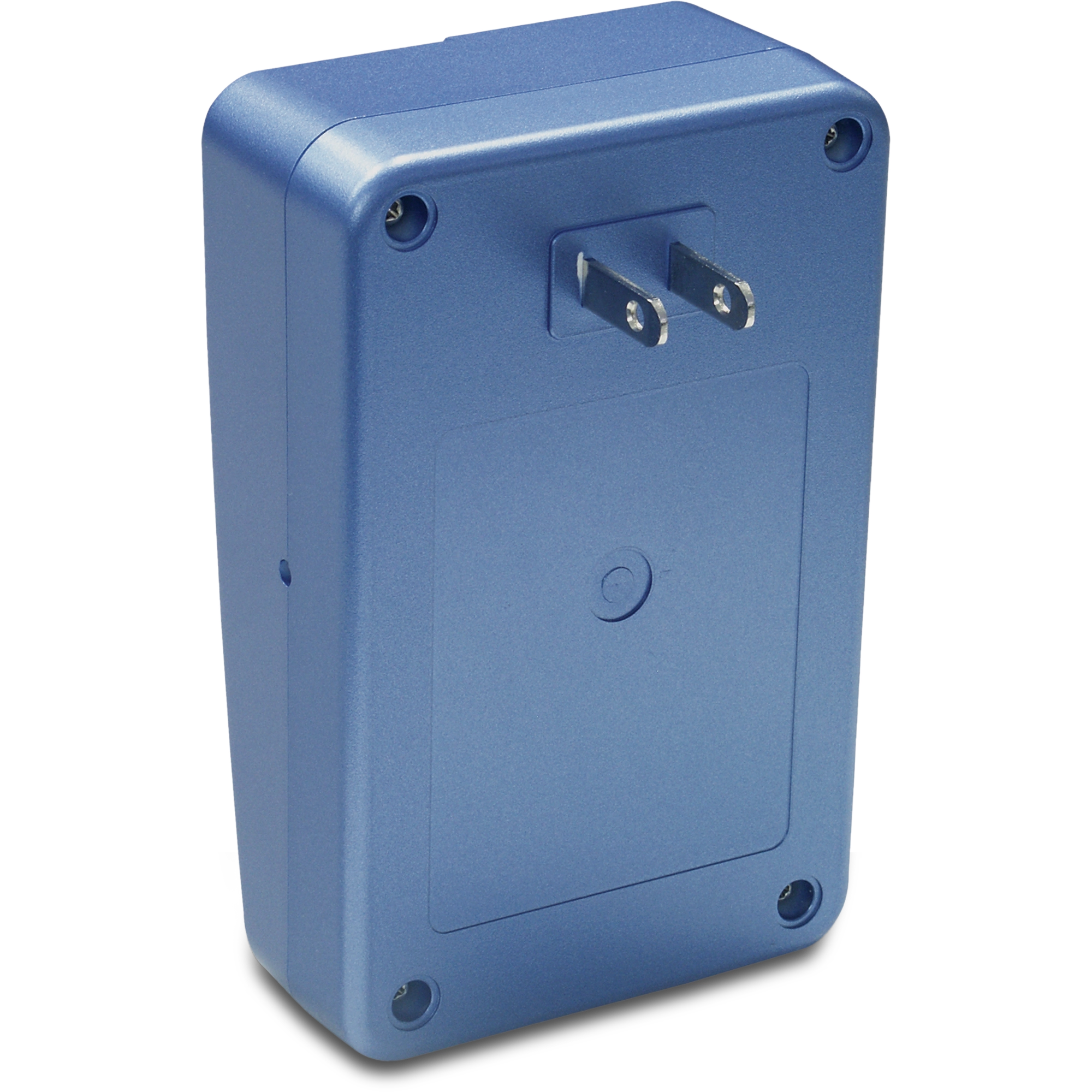

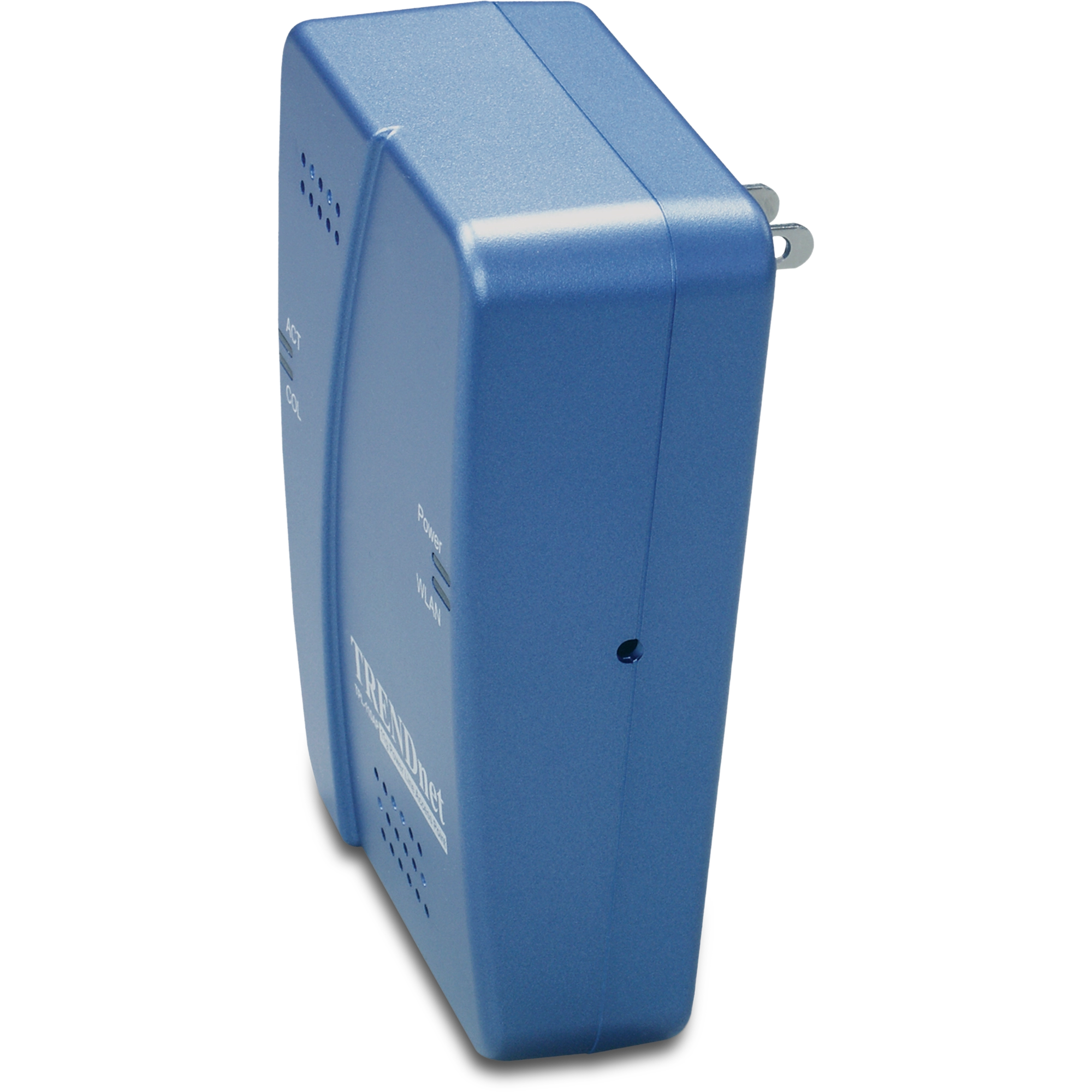

Product Images
| Specifications | |
| Hardware | |
| Standards | IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps) IEEE 802.1x, HomePlug Powerline Alliance Industry Specifications V1.0 |
|---|---|
| LED Indicators | Power, WLAN_TX/RX, HomePlug (Activity/Collision) |
| Network Protocols | TCP/IP, IPX, UDP |
| Power Source | Input: AC 120V, 0.1A, 50/60Hz |
| Dimensions (LxWxH) | 68 x 55 x 120 mm (2.7 x 2.2 x 4.7 inches) |
| Weight | 160g(5.64oz.) |
| Temperature | Operating: 0°~ 40°C (32°F~ 104°F) Storage: -20°~ 65°C (-4°F~ 149°F) |
| Humidity | Operating: 10% ~ 85% Storage: 5% ~ 90% |
| Certification | FCC, CE |
| Powerline | |
| Interface | Power Prongs |
| Data Rate | Up to 14Mbps Transfer Rate |
| Nodes | Support up to 12 nodes per Network |
| Security | 56-bit DES Encryption |
| Wireless | |
| Module Technique | 802.11b: DSSS 802.11g: OFDM |
| Frequency Range | 2.4 ~ 2.4835 GHz |
| Antenna | Built-in 2dBi Antenna |
| Data Rate (auto fallback) | 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps |
| Security | 64/128-bit WEP WPA and WPA-PSK (TKIP, AES, TIP+AES) 802.1x (Port-based Security with RADIUS) |
| Transmit Power | 13.5 ±1.5dBm (typical) |
| Receiving Sensitivity (802.11a/b/g) | 11Mbps 10 – 5 BER @ -80 dBm 54Mbps 10 – 5 BER @ -65 dBm |
| Channels | Universal Domain Support (Channel 1~14) |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
