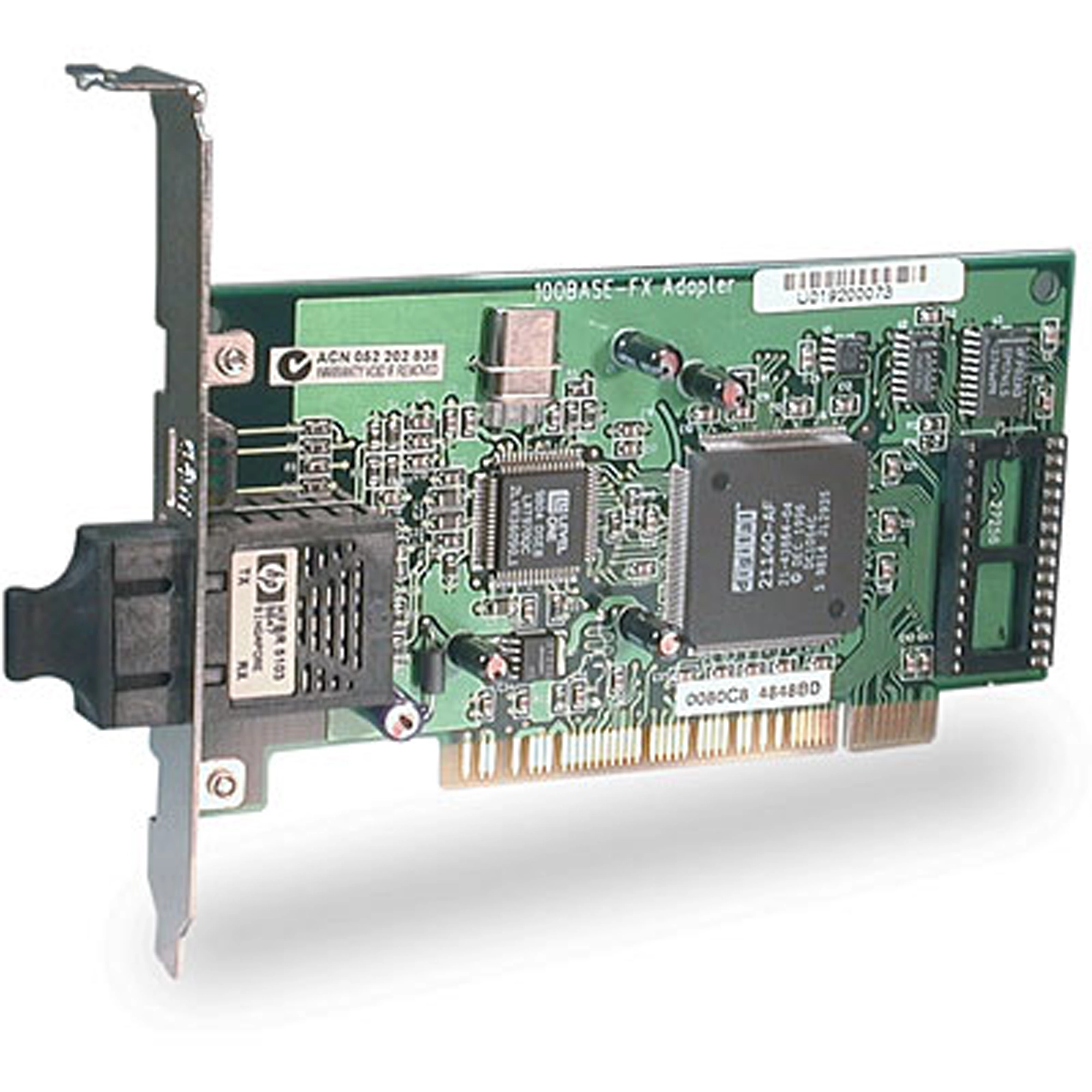

100Base-FX Fast Ethernet Adapter for PCI

TE100-PCIFX   (Version 1.0)

  • The perfect solution for connecting fiber optics through your desktop computer
  • Standard SC fiber connectors are used for easy and reliable connection
  • Enjoy a 5-year warranty for peace of mind

DISCONTINUED PRODUCT

The TE100-PCIFX (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Filename: Driver_TE100-PCIFX.zip
SHA-1 Checksum: 84C55C7341ED8C6E4FBD286E232E992173C9536D
Date: 7/25/2017
File Size: 329.33 KB
Download

Datasheet

Datasheet
NETBEUI installation notes
Filename: Spec_TE100-PCIFX.pdf
Date: 5/2/2013
File Size: 201.23 KB
Download Email
Hardware
Standards:
  • IEEE 802.3µ 100Base-FX
Data Transfer Rate:
  • 100Mbps (half-duplex) / 200Mbps (full-duplex)
Protocol:
  • CSMA/CD
Connectors:
  • Standard SC fiber connector
Diagnostic LEDs:
  • Full-duplex, Link, Activity, and Collision
Network Drivers:
  • Novell Netware 3.x/4.x, ODI driver, NetWare Client 32, Windows NT/95/98 Windows for Workgroups , IBM OS/2 Warp Server, and NDIS driver, and other major software
Power Consumption:
  • 4 Watts Max.
Dimensions:
  • 140 x 74 mm (5.52 x 2.92 inches)
Weight:
  • 76 g (0.17 lbs.)
Temperature:
  • Operating Temperature: 0° to 55° C
  • Storage Temperature: -20° to 80° C
Humidity:
  • 10 % to 90 % (non-condensing)
Certifications:
  • FCC Class B, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
