AC1200 Wi-Fi® Range Extender

TEW-822DRE (Version v1.0R)

Extends concurrent Wi-Fi® AC and N networks
AC1200: 867 Mbps Wi-Fi AC + 300 Mbps Wi-Fi N bands*
Extreme speeds for buffer-free 4K/3D/HD video streaming
Plugs directly into an electrical outlet
External antennas and high power amplifiers increase Wi-Fi coverage
Extender and Access Point modes
Gigabit wired port

DISCONTINUED PRODUCT

The TEW-822DRE (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's AC1200 Wi-Fi® Range Extender, model TEW-822DRE, offers extreme wireless coverage to eliminate existing wireless network dead spots. Setup takes minutes with no drivers to install and it stays out of the way by plugging directly into an outlet. Connect to either an existing Wi-Fi N or Wi-Fi AC router and extend concurrent Wi-Fi N and AC networks into an area with low or no wireless.

The illustration shows three people: a man on the left holding and looking at a tablet, a woman in the middle also using and looking at a tablet, and a woman on the right holding and looking at a smartphone.

Blasts Away Deadspots

High performance Wi-Fi® amplifiers and external antennas broadcast strong AC1200 Wi-Fi into areas with low or no coverage

Extreme Wi-Fi for All

All home Wi-Fi devices are supported by concurrent 867 Mbps Wi-Fi AC and 300 Mbps Wi-Fi N networks.

The illustration shows a boy on the left holding and looking at a tablet, a woman and a man in the middle using and looking at a laptop, and a girl on the right holding and looking at a smartphone.

Beamforming = Better

Beamforming increases real-time performance by directing stronger wireless signals to each device's specific location.

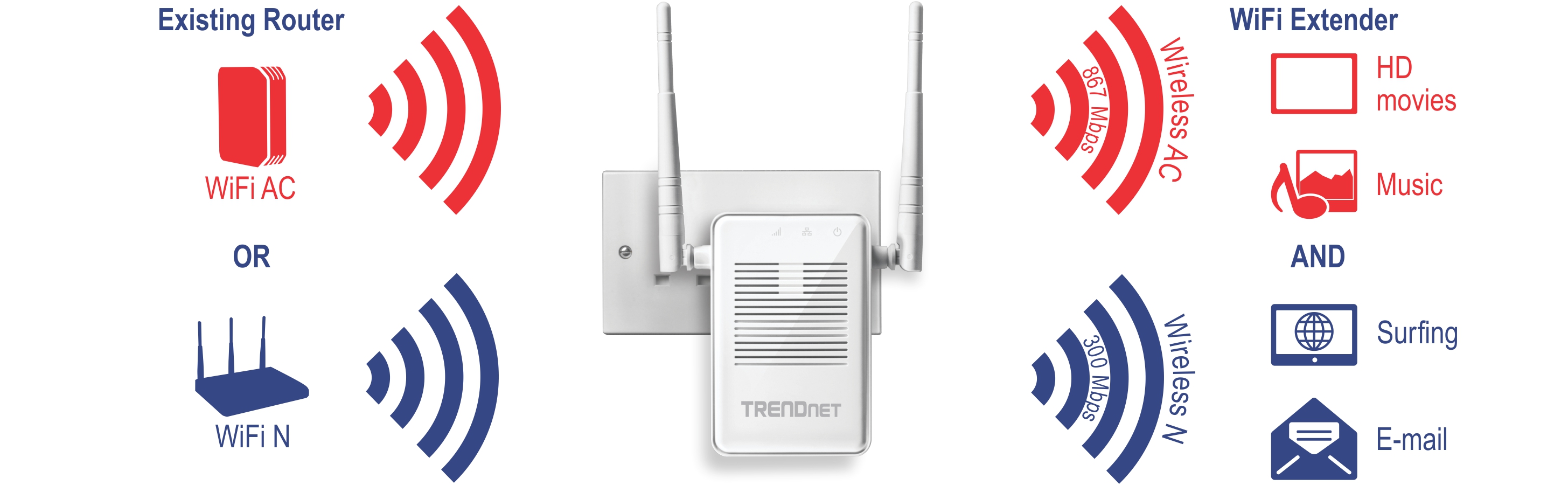

The graphic depicts a WiFi extender from TRENDnet plugged into an electrical outlet. On the left side, it shows that the existing router can be either WiFi AC or WiFi N. On the right side, it illustrates that the WiFi extender can extend the signal as Wireless AC with a speed of 867 Mbps, suitable for HD movies and music, or as Wireless N with a speed of 300 Mbps, suitable for surfing the internet and email.

Easy Setup

Quick intuitive setup connects to either a Wi-Fi® AC or Wi-Fi N network and adopts existing Wi-Fi settings

AC1200 Dual Band

Broadcasts concurrent high speed 867 Mbps Wi-Fi AC + 300 Mbps Wi-Fi N networks

Extreme Coverage

Adjustable external antennas, high power amplifiers, and multiple antenna technology produces extreme wireless coverage

Gigabit Port

Gigabit port extends a high performance connection to a wired device

No Clutter

The extender plugs directly into an outlet

Operating Modes

External switch toggles between Extender (connects to a Wi-Fi network) and Access Point (connects to a wired network) modes

Encrypted Wireless

Supports the latest encryption standards

Compatibility

Embedded GREENnet technology reduces power consumption

Targeted Beamforming

Increased real-time performance by directing stronger wireless signals to a device's specific location

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3az IEEE 802.11a IEEE 802.11ac (up to 867 Mbps) IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps)
Device Interfaces	Gigabit Ethernet port WPS Button AP/Extender/Off switch LED indicators Power plug A: North America Type B (NEMA 5–15) EU: Euro Type C (CEE 7/16) UK: United Kingdom Type G (BS 1363)
Operation Modes	Range Extender (Repeater) Access Point
Special Features	High power amplifier MIMO antenna technology Compact form factor IPv6 (Link local, Static, SLAAC/DHCPv6) Beamforming Multiple SSID DFS channels
SSID	Up to 4 additional SSIDs
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS MAC filter Wireless user number limitation
Frequency	FCC: 2.412 - 2.462 GHz, 5.180 - 5.240 GHz, 5.745 - 5.825 GHz ETSI: 2.412 - 2.472 GHz, 5.180 - 5.580 GHz, 5.660 - 5.700 GHz
Wireless Channels	2.4 GHz: FCC: 1-11; ETSI: 1-13 5 GHz: FCC: 36, 40, 44, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Modulation	BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
Antenna Gain	Dipole dual band antennae x 2 5G: 3 dBi 2.4G: 2 dBi
Wireless Output Power (EIRP)/Receiving Sensitivity	802.11a: FCC: 22 dBm (typical), CE: 20 dBm (typical)/-65 dBm (typical) @ 54 Mbps 802.11b: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-83 dBm (typical) @ 11 Mbps 802.11g: FCC: 27 dBm (typical), CE: 20 dBm (typical)/-65 dBm (typical) @ 54 Mbps 802.11n: FCC: 27 dBm (typical), CE: 20 dBm (typical)/-61 dBm (typical) @ 300 Mbps 802.11ac: FCC: 26 dBm (typical), CE: 20 dBm (typical)/-51 dBm (typical) @ 867 Mbps
Power	Input: 100 - 240 V AC, 50 /60 Hz Consumption: 8.3 Watts (Max.)
Operating Temperature	0 - 40 °C (32 – 104 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC UL IC
Dimensions	150 x 130 x 60 mm (5.9 x 5.1 x 2.4 in.)
Weight	265 g (9.3 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-822DRE
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)

*For maximum performance of up to 867 Mbps use with an 802.11ac wireless client. Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions
**Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
