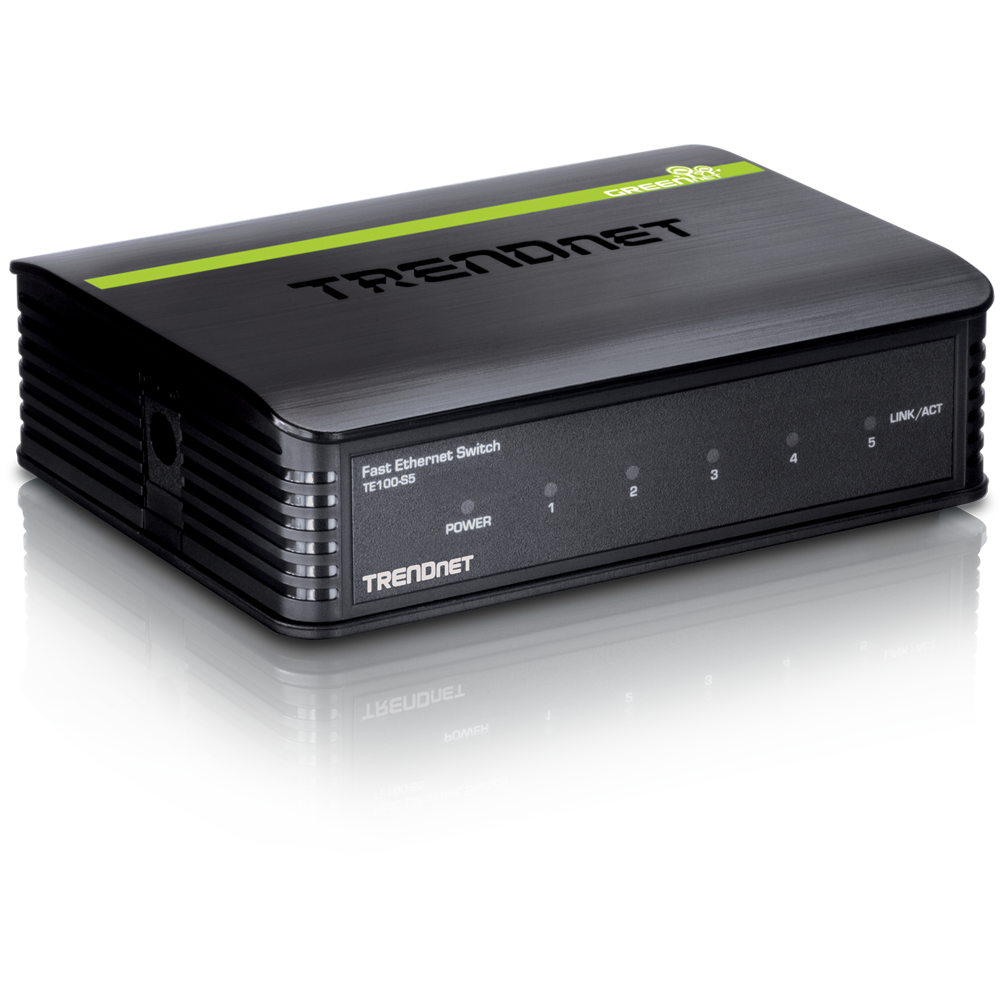

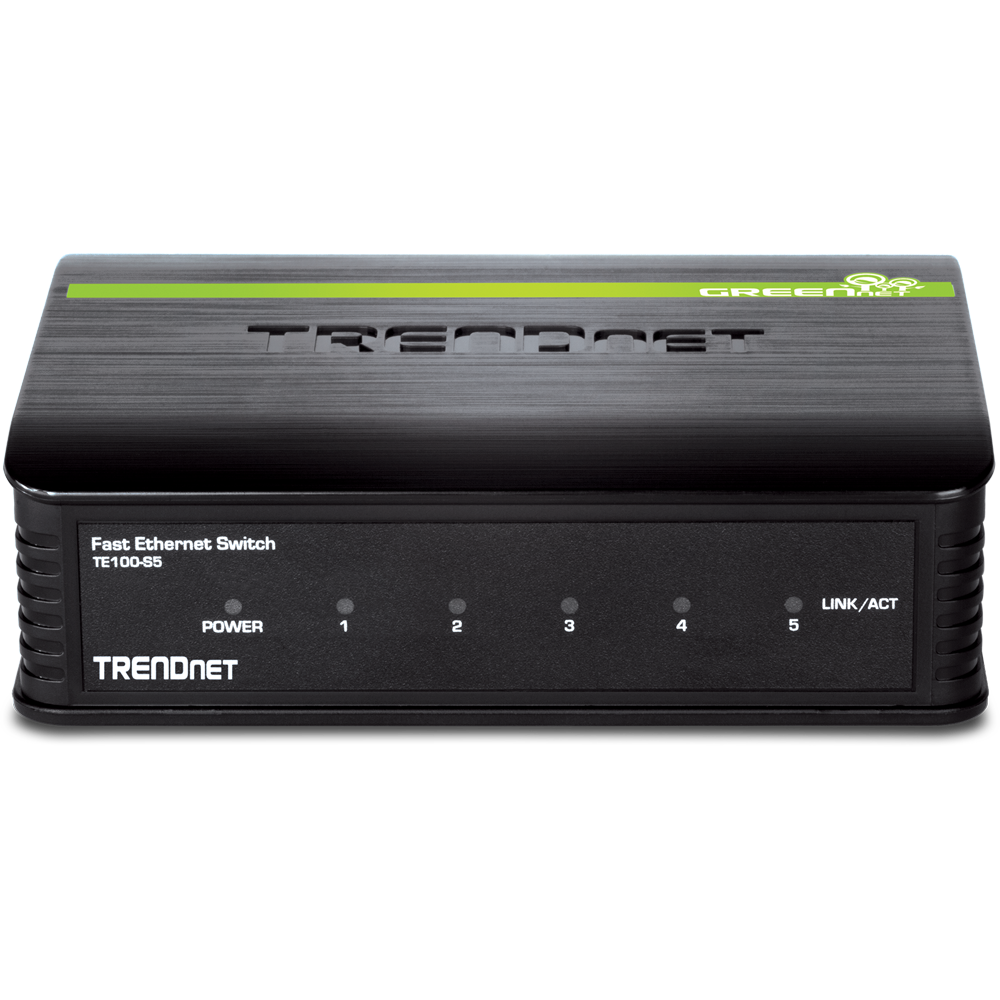

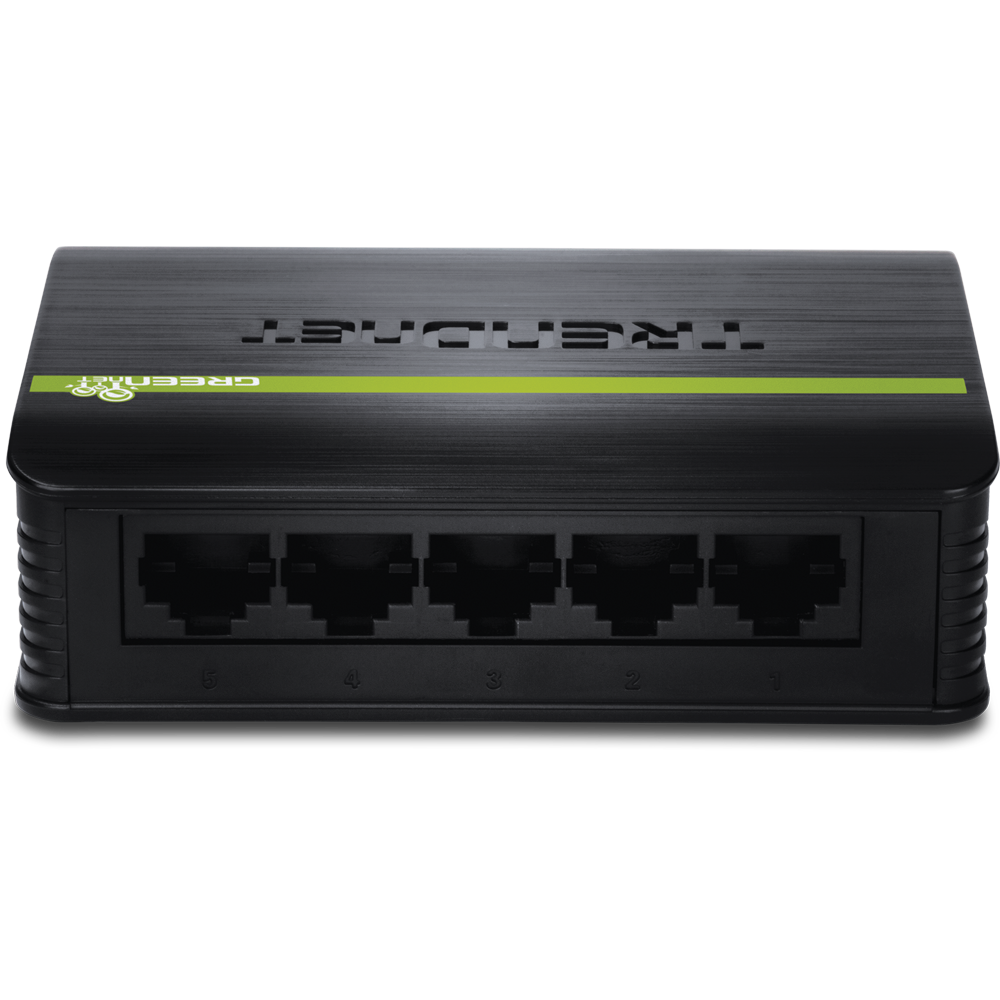

The compact 5-Port 10/100 Mbps GREENnet Switch, model TE100-S5, offers plug and play switching reliability and reduced power consumption. Embedded GREENnet technology reduced power consumption by up to 40% out of the box, with no management requirement. This switch offers speeds of up to 200 Mbps per port and total switching capacity of 1 Gbps.
Ease of Use
Plug and play out of the box
Compact design fits in a crowded desktop
Non-blocking wire-speed architecture
Up to 200 Mbps per port and total switching capacity of 1 Gbps
Power saving GREENnet technology reduces power consumption by up to 40%*
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Data RAM buffer: 56 KB
Switch fabric: 1 Gbps
MAC address table: 1K entries
Forwarding rate: 0.7 Mpps (64-byte packet size)
GREENnet energy saving technology
Input: 100 240 V, 50/60 Hz, 0.2 A
Output: 5 V DC, 0.6 A
Consumption: 1.1 Watts Max.
0 - 50 °C (32 - 122 °F)
Max. 90% non-condensing
97 x 75 x 28 mm (3.8 x 3 x 1.1 in.)
92 g (3.2 oz.)
3 year limited
Quick Installation Guide
Power adapter (5 V, 0.6 A)
* Max power savings compared with standard TRENDnet switches.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
