Industrial M12 Female 5-Pin Connector Electrical Cable, 2m (6.5 ft.)

TI-CP02 (Version V1)

  • M12 female 5-pin A-coded connector
  • IP67 weather rated
  • 2m (6.5 ft.) cable length
  • Compatible with TI-XPG50

TRENDnet’s Industrial M12 Female 5-Pin Connector Electrical Cable, model TI-CP02, is designed to connect an M12 A-coded compatible industrial rail switch. The M12 connector is specifically designed for moving bus, train, and other rolling stock applications.

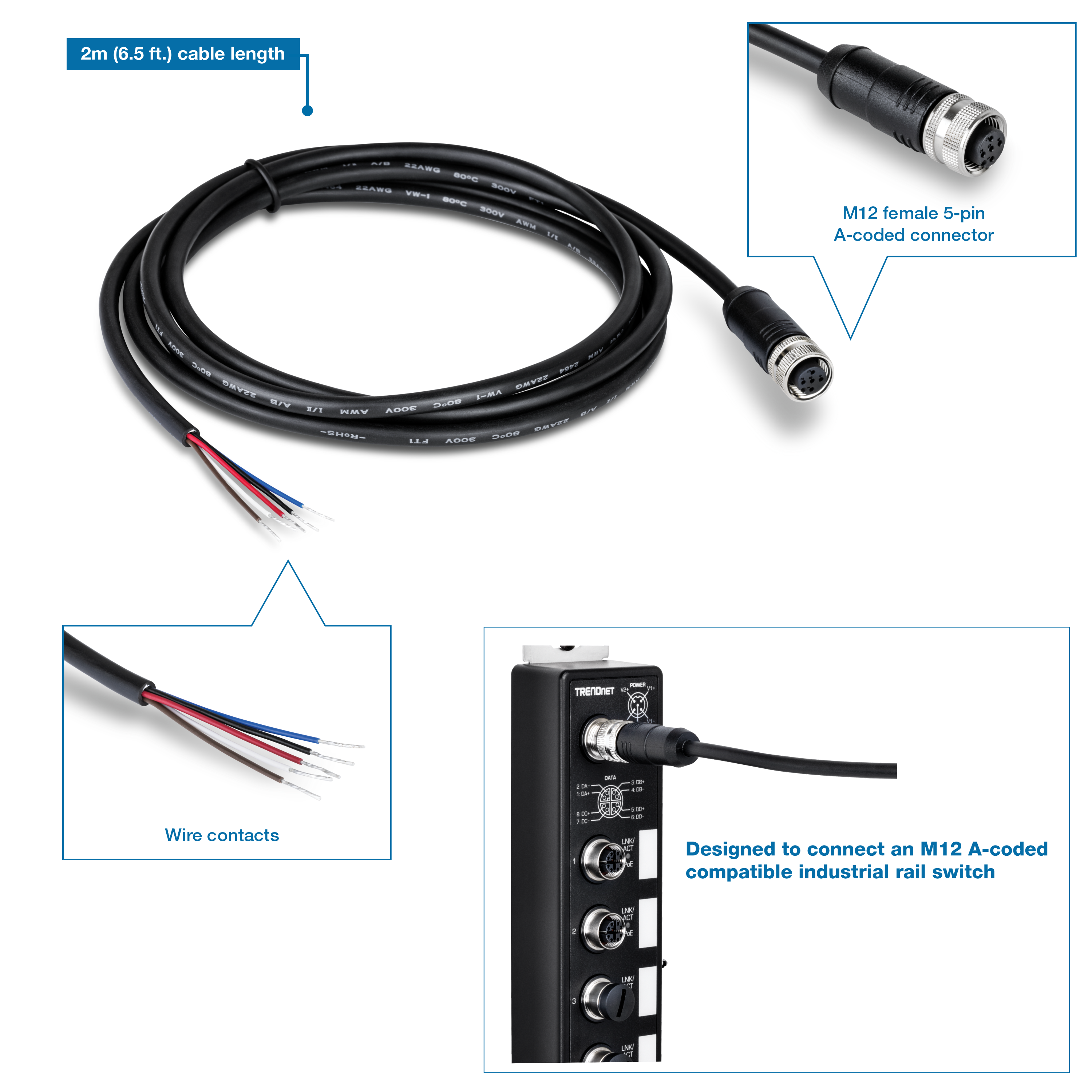

A rolled Industrial M12 Female 5-Pin Connector Electrical Cable with a length of 2m (6.5ft). One end features a zoomed-in view of the M12 female 5-pin A-coded connector cable interface, while the other end shows the wire contacts. The illustration also includes a view of an M12 railway switch, highlighting that the cable is designed to connect an M12 A-coded compatible industrial rail switch to the TRENDnet industrial M12 railway switch.

Cable Interface

M12 cable interface is designed to connect to an M12 A-coded industrial rail switch (such as TI-XPG50)

IP67 Rated

Rugged IP67 weather rated cable

Cable Length

2m (6.5 ft.) cable length

Interface
  • M12 female A-coded connector
Features
  • Max. contact resistance: 20Ω
  • Min. insulation resistance: DC 200V 10ms 10MΩ
  • IP67 rating protection
  • PVC jacket resists oil and other contaminants
Cable Pin Out
1. Brown
2. White
3. Blue
4. Black
5. Red
Operating Temperature
  • -25° – 80° C (-13° – 176° F)
Operating Humidity
  • Max. 90% non-condensing
Length
  • 2m (6.5 ft.)
Weight
  • 98g (3.5 oz.)
Warranty
  • 1 year

PACKAGE CONTENTS
  • TI-CP02

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
