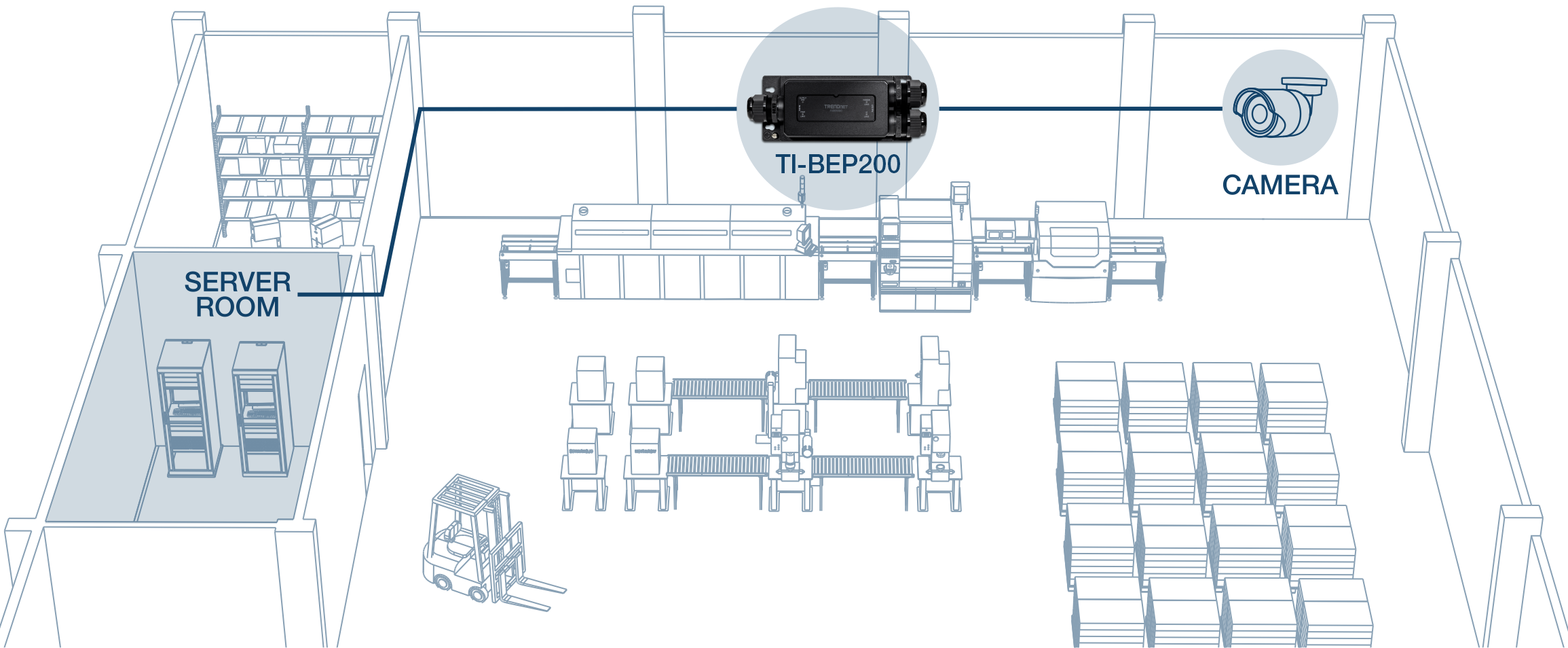

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, and one PoE+ and one Passive PoE output ports.
![](/images/products/keypoints/TI-BEP200/PoE_power.png)
PoE Power
Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices.
**
![](/images/products/keypoints/TI-BEP200/Gigabit_ports.png)
Gigabit Ports
Features one gigabit PoE++ input port and two gigabit PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices.
![](/images/products/keypoints/TI-BEP200/outdoor_rated.png)
Outdoor Rated
Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).
Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
|

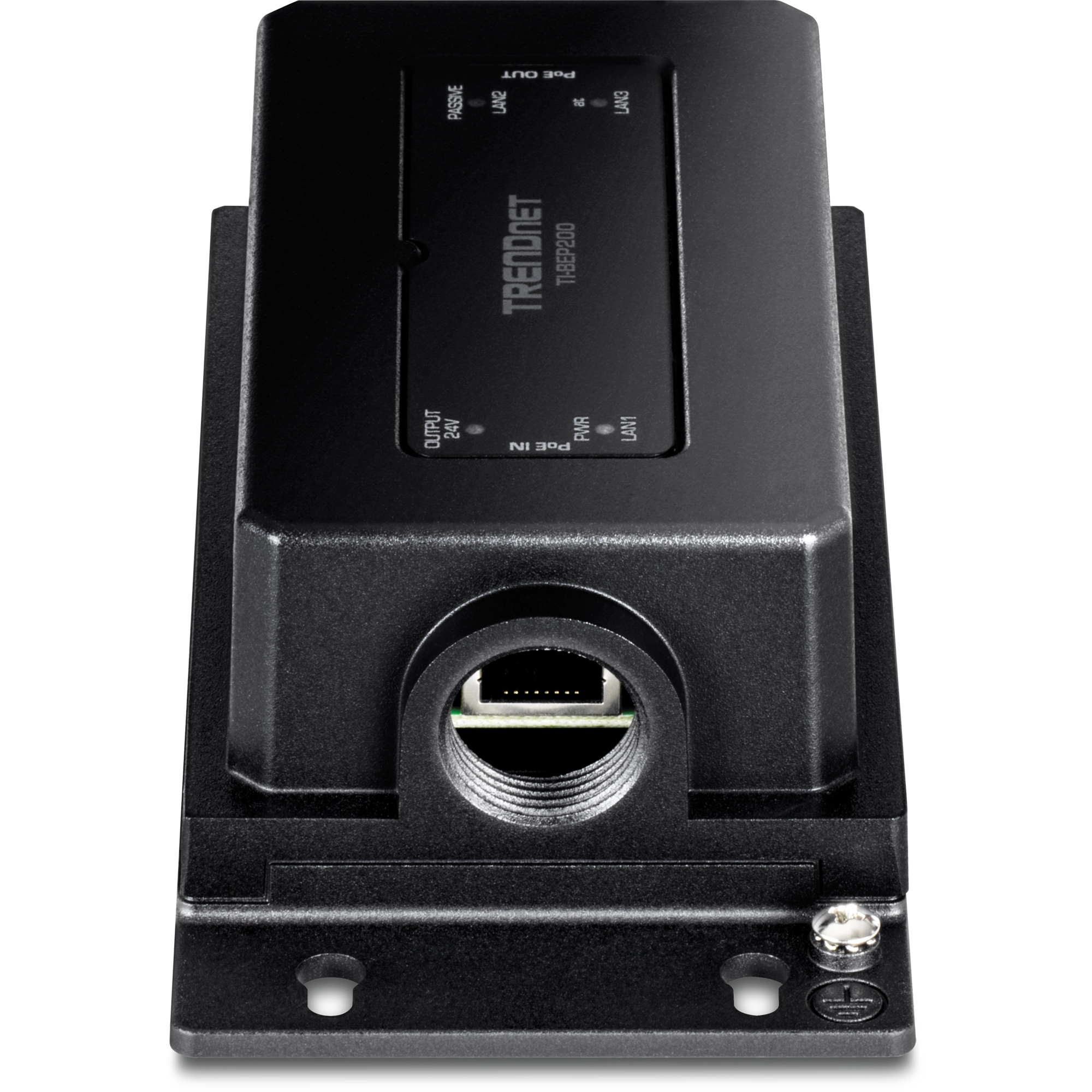

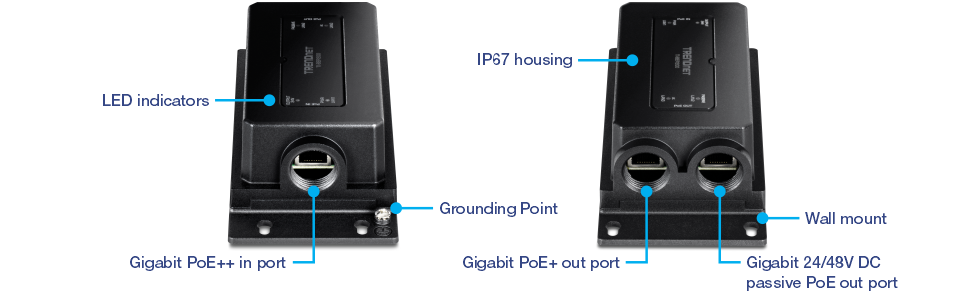

Device Interface | - 1 x Gigabit PoE++ in port

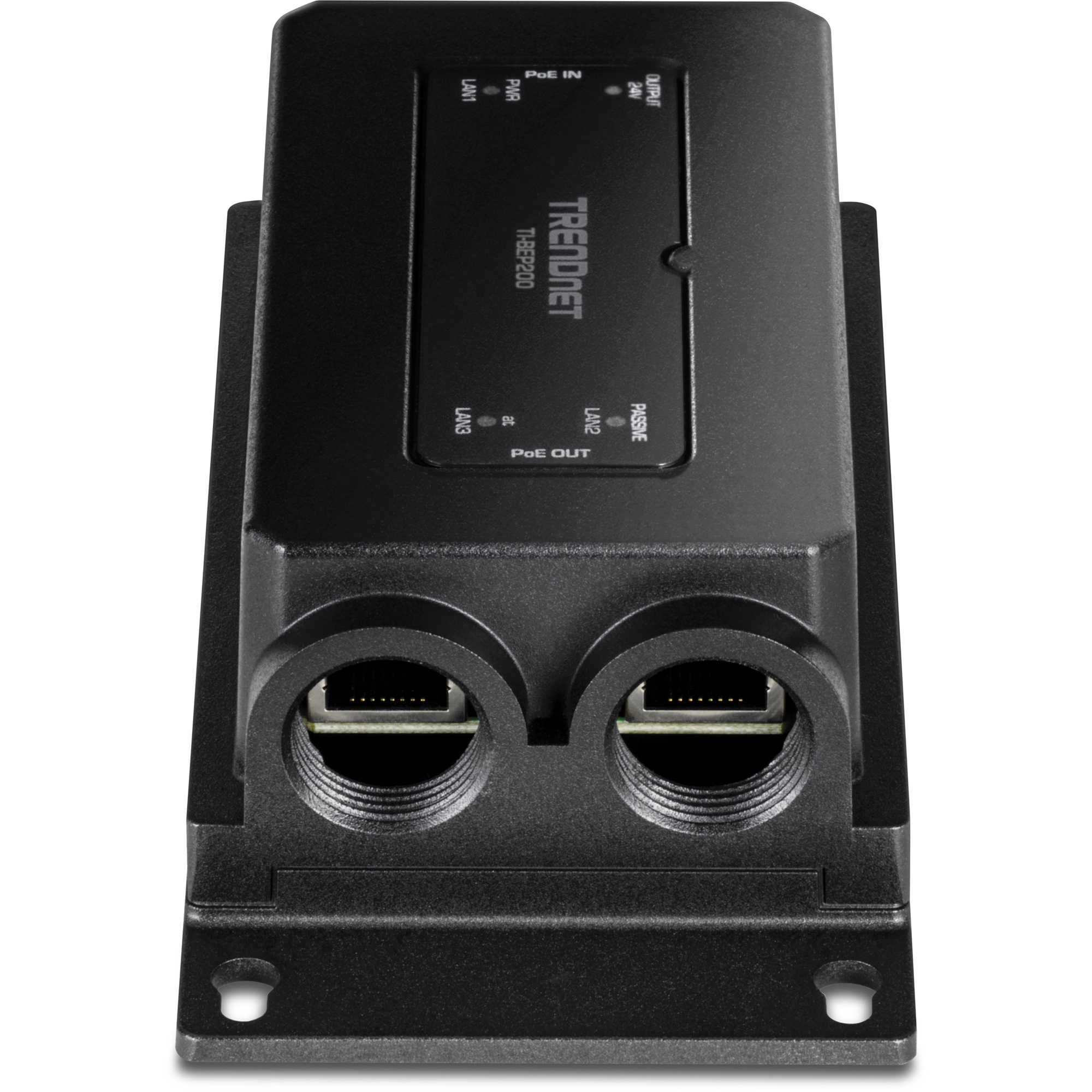

- 1 x Gigabit PoE+ out port
- 1 x Gigabit 24/48V DC passive PoE out port
- LED indicators
- Wall mount
- IP67 housing
|
Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
|
Performance | - RAM buffer: 1Mb
- MAC Address Table: 2K entries
- Jumbo Frame: 9KB
|
Special Features | - Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)
- Cascade up to 4 repeaters
|
Power | - Powered by PoE++ (60W – 90W) Device
- Max. consumption: 3.9W (without device connected)
|
PoE | - PoE budget: 60W
- PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)
|
PoE Power Output | PoE Input | Max PoE Output | 90W | 30W | 60W | 30W | 30W | 25W |
|
Single Port Daisy Chain | Daisy Chains From PSE | Max. PoE Output | 1 (up to 100m) | 90W Input: 30W | 60W Input: 30W | 30W Input: 25W | 2 (up to 200m) | 90W Input: 24W | 60W Input: 23W | 30W Input: 20W | 3 (up to 300m) | 90W Input: 15W | 60W Input: 16W | 30W Input: 15W | 4 (up to 400m) | 90W Input: 9W | 60W Input: 8W | 30W Input: 7W |
|
DIP Switch | - Adjust 24/48V DC passive voltage (default 48V DC)
|
Operating Temperature | - - 40° – 75° C (-40° – 167° F)
|
Operating Humidity | |
Dimensions | - 167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)
|
Weight | |
Certifications | - CE
- FCC
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 60068-2-27 (Shock)
- IEC 60068-2-32 (Free Fall)
- IEC 60068-2-6 (Vibration)
|
Warranty | |

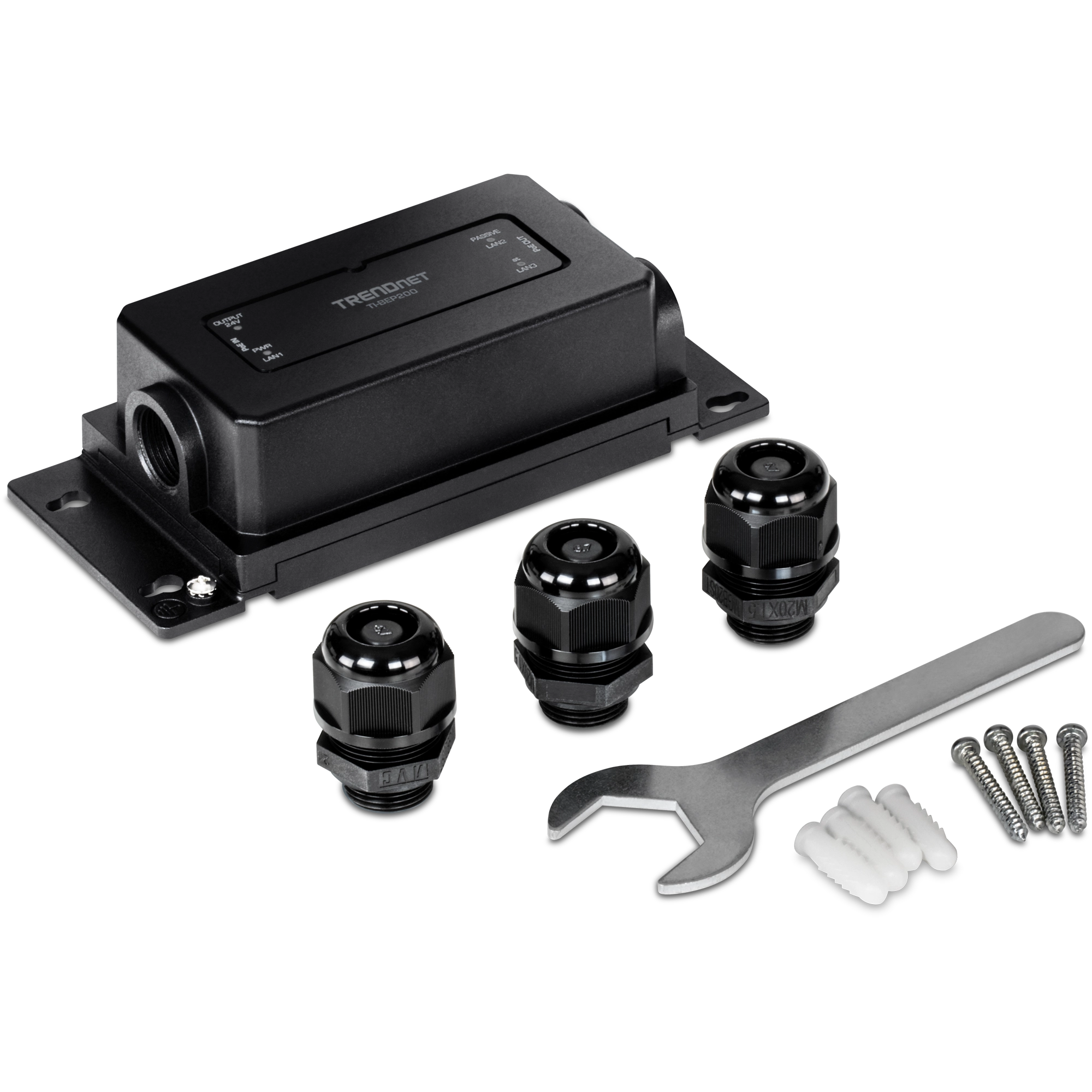

PACKAGE CONTENTS |
- TI-BEP200
- Quick Installation Guide
- 3 x IP67 weather rated cable glands
- Wrench
- Wall mount screws
|
* Each additional extender added to the daisy chain will decrease the overall available PoE budget.
** To obtain the maximum PoE budget of 60W, the PoE extender must be powered by a 90W PoE++ device.
