Micro Bluetooth® USB Adapter

TBW-106UB (Version v2.0R)

  • Class I Bluetooth® 4.0 with 100 meter (330 ft.) range
  • Up to 3 Mbps data transfer rate

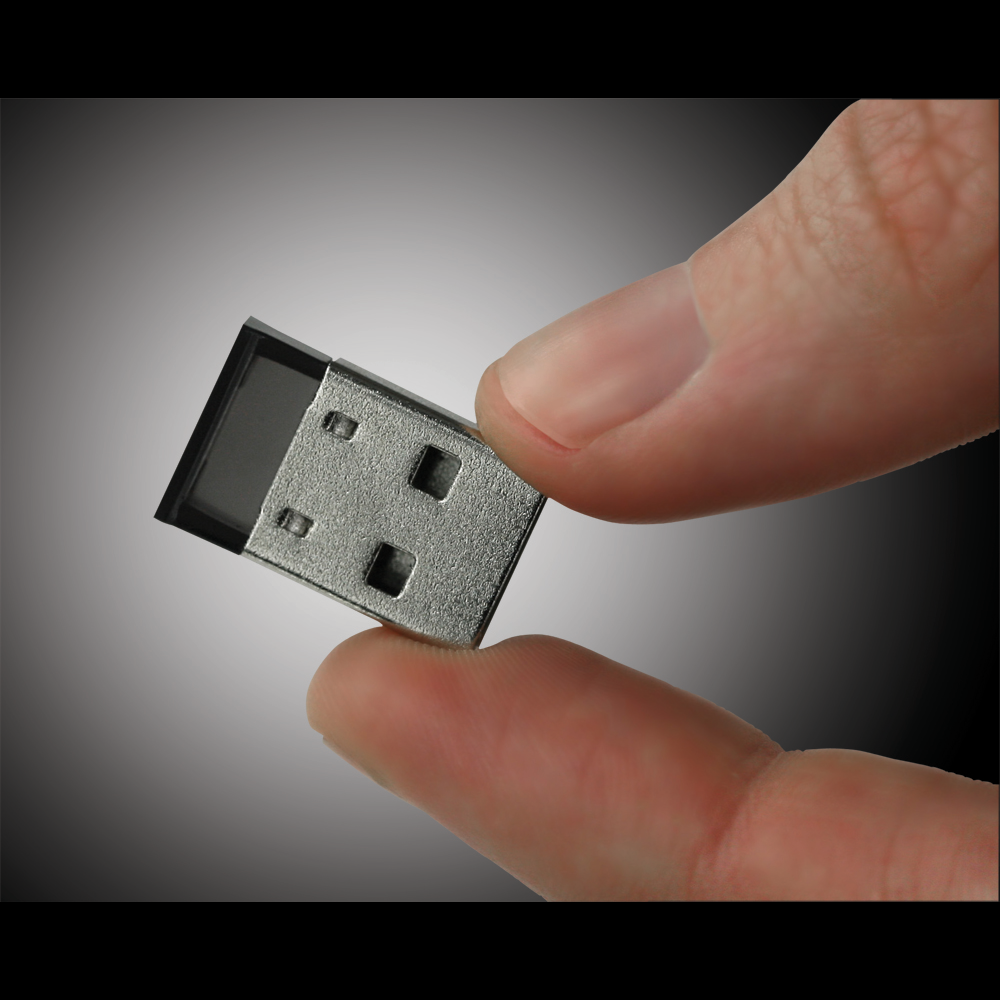

  • Slightly larger than a penny
  • Windows® compatible
  • Enhanced Data Rate (EDR) support improves performance
  • Stereo audio support
  • Bluetooth® Low Energy protocol

TRENDnet's Micro Bluetooth® USB Adapter, Model TBW-106UB, networks a Windows® computer to Bluetooth® devices such as keyboards, headsets, and mobile devices. Slightly larger than the size of a penny, experience exceptional Bluetooth® connectivity for distances of up to 100 m (330 ft.) with stereo audio support.

Compact

Slightly larger than a penny, leave this compact adapterplugged into a computer when on the go

Range

Networks Bluetooth® devices for distances of up to 100meters (330 ft.)

Transmission Speed

Up to 3 Mbps data transfer rate with Enhanced Data Rate(EDR) support

Energy Efficient

Bluetooth® Low Energy (BLE) protocol support

LED Indicator

LED indicator convey device status

Stereo Audio

Experience stereo audio with Advanced Audio DistributionProfile (A2DP) support

Intuitive Interface

Manage all of your Bluetooth® devices with the intuitiveWindows® software

Operating Systems

Compatible with Windows® operating systems

Bluetooth® Device Compatibility

Backward compatible with legacy Bluetooth® devices

Standards
  • Class I Bluetooth® 4.0 with EDR
  • Backwards compatible to Bluetooth® v1.1 devices
Hardware Interface
  • USB 2.0
  • LED indicator
Encryption
  • 128-bit AES (Advanced Encryption Standard)
Compatibility
  • Windows® 8.1, 8, 7, Vista, XP
Special Features
  • Bluetooth® Low Energy (BLE) and dual-mode support
  • Data rate up to 3 Mbps
  • Wireless range up to 100 meters (330 ft.)
  • Stereo audio support with Advanced Audio Distribution Profile (A2DP)
  • Support services: Personal Area Network, Dial-Up, Serial Port, File Transfer, Information Synchronization, Object Push, Print, Human Interface Device, Fax, Basic Imaging Service, advanced Audio Distribution (A2DP), Headset/Microphone, Phonebook, Messages
Wireless Output Power/Receiving Sensitivity
  • Output power: 20 dBm Max.
  • Receiving sensitivity: -84 dBm
Modulation
  • GFSK, π/4 DQPSK, 8DPSK
Power
  • USB bus powered
  • Consumption: 200 mA (Max.)
Operating Temperature
  • -10 – 50° C (14 – 122° F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 20 x 12 x 5 mm (0.8 x 0.5 x 0.2 in.)
Weight
  • 1.8 g (0.06 oz.)
Warranty
  • 2 year limited

PACKAGE CONTENTS
  • TBW-106UB
  • Multi-Language Quick Installation Guide
  • CD-ROM (Driver & User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
