1. Ensure that the telephone cord is securely connected at both modem and wall outlet. 2. Unplug the telephone cord from the computer and connect it directly to a telephone from the wall outlet. Check for a dial tone. If there is none, the problem is in the telephone cord or system. Call your telep...
Make sure the computer meets the minimum system requirements as shown at the beginning of this quick installation guide. Also try putting the modem into a different USB slot....
Hardware |
Standard | USB 2.0 USB 1.1 |

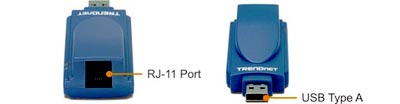

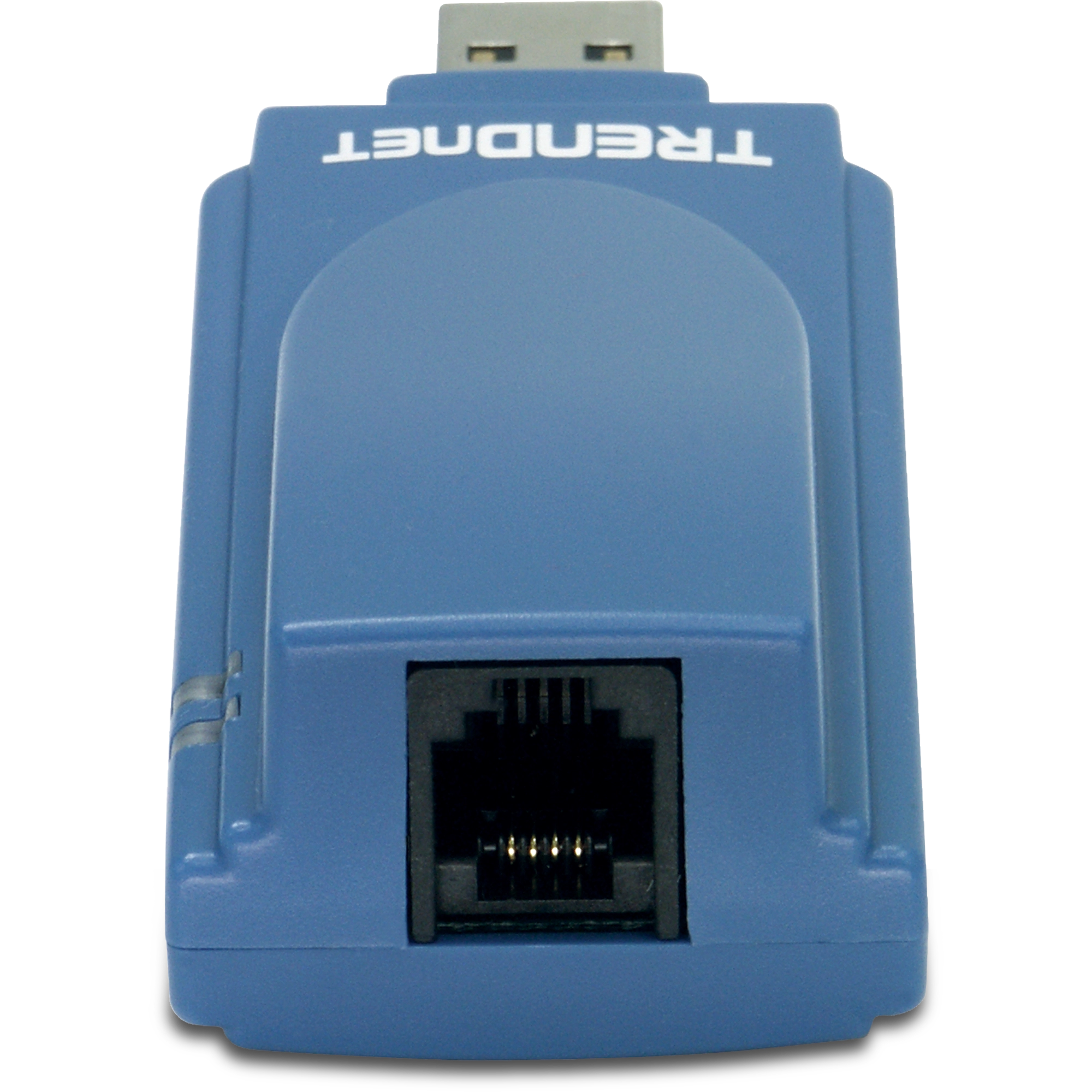

Interface | 1 x USB 2.0 /1.1 (Type A) 1 x RJ-11 Port (Phone Line) |
Data Mode | V.92& V.90, V.34, V.32(bis), V.22(bis), V.22, V.23, V.21, Bell 212A, Bell 103 |
Error Correction | V.42, LAPM & MNP 2-4 |
Data Compression | V.44, V.42(bis) & MNP5 |
Fax Mode | ITU-T V.17, V.29, V.27ter and V.21 ch2, ITU-T T.31 Class1 Fax |
Power Management | USB Bus-Powered |
Power Consumption (Input 3.3VDC) | Idle Mode: 65mW Operating Mode: 134mW |
Dimensions | 100 x 35 x 23mm (3.94 x 1.38 x 0.91in.) |
Weight | 25g (0.88oz.) |
Temperature | Operating: 0°C~ 40°C (32°F~ 104°F) Storage: -20°C~ 60°C (-4°F~140°F) |
Humidity | 10%~90% (non-condensing) |
Certifications | FCC, CE |
Functions |
Supported OS | Windows 98SE/ME/2000/XP(32/64-bit)/2003 Server/Vista(32/64-bit)/Windows 7 (32/64-bit) |
Voice Function | - TAM (USA) Support with Concurrent DTMF Detect, Ring Detect
- 8-Bit u– Law/A-Law (G711) Coding
- 8000 Hz Sample Rate
|
Video Phone Ready | - V.80 sync Access mode Supports Host-Controlled Communication Protocol
- H.324 interface Support
|
Multiple Country | Call Progress, Blacklisting Support |
Miscellaneous | - Data/Fax/Voice Call Discrimination
- Single Profile Stored in Host
- Modem and audio paths
- DTMF
|
PACKAGE CONTENTS |
- TFM-560U
- Multi-Language QIG
- Driver CD-ROM
- RJ-11 Telephone Cable
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
