N600 Dual Band Access Point

TEW-750DAP (Version v1.0R)

  • Concurrent 300 Mbps Dual Band Wireless N
  • Access Point (AP), WDS Bridge, and AP + WDS, Repeater, and Client Bridge modes
  • 4 x 10/100 Mbps LAN ports
  • Connect computers with one-touch Wi-Fi Protected Setup (WPS)

TRENDnet’s N600 Dual Band Wireless Access Point, model TEW-750DAP, supports Access Point (AP), Wireless Distribution System (WDS) Bridge, AP + WDS, Repeater, and Client Bridge mode functionality. A convenient wireless scan feature streamlines the WDS setup process. Embedded GREEN-net technology reduces power consumption by up to 50%. Multiple SSIDs are supported for each band.


Ease of Use
Multi-Mode Support
Supports Access Point (AP), WDS Bridge, and WDS Bridge + Access Point, Repeater, and Client Bridge modes
WDS Wireless Scan
Wireless Scan support for WDS setup automatically populates MAC address
One Touch Connection
Connect to the wireless network at the touch of the Wi-Fi Protected Setup (WPS) button
Multi Language
Multi Language Interface: English, Spanish, French, German, and Russian
Logs
Real time logs and statistics help trouble shooting
Encryption
Encrypted Wireless
Support for wireless encryption of up to WPA2
Multiple SSIDs
Create multiple SSIDs per wireless band
Performance
N600 Wireless
Proven concurrent dual band 300 Mbps Wireless N
Wireless Coverage
Extended wireless coverage with MIMO antenna technology
Compatibility
Compatible with legacy wireless devices
Energy Savings
Embedded GREENnet technology reduces power consumption by up to 50%
IPv6
IPv6 network support

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cov-erage will vary depending on interference, network traffic, building materials and other conditions

  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (dual band up to 300 Mbps)

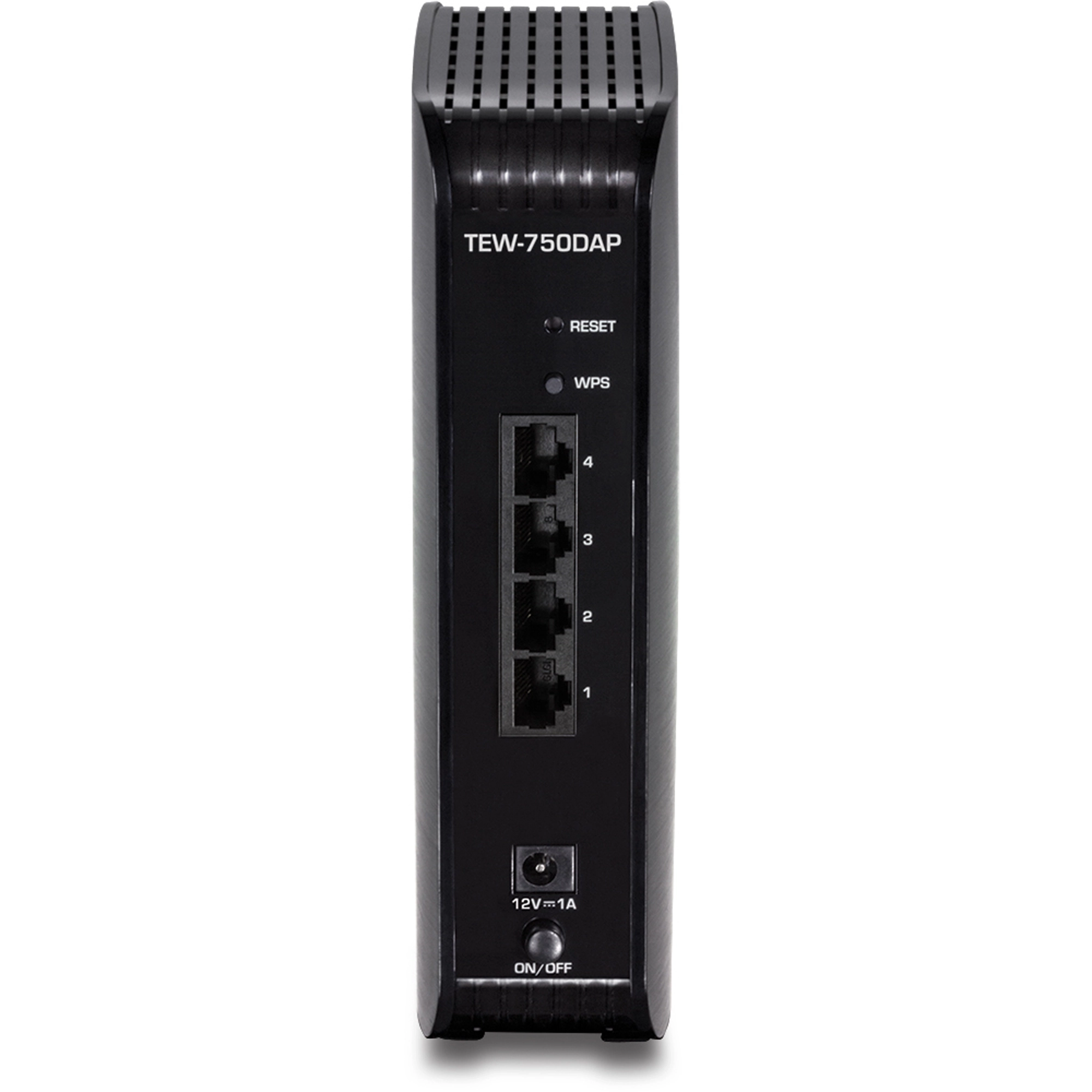

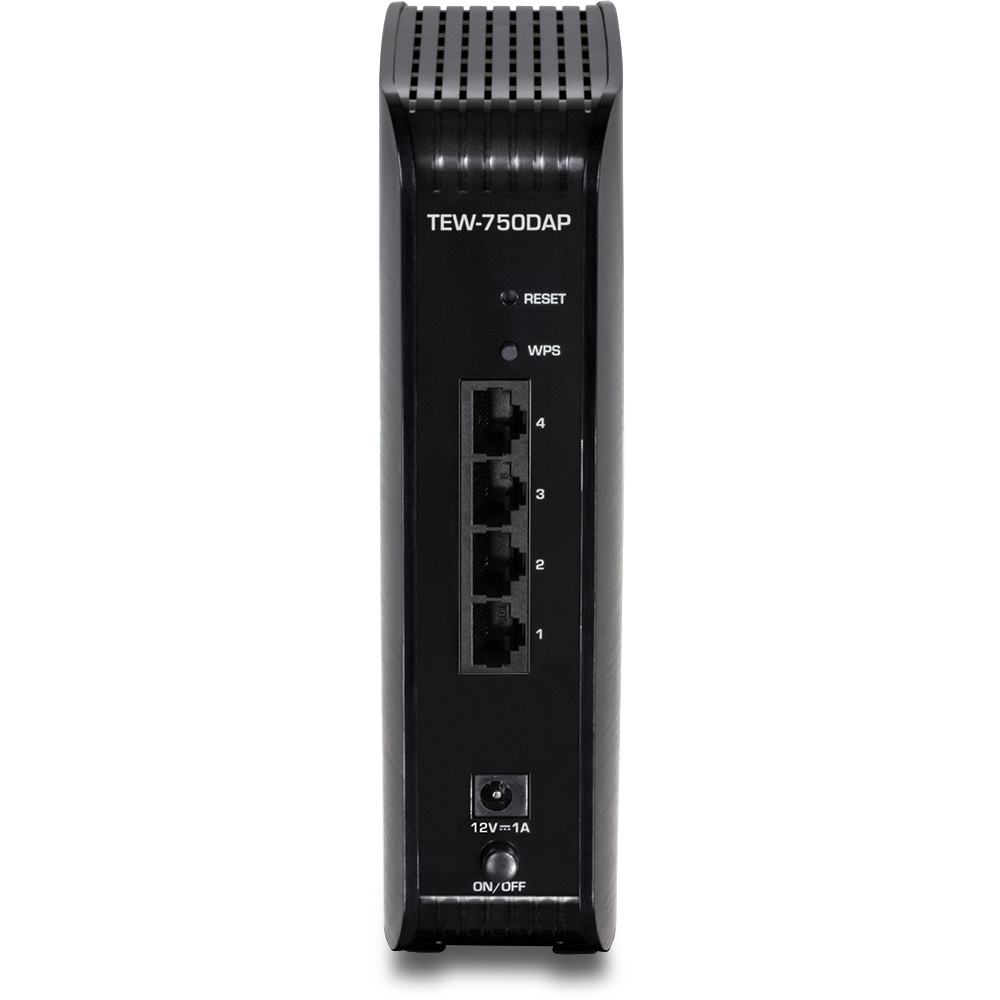

  • Device Interface
  • 4 x 10/100 Mbps LAN ports
  • Power switch
  • WPS button
  • LED indicators
  • Encryption
  • Wireless encryption up to WPA2
  • Special Features
  • AP, WDS, AP + WDS, Repeater, and Client Bridge modes
  • Four LAN ports
  • IPv6 support
  • Energy saving GREENnet technology
  • Multiple SSID support per band
  • Antenna Gain
  • 2.4 GHz: 2 x 1.5 dBi internal PIFA/5 GHz: 2 x 4 dBi internal PIFA
  • Wireless Output Power/Receiving Sensitivity
  • 802.11a: 15 dBm (typical)/-65 dBm (typical) @ 54 Mbps
  • 802.11b: 18 dBm (typical)/-76 dBm (typical) @ 11 Mbps
  • 802.11g: 15 dBm (typical)/-65 dBm (typical) @ 54 Mbps
  • 802.11n: 15 dBm (typical)/-61 dBm (typical) @ 300 Mbps (for 2.4 GHz & 5 GHz)
  • Power
  • Input: 100 - 240 V AC, 50 - 60 Hz, 0.4 A
  • Output: 12 V DC, 1 A
  • Consumption: 10.1 Watts (max.)
  • Operating Temperature
  • 0 - 40°C (32 - 104°F)
  • Operating Humidity
  • Max. 95% non-condensing
  • Certifications
  • CE
  • FCC
  • Dimensions
  • 45 x 118 x 164 mm (1.8 x 4.6 x 6.5 in.)
  • Weight
  • 238 g (8.4 oz)
  • Warranty
  • 3 year limited


Package Contents

  • TEW-750DAP
  • Multi-language Quick Installation Guide
  • CD-ROM (User’s Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V, 1 A)
